Toyota Hiace KDH202 SHIFT LEVER & RETAINER

Manufacturers Home
Toyota
US
HIACE
KDH202R-REMDY (2005)
3312 - SHIFT LEVER & RETAINER

KDH202R-REMDY (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0501-0709)5F

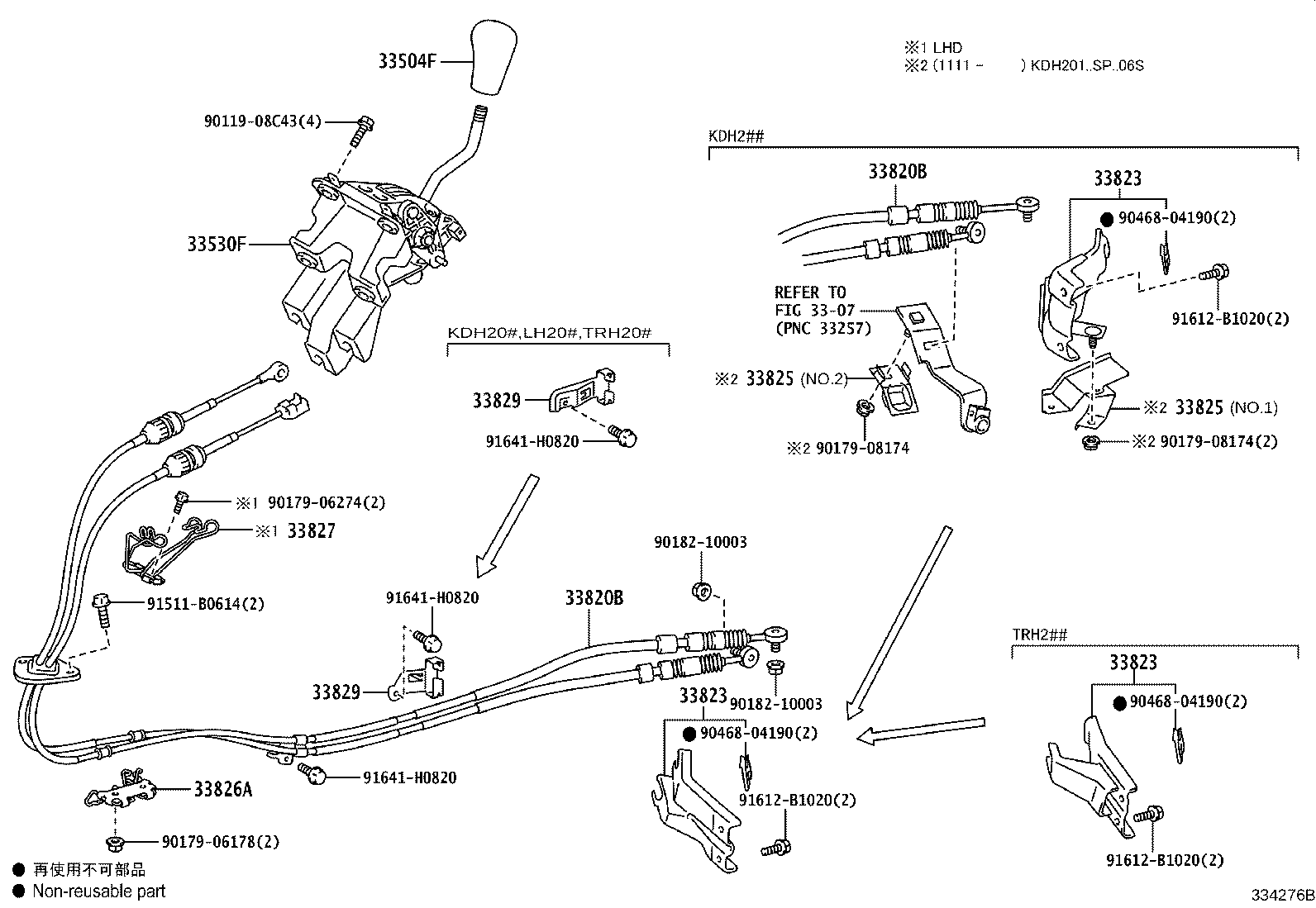

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12180B7	KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F DK.GRAY,TRIM1#	01/2005 - 02/2014	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-26220	KDH20#,212,22#,TRH201,203,213,22#..RHD..5F	01/2005 - 02/2014	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-26300	KDH20#..RHD..5F	01/2005 - 12/2006	1
33820-26301	KDH20#..RHD..5F	01/2007 - 08/2007	1
33820-26302	KDH202..GL;KDH20#..RHD..5F..(ARL,GEN,MA,SA)	09/2007 - 05/2012	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-26300	KDH20#..RHD..5F	01/2005 - 12/2006	1
33820-26301	KDH20#..RHD..5F	01/2007 - 08/2007	1
33820-26302	KDH202..GL;KDH20#..RHD..5F..(ARL,GEN,MA,SA)	09/2007 - 05/2012	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33804-26010	KDH20#,212,22#..5F	01/2005 - 09/2007	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33804-26010	KDH20#,212,22#..5F	01/2005 - 09/2007	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33804-26010	KDH20#,212,22#..5F	01/2005 - 09/2007	1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-26050	KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F	01/2005 - 02/2014	1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-26090	KDH20#,LH20#,TRH20#..5F	01/2005 - 09/2006	1
33829-26091	KDH20#,LH20#,TRH201,203..5F	10/2006 - 12/2999	1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-26090	KDH20#,LH20#,TRH20#..5F	01/2005 - 09/2006	1
33829-26091	KDH20#,LH20#,TRH201,203..5F	10/2006 - 12/2999	1
Common parts
90119-08C43
90179-06178
90179-06274
90182-10003
90468-04190
91511-B0614
91612-B1020
91641-H0820

(0709- )5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12180B7	KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F DK.GRAY,TRIM1#	01/2005 - 02/2014	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-26220	KDH20#,212,22#,TRH201,203,213,22#..RHD..5F	01/2005 - 02/2014	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-26300	KDH20#..RHD..5F	01/2005 - 12/2006	1
33820-26301	KDH20#..RHD..5F	01/2007 - 08/2007	1
33820-26302	KDH202..GL;KDH20#..RHD..5F..(ARL,GEN,MA,SA)	09/2007 - 05/2012	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-26300	KDH20#..RHD..5F	01/2005 - 12/2006	1
33820-26301	KDH20#..RHD..5F	01/2007 - 08/2007	1
33820-26302	KDH202..GL;KDH20#..RHD..5F..(ARL,GEN,MA,SA)	09/2007 - 05/2012	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33804-26010	KDH20#,212,22#..5F	01/2005 - 09/2007	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33804-26010	KDH20#,212,22#..5F	01/2005 - 09/2007	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33804-26010	KDH20#,212,22#..5F	01/2005 - 09/2007	1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-26050	KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F	01/2005 - 02/2014	1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-26090	KDH20#,LH20#,TRH20#..5F	01/2005 - 09/2006	1
33829-26091	KDH20#,LH20#,TRH201,203..5F	10/2006 - 12/2999	1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-26090	KDH20#,LH20#,TRH20#..5F	01/2005 - 09/2006	1
33829-26091	KDH20#,LH20#,TRH201,203..5F	10/2006 - 12/2999	1
Common parts
90119-08C43
90179-06178
90179-06274
90179-08174
90182-10003
90468-04190
91511-B0614
91612-B1020
91641-H0820
Linked diagrams
3307

KDH202R-REMDY (2005)

(0501-0709)5F

(0709- )5F
