KDH202R-REMDY (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )2KDFTV

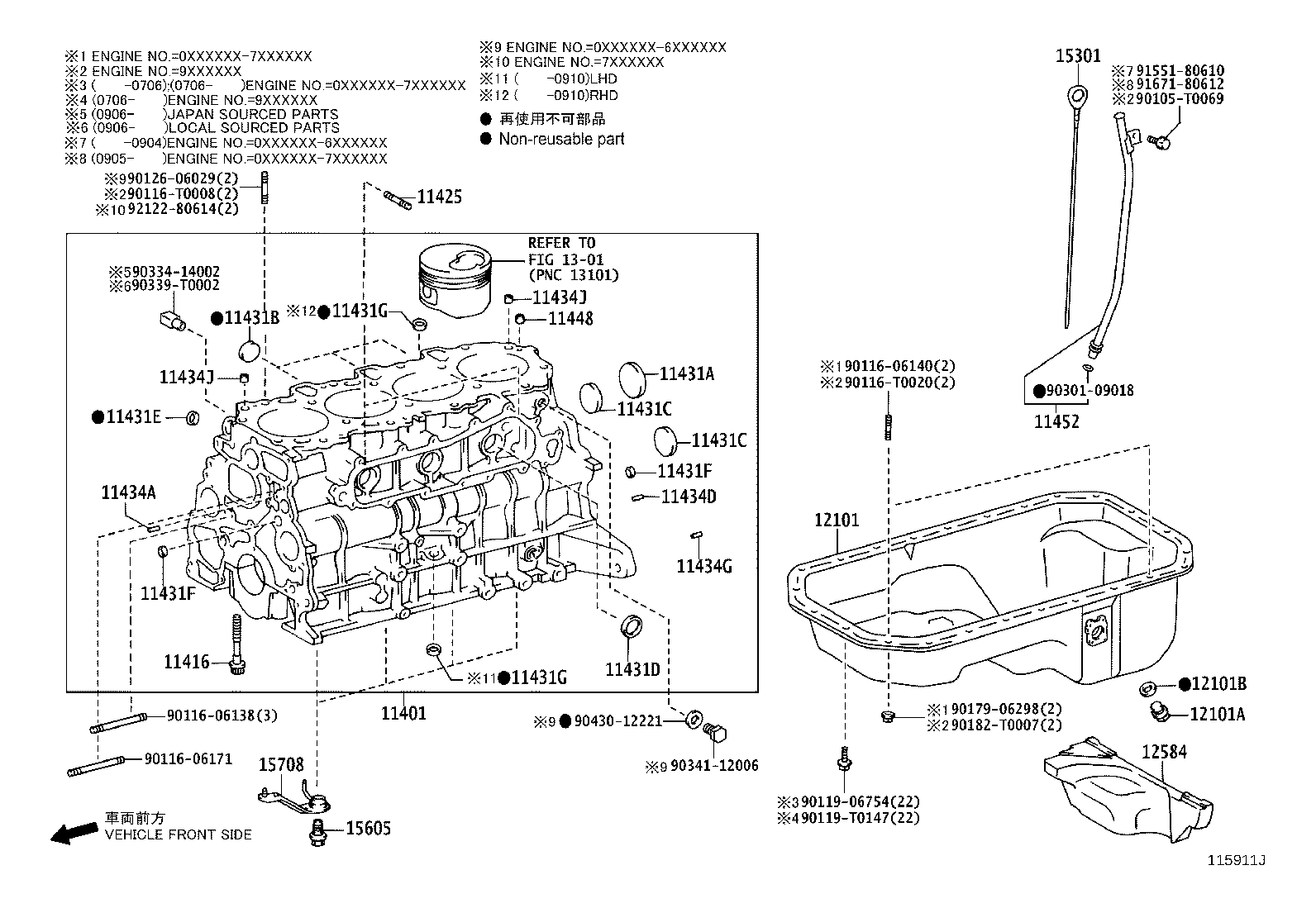

Click highlighted areas on diagram

diagram 11401 11416 11425 11431A 11431B 11431C 11431C 11431D 11431E 11431F 11431F 11431G 11431G 11434A 11434D 11434G 11434J 11434J 11448 11452 12101 12101A 12101B 12584 1301 15301 15605 15708 90105T0069 9011606138 9011606140 9011606171 90116T0008 90116T0020 9011906754 90119T0147 9012606029 9017906298 90182T0007 9030109018 9033414002 90339T0002 9034112006 9043012221 9155180610 9167180612 9212280614
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-39745

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02113

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 10
11425 - BOLT, STUD(FOR OIL FILTER)
90116-06171

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-64500

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63500

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 2
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 2
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90331-35004

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 3
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-62000

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 1
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
96411-61800

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 2
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
96411-61800

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 2
11431G - PLUG, TIGHT
90331-14006

2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..(GCC,GEN,SA,TH)

 1
11431G - PLUG, TIGHT
90331-14006

2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..(GCC,GEN,SA,TH)

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

L=18,OD=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

L=11,OD=6

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10192

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-67010

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 1
11452 - GUIDE, OIL LEVEL GAGE
11409-30010

2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA

 1
12101 - PAN SUB-ASSY, OIL
12101-67092

1KDFTV,2KDFTV..KDH20#,212,22#

 1
12101-30120

2KDFTV..KDH222..GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 1
12584 - INSULATOR, CYLINDER BROCK, NO.4
12584-67030

1KDFTV,2KDFTV..KDH20#,212,22#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-30050

2KDFTV..KDH200,202,212,220;1KDFTV,2KDFTV..KDH221,222..4D..(ARL,GCC,GEN,SA)

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-17030

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH221,222..4D..(ARL,GCC,GEN,SA);2KDFTV..KDH200,212,220..(03S,06S,10S,11S,15S)..(ARL,GCC,GEN,SA,TH)

 4
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-30011

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
Common parts
90105-T0069
90116-06138
90116-06140
90116-06171
90116-T0008
90116-T0020
90119-06754
90119-T0147
90126-06029
90179-06298
90182-T0007
90301-09018
90334-14002
90339-T0002
90341-12006
90430-12221
91551-80610
91671-80612
92122-80614
Linked diagrams
1301
