KDH202R-EDMDYE (2007)

Toyota Hiace

Production Sep 2007 - Jan 2014
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0501- )

Click highlighted areas on diagram

INNNER MIRROR,REAR UNDER MIRROR

diagram 87810 87810 87818 8792926020 8792926020 87950
Part # Description Qty Price
Common parts
87929-26020

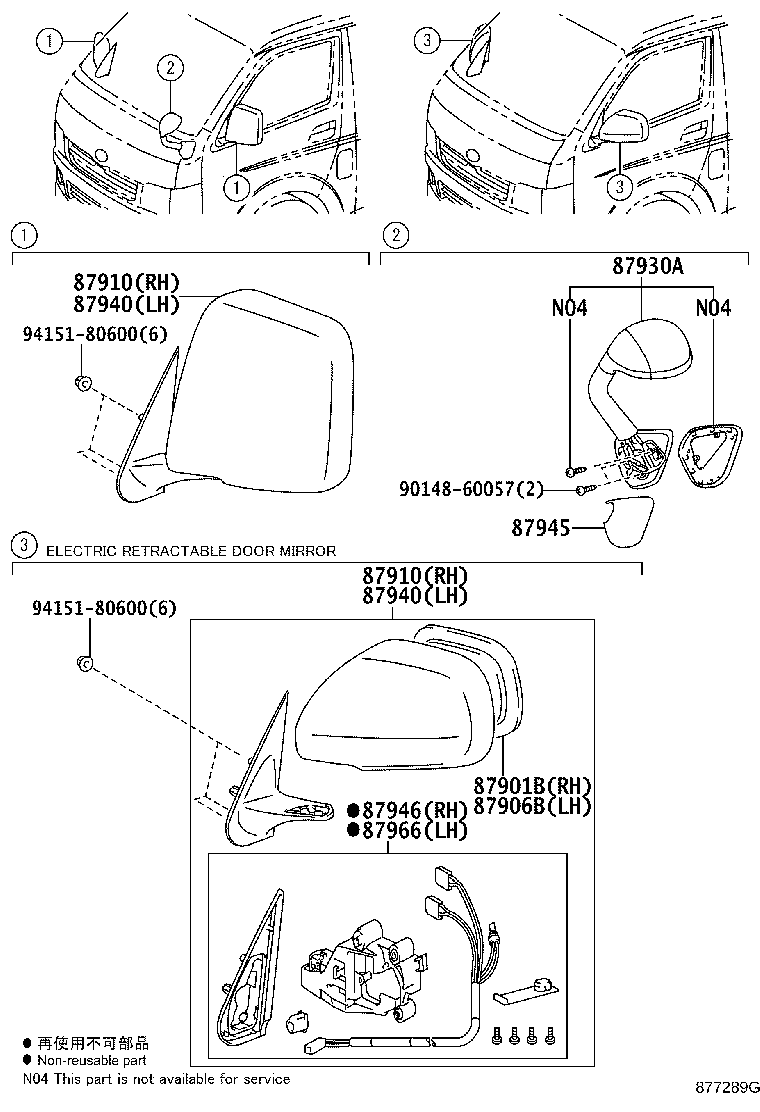

ILLUST NO. 2 OF 2(0501- )

Click highlighted areas on diagram

OUTER MIRROR

diagram 87901B 87906B 87910 87910 87930A 87940 87940 87945 87946 87966 9014860057 9415180600 9415180600
Part # Description Qty Price
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-26400

KDH222,TRH223..RHD..GEN;KDH200,201,TRH201..RHD..SP..(GEN,MA,TH);KDH202,203,212,LH20#,212,222,TRH200,203,213..RHD..(03S,06S,12S,14S,15S,16S)..(GEN,MA,TH)

NO PAINT REQ.

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-26400

KDH222,TRH223..RHD..GEN;KDH200,201,TRH201..RHD..SP..(GEN,MA,TH);KDH202,203,212,LH20#,212,222,TRH200,203,213..RHD..(03S,06S,12S,14S,15S,16S)..(GEN,MA,TH)

NO PAINT REQ.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-26601

KDH222,TRH223..RHD..GEN;KDH200,201,TRH201..RHD..SP..(GEN,MA,TH);KDH202,203,212,LH20#,212,222,TRH200,203,213..RHD..(03S,06S,12S,14S,15S,16S)..(GEN,MA,TH)

NO PAINT REQ.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-26601

KDH222,TRH223..RHD..GEN;KDH200,201,TRH201..RHD..SP..(GEN,MA,TH);KDH202,203,212,LH20#,212,222,TRH200,203,213..RHD..(03S,06S,12S,14S,15S,16S)..(GEN,MA,TH)

NO PAINT REQ.

 1
Common parts
90148-60057
94151-80600
