KDH202R-EDMDYE (2007)
Toyota Hiace

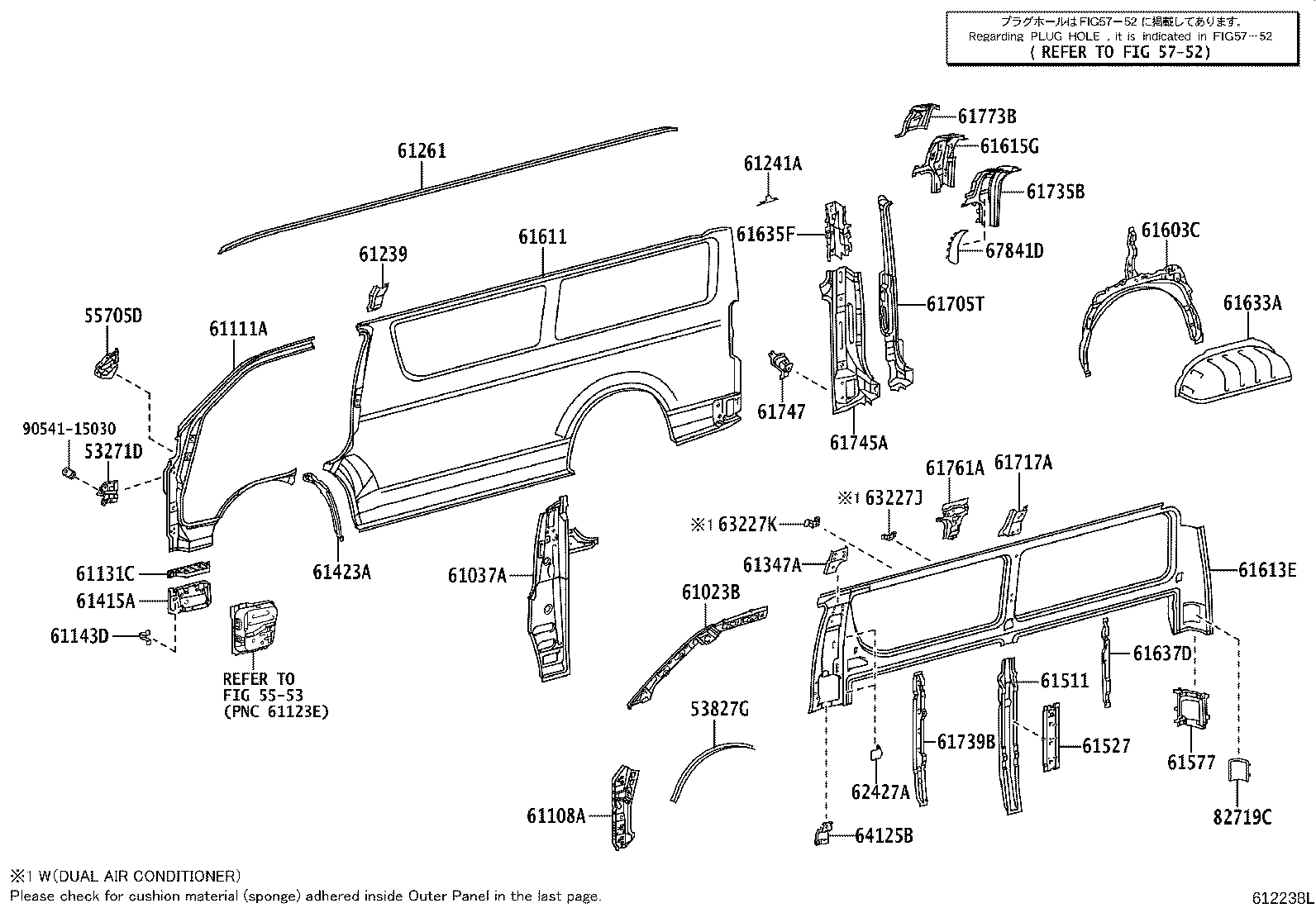

(0501- )KDH202,TRH203..HRF
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271D - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-26021 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26080 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26190 |
KDH202..HRF..MA;KDH202,203..GCC,GEN;KDH200,201,LH20#,TRH20# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-26040 |
KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH201,203,213,223..RHD..4D |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61111-26300 |
KDH201,202,203,TRH203..RHD..4D..(03S,12S,14S);KDH200,212,TRH201,213..(03S,10S)..(ARL,MA,SA,TH) |
1 | ||
| 61111-26301 |
KDH201,203..RHD..4D;KDH200,202,212,TRH201,203,213..4D..(ARL,MA,SA,TH) |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-26080 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61143D - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 61143-26010 |
TRH213..GL..VN;TRH213..LHD..(09S,16S);TRH213..RHD..(10S,11S,16S);KDH212,222..(10S,11S,14S,16S)..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,22#..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 61241A - GUSSET, ROOF SIDE RAIL, REAR RH | ||||
| 61241-26010 |
KDH20#,212,LH20#,212,TRH20#,213 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-26050 |
KDH20#,212,LH20#,212,TRH20#,213 |
1 | ||
| 61261-26051 |
KDH20#,212,LH20#,212,TRH20#,213 |
1 | ||
| 61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH | ||||
| 61347-26040 |
KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH201,203,213,223..RHD..4D |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-26020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-26060 |
KDH20#,212,LH20#,212,TRH201,203,213..RHD..4D |
1 | ||
| 61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH | ||||
| 61527-26030 |
TRH221;KDH220,221..5D;KDH222,223,LH222,TRH223..LHD;KDH20#,212,LH20#,212,TRH201,203,213..RHD..4D |
1 | ||
| 61577 - PLATE, CAB REAR PILLAR, LOWER RH | ||||
| 61577-26020 |
KDH222,TRH223..16S..GL;KDH222..STD..(GCC,GEN,SA);TRH223..STD..(GCC,GEN,SA,TH);KDH20#,220,221,LH20#,212,222,TRH20#,221;KDH212,223,TRH213..4D..(09S,11S,15S,16S) |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61605-26A30 |
KDH202,212,TRH203..(HRF,SMRF)..(11S,12S)..5F |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-26460 |
KDH202,203,212,LH202,212,TRH203,213..RHD..5F |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-26050 |
LH202..LHD;KDH212..5F..GL;KDH202,TRH203..LHD..15S;KDH20#,220,221,223,LH200,212,TRH20#,213,22#..03S,06S,09S,10S,12S,13S |
1 | ||
| 61635F - REINFORCEMENT, QUARTER PANEL, UPR RH | ||||
| 61635-26050 |
KDH222,TRH223..16S..GL;KDH222..STD..(GCC,GEN,SA);TRH223..STD..(GCC,GEN,SA,TH);KDH20#,220,221,LH20#,212,222,TRH20#,221;KDH212,223,TRH213..4D..(09S,11S,15S,16S) |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-26040 |
KDH222..RHD..(ARL,GEN,SA);KDH202,203,212,223,LH202,212,222,TRH203,213,223..RHD..4D |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26050 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-26020 |
KDH202,TRH203,213..(HRF,SMRF)..(11S,12S) |
1 | ||
| 61747-26020 |
TRH213..10S..GEN;KDH200,220,222,223,TRH201,203,221..MA,RUS,SA;KDH202,TRH213..(HRF,SMRF)..(10S,11S,12S)..(MA,SA,TH);KDH212,TRH22#..SG..(03S,10S,11S,12S,13S,14S)..(CIS,GEN,SA) |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26080 |
KDH20#,212,LH20#,212,TRH201,203,213..RHD..4D |
1 | ||
| 62427A - BRACKET, CENTER PILLAR GARNISH, RH | ||||
| 62427-26050 |
KDH202..HRF..GEN;KDH222,TRH203,223..HRF..(12S,14S)..(ARL,GEN,MA);KDH202,203,212,223,TRH213..(12S,14S,15S)..(ARL,MA,SA,TH) |
2 | ||
| 64125B - ANCHOR, PILLAR SEAT BELT | ||||
| 64125-26050 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26030B0 |
KDH222,LH212,TRH223..STD..(GCC,GEN,SA,TH);KDH20#,212,220,221,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||

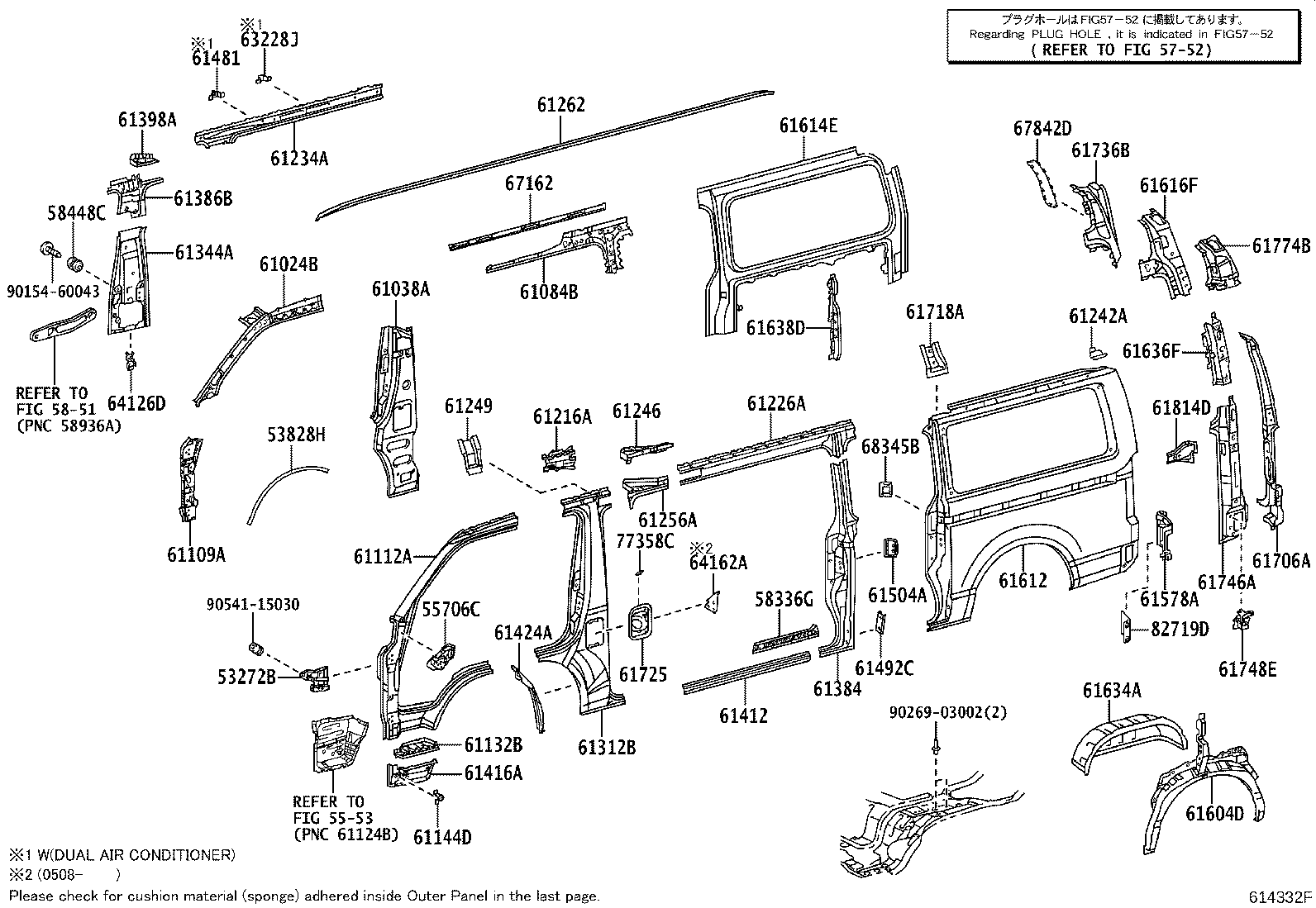

(0501- )KDH202,TRH203..HRF
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53272B - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-26011 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26050 |
TRH201..SP..03S;KDH200,201,222,TRH201..SG..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH203,213,22#..03S,09S,10S,11S,12S,13S,14S,15S,16S |
1 | ||
| 58336G - PLATE, FLOOR SIDE, FR LH | ||||
| 58336-26040 |
TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH222..RHD..(ARL,GEN,SA);KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,LH20#,212,222,TRH203,213,223..RHD |
1 | ||
| 58448C - HOOK, ENGINE SERVICE HOLE COVER, NO.2 LH | ||||
| 58448-26010B0 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# LT.GRAY,TRIM1# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26150 |
TRH201..SRF..(ARL,GEN);KDH20#,LH20#,TRH200,203..ARL,GEN,MA,TH |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-26010 |
KDH200..ARL;KDH220..RHD..(ARL,GEN);KDH222..RHD..(ARL,GEN,SA);KDH200,212,TRH201..5D..(06S,11S);KDH201,202,203,212,223,LH202,212,222,TRH200,203,213,223..RHD..(06S,10S,11S,12S,14S,15S,16S) |
1 | ||
| 61084B - BRACE SUB-ASSY, ROOF SIDE INNER, FR LH | ||||
| 61084-26060 |
KDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61132-26140 |
TRH201..SRF;KDH200..LHD..5D;KDH20#,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 61132-26141 |
KDH200..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-26120 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26010 |
TRH213..GL..VN;TRH213..LHD..(09S,16S);TRH213..RHD..(10S,11S,16S);KDH212,222..(10S,11S,14S,16S)..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,22#..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-26020 |
KDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH | ||||
| 61226-26010 |
KDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 61242A - GUSSET, ROOF SIDE RAIL, REAR LH | ||||
| 61242-26010 |
KDH20#,212,LH20#,212,TRH20#,213 |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-26030 |
KDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61256-26020 |
KDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-26021 |
KDH20#,212,LH20#,212,TRH20#,213 |
1 | ||
| 61262-26020 |
KDH20#,212,LH20#,212,TRH20#,213 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-26120 |
KDH201..TH;TRH201..06S..GCC;KDH200,201..LHD..5D;TRH201..SP..03S..(GCC,GEN,SA);KDH200,202,212,LH20#,212,TRH203,213..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH) |
1 | ||
| 61312-26110 |
KDH201..TH;TRH201..06S..GCC;KDH200,201..LHD..5D;TRH201..SP..03S..(GCC,GEN,SA);KDH200,202,212,LH20#,212,TRH203,213..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH) POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26310 |
KDH212..4FC;KDH202..MA,TH;KDH201..SP..06S;KDH203,TRH200,203..RHD..(06S,12S);KDH202,212,TRH213..RHD..(HRF,SMRF)..(11S,12S,15S)..(GEN,SA,TH) |
1 | ||
| 61384 - EXTENSION, CENTER BODY PILLAR, OUTER LH | ||||
| 61384-26020 |
KDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH | ||||
| 61386-26010 |
KDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 61398A - PATCH, CENTER BODY PILLAR, INNER LH | ||||
| 61398-26060 |
KDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-26270 |
KDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-26020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61492C - PLATE, NO.3 LOWER RAIL, INNER LH | ||||
| 61491-26010 |
TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH222..RHD..(ARL,GEN,SA);KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,LH20#,212,222,TRH203,213,223..RHD |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61503-26030 |
TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH222..RHD..(ARL,GEN,SA);KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,LH20#,212,222,TRH203,213,223..RHD |
1 | ||
| 61578A - PLATE, CAB REAR PILLAR, LOWER LH | ||||
| 61578-26030 |
KDH222,TRH223..16S..GL;KDH222..STD..(GCC,GEN,SA);TRH223..STD..(GCC,GEN,SA,TH);KDH20#,220,221,LH20#,212,222,TRH20#,221;KDH212,223,TRH213..4D..(09S,11S,15S,16S) |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61606-26B40 |
KDH202,212,TRH203..(HRF,SMRF)..(11S,12S)..5F |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-26520 |
KDH200,201,212,TRH201..5D..SG;KDH202,203,212,LH202,212,TRH203,213..RHD |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26B40 |
KDH200,TRH201..06S..GCC;KDH202,203,LH202,TRH203..RHD |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-26050 |
KDH212..5F..GL;KDH202,LH202,TRH203..RHD;KDH202,223,TRH203,223..LHD..(12S,13S);KDH200,201,203,220,221,LH20#,212,TRH200,201,213,221..03S,06S,09S,10S,12S,14S |
1 | ||
| 61636F - REINFORCEMENT, QUARTER PANEL, UPR LH | ||||
| 61636-26040 |
KDH222,TRH223..16S..GL;KDH222..STD..(GCC,GEN,SA);TRH223..STD..(GCC,GEN,SA,TH);KDH20#,220,221,LH20#,212,222,TRH20#,221;KDH212,223,TRH213..4D..(09S,11S,15S,16S) |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-26040 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26040 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61748E - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-26010 |
KDH202,TRH203,213..(HRF,SMRF)..(11S,12S) |
1 | ||
| 61748-26010 |
TRH213..10S..GEN;KDH200,220,222,223,TRH201,203,221..MA,RUS,SA;KDH202,TRH213..(HRF,SMRF)..(10S,11S,12S)..(MA,SA,TH);KDH212,TRH22#..SG..(03S,10S,11S,12S,13S,14S)..(CIS,GEN,SA) |
1 | ||
| 61814D - REINFORCEMENT, QUARTER PANEL EXTENSION, NO.3 LH | ||||
| 61814-26010 |
KDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 67162 - EXTENSION, SLIDE DOOR INSIDE PANEL, UPPER LH | ||||
| 67162-26010 |
KDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD |
1 | ||
| 68345B - COVER, SLIDE DOOR CENTER RAIL, RH | ||||
| 68345-26020 |
KDH222,LH212,TRH223..STD;KDH20#,212,220,221,223,LH20#,222,TRH20#,213,221..4D..(03S,12S,14S,15S,16S) |
1 | ||
| 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 | ||||
| 77358-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82719D - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26040B0 |
KDH222,LH212,TRH223..STD..(GCC,GEN,SA,TH);KDH20#,212,220,221,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90154-60043 | ||||
| 90269-03002 | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||
| 5851 | ||||
(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#
CUSHION MATERIAL (SPONGE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61667-26310 | ||||
| 61667-26320 | ||||
| 61667-26330 | ||||
| 61667-26340 | ||||
| 61667-26350 | ||||
| 61667-26360 | ||||
| 61667-26390 | ||||
| 61667-26400 | ||||
| 61667-26420 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
