KDH202L-REMDYV (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KDH222..GL..SA ; (0501- )KDH222..ARL,GEN,TH ; (0501- )KDH20#,212,2

Click highlighted areas on diagram

diagram 1601 88320 88330A 88410 88431 88440D 8856935170 9009904349 9009907065 9009907114 9011908C78 91552B1040 91552B1040 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-2F050

KDH202..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

KDH202,203,LH202..SRF..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
88410 - CLUTCH ASSY, MAGNET
88410-35400

KDH202..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35250

KDH202,203..SRF..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
88440D - PULLEY ASSY, IDLE NO.2
88440-35120

KDH202,203..SRF..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
Common parts
88569-35170
90099-04349
90099-07065
90099-07114
90119-08C78
91552-B1040
93319-15008
Linked diagrams
1601

(0501-0709)KDH200..06S..GCC ; (0501- )KDH200,202,212,222..03S,15S,16S..GCC

Click highlighted areas on diagram

DUAL AIR CONDITIONER

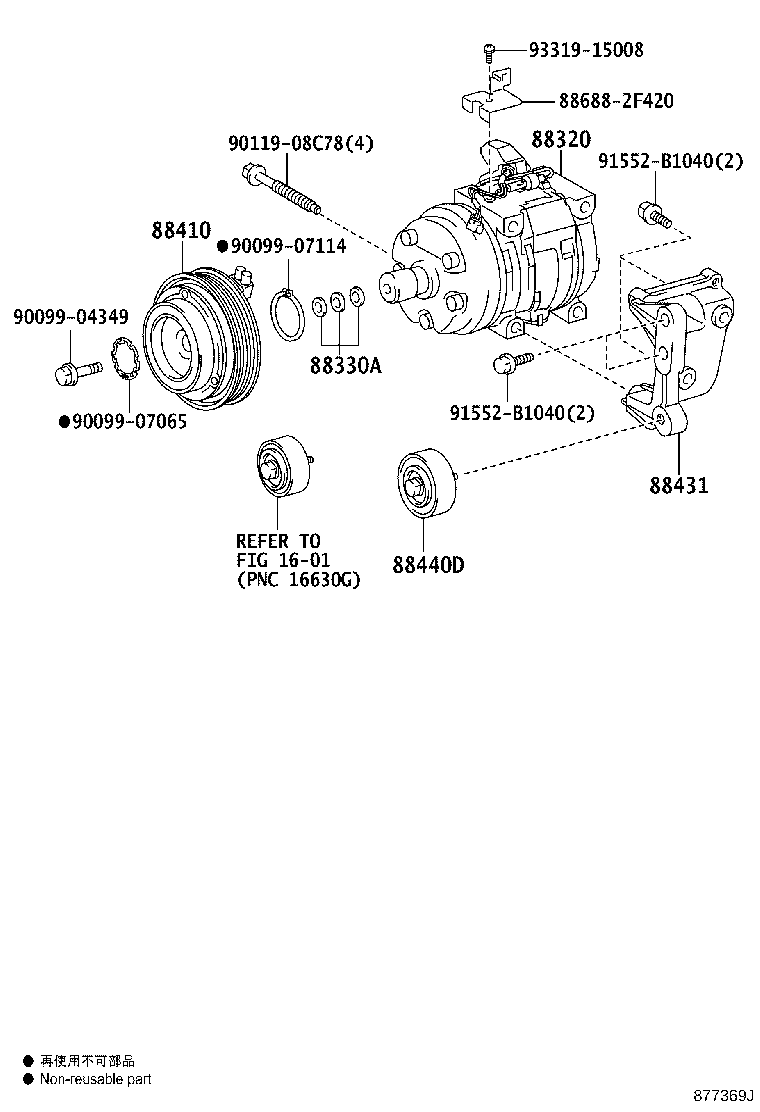

diagram 1601 88320 88330A 88410 88431 88440D 886882F420 9009904349 9009907065 9009907114 9011908C78 91552B1040 91552B1040 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-2F050

KDH202..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

KDH202,203,LH202..SRF..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
88410 - CLUTCH ASSY, MAGNET
88410-35400

KDH202..GCC

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35250

KDH202,203..SRF..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
88440D - PULLEY ASSY, IDLE NO.2
88440-35120

KDH202,203..SRF..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
Common parts
88688-2F420
90099-04349
90099-07065
90099-07114
90119-08C78
91552-B1040
93319-15008
Linked diagrams
1601

(0501- )TRH213,221..03S,10S,16S..ARL,GCC,GEN,SA ; (0610-0710)TRH213..STD..SA ; (

Click highlighted areas on diagram

diagram 88310 88431 88440B 9010508403 9011908C78 9155281090 91552B1040
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35250

KDH202,203..SRF..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
88431-35250

KDH202,203..SRF..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
88431-35250

KDH202,203..SRF..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
Common parts
90105-08403
90119-08C78
91552-81090
91552-B1040

(0501-0709)TRH201..SP..4FC..GEN ; (0501-0709)TRH203,213..HRF,SMRF..09S,11S,12S ; (0

Click highlighted areas on diagram

diagram 88310 88431 88440B 9010508403 9011908C78 9155281090 91552B1040
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35250

KDH202,203..SRF..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
88431-35250

KDH202,203..SRF..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
88431-35250

KDH202,203..SRF..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

 1
Common parts
90105-08403
90119-08C78
91552-81090
91552-B1040
