KDH201R-SSPDY (2006)
Toyota Hiace
(0610-1008)1KDFTV

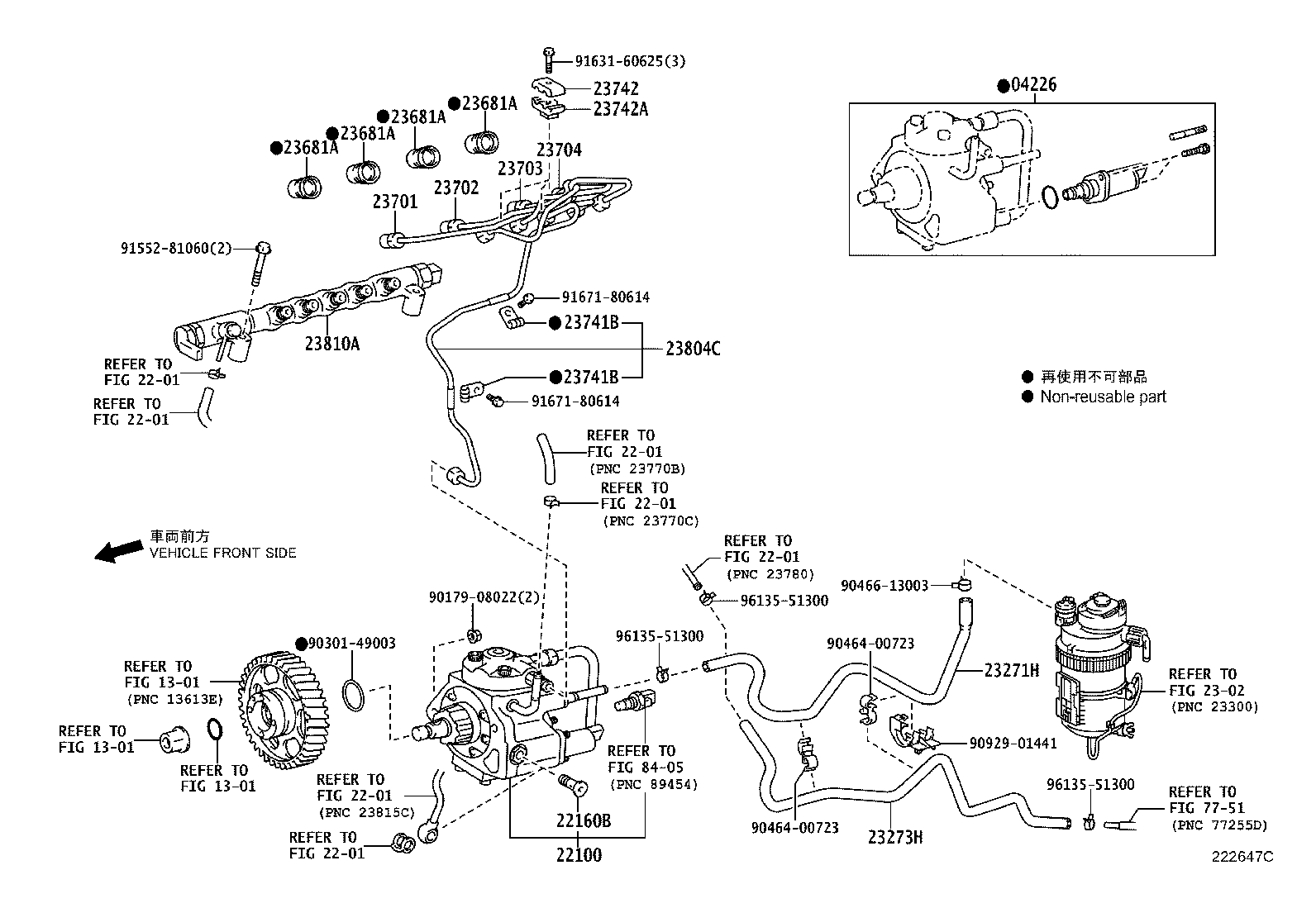

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 04226-30020 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 04226-30020 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-30040 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 22100-30090 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 22100-30160 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-30140 |
1KDFTV..KDH203..GEN;1KDFTV,2KDFTV..KDH200,201,202 |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-30220 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23273-30110 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23701-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23701-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23702-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23702-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23703-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23703-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23704-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23704-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-30010 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-39015 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 23804-39035 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23804-39025 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23804-39036 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-30110 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23810-30130 |
1KDFTV..KDH201..SP..06S |
1 | ||
| Common parts | ||||
| 90179-08022 | ||||
| 90301-49003 | ||||
| 90464-00723 | ||||
| 90466-13003 | ||||
| 90929-01441 | ||||
| 91552-81045 | ||||
| 91631-60625 | ||||
| 91631-G0614 | ||||
| 96132-51300 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 2201 | ||||
| 2302 | ||||
| 7751 | ||||
| 8405 | ||||
(0705- )2KDFTV..KDH202..15S..GEN ; (0705-)2KDFTV..KDH202..HRF..GEN ; (0705-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 04226-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 04226-30020 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 04226-30020 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-30040 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 22100-30040 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 22100-30090 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 22100-30090 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 22100-30160 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 22100-30160 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-30140 |
1KDFTV..KDH203..GEN;1KDFTV,2KDFTV..KDH200,201,202 |
1 | ||
| 23271-30140 |
1KDFTV..KDH203..GEN;1KDFTV,2KDFTV..KDH200,201,202 |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-30140 |
1KDFTV..KDH203..GEN;1KDFTV,2KDFTV..KDH200,201,202 |
1 | ||
| 23271-30140 |
1KDFTV..KDH203..GEN;1KDFTV,2KDFTV..KDH200,201,202 |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-30220 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23273-30220 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23273-30110 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23273-30110 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23701-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23701-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23701-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23701-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23701-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23702-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23702-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23702-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23702-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23702-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23703-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23703-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23703-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23703-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23703-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23704-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23704-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23704-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23704-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23704-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-30010 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23741-30010 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-39015 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 23804-39015 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 23804-39035 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23804-39035 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23804-39025 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23804-39025 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23804-39036 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23804-39036 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-30110 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23810-30110 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23810-30130 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23810-30130 |
1KDFTV..KDH201..SP..06S |
1 | ||
| Common parts | ||||
| 90105-T0170 | ||||
| 90116-06173 | ||||
| 90119-06775 | ||||
| 90119-T0064 | ||||
| 90119-T0306 | ||||
| 90178-T0018 | ||||
| 90179-06208 | ||||
| 90179-08022 | ||||
| 90182-T0009 | ||||
| 90253-13008 | ||||
| 90253-T0003 | ||||
| 90301-49003 | ||||
| 90301-T0011 | ||||
| 90464-00723 | ||||
| 90464-T0004 | ||||
| 90466-13003 | ||||
| 90929-01441 | ||||
| 91552-81060 | ||||
| 91631-60625 | ||||
| 91631-G0614 | ||||
| 94151-80600 | ||||
| 96132-51300 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 2201 | ||||
| 2302 | ||||
| 7751 | ||||
| 8405 | ||||
(1008-1110)1KDFTV ; (1110-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..KDH201,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 04226-30020 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-30040 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 22100-30090 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 22100-30160 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-30140 |
1KDFTV..KDH203..GEN;1KDFTV,2KDFTV..KDH200,201,202 |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-30140 |
1KDFTV..KDH203..GEN;1KDFTV,2KDFTV..KDH200,201,202 |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-30220 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23273-30110 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23701-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23701-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23702-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23702-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23703-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23703-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23704-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23704-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-30010 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-39015 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 23804-39035 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23804-39025 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23804-39036 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-30110 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23810-30130 |
1KDFTV..KDH201..SP..06S |
1 | ||
| Common parts | ||||
| 90105-T0079 | ||||
| 90119-T0136 | ||||
| 90179-08022 | ||||
| 90182-T0009 | ||||
| 90301-49003 | ||||
| 90301-T0011 | ||||
| 90464-00723 | ||||
| 90464-T0004 | ||||
| 90466-13003 | ||||
| 90929-01441 | ||||
| 91552-81045 | ||||
| 91631-60625 | ||||
| 91671-80614 | ||||
| 96132-51300 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 2201 | ||||
| 2302 | ||||
| 7751 | ||||
| 8405 | ||||
(1110- )1KDFTV..KDH201..SP..06S ; (1212- )1KDFTV..KDH201,203..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 04226-30020 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-30040 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 22100-30090 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 22100-30160 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 22160B - SCREW | ||||
| 22569-30150 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-30140 |
1KDFTV..KDH203..GEN;1KDFTV,2KDFTV..KDH200,201,202 |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-30220 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23273-30110 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDH201..SP..06S |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23701-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23701-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23702-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23702-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23703-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23703-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-30070 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23704-30081 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23704-30080 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23741-30010 |
1KDFTV..KDH201..SP..06S |
2 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23741-30010 |
1KDFTV..KDH201..SP..06S |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-27010 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23742-58020 |
1KDFTV..KDH201..SP..06S |
3 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-39015 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 23804-39035 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23804-39025 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23804-39036 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-30110 |
1KDFTV..KDH201..SP..06S |
1 | ||
| 23810-30130 |
1KDFTV..KDH201..SP..06S |
1 | ||
| Common parts | ||||
| 90179-08022 | ||||
| 90301-49003 | ||||
| 90464-00723 | ||||
| 90466-13003 | ||||
| 90929-01441 | ||||
| 91552-81060 | ||||
| 91631-60625 | ||||
| 91671-80614 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 2201 | ||||
| 2302 | ||||
| 7751 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
