Toyota Hiace KDH201 INJECTION NOZZLE

KDH201L-SBMDY (2010)

Toyota Hiace

Production Aug 2010 - Dec 2013

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1008-1110)1KDFTV ; (1110-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..KDH201,

Click highlighted areas on diagram

Part #	Description	Period	Qty
11176 - SEAT, INJECTION NOZZLE
11176-30010	2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)	01/2005 - 10/2007	4
11176 - SEAT, INJECTION NOZZLE
11176-30010	2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)	01/2005 - 10/2007	4
11176 - SEAT, INJECTION NOZZLE
11176-30010	2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)	01/2005 - 10/2007	4
11176 - SEAT, INJECTION NOZZLE
11176-30010	2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)	01/2005 - 10/2007	4
23670 - INJECTOR ASSY
23670-39435	1KDFTV..KDH201,203..LHD	12/2012 - 12/2013	4
23670-39385	1KDFTV..KDH201,203..LHD	08/2010 - 12/2012	4
23670 - INJECTOR ASSY
23670-39435	1KDFTV..KDH201,203..LHD	12/2012 - 12/2013	4
23670-39385	1KDFTV..KDH201,203..LHD	08/2010 - 12/2012	4
23670 - INJECTOR ASSY
23670-39435	1KDFTV..KDH201,203..LHD	12/2012 - 12/2013	4
23670-39385	1KDFTV..KDH201,203..LHD	08/2010 - 12/2012	4
23670 - INJECTOR ASSY
23670-39435	1KDFTV..KDH201,203..LHD	12/2012 - 12/2013	4
23670-39385	1KDFTV..KDH201,203..LHD	08/2010 - 12/2012	4
23670A - RING, O(FOR INJECTOR ASSY)
96721-19017	2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN	01/2005 - 02/2014	4
23670A - RING, O(FOR INJECTOR ASSY)
96721-19017	2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN	01/2005 - 02/2014	4
23670A - RING, O(FOR INJECTOR ASSY)
96721-19017	2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN	01/2005 - 02/2014	4
23670A - RING, O(FOR INJECTOR ASSY)
96721-19017	2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN	01/2005 - 02/2014	4
23679 - SCREW, INJECTOR FOLLOW
23679-30020	2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)	01/2005 - 01/2010	4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-30010	2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)	01/2005 - 09/2008	4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-30020	1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)	01/2005 - 02/2014	1
23760A - GASKET
90904-30013	1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)	01/2005 - 02/2014	5
23760A - GASKET
90904-30013	1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)	01/2005 - 02/2014	5
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-30110	1KDFTV..KDH201,203..LHD	08/2010 - 12/2012	1
23770-30130	1KDFTV..KDH201,203..LHD	12/2012 - 12/2013	1
23770B - HOSE, FUEL
23271-30330	1KDFTV..KDH201,203..LHD	12/2012 - 12/2013	1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96135-51100	1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)	01/2005 - 02/2014	2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96135-51100	1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)	01/2005 - 02/2014	2
Common parts
90105-08374
90105-T0023
90105-T0118
90209-10021
90209-T0001
90401-08016
90401-10067
90401-T0001
90401-T0003
90430-10028
90430-T0007
90466-T0039
91551-80814
95337-04010
96132-51000
Linked diagrams
2202

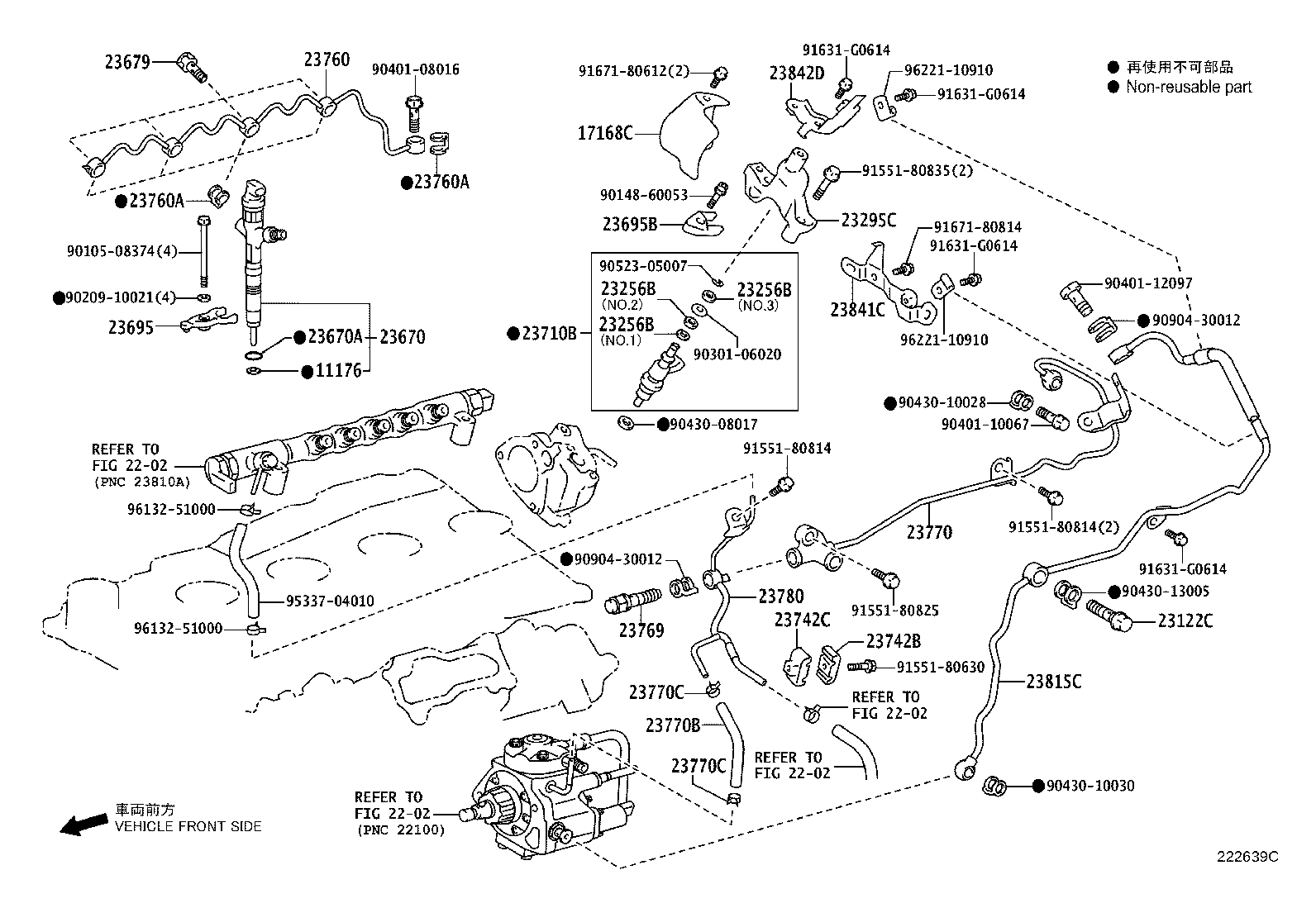

(1110- )1KDFTV..KDH201..SP..06S ; (1212- )1KDFTV..KDH201,203..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
11176 - SEAT, INJECTION NOZZLE
11176-30010	2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)	01/2005 - 10/2007	4
17168C - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-30010	1KDFTV..KDH201,203..LHD	12/2012 - 12/2999	1
23122C - VALVE, CHECK
2376A-26030	1KDFTV..KDH201,203..LHD	12/2012 - 12/2999	1
23256B - RING, FUEL INJECTOR BACK-UP, NO.1
23258-28011	1KDFTV..KDH201,203..LHD NO.3	12/2012 - 12/2999	1
23257-74010	1KDFTV..KDH201,203..LHD NO.2	12/2012 - 12/2999	1
23256-74010	1KDFTV..KDH201,203..LHD NO.1	12/2012 - 12/2999	1
23256B - RING, FUEL INJECTOR BACK-UP, NO.1
23258-28011	1KDFTV..KDH201,203..LHD NO.3	12/2012 - 12/2999	1
23257-74010	1KDFTV..KDH201,203..LHD NO.2	12/2012 - 12/2999	1
23256-74010	1KDFTV..KDH201,203..LHD NO.1	12/2012 - 12/2999	1
23256B - RING, FUEL INJECTOR BACK-UP, NO.1
23258-28011	1KDFTV..KDH201,203..LHD NO.3	12/2012 - 12/2999	1
23257-74010	1KDFTV..KDH201,203..LHD NO.2	12/2012 - 12/2999	1
23256-74010	1KDFTV..KDH201,203..LHD NO.1	12/2012 - 12/2999	1
23295C - HOLDER, INJECTOR
23295-30010	1KDFTV..KDH201,203..LHD	12/2012 - 12/2013	1
23670 - INJECTOR ASSY
23670-39435	1KDFTV..KDH201,203..LHD	12/2012 - 12/2013	4
23670-39385	1KDFTV..KDH201,203..LHD	08/2010 - 12/2012	4
23670A - RING, O(FOR INJECTOR ASSY)
96721-19017	2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN	01/2005 - 02/2014	4
23679 - SCREW, INJECTOR FOLLOW
23679-30020	2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)	01/2005 - 01/2010	4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-30010	2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)	01/2005 - 09/2008	4
23695B - CLAMP, NOZZLE HOLDER, NO.2
23695-28010	1KDFTV..KDH201,203..LHD	12/2012 - 12/2999	1
23710B - INJECTOR ASSY, EXHAUST FUEL ADDITION
23710-30020	1KDFTV..KDH201,203..LHD	12/2012 - 12/2999	1
23742B - CLAMP, INJECTION PIPE, NO.2
23742-30010	1KDFTV..KDH201,203..LHD	12/2012 - 12/2999	1
23742C - CLAMP, INJECTION PIPE, NO.3
23742-30020	1KDFTV..KDH201,203..LHD	12/2012 - 12/2999	1
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-30020	1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)	01/2005 - 02/2014	1
23760A - GASKET
90904-30013	1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)	01/2005 - 02/2014	5
23760A - GASKET
90904-30013	1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)	01/2005 - 02/2014	5
23769 - VALVE, FUEL CHECK
23769-26030	1KDFTV..KDH201,203..LHD	12/2012 - 12/2999	1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-30110	1KDFTV..KDH201,203..LHD	08/2010 - 12/2012	1
23770-30130	1KDFTV..KDH201,203..LHD	12/2012 - 12/2013	1
23770B - HOSE, FUEL
23271-30330	1KDFTV..KDH201,203..LHD	12/2012 - 12/2013	1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96135-51100	1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)	01/2005 - 02/2014	2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
96135-51100	1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)	01/2005 - 02/2014	2
23780 - PIPE, NOZZLE LEAKAGE, NO.3
23780-30010	1KDFTV..KDH201,203..LHD	12/2012 - 12/2999	1
23815C - PIPE, FUEL, NO.3
23811-30061	1KDFTV..KDH201,203..LHD	12/2012 - 12/2999	1
23841C - CLAMP, FUEL PIPE, NO.1
23841-30040	1KDFTV..KDH201,203..LHD	12/2012 - 12/2999	1
23842D - CLAMP, FUEL PIPE, NO.2
23842-30010	1KDFTV..KDH201,203..LHD	12/2012 - 12/2999	1
Common parts
90105-08374
90148-60053
90209-10021
90301-06020
90401-08016
90401-10067
90401-12097
90430-08017
90430-10028
90430-10030
90430-13005
90523-05007
90904-30012
91551-80630
91551-80814
91551-80825
91551-80835
91631-G0614
91671-80612
91671-80814
95337-04010
96132-51000
96221-10910
Linked diagrams
2202

KDH201L-SBMDY (2010)

(1008-1110)1KDFTV ; (1110-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..KDH201,

(1110- )1KDFTV..KDH201..SP..06S ; (1212- )1KDFTV..KDH201,203..LHD
