Toyota Hiace GRH322 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
US
HIACE
GRH322L-EDTPHV (2019)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

GRH322L-EDTPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 7GRFKS

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

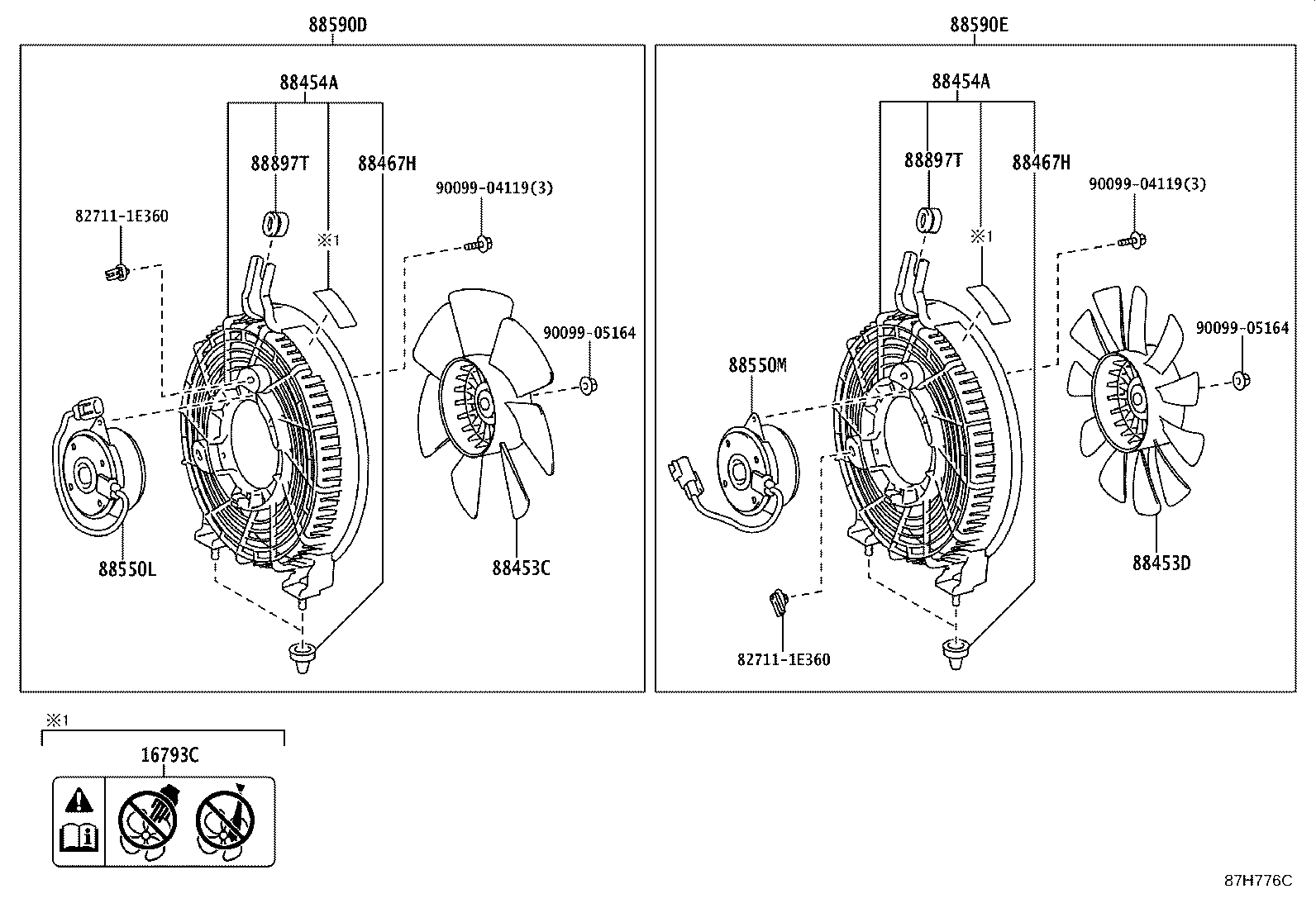

ILLUST NO. 1 OF 3(1902- )GDH300,303,320,322..GCC

Click highlighted areas on diagram

W(CONDENSER FAN)

Part #	Description	Period	Qty
88453C - FAN, COOLING, NO.1
88453-26030	GDH303..H;GDH303..ARL,GCC;GDH300,320..6F..GCC;GDH304,322..(H,P,Q)..(GCC,TH)	02/2019 - 12/2999	1
88453D - FAN, COOLING, NO.2
88453-26040	GDH303,322..GCC;GDH300,320..6F..GCC	02/2019 - 12/2999	1
88454A - SHROUD, FAN
88454-26120	GDH303,322..GCC;GDH300,320..6F..GCC	02/2019 - 12/2999	2
88454A - SHROUD, FAN
88454-26120	GDH303,322..GCC;GDH300,320..6F..GCC	02/2019 - 12/2999	2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88467-20190	GDH303,322..GCC;GDH300,320..6F..GCC	02/2019 - 12/2999	4
88467H - CUSHION, CONDENSER BRACKET, NO.1
88467-20190	GDH303,322..GCC;GDH300,320..6F..GCC	02/2019 - 12/2999	4
88550L - MOTOR ASSY, COOLING FAN, NO.1
88550-26120	GDH303..H;GDH303..ARL,GCC;GDH300,320..6F..GCC;GDH304,322..(H,P,Q)..(GCC,TH)	02/2019 - 12/2999	1
88550M - MOTOR ASSY, COOLING FAN, NO.2
88550-26130	GDH303,322..GCC;GDH300,320..6F..GCC	02/2019 - 12/2999	1
88590D - BLOWER ASSY, W/SHROUD, NO.1
88590-26170	GDH303..H;GDH303..ARL,GCC;GDH300,320..6F..GCC;GDH304,322..(H,P,Q)..(GCC,TH)	02/2019 - 12/2999	1
88590E - BLOWER ASSY, W/SHROUD, NO.2
88590-26180	GDH303,322..GCC;GDH300,320..6F..GCC	02/2019 - 12/2999	1
88897T - GROMMET, COOLER
88897-26140	GDH303,322..GCC;GDH300,320..6F..GCC	02/2019 - 12/2999	2
88897T - GROMMET, COOLER
88897-26140	GDH303,322..GCC;GDH300,320..6F..GCC	02/2019 - 12/2999	2
Common parts
82711-1E360
90099-04119
90099-05164

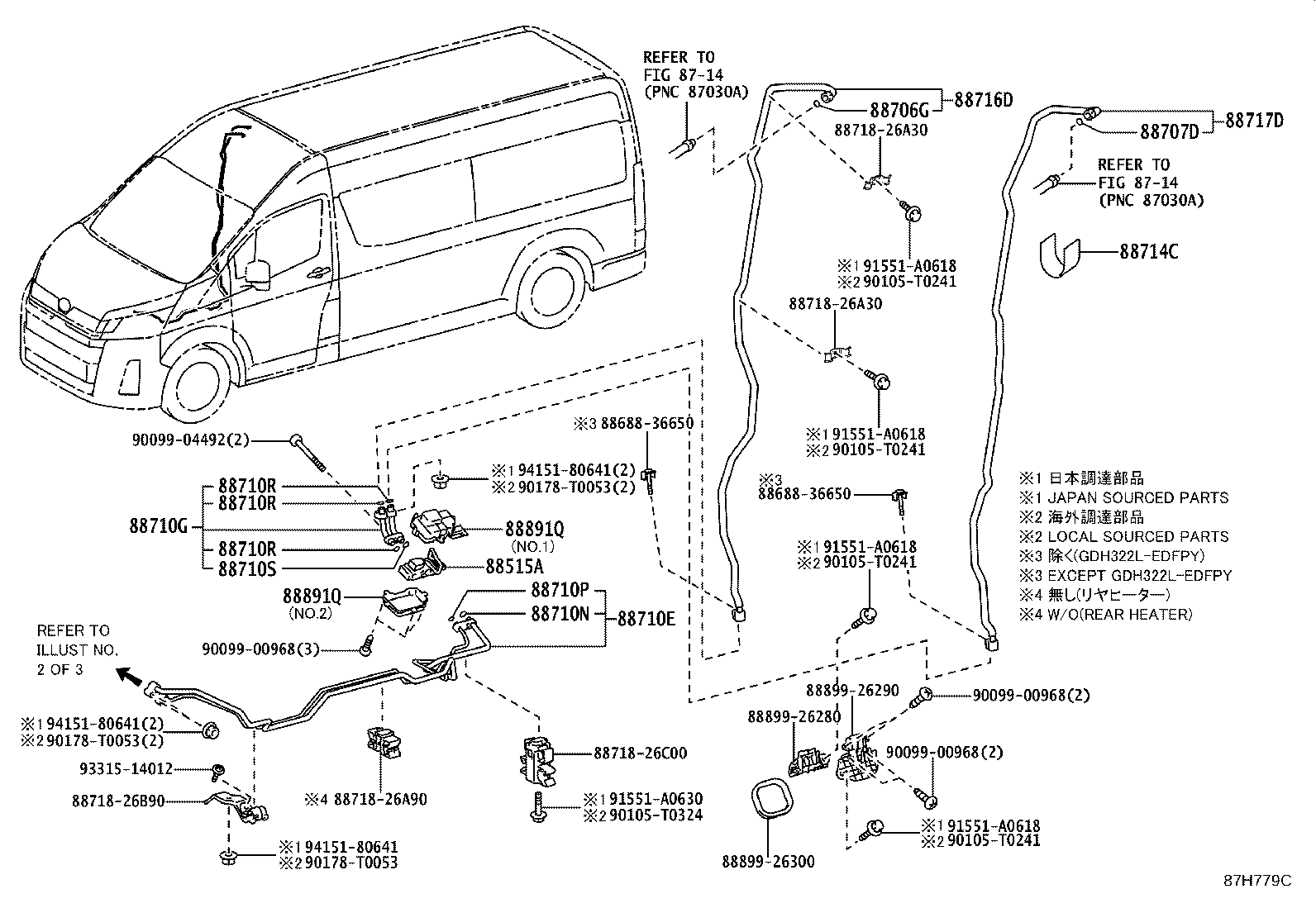

ILLUST NO. 3 OF 3(1903- )GDH321,322,328,GRH321,322..ARL,GCC,GEN,IDN,NZ,PH

Click highlighted areas on diagram

REAR(W(REAR COOLER))

Part #	Description	Period	Qty
88515A - VALVE, COOLER EXPANSION
88515-26090	GRH322..LHD..6FC..D REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88515-26090	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
88706G - RING, O(FOR LIQUID TUBE)
90099-14120	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=10.8,OD=15.6	02/2019 - 12/2999	1
88707D - RING, O(FOR SUCTION TUBE)
90099-14120	GDH322..N;GRH322..N,P,Q;GRH303..LHD..J;GRH303..RHD..GEN;GDH303..LHD..(G,J);GDH322..ARL,GCC,NZ;GDH303,321..RHD..6FC;GDH322..6FC..(P,Q)..GEN;GDH304,306,321,328,GRH321..LHD..(G,H,J,N,Q) ID=10.8,OD=15.6	03/2019 - 12/2999	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-26F10	GDH322..N;GDH303..LHD..H;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
88710-26F20	GDH322..N;GDH328,GRH321..6F;GDH301,321,322..ARL,GCC,NZ;GDH301,321,GRH301,322..(N,P,Q)..(GCC,GEN) REAR HEATER-WITH(FLOOR SET)	02/2019 - 12/2999	1
88710-26F20	GRH322..LHD..6FC..D REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-26F00	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
88710-26F00	GRH322..LHD..6FC..D REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90099-14121	GRH322..LHD..6FC..D ID=13.4,OD=18.2,REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
90099-14121	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=13.4,OD=18.2	02/2019 - 12/2999	1
88710P - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90099-14119	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=6.7,OD=10.3	02/2019 - 12/2999	1
90099-14119	GRH322..LHD..6FC..D ID=6.7,OD=10.3,REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88710R - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
90099-14120	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=10.8,OD=15.6	02/2019 - 12/2999	3
90099-14120	GRH322..LHD..6FC..D ID=10.8,OD=15.6,REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	3
88710R - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
90099-14120	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=10.8,OD=15.6	02/2019 - 12/2999	3
90099-14120	GRH322..LHD..6FC..D ID=10.8,OD=15.6,REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	3
88710R - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
90099-14120	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=10.8,OD=15.6	02/2019 - 12/2999	3
90099-14120	GRH322..LHD..6FC..D ID=10.8,OD=15.6,REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	3
88710S - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
90099-14121	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=13.4,OD=18.2	02/2019 - 12/2999	1
90099-14121	GRH322..LHD..6FC..D ID=13.4,OD=18.2,REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88899-26160	GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN)	03/2019 - 12/2999	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88710-26E40	GDH322..N;GDH321,322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH321,328,GRH321,322..(N,P,Q)..(GCC,GEN,PH)	03/2019 - 12/2999	1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88710-26E50	GDH322..N;GDH321,322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH321,328,GRH321,322..(N,P,Q)..(GCC,GEN,PH)	03/2019 - 12/2999	1
88891Q - COVER, COOLER, NO.2
88891-26270	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) NO.1	02/2019 - 12/2999	1
88899-26180	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) NO.2	02/2019 - 12/2999	1
88891-26270	GRH322..LHD..6FC..D REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE),NO.1	03/2019 - 12/2999	1
88899-26180	GRH322..LHD..6FC..D REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE),NO.2	03/2019 - 12/2999	1
88891Q - COVER, COOLER, NO.2
88891-26270	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) NO.1	02/2019 - 12/2999	1
88899-26180	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) NO.2	02/2019 - 12/2999	1
88891-26270	GRH322..LHD..6FC..D REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE),NO.1	03/2019 - 12/2999	1
88899-26180	GRH322..LHD..6FC..D REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE),NO.2	03/2019 - 12/2999	1
Common parts
88688-36650
88718-26A30
88718-26A90
88718-26B90
88718-26C00
88899-26280
88899-26290
88899-26300
90099-00968
90099-04492
90105-T0241
90105-T0324
90178-T0053
91551-A0618
91551-A0630
93315-14012
94151-80641
Linked diagrams
8714

ILLUST NO. 2 OF 3(1902- )GDH30#,321,322,328..LHD..SG,SHP..GCC,GEN,PH

Click highlighted areas on diagram

FRONT:DUAL A/C

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
88374-30010	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88374-30010	GRH322..LHD..6FC..D FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
88375-30290	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88375-30280	GRH322..LHD..6FC..D FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
884A0-26010	GDH306..LHD;GDH303,304,328;GDH301,321,322..ARL,GCC,NZ,TH	02/2019 - 12/2999	1
884A0-26030	GRH303..LHD..J;GRH303..RHD..GEN;GRH304,321,322..(H,P,Q)..(GCC,GEN)	03/2019 - 12/2999	1
884A0-26030	GRH322..RHD..D;GRH322..LHD..6F..D 40B-AREA SPEC&FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
884A0-26040	GRH322..LHD..6FC..D FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
88474 - DRYER, COOLER
88474-12020	GRH322..LHD..6FC..D FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
88474-12020	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88474-12020	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D 40B-AREA SPEC&FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88689E - BRACKET, COOLER, NO.1
88688-26A50	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-26020	GRH300,303,320,322..GCC	02/2019 - 12/2999	1
88703-26010	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
88703-26040	GDH303,322..GCC;GDH300,320..6F..GCC	02/2019 - 12/2999	1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120	GRH322..LHD..6FC..D ID=10.8,OD=15.6,FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	2
90099-14120	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH ID=10.8,OD=15.6	02/2019 - 12/2999	2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120	GRH322..LHD..6FC..D ID=10.8,OD=15.6,FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	2
90099-14120	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH ID=10.8,OD=15.6	02/2019 - 12/2999	2
88704 - HOSE SUB-ASSY, SUCTION
88704-26020	GRH300,320..GCC;GRH301,321,322..(N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
88704-26020	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH ID=13.4,OD=18.2	02/2019 - 12/2999	2
90099-14121	GRH322..LHD..6FC..D ID=13.4,OD=18.2,FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH ID=13.4,OD=18.2	02/2019 - 12/2999	2
90099-14121	GRH322..LHD..6FC..D ID=13.4,OD=18.2,FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	2
88710 - TUBE ASSY, AIR CONDITIONER
88710-26A50	GRH322..LHD..6FC..D FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
88710-26A50	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,320..6F..GCC;GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
88710C - TUBE ASSY, AIR CONDITIONER
88710-26B10	GRH322..LHD..6FC..D FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88710-26B10	GDH322..GCC;GRH303..LHD..J;GDH322..6FC..P..GEN;GDH322..LHD..(N,Q)..GEN;GDH301,303,304,306,321,328,GRH301,321,322..LHD..(G,H,J,N,P,Q)	02/2019 - 12/2999	1
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,320..6F..GCC;GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=6.7,OD=10.3	02/2019 - 12/2999	3
90099-14119	GRH322..LHD..6FC..D ID=6.7,OD=10.3,FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	3
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,320..6F..GCC;GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=6.7,OD=10.3	02/2019 - 12/2999	3
90099-14119	GRH322..LHD..6FC..D ID=6.7,OD=10.3,FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	3
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-47010	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88719-47010	GRH322..LHD..6FC..D FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
88G16C - RING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
90099-14121	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) ID=13.4,OD=18.2	02/2019 - 12/2999	1
90099-14121	GRH322..LHD..6FC..D ID=13.4,OD=18.2,FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88G16D - RING, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) ID=6.7,OD=10.3	02/2019 - 12/2999	1
90099-14119	GRH322..LHD..6FC..D ID=6.7,OD=10.3,FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88G16E - RING, O, NO.3(FOR TUBE ASSY, AIR CONDITIONER)
90099-14120	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) ID=10.8,OD=15.6	02/2019 - 12/2999	1
90099-14120	GRH322..LHD..6FC..D ID=10.8,OD=15.6,FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88G16F - RING, O, NO.4(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GRH322..LHD..6FC..D ID=6.7,OD=10.3,FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
90099-14119	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) ID=6.7,OD=10.3	02/2019 - 12/2999	1
Common parts
88688-26A00
88688-26A10
88688-26A40
88718-2D150
88718-58050
88899-26210
88899-26220
88899-26230
90105-T0056
90105-T0194
90119-T0258
91551-80625
91553-80612
91553-80616
91671-80612
91673-A0820
94151-80600
Linked diagrams
8714
8719

GRH322L-EDTPHV (2019)

ILLUST NO. 1 OF 3(1902- )GDH300,303,320,322..GCC

ILLUST NO. 3 OF 3(1903- )GDH321,322,328,GRH321,322..ARL,GCC,GEN,IDN,NZ,PH

ILLUST NO. 2 OF 3(1902- )GDH30#,321,322,328..LHD..SG,SHP..GCC,GEN,PH
