Toyota Hiace GRH322 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
US
HIACE
GRH322L-EDTPHV (2019)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

GRH322L-EDTPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 7GRFKS

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

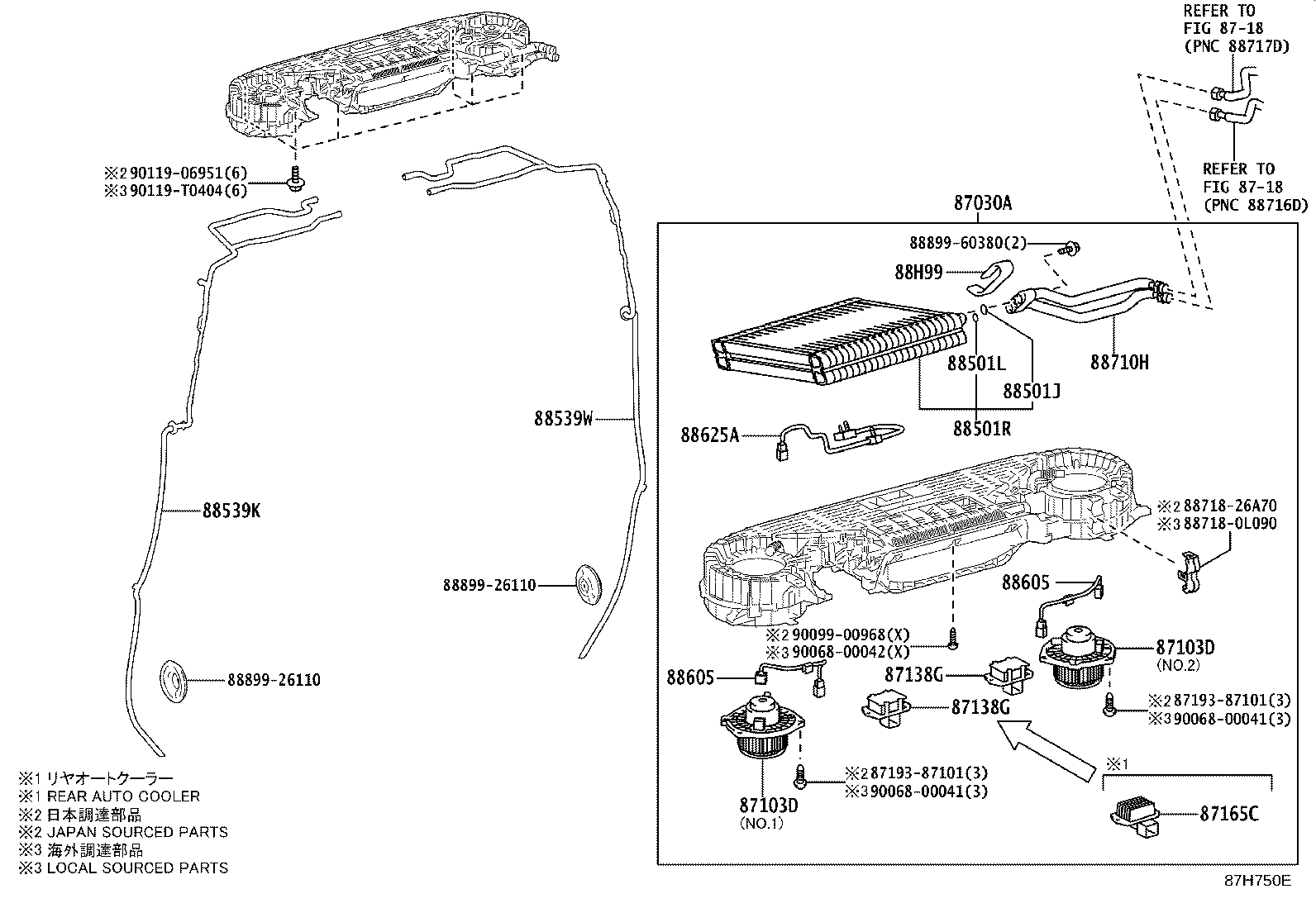

ILLUST NO. 2 OF 2(1902- )GDH321,322,328,GRH321,322

Click highlighted areas on diagram

REAR COOLER

Part #	Description	Period	Qty
87030A - UNIT ASSY, COOLING, REAR
88500-26090	GDH322..6FC..P..GEN;GDH321,322,GRH322..(D,P)..(ARL,GCC,NZ)	03/2019 - 12/2999	1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-26151	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) NO.1	02/2019 - 12/2999	1
87103-26161	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) NO.2	02/2019 - 12/2999	1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-26151	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) NO.1	02/2019 - 12/2999	1
87103-26161	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) NO.2	02/2019 - 12/2999	1
87138G - RESISTOR, REAR COOLER BLOWER
87138-26250	GDH322..6FC..P..GEN;GDH321,322,GRH322..(D,P)..(ARL,GCC,NZ)	03/2019 - 12/2999	2
87138G - RESISTOR, REAR COOLER BLOWER
87138-26250	GDH322..6FC..P..GEN;GDH321,322,GRH322..(D,P)..(ARL,GCC,NZ)	03/2019 - 12/2999	2
87165C - CONTROL, BLOWER MOTOR
87165-26020	GDH322..N;GDH303,322..LHD..(H,Q)..GEN;GDH304,322..(H,Q)..(ARL,GCC,TH);GDH301,321,328,GRH301,304,321,322..(H,N,Q)..(GCC,GEN,PH)	02/2019 - 12/2999	1
88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION)
90099-14121	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) ID=13.4,OD=18.2	02/2019 - 12/2999	1
88501L - O-RING, COOLER EVAPORATOR NO.2(LIQUID)
90099-14120	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) ID=10.8,OD=15.6	02/2019 - 12/2999	1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-26360	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
88539K - HOSE, DRAIN COOLER
88539-26750	GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN)	03/2019 - 12/2999	1
88539W - HOSE, DRAIN COOLER, NO.2
88539-26760	GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN)	03/2019 - 12/2999	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
82212-26020	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	2
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
82212-26020	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	2
88625A - THERMISTOR, COOLER NO.2
88620-26010	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-26E10	GDH322..N;GDH321,322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH321,328,GRH321,322..(N,P,Q)..(GCC,GEN,PH)	03/2019 - 12/2999	1
88H99 - PARTS, COOLING UNIT
88899-26310	GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
Common parts
87193-87101
88718-0L090
88718-26A70
88899-26110
88899-60380
90068-00041
90068-00042
90099-00968
90119-06951
90119-T0404
Linked diagrams
8718

ILLUST NO. 1 OF 2(1902- )GDH300,301,32#,GRH300,301,32#..LHD

Click highlighted areas on diagram

FRONT MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-26590	GDH322..GCC;GRH321,322..LHD..(P,Q);GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC	02/2019 - 12/2999	1
87050-26610	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
87050-26630	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-26201	GDH322..GCC;GRH321,322..LHD..(P,Q);GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC	02/2019 - 12/2999	1
87103-26201	GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,320,322..LHD..(D,N)..(GEN,PH) FRONT HEATER-WITH	02/2019 - 12/2999	1
87103-26191	GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,320,322..LHD..(D,N)..(GEN,PH)	02/2019 - 12/2999	1
87103-58080	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
87103-58080	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-47080	GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,320,322..LHD..(D,N)..(GEN,PH) FRONT HEATER-WITH	02/2019 - 12/2999	1
87107-47080	GRH303..LHD..J;GDH300,320,GRH300,320..6F..GCC;GDH303,304,306,322,GRH321,322..LHD..(G,H,J,P,Q)	02/2019 - 12/2999	1
87107-47080	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
87107-47080	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
87114B - COVER, HEATER
87114-48110	GDH322..D,N;GRH300..GCC;GRH303..RHD..GEN;GDH321,GRH303..LHD..(J,N);GDH304,322..(H,P,Q)..(GCC,TH);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,320,328,GRH301,304,320,322..GCC,GEN,PH,TH,VN	02/2019 - 12/2999	1
87121K - BRACKET, HEATER
87121-26230	GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD..(GCC,GEN,PH)	02/2019 - 12/2999	1
87124B - CLAMP, HEATER
87124-33070	GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300..4D..6FC..ARL;GDH300,320,GRH300,320..6F..GCC;GDH301,321,322,GRH322..ARL,GCC,NZ;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN	02/2019 - 12/2999	1
87124-33070	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
87124-33070	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
87124-33070	GRH300..4D..GEN;GDH300,301,32#,GRH301,320,322..(D,N)..(GEN,PH) FRONT HEATER-WITH	02/2019 - 12/2999	1
87128 - GROMMET, HEATER
87128-28020	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH	02/2019 - 12/2999	1
87130D - BLOWER ASSY
87130-26330	GDH322..GCC;GRH321,322..LHD..(P,Q);GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC	02/2019 - 12/2999	1
87130-26330	GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,320,322..LHD..(D,N)..(GEN,PH) FRONT HEATER-WITH	02/2019 - 12/2999	1
87130-26320	GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,320,322..LHD..(D,N)..(GEN,PH)	02/2019 - 12/2999	1
87130-26350	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
87130-26350	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-26110	GDH321..N..GEN;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GDH320..6FC..ARL;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,328,GRH300,301,321,322..4D..(GCC,GEN,NZ,PH,TH)	02/2019 - 12/2999	1
87106-58050	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
87106-58050	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-58010	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) DEODORANT FILTER	02/2019 - 12/2999	1
87139-28020	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) POLLEN FILTER	02/2019 - 12/2999	1
87211X - BLOWER COVER
87211-26270	GDH321..D;GDH322..N;GDH301..NZ,TH;GDH328,GRH321..6F;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,321,GRH301,322..(N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
87710G - QUICK HEATER ASSY
87710-26090	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)	03/2019 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10170	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH306,322..LHD..(G,J,P,Q);GDH300,301,320,GRH300,320..6F..(GCC,TH);GDH303,304,321,328,GRH304,321..GCC,GEN,PH,TH	02/2019 - 12/2999	1
88501-10170	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
88501-10170	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90099-14120	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH ID=10.8,OD=15.6	02/2019 - 12/2999	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH ID=13.4,OD=18.2	02/2019 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-48120	GDH322..N;GDH301..TH;GDH322..GCC;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH300,320,GRH300,320..6F..GCC;GDH306,322..LHD..6FC..(G,J,P,Q)..GEN;GDH301,303,304,321,328,GRH301,304,321,322..(G,H,J,N,P,Q)..(GCC,GEN,PH,TH)	02/2019 - 12/2999	1
88515-48120	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH	02/2019 - 12/2999	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-26700	GRH303..LHD..J;GDH320..LHD..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH322,GRH300..LHD..4D..(GCC,GEN);GDH301,303,304,306,321,328,GRH301,321,322..LHD	02/2019 - 12/2999	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-26830	GRH303..LHD..J;GDH320..LHD..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH322,GRH300..LHD..4D..(GCC,GEN);GDH301,303,304,306,321,328,GRH301,321,322..LHD	02/2019 - 12/2999	1
88539D - PIPE, COOLER UNIT DRAIN
88899-26200	GRH303..LHD..J;GDH320..LHD..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH322,GRH300..LHD..4D..(GCC,GEN);GDH301,303,304,306,321,328,GRH301,321,322..LHD	02/2019 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-28050	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH306,321..LHD..(G,J,N);GDH320,GRH300,320..6F..GCC;GDH322,GRH303..LHD..(J,P,Q);GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH320,321,GRH320..D..(GEN,IDN);GDH301,303,304,328,GRH301,304,321,322..GCC,GEN,PH,TH	02/2019 - 12/2999	1
88649 - WIRING, COOLER, NO.2
88649-26050	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)	03/2019 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-26730	GRH322..LHD..6FC..D COLD AREA SPEC(-20C AREA)&FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 04/2020	1
88650-26800	GRH321..GEN;GDH321,322,GRH322..ARL,GCC,NZ	03/2019 - 12/2999	1
88650-26800	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D COLD AREA SPEC(-10C AREA)&40B-AREA SPEC&FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88650-26800	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D 40B-AREA SPEC&FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88650-26810	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D 40B-AREA SPEC&FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	03/2019 - 12/2999	1
88650-26730	GRH322..LHD..6FC..D MONGOLIA SPEC&COLD AREA SPEC(-20C AREA)&FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	04/2020 - 12/2999	1
88897M - GROMMET (FOR HEATER PIPE)
87128-28010	GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300..4D..6FC..ARL;GDH300,320,GRH300,320..6F..GCC;GDH301,321,322,GRH322..ARL,GCC,NZ;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN	02/2019 - 12/2999	1
87128-28010	GDH322,GRH300..4D..(D,N)..GEN;GDH300,301,320,321,328,GRH301,320,322..GEN,PH,VN FRONT HEATER-WITH	02/2019 - 12/2999	1
87128-28010	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)	07/2019 - 12/2999	1
87128-28010	GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER	03/2019 - 12/2999	1
88899K - PLATE, COVER
88899-52160	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH	02/2019 - 12/2999	1
88899L - PARTS, COOLING UNIT
88899-26170	GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD..(GCC,GEN,PH)	02/2019 - 12/2999	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-47120	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
Common parts
88718-26C40
88718-26C60
90099-00968
90105-T0241
90119-06951
90159-60383
90159-60431
90159-T0005
90159-T0014
91551-A0618
91553-80616
