GRH322L-EDTPHV (2019)
Toyota Hiace

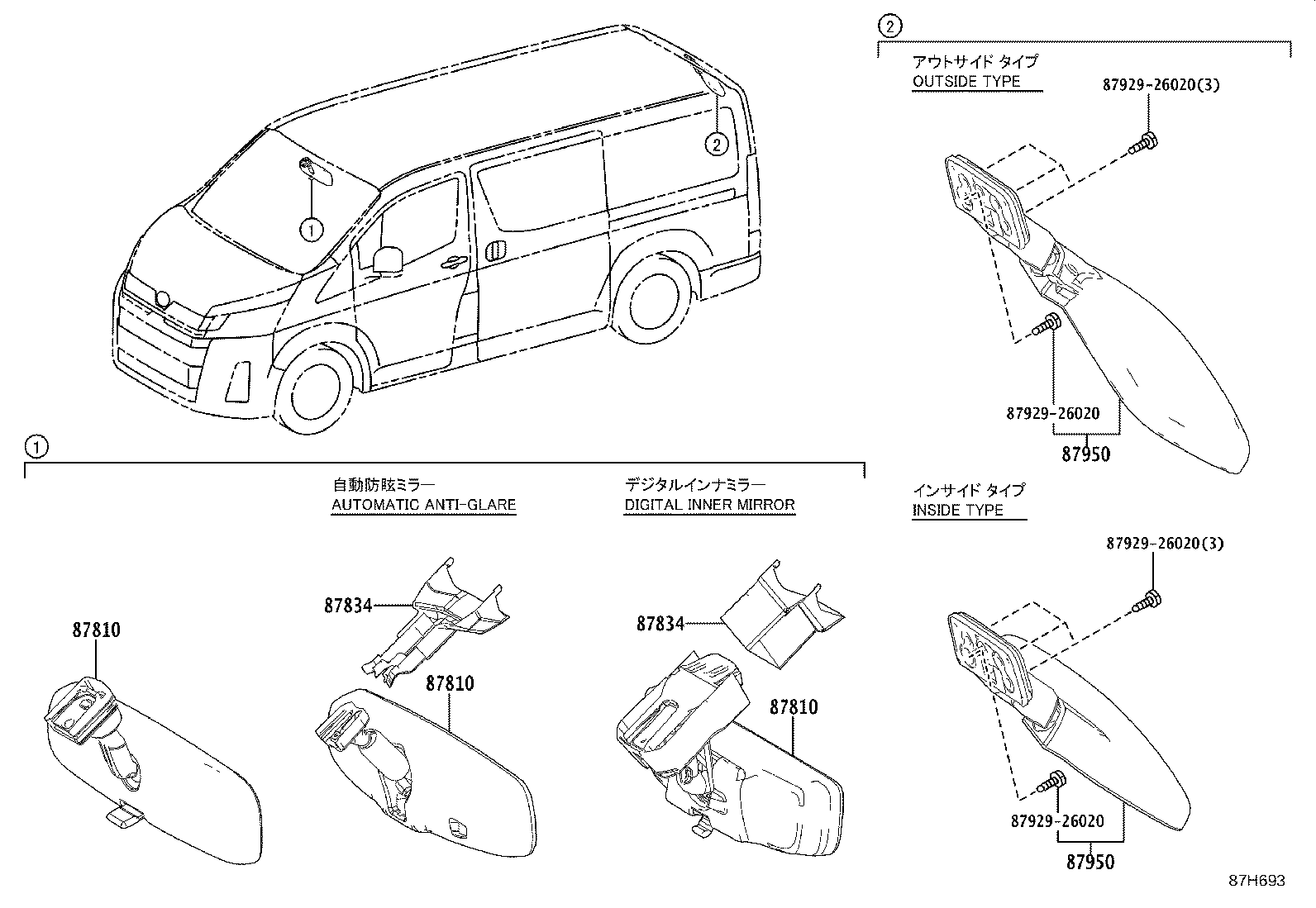

ILLUST NO. 2 OF 2(1902- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WW90 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 87810-28140 |
GDH300..5D;GRH300..GCC;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH303,320..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH |
1 | ||
| 87810-0WX20 |
GDH322..D,N;GDH321..N..GEN;GDH322,GRH300..GCC;GDH322..6FC..(P,Q)..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,320,328,GRH301,32#..GCC,GEN,PH,TH,VN INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WW90 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 87810-28140 |
GDH300..5D;GRH300..GCC;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH303,320..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH |
1 | ||
| 87810-0WX20 |
GDH322..D,N;GDH321..N..GEN;GDH322,GRH300..GCC;GDH322..6FC..(P,Q)..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,320,328,GRH301,32#..GCC,GEN,PH,TH,VN INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WW90 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 87810-28140 |
GDH300..5D;GRH300..GCC;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH303,320..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH |
1 | ||
| 87810-0WX20 |
GDH322..D,N;GDH321..N..GEN;GDH322,GRH300..GCC;GDH322..6FC..(P,Q)..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,320,328,GRH301,32#..GCC,GEN,PH,TH,VN INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-26020 |
GDH322..D,N;GDH321..N..GEN;GDH322,GRH300..GCC;GDH322..6FC..(P,Q)..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,320,328,GRH301,32#..GCC,GEN,PH,TH,VN INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 87818-26040 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-26020 |
GDH322..D,N;GDH321..N..GEN;GDH322,GRH300..GCC;GDH322..6FC..(P,Q)..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,320,328,GRH301,32#..GCC,GEN,PH,TH,VN INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 87818-26040 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| Common parts | ||||
| 87929-26020 | ||||

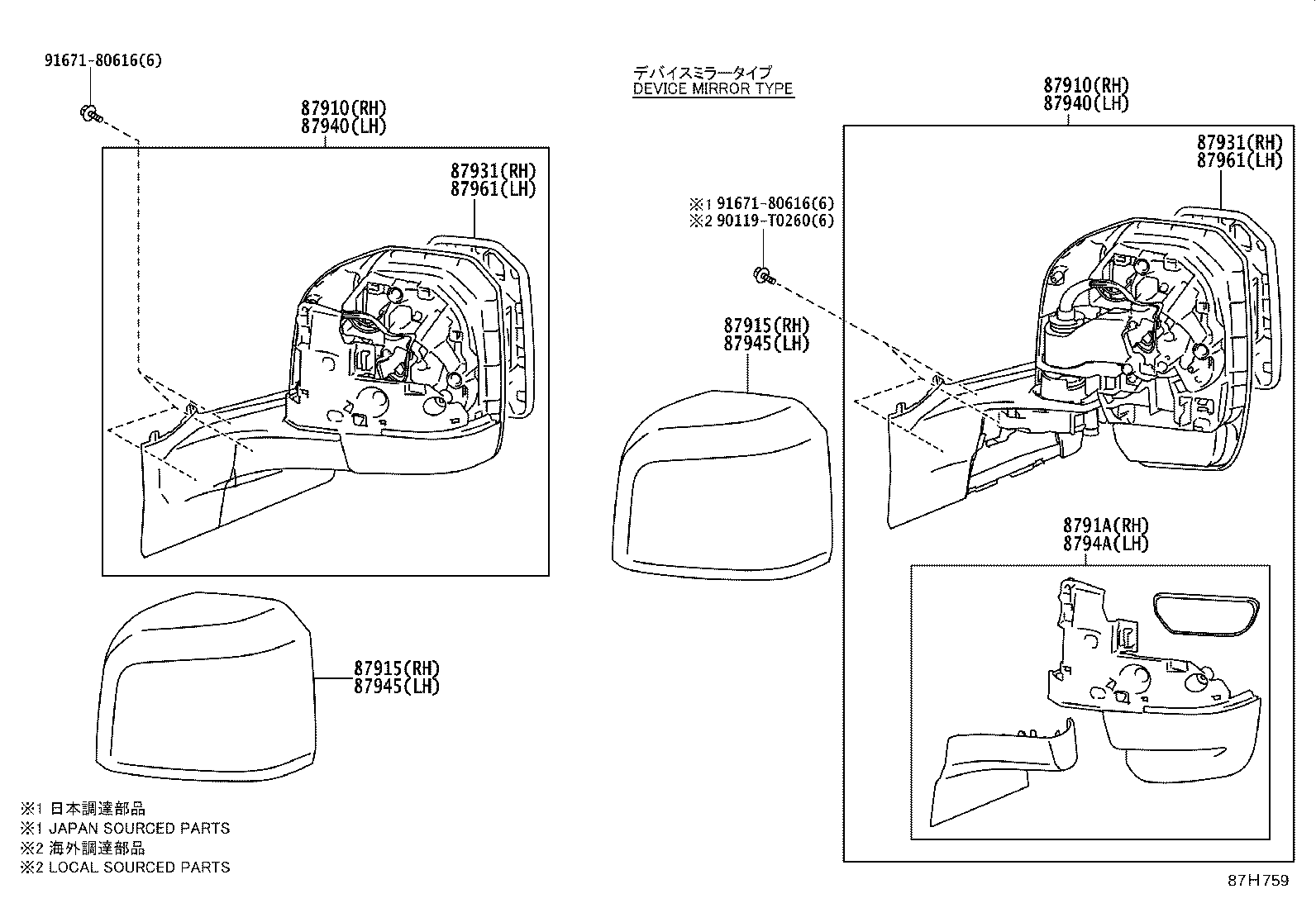

ILLUST NO. 1 OF 2(1902- )
OUTER MIRROR (MANUAL RETRACTABLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-26850 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87910-26830 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87910-26850 |
GDH322,GRH322..P..GCC;GDH300,320,GRH300,320..6F..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87910-26830 |
GDH320,322,GRH320,322..(D,P)..GCC NO PAINT REQ. |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-26850 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87910-26830 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87910-26850 |
GDH322,GRH322..P..GCC;GDH300,320,GRH300,320..6F..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87910-26830 |
GDH320,322,GRH320,322..(D,P)..GCC NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-26020E0 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87915-26010 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 87915-26020B0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87915-26020A0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87915-26020B0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87915-26020A0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87915-26020E0 |
GDH322..D..GEN;GDH322..P..GCC;GDH300,GRH300..SHP..(GCC,GEN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-26020E0 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87915-26010 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 87915-26020B0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87915-26020A0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87915-26020B0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87915-26020A0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87915-26020E0 |
GDH322..D..GEN;GDH322..P..GCC;GDH300,GRH300..SHP..(GCC,GEN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791A-26790 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 8791A-26770 |
GDH322..P..GCC;GRH322..LHD..(D,P);GDH320,321,322,GRH320..LHD..D |
1 | ||
| 8791A-26790 |
GRH322..LHD..(D,P);GDH322,GRH300..(D,P)..GCC;GDH321,322,GRH300..LHD..4D..D;GDH300,301,320,GRH301,320..LHD OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-26820 |
GRH301,322..LHD..6F..D;GRH300,303..LHD..5D..GEN;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87931-26690 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,TH,VN |
1 | ||
| 87931-26820 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87931-26820 |
GDH300,303,320,322,GRH300,303,320,322..GCC |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-26820 |
GRH301,322..LHD..6F..D;GRH300,303..LHD..5D..GEN;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87931-26690 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,TH,VN |
1 | ||
| 87931-26820 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87931-26820 |
GDH300,303,320,322,GRH300,303,320,322..GCC |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-26A10 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87940-26A30 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87940-26A30 |
GDH322,GRH322..P..GCC;GDH300,320,GRH300,320..6F..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87940-26A10 |
GDH320,322,GRH320,322..(D,P)..GCC NO PAINT REQ. |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-26A10 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87940-26A30 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87940-26A30 |
GDH322,GRH322..P..GCC;GDH300,320,GRH300,320..6F..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87940-26A10 |
GDH320,322,GRH320,322..(D,P)..GCC NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-26040A0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87945-26040E0 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87945-26040B0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87945-26040A0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87945-26040B0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87945-26030 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 87945-26040E0 |
GDH322..D..GEN;GDH322..P..GCC;GDH300,GRH300..SHP..(GCC,GEN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-26040A0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87945-26040E0 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87945-26040B0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87945-26040A0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87945-26040B0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87945-26030 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 87945-26040E0 |
GDH322..D..GEN;GDH322..P..GCC;GDH300,GRH300..SHP..(GCC,GEN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-26870 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 8794A-26850 |
GDH322..P..GCC;GRH322..LHD..(D,P);GDH320,321,322,GRH320..LHD..D |
1 | ||
| 8794A-26870 |
GRH322..LHD..(D,P);GDH322,GRH300..(D,P)..GCC;GDH321,322,GRH300..LHD..4D..D;GDH300,301,320,GRH301,320..LHD OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-26A00 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87961-26A00 |
GRH301,322..LHD..6F..D;GRH300,303..LHD..5D..GEN;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87961-26A00 |
GDH300,303,320,322,GRH300,303,320,322..GCC |
1 | ||
| 87961-26770 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,TH,VN |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-26A00 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87961-26A00 |
GRH301,322..LHD..6F..D;GRH300,303..LHD..5D..GEN;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87961-26A00 |
GDH300,303,320,322,GRH300,303,320,322..GCC |
1 | ||
| 87961-26770 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,TH,VN |
1 | ||
| Common parts | ||||
| 90119-T0260 | ||||
| 91671-80616 | ||||

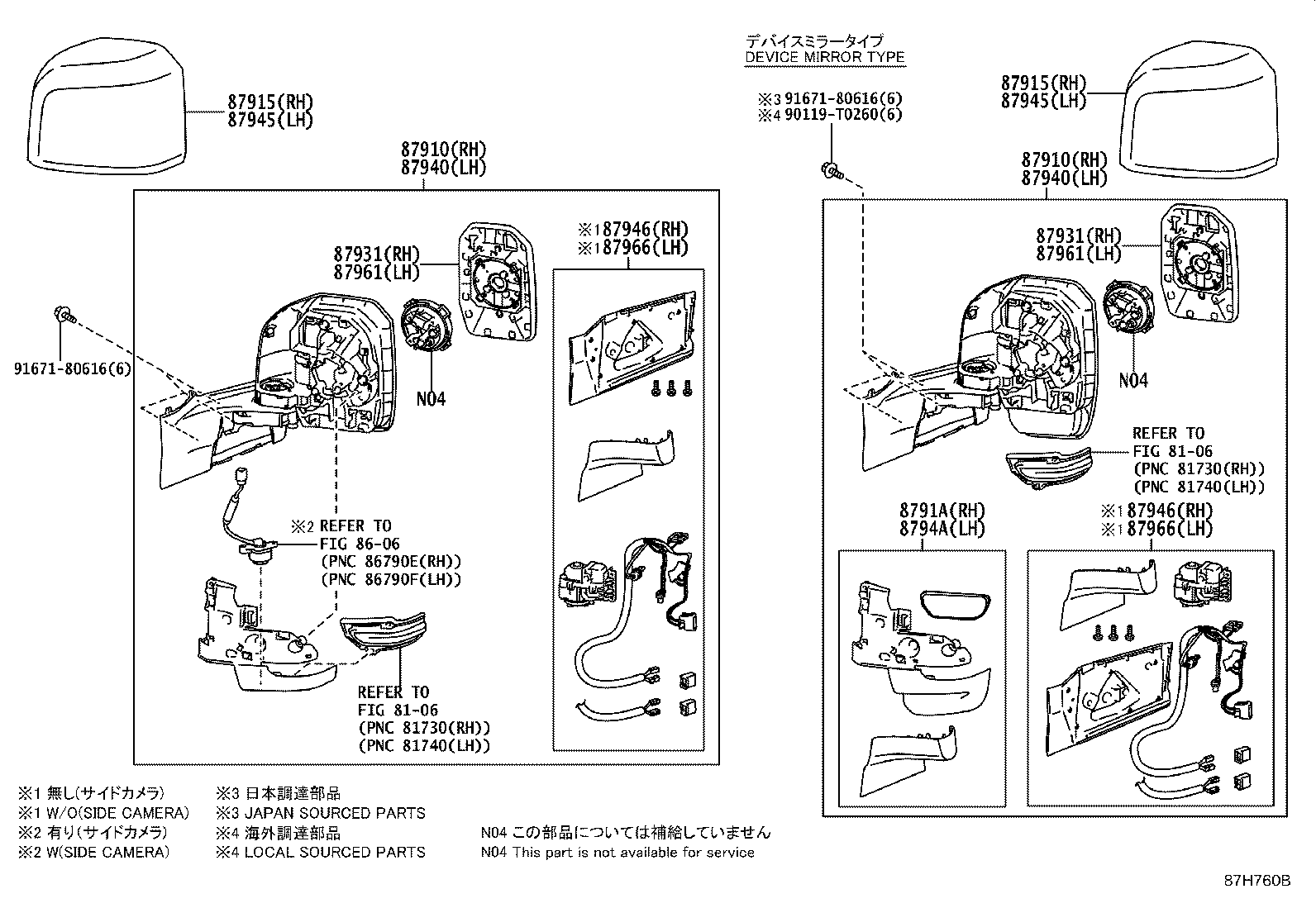

ILLUST NO. 1 OF 2(1902- )
OUTER MIRROR (ELECTRIC RETRACTABLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-26850 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87910-26830 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87910-26850 |
GDH322,GRH322..P..GCC;GDH300,320,GRH300,320..6F..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87910-26830 |
GDH320,322,GRH320,322..(D,P)..GCC NO PAINT REQ. |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-26850 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87910-26830 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87910-26850 |
GDH322,GRH322..P..GCC;GDH300,320,GRH300,320..6F..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87910-26830 |
GDH320,322,GRH320,322..(D,P)..GCC NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-26020E0 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87915-26010 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 87915-26020B0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87915-26020A0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87915-26020B0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87915-26020A0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87915-26020E0 |
GDH322..D..GEN;GDH322..P..GCC;GDH300,GRH300..SHP..(GCC,GEN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-26020E0 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87915-26010 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 87915-26020B0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87915-26020A0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87915-26020B0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87915-26020A0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87915-26020E0 |
GDH322..D..GEN;GDH322..P..GCC;GDH300,GRH300..SHP..(GCC,GEN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791A-26790 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 8791A-26770 |
GDH322..P..GCC;GRH322..LHD..(D,P);GDH320,321,322,GRH320..LHD..D |
1 | ||
| 8791A-26790 |
GRH322..LHD..(D,P);GDH322,GRH300..(D,P)..GCC;GDH321,322,GRH300..LHD..4D..D;GDH300,301,320,GRH301,320..LHD OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-26820 |
GRH301,322..LHD..6F..D;GRH300,303..LHD..5D..GEN;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87931-26690 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,TH,VN |
1 | ||
| 87931-26820 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87931-26820 |
GDH300,303,320,322,GRH300,303,320,322..GCC |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-26820 |
GRH301,322..LHD..6F..D;GRH300,303..LHD..5D..GEN;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87931-26690 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,TH,VN |
1 | ||
| 87931-26820 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87931-26820 |
GDH300,303,320,322,GRH300,303,320,322..GCC |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-26A10 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87940-26A30 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87940-26A30 |
GDH322,GRH322..P..GCC;GDH300,320,GRH300,320..6F..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87940-26A10 |
GDH320,322,GRH320,322..(D,P)..GCC NO PAINT REQ. |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-26A10 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87940-26A30 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87940-26A30 |
GDH322,GRH322..P..GCC;GDH300,320,GRH300,320..6F..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87940-26A10 |
GDH320,322,GRH320,322..(D,P)..GCC NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-26040A0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87945-26040E0 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87945-26040B0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87945-26040A0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87945-26040B0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87945-26030 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 87945-26040E0 |
GDH322..D..GEN;GDH322..P..GCC;GDH300,GRH300..SHP..(GCC,GEN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-26040A0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87945-26040E0 |
GRH322..LHD..6F..D;GRH320..LHD..SP..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87945-26040B0 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87945-26040A0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,WHITE,058 |
1 | ||
| 87945-26040B0 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,SILVER M.M.,1E7 |
1 | ||
| 87945-26030 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 87945-26040E0 |
GDH322..D..GEN;GDH322..P..GCC;GDH300,GRH300..SHP..(GCC,GEN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM,BEIGE ME.,4R4 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-26780 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87946-26780 |
GDH322,GRH300..(D,P)..GCC;GRH300,322..LHD..4D..(D,P);GDH300,301,320,321,322,GRH301,320..LHD..D OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-26780 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87946-26780 |
GDH322,GRH300..(D,P)..GCC;GRH300,322..LHD..4D..(D,P);GDH300,301,320,321,322,GRH301,320..LHD..D OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-26870 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 8794A-26850 |
GDH322..P..GCC;GRH322..LHD..(D,P);GDH320,321,322,GRH320..LHD..D |
1 | ||
| 8794A-26870 |
GRH322..LHD..(D,P);GDH322,GRH300..(D,P)..GCC;GDH321,322,GRH300..LHD..4D..D;GDH300,301,320,GRH301,320..LHD OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-26A00 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87961-26A00 |
GRH301,322..LHD..6F..D;GRH300,303..LHD..5D..GEN;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87961-26A00 |
GDH300,303,320,322,GRH300,303,320,322..GCC |
1 | ||
| 87961-26770 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,TH,VN |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-26A00 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87961-26A00 |
GRH301,322..LHD..6F..D;GRH300,303..LHD..5D..GEN;GRH320..LHD..SP..6F..GEN LEBANON SPEC |
1 | ||
| 87961-26A00 |
GDH300,303,320,322,GRH300,303,320,322..GCC |
1 | ||
| 87961-26770 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,TH,VN |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-26860 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87966-26860 |
GDH322,GRH300..(D,P)..GCC;GRH300,322..LHD..4D..(D,P);GDH300,301,320,321,322,GRH301,320..LHD..D OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-26860 |
GRH301,322..LHD..6F..D;GRH300,320..LHD..5D..6F..GEN LEBANON SPEC&OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 87966-26860 |
GDH322,GRH300..(D,P)..GCC;GRH300,322..LHD..4D..(D,P);GDH300,301,320,321,322,GRH301,320..LHD..D OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| Common parts | ||||
| 90119-T0260 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
