GRH322L-EDTPHV (2019)
Toyota Hiace
(1902- )

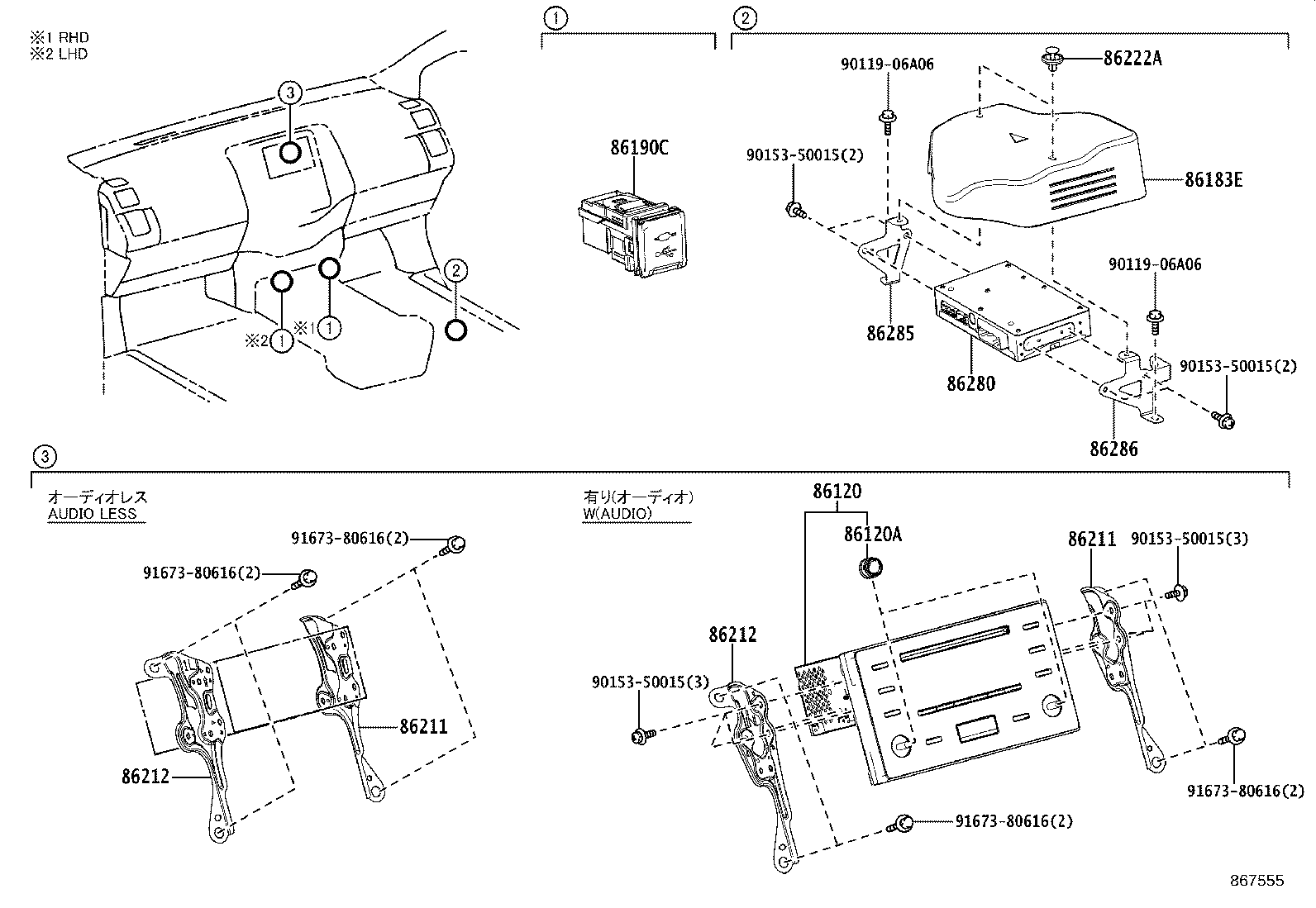

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-26280 |
GDH322..LHD..6F;GDH322..RHD..GEN;GDH322..6FC..GCC;GDH322..LHD..6FC..(D,N);GDH300,301,320,328,GRH300,301,320,322..GCC,GEN,PH DENSO TEN,AUDIO-AM & FM & CD & *BT |
1 | ||
| 86120-26281 |
GDH321..IDN;GDH300,301,320,322,328,GRH300,301,320,322..GCC,GEN,PH DENSO TEN,AUDIO-AM & FM & CD & *BT |
1 | ||
| 86120-26290 |
GRH300..5D..GEN;GRH301,322..LHD..6F..D DENSO TEN,BOLIVIA SPEC&AUDIO-AM & FM & CD & *BT |
1 | ||
| 86120-26291 |
GDH320,322..LHD..SG..6FC..D DENSO TEN,ARGENTINA SPEC&AUDIO-AM & FM & CD & *BT |
1 | ||
| 86120-26291 |
GDH320..LHD..SG;GRH300..5D..GEN;GDH322..LHD..6F..N;GRH322..LHD..6F..D;GDH301,GRH322..6FC..N DENSO TEN,LATIN AMERICA(GENERAL) SPEC&AUDIO-AM & FM & CD & *BT |
1 | ||
| 86120-26282 |
GDH322..LHD..(P,Q);GDH321,GRH300..D..(GCC,IDN);GDH322,GRH300..4D..(D,N)..GEN;GDH300,301,320,328,GRH301,320,322..GCC,GEN,PH DENSO TEN,AUDIO-AM & FM & CD & *BT |
1 | ||
| 86120-26291 |
GRH301,322..LHD..6F..D DENSO TEN,BOLIVIA SPEC&AUDIO-AM & FM & CD & *BT |
1 | ||
| 86120-26291 |
GDH322..LHD..D;GDH320..SP..GEN;GDH301..6F..GEN;GRH300..4D..GEN;GRH322..LHD..6F..N;GDH301..6FC..D..GEN;GDH322..LHD..6FC..N;GRH322..LHD..6FC..D;GDH300,GRH301,320..GEN;GDH320,322,GRH322..RHD..SG..(D,N)..GEN DENSO TEN,LATIN AMERICA(GENERAL) SPEC&AUDIO-AM & FM & CD & *BT |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-23060 |
GRH300..5D..GEN;GRH301,322..LHD..6F..D BOLIVIA SPEC&AUDIO-AM & FM & CD & *BT |
2 | ||
| 90010-23060 |
GDH321..IDN;GDH322..6FC..GCC;GDH322..(D,N)..GEN;GDH322..LHD..6F..(P,Q);GDH300,301,320,328,GRH300,301,320,322..GCC,GEN,PH AUDIO-AM & FM & CD & *BT |
2 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-12040 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,Q)..GEN;GDH301,303,322,328,GRH301,304,322..(G,H,J,N)..(GEN,PH) AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-26110 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,P,Q);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,321,GRH300..(D,H)..(GCC,IDN,TH);GDH300,301,303,320,328,GRH301,304,320,322..GCC,GEN,PH,TH,VN |
1 | ||
| 86211-26120 |
GDH322..6FC..GCC;GDH322..LHD..6F..(P,Q);GDH321,GRH300..D..(GCC,IDN);GDH322,GRH300..4D..(D,N)..GEN;GDH300,301,320,328,GRH301,320,322..GCC,GEN,PH,TH AUDIO-AM & FM & CD & *BT |
1 | ||
| 86211-26120 |
GRH322..RHD;GRH300..4D..GEN;GDH320..SP..GEN;GDH301..6FC..D..GEN;GRH322..LHD..6FC..D;GRH322..LHD..6F..GEN;GDH301,320..SG..6F..GEN;GDH322..6FC..(P,Q)..GEN;GDH300,322,GRH301,320..(D,N)..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 86211-26120 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,Q)..GEN;GDH301,303,322,328,GRH301,304,322..(G,H,J,N)..(GEN,PH) AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-26110 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,P,Q);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,321,GRH300..(D,H)..(GCC,IDN,TH);GDH300,301,303,320,328,GRH301,304,320,322..GCC,GEN,PH,TH,VN |
1 | ||
| 86211-26120 |
GDH322..6FC..GCC;GDH322..LHD..6F..(P,Q);GDH321,GRH300..D..(GCC,IDN);GDH322,GRH300..4D..(D,N)..GEN;GDH300,301,320,328,GRH301,320,322..GCC,GEN,PH,TH AUDIO-AM & FM & CD & *BT |
1 | ||
| 86211-26120 |
GRH322..RHD;GRH300..4D..GEN;GDH320..SP..GEN;GDH301..6FC..D..GEN;GRH322..LHD..6FC..D;GRH322..LHD..6F..GEN;GDH301,320..SG..6F..GEN;GDH322..6FC..(P,Q)..GEN;GDH300,322,GRH301,320..(D,N)..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 86211-26120 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,Q)..GEN;GDH301,303,322,328,GRH301,304,322..(G,H,J,N)..(GEN,PH) AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-26110 |
GDH322..6FC..GCC;GDH322..LHD..6F..(P,Q);GDH321,GRH300..D..(GCC,IDN);GDH322,GRH300..4D..(D,N)..GEN;GDH300,301,320,328,GRH301,320,322..GCC,GEN,PH,TH AUDIO-AM & FM & CD & *BT |
1 | ||
| 86212-26110 |
GRH322..RHD;GRH300..4D..GEN;GDH320..SP..GEN;GDH301..6FC..D..GEN;GRH322..LHD..6FC..D;GRH322..LHD..6F..GEN;GDH301,320..SG..6F..GEN;GDH322..6FC..(P,Q)..GEN;GDH300,322,GRH301,320..(D,N)..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 86212-26100 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,P,Q);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,321,GRH300..(D,H)..(GCC,IDN,TH);GDH300,301,303,320,328,GRH301,304,320,322..GCC,GEN,PH,TH,VN |
1 | ||
| 86212-26110 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,Q)..GEN;GDH301,303,322,328,GRH301,304,322..(G,H,J,N)..(GEN,PH) AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-26110 |
GDH322..6FC..GCC;GDH322..LHD..6F..(P,Q);GDH321,GRH300..D..(GCC,IDN);GDH322,GRH300..4D..(D,N)..GEN;GDH300,301,320,328,GRH301,320,322..GCC,GEN,PH,TH AUDIO-AM & FM & CD & *BT |
1 | ||
| 86212-26110 |
GRH322..RHD;GRH300..4D..GEN;GDH320..SP..GEN;GDH301..6FC..D..GEN;GRH322..LHD..6FC..D;GRH322..LHD..6F..GEN;GDH301,320..SG..6F..GEN;GDH322..6FC..(P,Q)..GEN;GDH300,322,GRH301,320..(D,N)..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 86212-26100 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,P,Q);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,321,GRH300..(D,H)..(GCC,IDN,TH);GDH300,301,303,320,328,GRH301,304,320,322..GCC,GEN,PH,TH,VN |
1 | ||
| 86212-26110 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,Q)..GEN;GDH301,303,322,328,GRH301,304,322..(G,H,J,N)..(GEN,PH) AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90153-50015 | ||||
| 91673-80616 | ||||
(1902- )

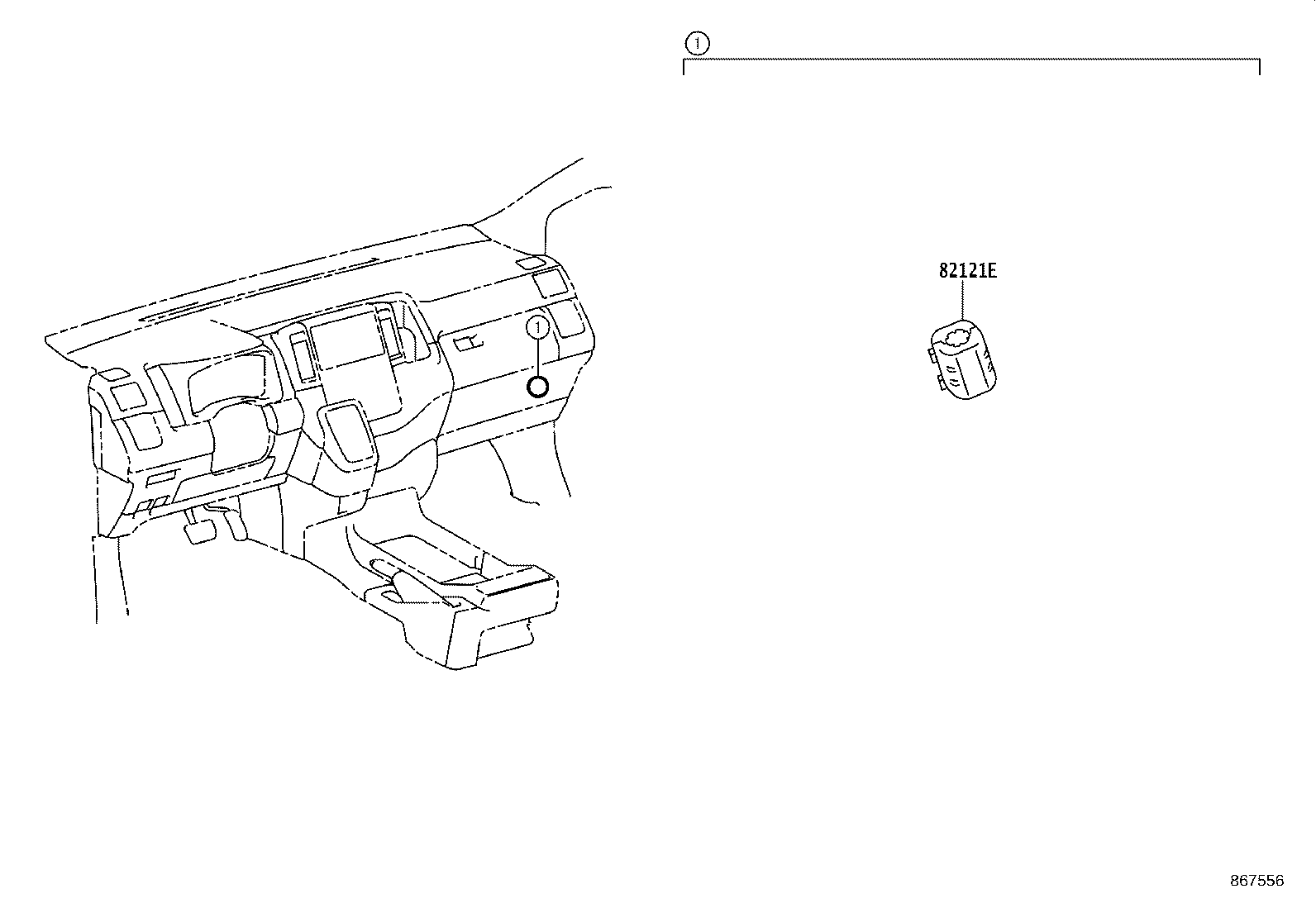

CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121E - CONDENSER | ||||
| 90980-04206 |
GDH30#,32#..LHD |
1 | ||
