GRH322L-EDTPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )GRH30#,32#

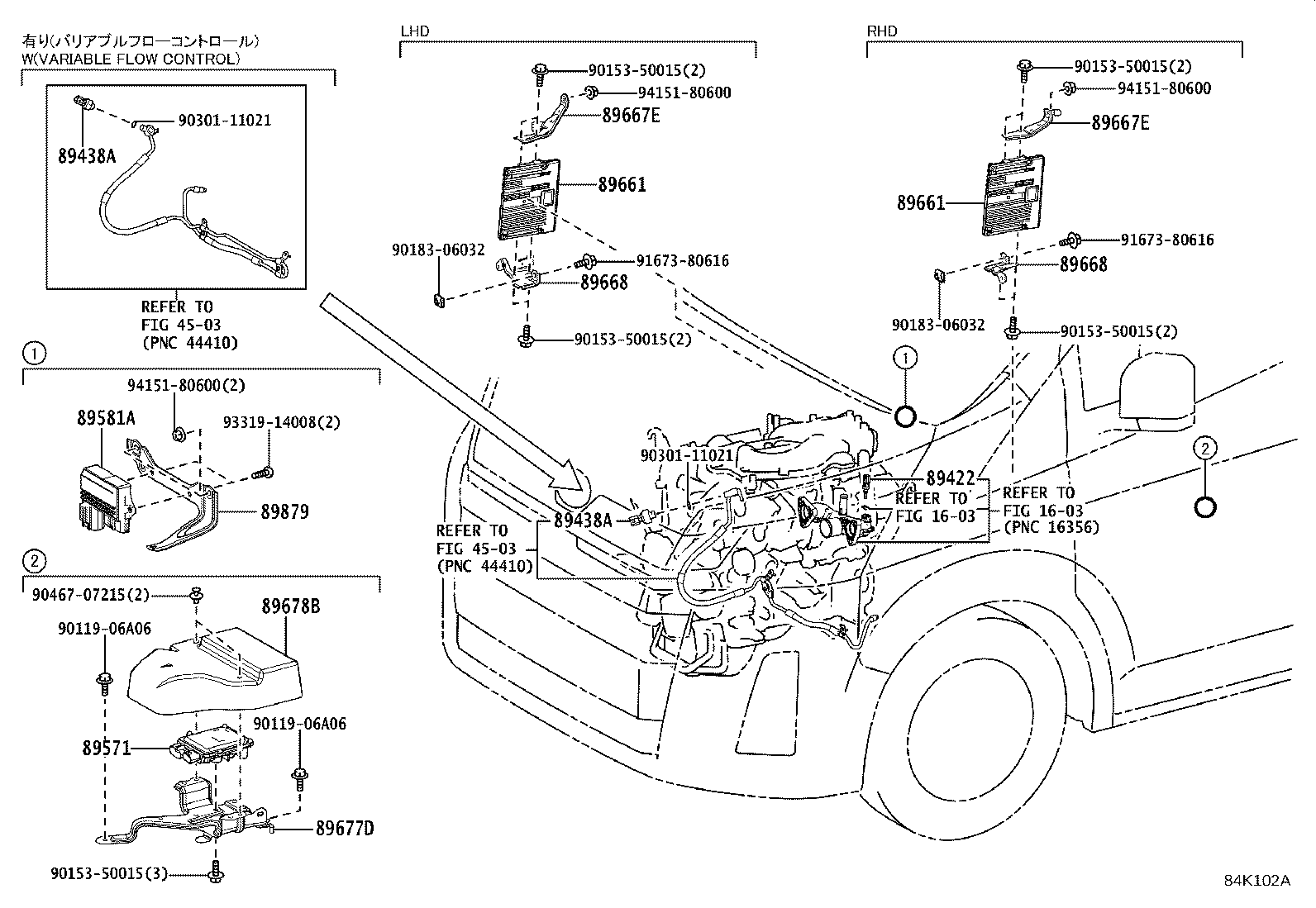

Click highlighted areas on diagram

diagram 1603 1603 4503 4503 89422 89438A 89438A 89571 89581A 89661 89661 89667E 89667E 89668 89668 89677D 89678B 89879 9011906A06 9011906A06 9015350015 9015350015 9015350015 9015350015 9015350015 9018306032 9018306032 9030111021 9030111021 9046707215 9167380616 9167380616 9331914008 9415180600 9415180600 9415180600
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-47010

GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN

 1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89448-34020

GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN

 1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89448-34020

GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-58010

GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN

 1
89661 - COMPUTER, ENGINE CONTROL
89661-26Q10

GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)

DENSO

 1
89661-26P70

GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,322..4D..6F..(GCC,GEN)

DENSO

 1
89661 - COMPUTER, ENGINE CONTROL
89661-26Q10

GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)

DENSO

 1
89661-26P70

GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,322..4D..6F..(GCC,GEN)

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-26190

GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-26190

GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26170

GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26170

GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)

 1
89677D - BRACKET, UREA PUMP CONTROL, NO.1
89677-26010

GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN

 1
89678B - BRACKET, UREA PUMP CONTROL, NO.2
89678-26050

GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN

 1
Common parts
90119-06A06
90153-50015
90183-06032
90301-11021
90467-07215
91673-80616
93319-14008
94151-80600
Linked diagrams
1603
4503
