GRH322L-EDTPHV (2019)
Toyota Hiace

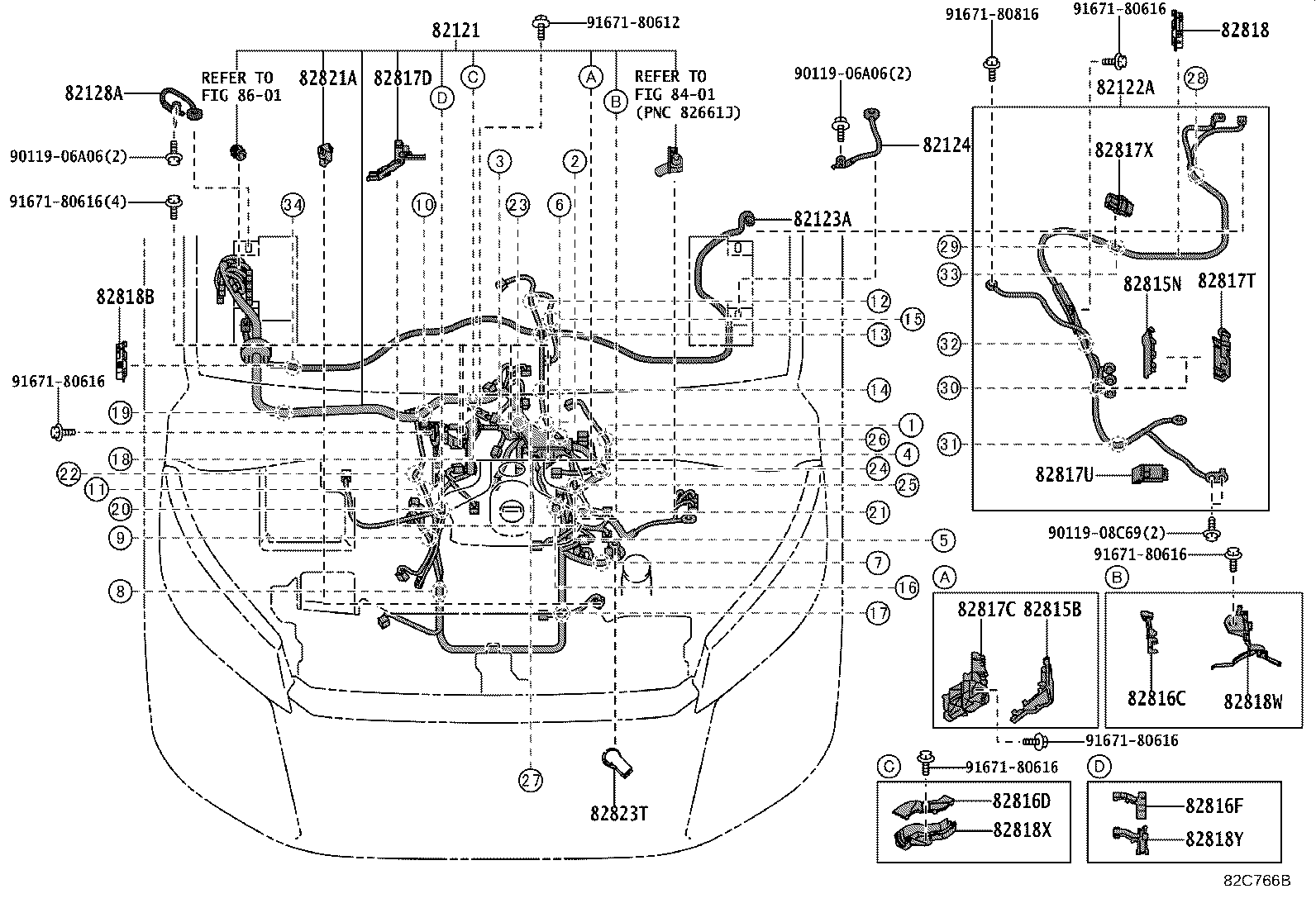

ILLUST NO. 5 OF38(1902- )GRH301,303,320,322..LHD..6FC
ENGINE 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26U60 |
GDH322..6F..P..GCC;GDH320,322..LHD..6F..D |
1 | ||
| 82121-26U40 |
GDH322..6FC..GCC;GDH320,322..LHD..6FC..(D,N) |
1 | ||
| 82121-V3110 |
GDH320,322..LHD..6FC |
1 | ||
| 82121-V3120 |
GDH322..6F..P..GCC;GDH320,322..LHD..6F..D |
1 | ||
| 82121-26J30 |
GRH320..LHD..6F..GEN;GRH300,301,322..LHD..4D..6F..D |
1 | ||
| 82121-26S30 |
GRH301,303,322..LHD..6FC..(J,N,P,Q) |
1 | ||
| 82121-26S50 |
GRH300,320,322..6F..(D,P)..GCC |
1 | ||
| 82121-26S50 |
GRH320..LHD..6F..GEN;GRH300,301,322..LHD..4D..6F..D FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 82121-26S30 |
GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82122A - WIRE, ENGINE, NO.2 | ||||
| 82122-26B50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26210 |
GRH300..GCC;GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-60680 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
2 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-60680 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
2 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-60020 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-60120 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-60110 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-48130 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82817-30R30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-30R30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26M40 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-48240 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
6 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-48240 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
6 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-08C69 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||

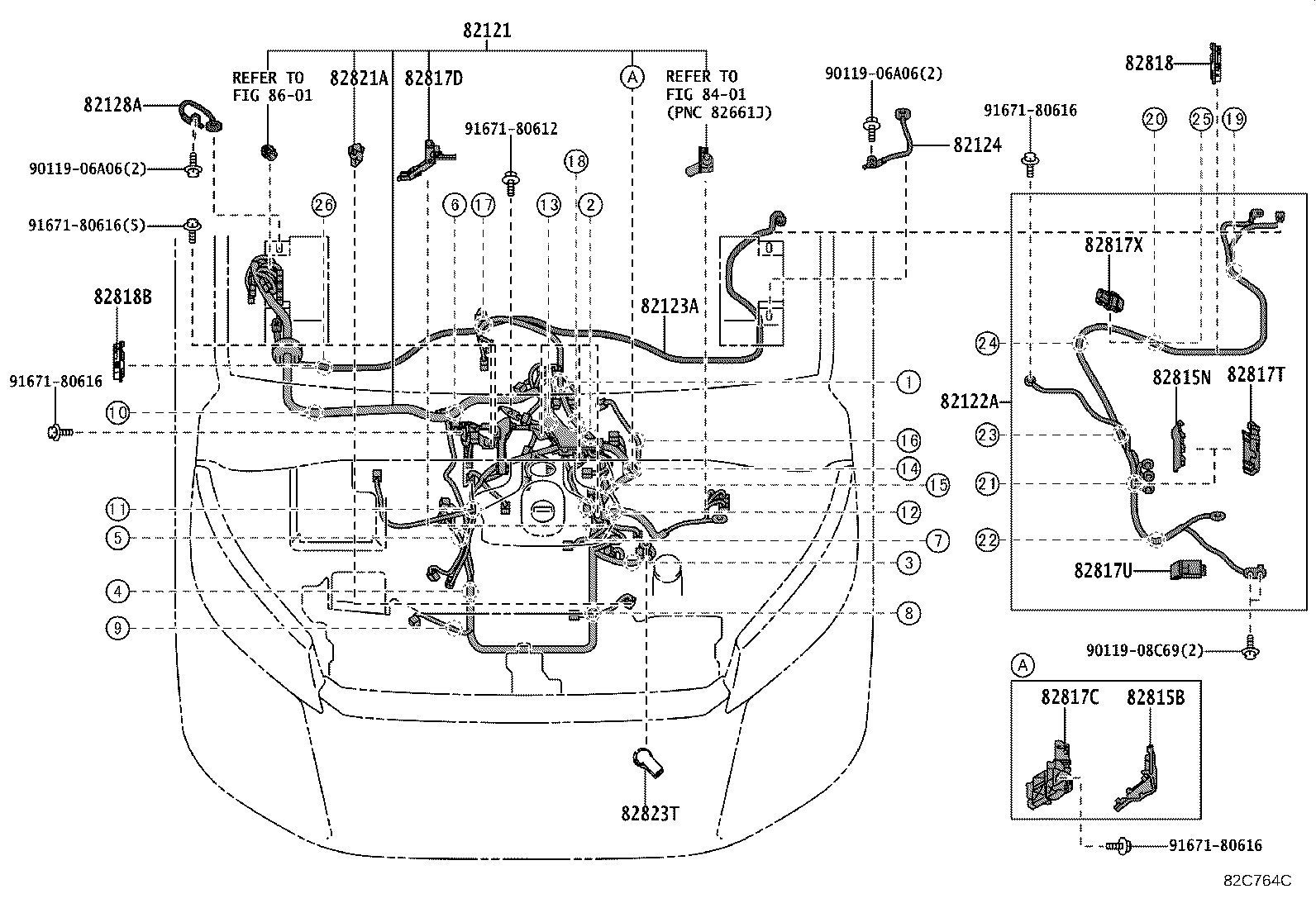

ILLUST NO. 6 OF38(1902- )GRH301,303,320,322..LHD..6FC
ENGINE 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-26E10 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-26E20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-26E30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-26J70 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-26J80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-26E80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815-26K00 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-26F00 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26E60 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-26K10 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-26E70 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-26E90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-26E50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26S90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26T40 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-26W50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-26T30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-26W60 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-26T00 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26T20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-2F760 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82817-26T90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-26W80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817-26R00 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-26W90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-26T60 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818S - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-26T70 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818T - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-26T80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818U - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-26U20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818V - PROTECTOR, WIRING HARNESS, NO.18 | ||||
| 82817-26T50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06939 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 8 OF38(1902- )GRH300,301,32#..LHD..6F
ENGINE 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26U60 |
GDH322..6F..P..GCC;GDH320,322..LHD..6F..D |
1 | ||
| 82121-26U40 |
GDH322..6FC..GCC;GDH320,322..LHD..6FC..(D,N) |
1 | ||
| 82121-V3110 |
GDH320,322..LHD..6FC |
1 | ||
| 82121-V3120 |
GDH322..6F..P..GCC;GDH320,322..LHD..6F..D |
1 | ||
| 82121-26J30 |
GRH320..LHD..6F..GEN;GRH300,301,322..LHD..4D..6F..D |
1 | ||
| 82121-26S30 |
GRH301,303,322..LHD..6FC..(J,N,P,Q) |
1 | ||
| 82121-26S50 |
GRH300,320,322..6F..(D,P)..GCC |
1 | ||
| 82121-26S50 |
GRH320..LHD..6F..GEN;GRH300,301,322..LHD..4D..6F..D FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 82121-26S30 |
GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82122A - WIRE, ENGINE, NO.2 | ||||
| 82122-26B50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26210 |
GRH300..GCC;GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-60680 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
2 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-60680 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
2 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-60020 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-60120 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-60110 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-48130 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82817-30R30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-30R30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26M40 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-48240 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
6 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-48240 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
6 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-08C69 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
ILLUST NO. 9 OF38(1902- )GRH300,301,32#..LHD..6F
ENGINE 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-26E10 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-26E20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-26E30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-26J70 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-26J80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-26E80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815-26K00 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-26F00 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26E60 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-26K10 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-26E70 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-26E90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-26E50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26S90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26T40 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-26W50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-26T30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-26W60 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-26T00 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26T20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-2F760 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82817-26T90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-26W80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817-26R00 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-26W90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-26T60 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818S - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-26T70 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818T - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-26T80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818U - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-26U20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818V - PROTECTOR, WIRING HARNESS, NO.18 | ||||
| 82817-26T50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06939 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.17 OF38(1902- )GDH30#,320,322..LHD..6FC
ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26U60 |
GDH322..6F..P..GCC;GDH320,322..LHD..6F..D |
1 | ||
| 82121-26U40 |
GDH322..6FC..GCC;GDH320,322..LHD..6FC..(D,N) |
1 | ||
| 82121-V3110 |
GDH320,322..LHD..6FC |
1 | ||
| 82121-V3120 |
GDH322..6F..P..GCC;GDH320,322..LHD..6F..D |
1 | ||
| 82121-26J30 |
GRH320..LHD..6F..GEN;GRH300,301,322..LHD..4D..6F..D |
1 | ||
| 82121-26S30 |
GRH301,303,322..LHD..6FC..(J,N,P,Q) |
1 | ||
| 82121-26S50 |
GRH300,320,322..6F..(D,P)..GCC |
1 | ||
| 82121-26S50 |
GRH320..LHD..6F..GEN;GRH300,301,322..LHD..4D..6F..D FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 82121-26S30 |
GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82122A - WIRE, ENGINE, NO.2 | ||||
| 82122-26B50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26210 |
GRH300..GCC;GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-26C30 |
GDH30#,32#..LHD..(GCC,GEN,PH) |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-26E80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815-26K00 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-26Q70 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-26Q80 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-2F760 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82817-26T90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-26W80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817-26R00 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-26X30 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26M40 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12360 |
GDH300..5D;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH320,322..(D,N)..(GCC,GEN);GDH300,321..4D..D..(GEN,IDN,NZ,TH);GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-08C69 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||
ILLUST NO.18 OF38(1902- )GDH30#,320,322..LHD..6FC
ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35690 | ||||
| 82715-26J30 | ||||
| 82715-26K70 | ||||
| 82715-26K90 | ||||
| 82715-26L00 | ||||
| 82715-26L10 | ||||
| 82715-26L50 | ||||
| 82715-26M30 | ||||
| 82715-26M40 | ||||
| 82715-26M50 | ||||
| 82715-26M60 | ||||
| 82715-26M80 | ||||
| 82715-26M90 | ||||
| 82715-26Q60 | ||||
| 82715-26S90 | ||||
| 82715-26T00 | ||||
| 82715-26W80 | ||||
| 82715-26X30 | ||||
| 82715-6A770 | ||||
| 82715-6A790 | ||||
| 82715-6A850 | ||||
| 82715-6A860 | ||||
| 82715-6A870 | ||||
| 82715-6A880 | ||||
| 82715-6AA60 | ||||
| 82715-71250 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
ILLUST NO.19 OF38(1902- )GDH300,301,32#..LHD..6F
ENGINE 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26U60 |
GDH322..6F..P..GCC;GDH320,322..LHD..6F..D |
1 | ||
| 82121-26U40 |
GDH322..6FC..GCC;GDH320,322..LHD..6FC..(D,N) |
1 | ||
| 82121-V3110 |
GDH320,322..LHD..6FC |
1 | ||
| 82121-V3120 |
GDH322..6F..P..GCC;GDH320,322..LHD..6F..D |
1 | ||
| 82121-26J30 |
GRH320..LHD..6F..GEN;GRH300,301,322..LHD..4D..6F..D |
1 | ||
| 82121-26S30 |
GRH301,303,322..LHD..6FC..(J,N,P,Q) |
1 | ||
| 82121-26S50 |
GRH300,320,322..6F..(D,P)..GCC |
1 | ||
| 82121-26S50 |
GRH320..LHD..6F..GEN;GRH300,301,322..LHD..4D..6F..D FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 82121-26S30 |
GRH322..LHD..6FC..D FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82122A - WIRE, ENGINE, NO.2 | ||||
| 82122-26B50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26210 |
GRH300..GCC;GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-26C30 |
GDH30#,32#..LHD..(GCC,GEN,PH) |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-26E80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815-26K00 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-26Q70 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-26Q80 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-2F760 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82817-26T90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-26W80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817-26R00 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-26X30 |
GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26M40 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12360 |
GDH300..5D;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH320,322..(D,N)..(GCC,GEN);GDH300,321..4D..D..(GEN,IDN,NZ,TH);GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-08C69 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

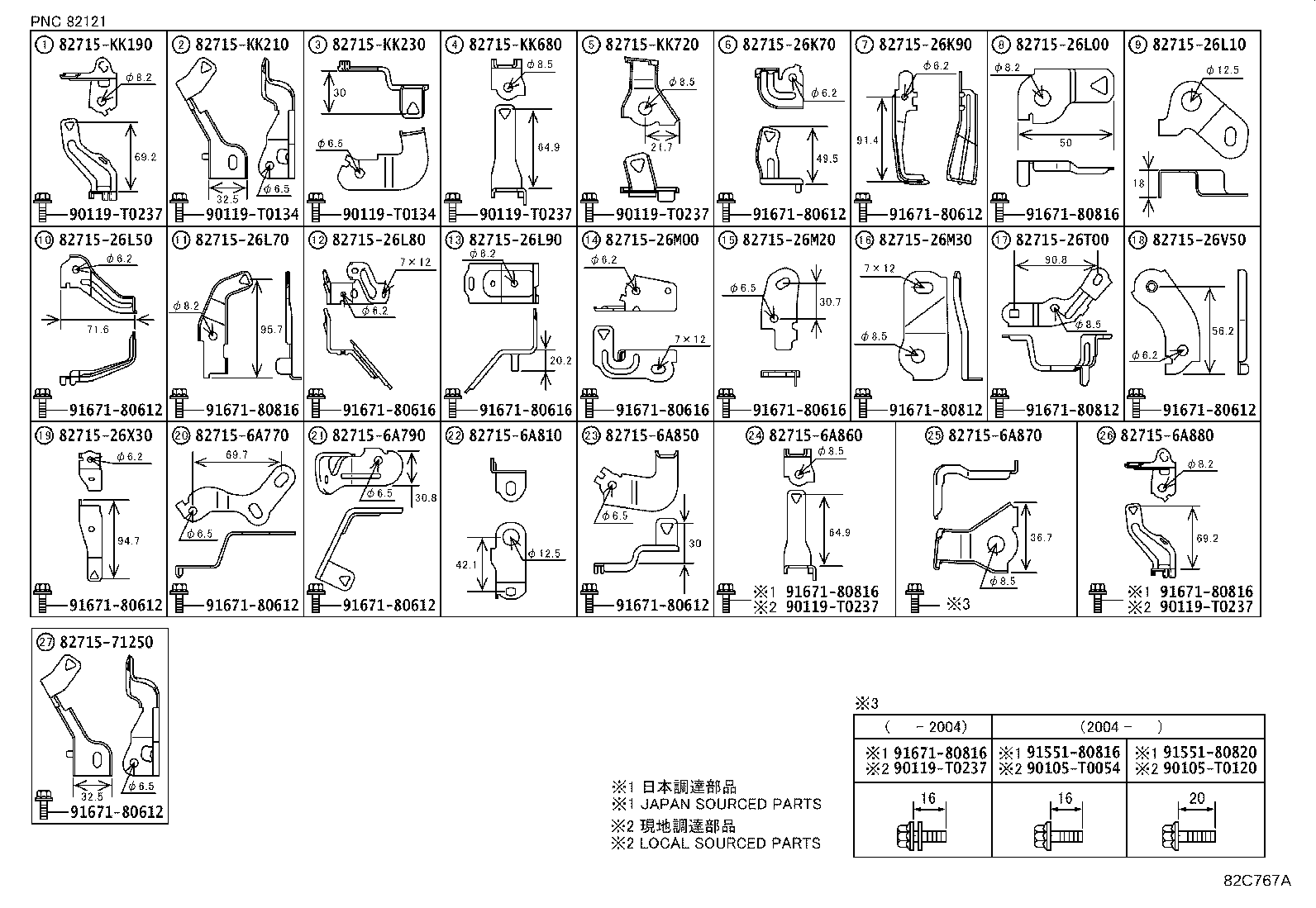

ILLUST NO.20 OF38(1902- )GDH300,301,32#..LHD..6F
ENGINE 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-26K70 | ||||
| 82715-26K90 | ||||
| 82715-26L00 | ||||
| 82715-26L10 | ||||
| 82715-26L50 | ||||
| 82715-26L70 | ||||
| 82715-26L80 | ||||
| 82715-26L90 | ||||
| 82715-26M00 | ||||
| 82715-26M20 | ||||
| 82715-26M30 | ||||
| 82715-26T00 | ||||
| 82715-26V50 | ||||
| 82715-26X30 | ||||
| 82715-6A770 | ||||
| 82715-6A790 | ||||
| 82715-6A810 | ||||
| 82715-6A850 | ||||
| 82715-6A860 | ||||
| 82715-6A870 | ||||
| 82715-6A880 | ||||
| 82715-71250 | ||||
| 82715-KK190 | ||||
| 82715-KK210 | ||||
| 82715-KK230 | ||||
| 82715-KK680 | ||||
| 82715-KK720 | ||||
| 90105-T0054 | ||||
| 90105-T0120 | ||||
| 90119-T0134 | ||||
| 90119-T0237 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||

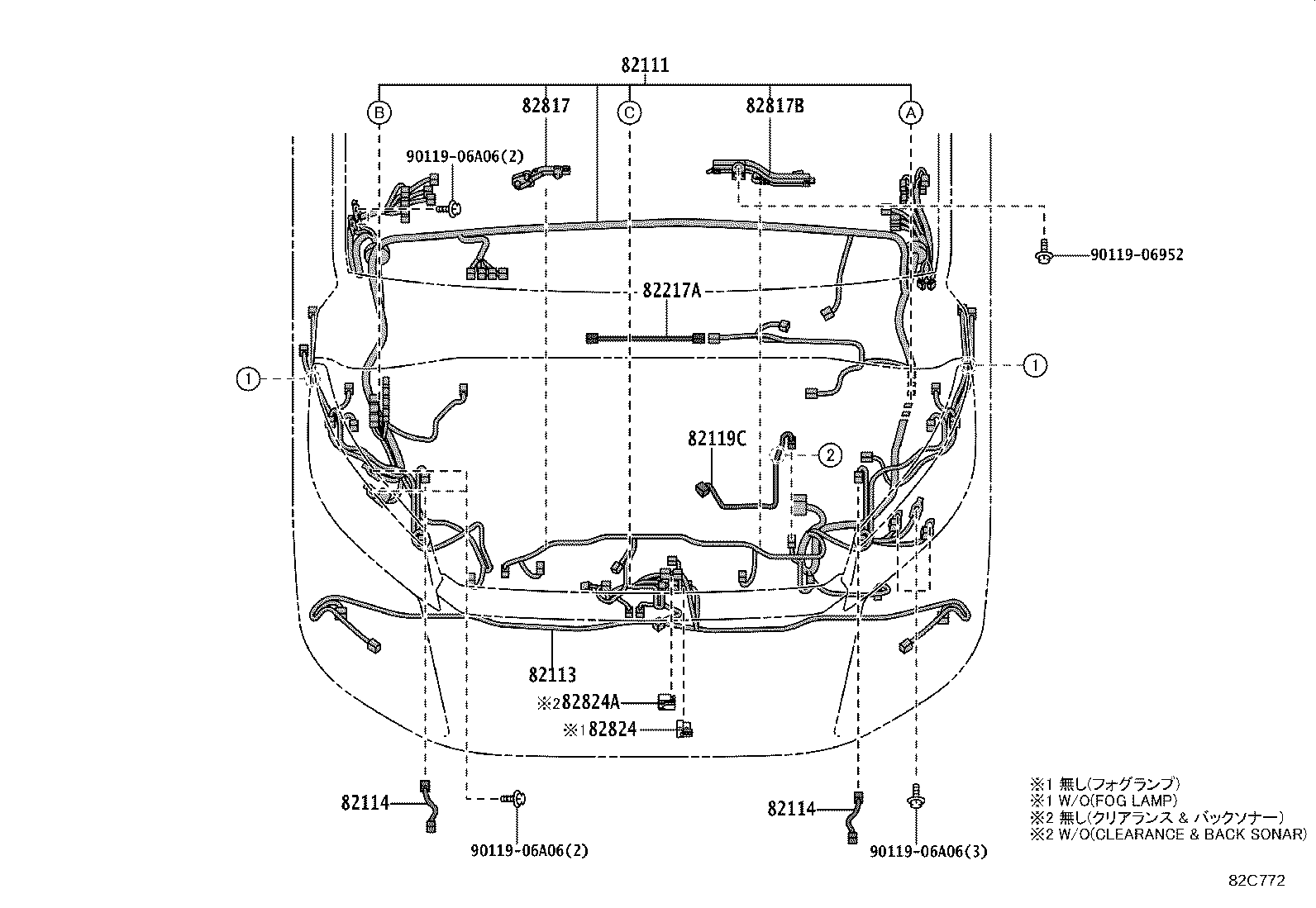

ILLUST NO. 1 OF38(1902- )LHD
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2NM30 |
GRH322..LHD..6F..D;GRH300,301,320..LHD..D..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 82111-2NM40 |
GRH322..LHD..6F..D;GRH300,301,320..LHD..D..GEN FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-2NM50 |
GRH322..LHD..6F..D;GRH300,301,320..LHD..D..GEN VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER& PASSENGER) |
1 | ||
| 82111-2NM40 |
GRH322..LHD..6F..D;GRH300,301,320..LHD..D..GEN FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-2NE00 |
GRH322..LHD..6FC..D COLD AREA SPEC(-20C AREA)&VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-2NM50 |
GRH322..LHD..6F..D;GRH300,301,320..LHD..D..GEN VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVERSEAT SIDE ONLY) |
1 | ||
| 82111-2NE00 |
GRH322..LHD..6FC..D COLD AREA SPEC(-20C AREA)&VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-2NM40 |
GRH322..LHD..6FC..D COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER SEATSIDE ONLY) |
1 | ||
| 82111-2NM30 |
GRH322..LHD..6FC..D COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 82111-2NM50 |
GRH322..LHD..6FC..D COLD AREA SPEC(-10C AREA)&VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-2NM40 |
GRH322..LHD..6FC..D COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-2NM50 |
GRH322..LHD..6FC..D COLD AREA SPEC(-10C AREA)&VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-2FT80 |
GDH301,322..LHD..6F..D COSTA RICA SPEC&VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-V3080 |
GDH301,322..LHD..6F..D EGYPT SPEC&VEHICLE STABILITY CONTROL-WITH&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-V3080 |
GDH321..GEN;GDH300,320,322..GCC |
1 | ||
| 82111-V3370 |
GRH322..LHD..6FC..D COLD AREA SPEC(-20C AREA)&VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-V3360 |
GRH300,320,322..GCC |
1 | ||
| 82111-V3370 |
GRH322..LHD..6FC..D COLD AREA SPEC(-20C AREA)&VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER & 2LAYER TYPE)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-V3510 |
GRH322..LHD..6FC..D COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 82111-V3510 |
GRH322..LHD..6F..D;GRH300,301,320..LHD..D..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 82111-V3520 |
GRH322..LHD..6FC..D COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER SEATSIDE ONLY) |
1 | ||
| 82111-V3520 |
GRH322..LHD..6FC..D COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-V3530 |
GRH322..LHD..6F..D;GRH300,301,320..LHD..D..GEN VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVERSEAT SIDE ONLY) |
1 | ||
| 82111-V3520 |
GRH322..LHD..6F..D;GRH300,301,320..LHD..D..GEN FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-V3530 |
GRH322..LHD..6FC..D COLD AREA SPEC(-10C AREA)&VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-V3520 |
GRH322..LHD..6F..D;GRH300,301,320..LHD..D..GEN FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-V3530 |
GRH322..LHD..6FC..D COLD AREA SPEC(-10C AREA)&VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-V3530 |
GRH322..LHD..6F..D;GRH300,301,320..LHD..D..GEN VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER& PASSENGER) |
1 | ||
| 82111-2FT80 |
GDH321;GDH300,320,322..GCC |
1 | ||
| 82111-2FT80 |
GDH301,322..LHD..6F..D EGYPT SPEC&VEHICLE STABILITY CONTROL-WITH&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-2ND90 |
GRH300,320,322..GCC |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-26120 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) GL PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82113-26100 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82113-26110 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) GL PACKAGE |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-26180 |
GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
2 | ||
| 82114-26190 |
GDH301..D..GEN;GRH322..LHD..6FC..D;GRH320..RHD..SP..GEN;GDH322..LHD..6F..D..GEN;GDH322,GRH301..RHD..D..GEN;GDH300,320..LHD..SP..6F..GEN DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB |
2 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-26180 |
GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
2 | ||
| 82114-26190 |
GDH301..D..GEN;GRH322..LHD..6FC..D;GRH320..RHD..SP..GEN;GDH322..LHD..6F..D..GEN;GDH322,GRH301..RHD..D..GEN;GDH300,320..LHD..SP..6F..GEN DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB |
2 | ||
| 82217A - WIRE, FRONT WINDOW DEFOGGER | ||||
| 82218-26020 |
GRH322..LHD..6FC..D COLD AREA SPEC(-20C AREA) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-26Y40 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-2F750 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-26270 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82824-26270 |
GDH322..6FC..P..GEN;GDH322,GRH300..(D,P)..GCC;GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-26280 |
GRH300..GCC;GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90119-06A06 | ||||
ILLUST NO. 2 OF38(1902- )LHD
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-26G00 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26Y50 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| Common parts | ||||
| 82711-3F230 | ||||
| 82715-26V60 | ||||
| 90119-06952 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.25 OF38(1902- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82136 - WIRE, DASH | ||||
| 82136-26100 |
GDH300,301,320,322,GRH301,320,322..LHD..6FC..(D,P) |
1 | ||
| 82136-26110 |
GRH300..6F..GCC;GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..6F..(D,P)..(GCC,GEN) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-26P30 |
GDH301,322..LHD..6F..D EGYPT SPEC&FRONT SEAT-SEPARATE TYPE&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82141-26T10 |
GRH300,320,322..GCC |
1 | ||
| 82141-26T40 |
GRH322..LHD..6FC..D FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26P30 |
GDH300,320,322..GCC;GDH322..6FC..(P,Q)..GEN |
1 | ||
| 82141-26T50 |
GRH322..LHD..6FC..D FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82141-26P30 |
GDH301,322..LHD..6F..D COSTA RICA SPEC&FRONT HEATER-WITH&FRONT SEAT-SEPARATE TYPE&SRS AIR BAG-W(DRIVER &PASSENGER) |
1 | ||
| 82141-26P30 |
GDH321..D..GEN;GDH300,320,322..GCC CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82141-26P30 |
GDH301,322..LHD..6F..D EGYPT SPEC&FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)&FRONT SEAT-SEPARATE TYPE&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82141-26P30 |
GDH301,322..LHD..D FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82141-26P30 |
GDH301,322..LHD..D FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82141-26T10 |
GRH322..P WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD) |
1 | ||
| 82141-26T10 |
GRH300,320,322..GCC CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82141-26T10 |
GRH322..GCC REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 82141-26T10 |
GRH322..LHD..D WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82141-26T10 |
GRH322..LHD..D WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD)&SRS AIR BAG-W(DRIVER & PASSENGER)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82141-26T10 |
GRH322..LHD..D WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82141-26T10 |
GRH322..P WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82141-26T10 |
GRH322..P WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&CLEARANCE &BACK SONAR-WITH |
1 | ||
| 82141-26T10 |
GRH301,322..LHD..D REAR HEATER-WITH(FLOOR SET)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82141-26T10 |
GRH322..P WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 82141-26T50 |
GRH322..LHD..6FC..D WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82141-26T10 |
GRH322..LHD..D WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&SRS AIR BAG-W(DRIVER & PASSENGER)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82141-26T50 |
GRH322..LHD..6FC..D REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-W(DRIVER & PASSENGER)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82141-26T10 |
GRH322..LHD..D REAR HEATER-WITH(FLOOR SET)&SRS AIR BAG-W(DRIVER & PASSENGER)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82141-26T10 |
GRH322..GCC REAR HEATER-WITH(FLOOR SET)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82141-26T10 |
GRH320..LHD..GEN;GRH300,322..LHD..4D..D SRS AIR BAG-W(DRIVER & PASSENGER)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82141-26T50 |
GRH322..LHD..6FC..D REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82141-26T50 |
GRH322..LHD..6FC..D WIRELESS DOOR LOCK-WITH&*POSD & *ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-W(DRIVER & PASSENGER)&CLEARANCE & BACKSONAR-WITH |
1 | ||
| 82141-26T40 |
GRH322..LHD..6FC..D REAR HEATER-WITH(FLOOR SET)&FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-V3160 |
GDH301,322..LHD..6F..D EGYPT SPEC&FRONT SEAT-SEPARATE TYPE&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82141-V3160 |
GDH321..D..GEN;GDH300,320,322..GCC |
1 | ||
| 82141-V3170 |
GRH300,320,322..GCC |
1 | ||
| 82141-V3170 |
GRH320..LHD..GEN;GRH300,301,322..LHD..4D..D SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-26670 |
GDH301,322..LHD..6FC..D SRS AIR BAG-W(DRIVER & PASSENGER)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82142-26D60 |
GDH301,322..LHD..6FC..D SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82142-26670 |
GRH301..LHD..6F..D;GDH301,322..LHD..6FC..N;GDH320..LHD..SP..6F..GEN;GDH301,322,328..LHD..6F..(D,N)..(GEN,PH) SRS AIR BAG-W(DRIVER & PASSENGER)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82142-26670 |
GDH300,320,322,GRH300,320,322..GCC AUDIO-AM & FM & CD & *BT |
1 | ||
| 82142-26C90 |
GRH300,301,322..LHD..4D..D;GDH300,301,320,322,328,GRH320..LHD..(D,N)..(GEN,PH) AUDIO-AM & FM & CD & *BT |
1 | ||
| 82142-26D50 |
GRH300,301,322..LHD..4D..D;GDH300,301,320,322,328,GRH320..LHD..(D,N)..(GEN,PH) |
1 | ||
| 82142-26D60 |
GRH301..LHD..6F..D;GDH301,322..LHD..6FC..N;GDH301,322,328..LHD..6F..(D,N)..(GEN,PH) SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82142-26D60 |
GRH303..LHD..J;GDH300,303..LHD..5D;GDH322..6FC..(P,Q)..GEN;GDH320,322,GRH300,320,322..GCC |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-26030 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM) |
1 | ||
| 82144-26020 |
GDH322..P..GCC;GDH300,301,320,GRH300,320,322..(D,P)..(GCC,TH) |
1 | ||
| 82144-26030 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..LHD..P..GEN;GDH306,322..LHD..(G,J,Q);GDH301,303,304,321,328,GRH301,304,321,322..(G,H,J,N,Q)..(GCC,GEN,PH,TH) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-26620 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-26610 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-26650 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26660 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-26700 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-26690 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82667L - HOLDER, CONNECTOR, NO.26 | ||||
| 82666-26A20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD..(GCC,GEN,PH) |
1 | ||
| 82667M - HOLDER, CONNECTOR, NO.27 | ||||
| 82666-26A40 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| Common parts | ||||
| 82711-26510 | ||||
| 82715-26V40 | ||||
| 90119-06A06 | ||||
| 90159-50327 | ||||
| 94151-80600 | ||||
ILLUST NO.28 OF38(1903- )GDH32#,GRH32#
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-26710 |
GDH322,GRH300..(D,P)..GCC;GRH300,322..LHD..4D..(D,P);GDH300,301,320,321,322,GRH301,320..LHD..D |
1 | ||
| 82151-26730 |
GDH322,GRH300..(D,P)..GCC;GRH300,322..LHD..4D..(D,P);GDH300,301,320,321,322,GRH301,320..LHD..D OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-26680 |
GDH322,GRH300..(D,P)..GCC;GRH300,322..LHD..4D..(D,P);GDH300,301,320,321,322,GRH301,320..LHD..D OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 82152-26660 |
GDH322,GRH300..(D,P)..GCC;GRH300,322..LHD..4D..(D,P);GDH300,301,320,321,322,GRH301,320..LHD..D |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82053-26120 |
GDH322..6F..P..GCC;GRH322..LHD..(D,P) *POSD & *ECS(*SD) |
1 | ||
| 82053-26120 |
GDH322..6F..P..GCC;GRH322..LHD..(D,P) REAR SIDE GLASS(RH)-FIXED(UV CUT, GREEN)&*POSD & *ECS(*SD) |
1 | ||
| 82157C - WIRE, REAR DOOR, RH NO.2 | ||||
| 82157-26120 |
GDH322..P..GCC;GRH322..LHD..(D,P) *POSD & *ECS(*SD) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-26160 |
GDH322..(D,N)..GEN;GDH322..LHD..(P,Q);GDH301,GRH300..GCC,TH;GDH301,321,GRH301..N..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,320,328,GRH32#..GCC,GEN,PH,TH CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82181-26150 |
GRH300..GCC;GDH321..N..GEN;GDH322..LHD..(P,Q);GDH322..(D,N)..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,320,328,GRH301,32#..GCC,GEN,PH,TH |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-26080 |
GDH322..(D,N)..GEN;GDH322..LHD..(P,Q);GDH301,321,GRH301..N..GEN;GDH301,303,GRH300,303..GCC,TH;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,320,328,GRH32#..GCC,GEN,PH,TH CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-26120 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH300..5D..(ARL,GCC);GDH301,320,321,GRH300,320..GCC,NZ;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-26B80 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-26B90 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-60550 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 82712B - SUPPORT, WIRING HARNESS | ||||
| 82712-60550 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 82712F - SUPPORT, WIRING HARNESS | ||||
| 82712-60550 |
GDH322..D,N;GDH322..LHD..(P,Q);GDH301,GRH300..GCC,TH;GDH301,321,GRH301..N..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,320,328,GRH32#..GCC,GEN,PH,TH,VN CLEARANCE & BACK SONAR-WITH |
3 | ||
| 82712-60550 |
GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH322..LHD..(P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,320,328,GRH301,32#..GCC,GEN,PH,TH,VN |
7 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-26M80 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26U90 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 89348Y - CLIP, ULTRASONIC SENSOR, REAR | ||||
| 89348-50050 |
GDH322..D,N;GDH301,GRH301..N;GRH303..RHD..GEN;GDH301,GRH300..GCC,TH;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,303,304,320,328,GRH304,32#..GCC,GEN,PH,TH,VN CLEARANCE & BACK SONAR-WITH |
7 | ||
| Common parts | ||||
| 82715-26X50 | ||||
| 82715-26X60 | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
| 90467-09075 | ||||
| 91553-80616 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO.30 OF38(1902- )GDH300,301,32#,GRH300,301,32#
FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-26700 |
GRH300,301,320,322..LHD..4D..D |
1 | ||
| 82161-26770 |
GRH301,322..LHD..D SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82161-26770 |
GRH301,322..LHD..D SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82161-26770 |
GDH321,328,GRH321..GEN,PH;GDH301,322,GRH301,322..LHD..(N,P,Q) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-26610 |
GRH322..LHD..D *POSD & *ECS(*SD) |
1 | ||
| 82162-26E70 |
GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC |
1 | ||
| 82162-26E90 |
GDH322,GRH322..P..GCC *POSD & *ECS(*SD) |
1 | ||
| 82162-26C00 |
GRH322..LHD..D *POSD & *ECS(*SD)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-26B40 |
GDH321..D;GDH321..N..GEN;GDH320..6F..GCC;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH320,322,328..(D,N)..(GEN,PH) |
1 | ||
| 82164-26B50 |
GDH322..GCC;GDH321,322,328..LHD..(D,N)..(GEN,PH) REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 82164-26B90 |
GRH320..GEN;GRH320..6F..GCC;GRH321,322..GCC,GEN |
1 | ||
| 82164-26C00 |
GRH321,322..LHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-26510 |
GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-26A50 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-26A60 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-26A80 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-26A90 |
GRH322..LHD..D *POSD & *ECS(*SD)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82666-26A90 |
GDH300..5D..ARL;GDH320..6FC..ARL;GDH322..6FC..P..GCC;GDH322..LHD..6F..(N,P,Q);GDH322,GRH303..LHD..6FC..(J,N,Q);GDH300,GRH303..RHD..(SG,SHP)..GEN;GDH301,306,GRH301,321,322..LHD..(G,J,N,P,Q);GDH303,304,321,328,GRH304..(G,H,J,N)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 82666-26A90 |
GRH322..LHD..D *POSD & *ECS(*SD) |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-2FB50 |
GDH300,320..GEN;GDH301,322..LHD..D;GDH301,322,GRH300,301,320,322..RHD..(D,N)..GEN |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90178-T0018 | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||
ILLUST NO.33 OF38(1903- )GDH32#,GRH32#
ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-2FA50 |
GDH322,GRH322..LHD..D REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&SPEAKER-4SPEAKER |
1 | ||
| 82171-2FA40 |
GDH322,GRH322..LHD..D REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 82171-2FE90 |
GDH322,GRH322..P..GCC |
1 | ||
| 82171-2FF00 |
GDH322,GRH322..P..GCC SPEAKER-4SPEAKER |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-26G00 |
GDH322,GRH322..LHD..D INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26F90 |
GRH322..D;GDH322..LHD..6F..D;GDH322..6FC..D..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26G10 |
GDH322,GRH322..LHD..D INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26K00 |
GDH322,GRH322..LHD..D INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26J90 |
GDH322,GRH322..LHD..D INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26J80 |
GRH322..D;GDH322..LHD..6F..D;GDH322..6FC..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26G00 |
GRH322..LHD..6F..D LATIN AMERICA(GENERAL) SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AM& FM & CD & *BT |
1 | ||
| 82172-26G10 |
GRH322..LHD..6F..D LATIN AMERICA(GENERAL) SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AM& FM & CD & *BT |
1 | ||
| 82172-26F90 |
GRH322..LHD..6F..D LATIN AMERICA(GENERAL) SPEC&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26K00 |
GRH322..LHD..6F..D LATIN AMERICA(GENERAL) SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIRCONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26J80 |
GRH322..LHD..6F..D LATIN AMERICA(GENERAL) SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26J90 |
GRH322..LHD..6F..D LATIN AMERICA(GENERAL) SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR AIRCONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26K40 |
GDH322,GRH322..P..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82172-26K60 |
GDH322,GRH322..P..GCC AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26K50 |
GDH322,GRH322..P..GCC INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82172-26K30 |
GDH322,GRH322..P..GCC |
1 | ||
| 82172-26K80 |
GDH322,GRH322..P..GCC INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26K70 |
GDH322,GRH322..P..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26F90 |
GRH322..LHD..6F..D BOLIVIA SPEC&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26G00 |
GDH322..LHD..D..GEN;GRH322..LHD..6FC..D LATIN AMERICA(GENERAL) SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AM& FM & CD & *BT |
1 | ||
| 82172-26F90 |
GRH322..RHD..D;GDH322..6FC..D..GEN;GRH322..LHD..6FC..D;GDH322..LHD..6F..D..GEN LATIN AMERICA(GENERAL) SPEC&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26G00 |
GRH322..LHD..6F..D BOLIVIA SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26G10 |
GDH322..LHD..D..GEN;GRH322..LHD..6FC..D LATIN AMERICA(GENERAL) SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AM& FM & CD & *BT |
1 | ||
| 82172-26G10 |
GRH322..LHD..6F..D BOLIVIA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26J80 |
GRH322..RHD..D;GDH322..6FC..D..GEN;GRH322..LHD..6FC..D;GDH322..LHD..6F..D..GEN LATIN AMERICA(GENERAL) SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26J90 |
GDH322..LHD..D..GEN;GRH322..LHD..6FC..D LATIN AMERICA(GENERAL) SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR AIRCONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26J90 |
GRH322..LHD..6F..D BOLIVIA SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26J80 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26K00 |
GRH322..LHD..6F..D BOLIVIA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26K00 |
GDH322..LHD..D..GEN;GRH322..LHD..6FC..D LATIN AMERICA(GENERAL) SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&REAR AIRCONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82175 - WIRE, ROOF, NO.5 | ||||
| 82175-26090 |
GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH32#,GRH32#..LHD..SG..(GCC,GEN,PH) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-26340 |
GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-26780 |
GDH322..GCC;GDH321..6F..D;GDH321..N..GEN;GDH322..(D,N)..GEN;GDH322..6FC..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BACK MONITOR-WITH & WITH(FIXED LINE)(INNER MIRROR) |
1 | ||
| 82184-26770 |
GDH321..D;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH |
1 | ||
| 82184-26790 |
GDH321..D;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-26830 |
GDH322..LHD..P;GDH322,GRH300..4D..D..GEN;GDH321,GRH300..D..(GCC,IDN);GDH300,301,320,GRH301,320,322..(D,P)..(GCC,GEN,TH) |
1 | ||
| 82185-26850 |
GDH322..6FC..P..GEN;GDH322,GRH300..4D..D..GEN;GDH321,322,GRH300..(D,P)..(GCC,IDN);GDH300,301,320,GRH301,320,322..(D,P)..(GCC,GEN,TH) INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BACK MONITOR-WITH & WITH(FIXED LINE)(INNER MIRROR) |
1 | ||
| 82185-26C40 |
GDH322..6FC..P..GEN;GDH322,GRH300..4D..D..GEN;GDH321,322,GRH300..(D,P)..(GCC,IDN);GDH300,301,320,GRH301,320,322..(D,P)..(GCC,GEN,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-26490 |
GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,GRH320,322..(D,P)..(GCC,NZ) |
1 | ||
| 82188-26520 |
GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,GRH320,322..(D,P)..(GCC,NZ) REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82188-26510 |
GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,GRH320,322..(D,P)..(GCC,NZ) REAR WINDOW WIPER-WITH |
1 | ||
| 82188-26500 |
GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,GRH320,322..(D,P)..(GCC,NZ) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82667F - HOLDER, CONNECTOR, NO.21 | ||||
| 82666-26B70 |
GDH321..D;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH |
1 | ||
| 82667G - HOLDER, CONNECTOR, NO.22 | ||||
| 82666-26C00 |
GDH321..D;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH |
1 | ||
| 82667H - HOLDER, CONNECTOR, NO.23 | ||||
| 82666-26C10 |
GDH321..D;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-26C30 |
GDH322..P..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..SHP..ARL;GDH320,GRH300,320,322..LHD..4D..(D,P);GDH300,301,306,322,GRH301..LHD..(D,G,J)..GEN;GDH303,304,321,GRH304..(D,G,H,J)..(ARL,GCC,GEN,TH) |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-26C30 |
GDH322..P..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..SHP..ARL;GDH320,GRH300,320,322..LHD..4D..(D,P);GDH300,301,306,322,GRH301..LHD..(D,G,J)..GEN;GDH303,304,321,GRH304..(D,G,H,J)..(ARL,GCC,GEN,TH) |
1 | ||
| 82667K - HOLDER, CONNECTOR, NO.25 | ||||
| 82666-26B50 |
GRH300..GCC;GRH322..N,P,Q;GRH322..LHD..D;GDH322..6FC..Q..GEN;GDH300..5D..(SG,SP);GDH320..SP..6FC..ARL;GDH322..Q..(ARL,GCC);GDH301,322,GRH301..N;GDH320,GRH320..SP..(GCC,GEN);GDH300,321,328,GRH321..(SG,SHP)..(GCC,GEN,PH);GDH300,301,320,322,GRH300,301,320..LHD..4D..(D,P) |
1 | ||
| 82667K - HOLDER, CONNECTOR, NO.25 | ||||
| 82666-26B50 |
GRH300..GCC;GRH322..N,P,Q;GRH322..LHD..D;GDH322..6FC..Q..GEN;GDH300..5D..(SG,SP);GDH320..SP..6FC..ARL;GDH322..Q..(ARL,GCC);GDH301,322,GRH301..N;GDH320,GRH320..SP..(GCC,GEN);GDH300,321,328,GRH321..(SG,SHP)..(GCC,GEN,PH);GDH300,301,320,322,GRH300,301,320..LHD..4D..(D,P) |
1 | ||
| 82712K - SUPPORT, WIRING HARNESS | ||||
| 82712-60550 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||

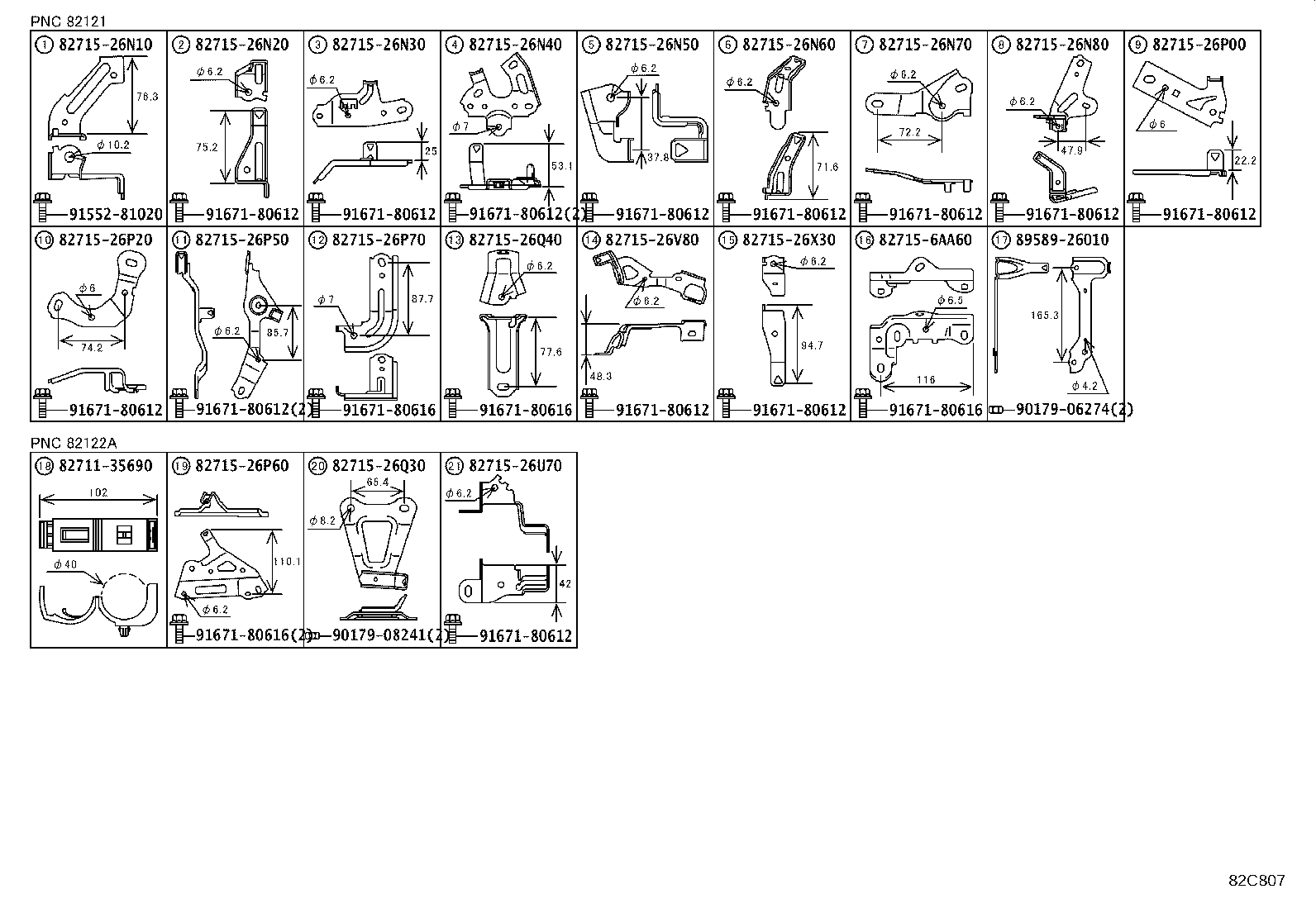

ILLUST NO. 7 OF38(1902- )GRH301,303,320,322..LHD..6FC
ENGINE 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35690 | ||||
| 82715-26N10 | ||||
| 82715-26N20 | ||||
| 82715-26N30 | ||||
| 82715-26N40 | ||||
| 82715-26N50 | ||||
| 82715-26N60 | ||||
| 82715-26N70 | ||||
| 82715-26N80 | ||||
| 82715-26P00 | ||||
| 82715-26P20 | ||||
| 82715-26P50 | ||||
| 82715-26P60 | ||||
| 82715-26P70 | ||||
| 82715-26Q30 | ||||
| 82715-26Q40 | ||||
| 82715-26U70 | ||||
| 82715-26V80 | ||||
| 82715-26X30 | ||||
| 82715-6AA60 | ||||
| 89589-26010 | ||||
| 90179-06274 | ||||
| 90179-08241 | ||||
| 91552-81020 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
ILLUST NO.10 OF38(1902- )GRH300,301,32#..LHD..6F
ENGINE 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35690 | ||||
| 82715-26L80 | ||||
| 82715-26M10 | ||||
| 82715-26M20 | ||||
| 82715-26N10 | ||||
| 82715-26N20 | ||||
| 82715-26N30 | ||||
| 82715-26N40 | ||||
| 82715-26N50 | ||||
| 82715-26N60 | ||||
| 82715-26N70 | ||||
| 82715-26N80 | ||||
| 82715-26P00 | ||||
| 82715-26P20 | ||||
| 82715-26P50 | ||||
| 82715-26Q00 | ||||
| 82715-26Q10 | ||||
| 82715-26Q30 | ||||
| 82715-26Q50 | ||||
| 82715-26U70 | ||||
| 82715-26V80 | ||||
| 82715-26X30 | ||||
| 89589-26010 | ||||
| 90179-06274 | ||||
| 90179-08241 | ||||
| 91552-81020 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80818 | ||||

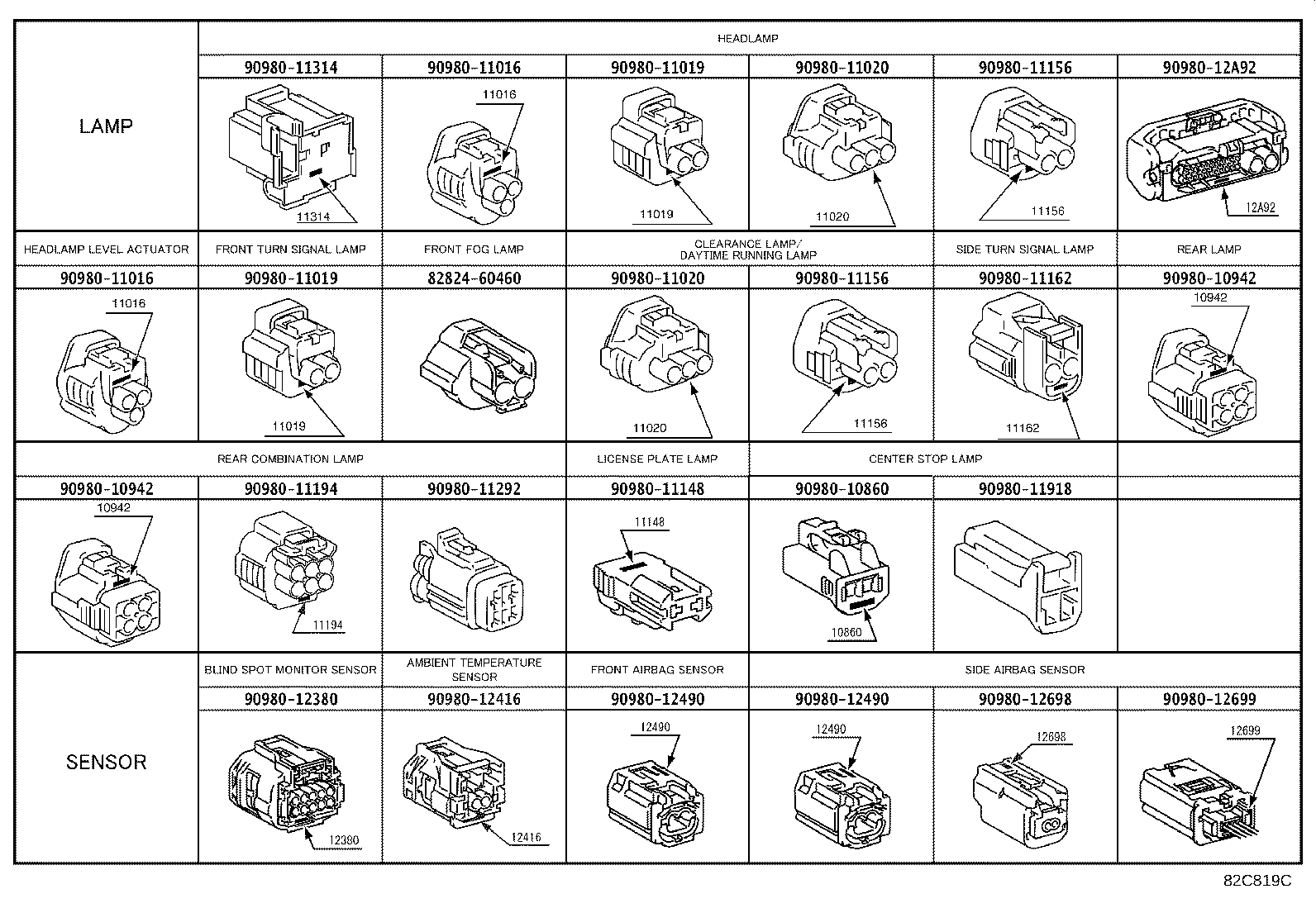

ILLUST NO.37 OF38(1902- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10860 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11292 | ||||
| 90980-11314 | ||||
| 90980-11918 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12698 | ||||
| 90980-12699 | ||||
| 90980-12A92 | ||||
ILLUST NO.38 OF38(1902- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11246 | ||||
| 90980-12520 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12C39 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
| 90980-WA063 | ||||
(1902- )GDH300,301,32#..LHD..6F
ENGINE 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35690 | ||||
| 82715-26M40 | ||||
| 82715-26M50 | ||||
| 82715-26M60 | ||||
| 82715-26N00 | ||||
| 82715-26Q60 | ||||
| 82715-26S90 | ||||
| 90178-T0020 | ||||
| 90179-08241 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
