GRH322L-EDTPHV (2019)
Toyota Hiace
(1902- )LHD
BENCH SEAT(DRIVER & PASSENGER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-12020A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
1 | ||
| 73023-12020B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73023-12020A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
1 | ||
| 73023-12020B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
1 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-26010B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
2 | ||
| 73178-26010A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
2 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-26010B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
2 | ||
| 73178-26010A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-26030B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
2 | ||
| 73200-26030A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-26780A0 |
GDH301..NZ,TH;GRH322..6FC..P;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC) BLACK/FROMAGE,TRIM11 |
1 | ||
| 73210-26780B0 |
GDH321..D;GDH322..NZ;GDH300,320,GRH300,320,322..6F..(D,P)..(GCC,TH) BLACK/LT.GRAY,TRIM1# |
1 | ||
| 73210-26780B0 |
GDH301..NZ,TH;GRH322..6FC..P;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC) BLACK/LT.GRAY,TRIM11 |
1 | ||
| 73214 - PLATE, FRONT SEAT BELT ANCHOR | ||||
| 73214-75010 |
GDH321..D;GDH322..N;GDH301..NZ,TH;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH303,322..LHD..(H,P,Q)..GEN;GDH301,303,GRH301,322..G,J,N,P,Q;GDH306,321,328,GRH321..LHD..(G,J,N,Q) |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BEIGE |
1 | ||
| 73219-33010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BLACK |
1 | ||
| 73219-33020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-26540B0 |
GRH301,322..LHD..D SRS AIR BAG-W(DRIVER SEAT SIDE ONLY),BLACK/LT.GRAY,TRIM1# |
1 | ||
| 73220-26540B0 |
GRH301,322..LHD..D SRS AIR BAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1# |
1 | ||
| 73220-26540A0 |
GDH301..NZ,TH;GRH322..6FC..P;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC) BLACK/FROMAGE,TRIM11 |
1 | ||
| 73220-26540B0 |
GDH301..NZ,TH;GRH322..6FC..P;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC) BLACK/LT.GRAY,TRIM11 |
1 | ||
| 73220-26540B0 |
GDH321..D;GDH322..NZ;GDH300,320,GRH300,320,322..6F..(D,P)..(GCC,TH) BLACK/LT.GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-26480C0 |
GDH321..D..GEN;GDH322,GRH322..LHD..P BLACK,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-26450C0 |
GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6FC..GEN;GDH300,321,GRH320..LHD..6F..D;GDH301,320,GRH301..LHD..D..GEN;GDH322,GRH300,322..LHD..4D..(D,P)..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 73134-60010 | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90105-11058 | ||||
| 90109-11059 | ||||
| 90109-11064 | ||||
| 90178-11002 | ||||
| 90179-05011 | ||||
| 91553-80612 | ||||
| 94151-80600 | ||||
(1902- )GDH300,301,320,322,GRH300,301,320,322..LHD..D
BENCH SEAT(PASSENGER, FIX TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-12020A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
1 | ||
| 73023-12020B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73023-12020A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
1 | ||
| 73023-12020B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-26010B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
2 | ||
| 73178-26010A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-26030B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
2 | ||
| 73200-26030A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-26780A0 |
GDH301..NZ,TH;GRH322..6FC..P;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC) BLACK/FROMAGE,TRIM11 |
1 | ||
| 73210-26780B0 |
GDH321..D;GDH322..NZ;GDH300,320,GRH300,320,322..6F..(D,P)..(GCC,TH) BLACK/LT.GRAY,TRIM1# |
1 | ||
| 73210-26780B0 |
GDH301..NZ,TH;GRH322..6FC..P;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC) BLACK/LT.GRAY,TRIM11 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BEIGE |
1 | ||
| 73219-33010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BLACK |
1 | ||
| 73219-33020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) GRAY |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-26480C0 |
GDH321..D..GEN;GDH322,GRH322..LHD..P BLACK,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90105-11058 | ||||
| 90109-11059 | ||||
| 90109-11064 | ||||
| 91553-80612 | ||||

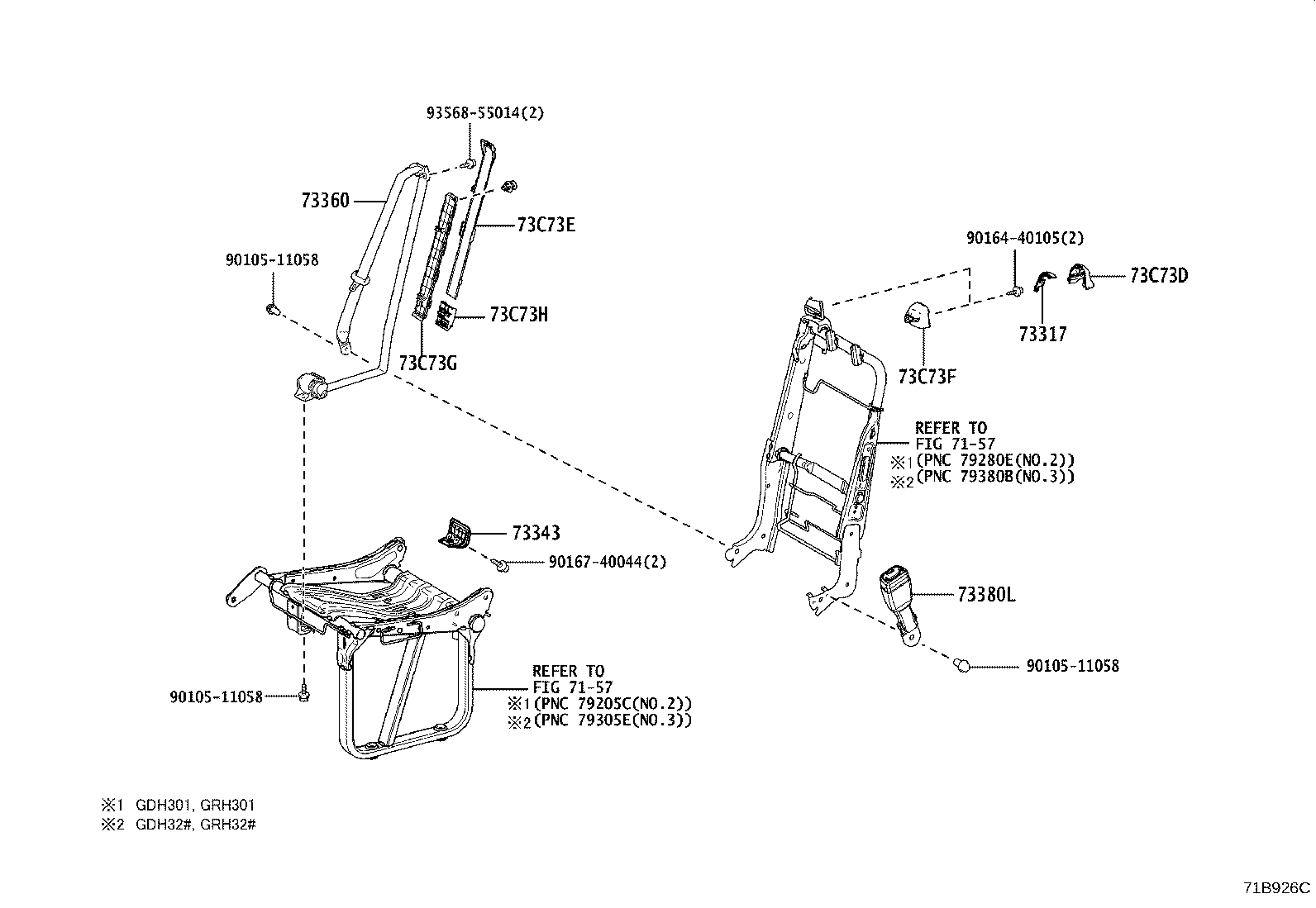

(1902- )GDH301,321,322,328,GRH301,321..LHD..6F..D,N,Q..GCC,GEN,PH ; (1911- )P
NO.2-NO.3 SEAT:FOR 1 PERSONS W(*45)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73317 - CAP, REAR SEAT BELT, RH | ||||
| 73317-26010B0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,LT.GRAY,TRIM1# |
6 | ||
| 73317-26010B0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,LT.GRAY,TRIM1# |
6 | ||
| 73317-26010B0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,LT.GRAY,TRIM1# |
6 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-26020C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC,BLACK,TRIM1# |
5 | ||
| 73343-26020C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC,BLACK,TRIM1# |
5 | ||
| 73343-26020C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC,BLACK,TRIM1# |
5 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-26A70C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC,BLACK,TRIM1#,REAR NO.3 SEAT |
1 | ||
| 73360-26A70C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC,BLACK,TRIM1#,REAR NO.3 SEAT |
1 | ||
| 73360-26A70C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC,BLACK,TRIM1#,REAR NO.3 SEAT |
1 | ||
| 73360-26A90C1 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC,BLACK,TRIM1#,REAR NO.2 SEAT |
1 | ||
| 73360-26A90C1 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC,BLACK,TRIM1#,REAR NO.2 SEAT |
1 | ||
| 73360-26A90C1 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC,BLACK,TRIM1#,REAR NO.2 SEAT |
1 | ||
| 73380L - BELT ASSY, REAR SEAT, INNER(FOR 1 PERSON) | ||||
| 73380-26670C0 |
GDH322,GRH322..P..GCC BLACK,TRIM1# |
3 | ||
| 73380-26670C0 |
GDH322,GRH322..P..GCC BLACK,TRIM1# |
3 | ||
| 73380-26670C0 |
GDH322,GRH322..P..GCC BLACK,TRIM1# |
3 | ||
| 73380-26780C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC,BLACK,TRIM1# |
3 | ||
| 73380-26780C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC,BLACK,TRIM1# |
3 | ||
| 73380-26780C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC,BLACK,TRIM1# |
3 | ||
| 73380-26670C0 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1# |
2 | ||
| 73380-26670C0 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1# |
2 | ||
| 73380-26670C0 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1# |
2 | ||
| 73C73D - COVER, REAR SEAT SHOULDER BELT, RH NO.1 | ||||
| 73373-26050C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1# |
6 | ||
| 73373-26050C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1# |
6 | ||
| 73373-26050C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1# |
6 | ||
| 73C73E - COVER, REAR SEAT SHOULDER BELT, RH NO.2 | ||||
| 73373-26070 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE |
6 | ||
| 73373-26070 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE |
6 | ||
| 73373-26070 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE |
6 | ||
| 73C73F - COVER, REAR SEAT SHOULDER BELT, RH NO.3 | ||||
| 73373-26040C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1# |
6 | ||
| 73373-26040C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1# |
6 | ||
| 73373-26040C0 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1# |
6 | ||
| 73C73G - COVER, REAR SEAT SHOULDER BELT, RH NO.4 | ||||
| 73373-36010 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE |
6 | ||
| 73373-36010 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE |
6 | ||
| 73373-36010 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE |
6 | ||
| 73C73H - COVER, REAR SEAT SHOULDER BELT HOLE, RH | ||||
| 73373-36020 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE |
6 | ||
| 73373-36020 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE |
6 | ||
| 73373-36020 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE |
6 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90164-40105 | ||||
| 90167-40044 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7157 | ||||
(1902- )GDH300,301,32#,GRH300,301,32#..LHD
SEPARATE SEAT(DRIVER & PASSENGER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-12020A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
1 | ||
| 73023-12020B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
1 | ||
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-12020A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
1 | ||
| 73023-12020B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73023-12020A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
1 | ||
| 73023-12020B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73023-12020A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
1 | ||
| 73023-12020B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-26010B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
2 | ||
| 73178-26010A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-26030B0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11 |
2 | ||
| 73200-26030A0 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-26780A0 |
GDH301..NZ,TH;GRH322..6FC..P;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC) BLACK/FROMAGE,TRIM11 |
1 | ||
| 73210-26780B0 |
GDH321..D;GDH322..NZ;GDH300,320,GRH300,320,322..6F..(D,P)..(GCC,TH) BLACK/LT.GRAY,TRIM1# |
1 | ||
| 73210-26780B0 |
GDH301..NZ,TH;GRH322..6FC..P;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC) BLACK/LT.GRAY,TRIM11 |
1 | ||
| 73214 - PLATE, FRONT SEAT BELT ANCHOR | ||||
| 73214-75010 |
GDH321..D;GDH322..N;GDH301..NZ,TH;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH303,322..LHD..(H,P,Q)..GEN;GDH301,303,GRH301,322..G,J,N,P,Q;GDH306,321,328,GRH321..LHD..(G,J,N,Q) |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BEIGE |
1 | ||
| 73219-33010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BLACK |
1 | ||
| 73219-33020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-26540B0 |
GRH301,322..LHD..D SRS AIR BAG-W(DRIVER SEAT SIDE ONLY),BLACK/LT.GRAY,TRIM1# |
1 | ||
| 73220-26540B0 |
GRH301,322..LHD..D SRS AIR BAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1# |
1 | ||
| 73220-26540A0 |
GDH301..NZ,TH;GRH322..6FC..P;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC) BLACK/FROMAGE,TRIM11 |
1 | ||
| 73220-26540B0 |
GDH301..NZ,TH;GRH322..6FC..P;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC) BLACK/LT.GRAY,TRIM11 |
1 | ||
| 73220-26540B0 |
GDH321..D;GDH322..NZ;GDH300,320,GRH300,320,322..6F..(D,P)..(GCC,TH) BLACK/LT.GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-26480C0 |
GDH321..D..GEN;GDH322,GRH322..LHD..P BLACK,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-26450C0 |
GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6FC..GEN;GDH300,321,GRH320..LHD..6F..D;GDH301,320,GRH301..LHD..D..GEN;GDH322,GRH300,322..LHD..4D..(D,P)..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90105-T0056 | ||||
| 90105-T0064 | ||||
| 90105-T0378 | ||||
| 90109-11059 | ||||
| 90109-11064 | ||||
| 90109-T0041 | ||||
| 90109-T0056 | ||||
| 90178-11002 | ||||
| 90178-T0017 | ||||
| 91553-80612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
