GRH322L-EDTPHV (2019)
Toyota Hiace
(1902- )

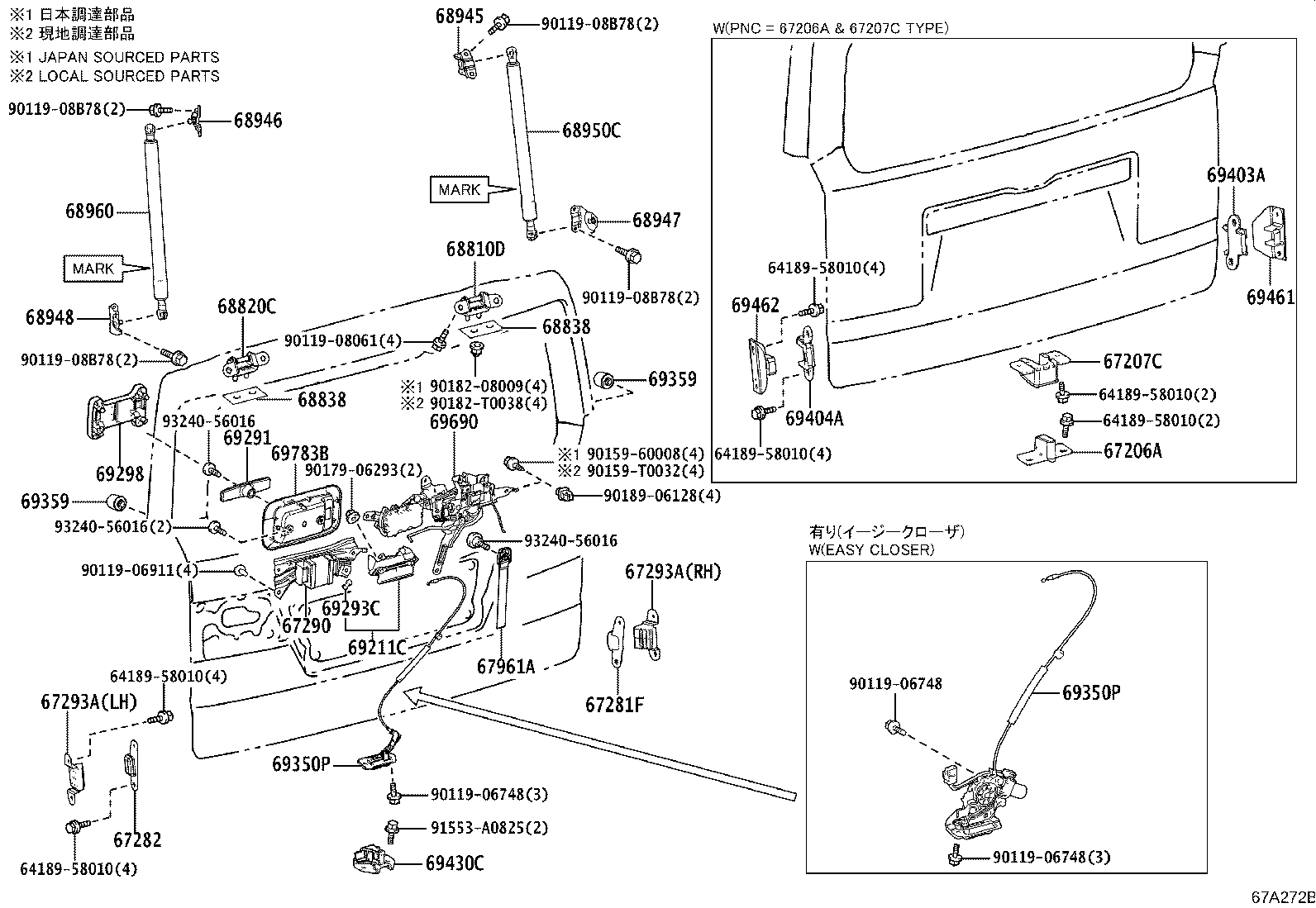

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67206A - BRACKET SUB-ASSY, BACK DOOR STOPPER | ||||
| 67206-26010 |
GRH303..GCC;GRH300..6F..GCC;GDH300,GRH322..(SG,SP)..6F..GCC YEMEN SPEC |
1 | ||
| 67206-26010 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,VN ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 67206-26010 |
GDH303,GRH300,303,320..GCC;GDH300,GRH322..(SG,SHP)..6F..GCC IRAQ SPEC |
1 | ||
| 67207C - STOPPER SUB-ASSY, BACK DOOR | ||||
| 67207-95J01 |
GDH303,GRH300,303,320..GCC;GDH300,GRH322..(SG,SHP)..6F..GCC IRAQ SPEC |
1 | ||
| 67207-95J01 |
GRH303..GCC;GRH300..6F..GCC;GDH300,GRH322..(SG,SP)..6F..GCC YEMEN SPEC |
1 | ||
| 67207-95J01 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,VN ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 67281F - STOPPER, BACK DOOR, LOWER | ||||
| 67281-28010 |
GDH322..D,N;GRH300..GCC;GRH303..RHD..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH,VN |
1 | ||
| 67282 - STOPPER, BACK DOOR, NO.1 | ||||
| 67282-28010 |
GDH322..D,N;GRH300..GCC;GRH303..RHD..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH,VN |
1 | ||
| 67293A - CUSHION, BACK DOOR STOPPER | ||||
| 67293-58020 |
GDH322..D,N;GRH300..GCC;GRH303..RHD..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH,VN |
2 | ||
| 67293A - CUSHION, BACK DOOR STOPPER | ||||
| 67293-58020 |
GDH322..D,N;GRH300..GCC;GRH303..RHD..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH,VN |
2 | ||
| 67961A - STRAP, BACK DOOR PULL | ||||
| 67961-26060C1 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 68810D - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-26011 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-26011 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-26100 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-26100 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-26060 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-26060 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-26380 |
GRH322..LHD..6FC..D COLD AREA SPEC(-20C AREA) |
1 | ||
| 68950-26400 |
GDH322..D;GDH320..6FC;GDH320..SG..6F..GEN;GDH322..6FC..P..GEN;GRH320..SP..6FC..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,328,GRH320,322..SG..(D,P) |
1 | ||
| 68950-26380 |
GRH322..LHD..6FC..D MONGOLIA SPEC&COLD AREA SPEC(-20C AREA) |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-26380 |
GRH322..LHD..6FC..D COLD AREA SPEC(-20C AREA) |
1 | ||
| 68960-26400 |
GDH322..D;GDH320..6FC;GDH320..SG..6F..GEN;GDH322..6FC..P..GEN;GRH320..SP..6FC..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,328,GRH320,322..SG..(D,P) |
1 | ||
| 68960-26380 |
GRH322..LHD..6FC..D MONGOLIA SPEC&COLD AREA SPEC(-20C AREA) |
1 | ||
| 69211C - HANDLE, BACK DOOR OUTSIDE | ||||
| 69023-26040 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 69291 - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69291-95J00C0 |
GDH300,GRH300..SHP;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,322..D..(GEN,TH);GDH321,328,GRH301,322..D,P BLACK,TRIM1# |
1 | ||
| 69293C - SNAP, BACK DOOR HANDLE | ||||
| 69293-12060 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH322..ARL,GCC;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 69298 - COVER, BACK DOOR INSIDE HANDLE | ||||
| 69298-26011 |
GDH322..LHD..6F..P..GEN;GDH322,GRH322..ARL,GCC,NZ |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-26170 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-26170 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 69359 - CUSHION, BACK DOOR LOCK | ||||
| 90541-09136 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
2 | ||
| 69359 - CUSHION, BACK DOOR LOCK | ||||
| 90541-09136 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
2 | ||
| 69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH | ||||
| 69403-26060 |
GRH303..GCC;GRH300..6F..GCC;GDH300,GRH322..(SG,SP)..6F..GCC YEMEN SPEC |
1 | ||
| 69403-26060 |
GDH303,GRH300,303,320..GCC;GDH300,GRH322..(SG,SHP)..6F..GCC IRAQ SPEC |
1 | ||
| 69403-26060 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,VN ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH | ||||
| 69404-26010 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,VN ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 69404-26010 |
GRH303..GCC;GRH300..6F..GCC;GDH300,GRH322..(SG,SP)..6F..GCC YEMEN SPEC |
1 | ||
| 69404-26010 |
GDH303,GRH300,303,320..GCC;GDH300,GRH322..(SG,SHP)..6F..GCC IRAQ SPEC |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-95J00 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 69401-26040 |
GDH303,GRH300,303,320..GCC;GDH300,GRH322..(SG,SHP)..6F..GCC IRAQ SPEC |
1 | ||
| 69401-26040 |
GRH303..GCC;GRH300..6F..GCC;GDH300,GRH322..(SG,SP)..6F..GCC YEMEN SPEC |
1 | ||
| 69401-26040 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,VN ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 69462 - STOPPER, BACK DOOR SIDE MALE, LH | ||||
| 69402-26020 |
GDH303,GRH300,303,320..GCC;GDH300,GRH322..(SG,SHP)..6F..GCC IRAQ SPEC |
1 | ||
| 69402-26020 |
GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH300,301,303,304,320,328,GRH301,304,32#..GEN,PH,VN ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 69402-26020 |
GRH303..GCC;GRH300..6F..GCC;GDH300,GRH322..(SG,SP)..6F..GCC YEMEN SPEC |
1 | ||
| 69690 - CONTROL ASSY, BACK DOOR REMOTE | ||||
| 69690-26260 |
GDH321..D..IDN;GDH322..D..GEN;GDH322..LHD..P;GDH300,GRH300..SHP..(GCC,GEN);GDH301,GRH301,322..(D,P)..(GCC,GEN,TH) |
1 | ||
| 69783B - BEZEL, BACK DOOR INSIDE HANDLE | ||||
| 69783-26010C0 |
GDH300,GRH300..SHP;GDH301..D..(GEN,TH);GDH322..6FC..P..GEN;GDH321,322,328,GRH301,322..D BLACK,TRIM1# |
1 | ||
| 69027-26010C0 |
GDH322..LHD..6F..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ) BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 90119-06748 | ||||
| 90119-06911 | ||||
| 90119-08061 | ||||
| 90119-08B78 | ||||
| 90159-60008 | ||||
| 90159-T0032 | ||||
| 90179-06293 | ||||
| 90182-08009 | ||||
| 90182-T0038 | ||||
| 90189-06128 | ||||
| 91553-A0825 | ||||
| 93240-56016 | ||||
