GRH322L-EDTPHV (2019)
Toyota Hiace
(1903- )GDH32#,GRH32#
W/O(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-26400 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-26120 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-26120 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) |
1 | ||
| 63103E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.1 | ||||
| 63141-26240 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63103-26350 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-26320 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63142-26160 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63105F - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63105-26280 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63105-26290 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63106B - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 | ||||
| 63106-26160 |
GDH322..N;GDH321..NZ;GDH322..GCC,TH;GDH328,GRH321..6F;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63144-26180 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63111D - PANEL, ROOF, FRONT | ||||
| 63111-26560 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH322..GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63112C - PANEL, ROOF, REAR NO.1 | ||||
| 63112-26110 |
GDH322..D..GEN;GDH322..P..GCC;GDH320..6FC..ARL;GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) |
1 | ||
| 63112D - PANEL, ROOF, REAR NO.2 | ||||
| 63112-26140 |
GDH322..D..GEN;GDH322..P..GCC;GDH320..6FC..ARL;GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) |
1 | ||
| 63112E - PANEL, ROOF, REAR NO.3 | ||||
| 63112-26170 |
GDH322..D..GEN;GDH322..P..GCC;GDH320..6FC..ARL;GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) |
1 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63107-26170 |
GDH322..(D,P)..(GCC,TH);GDH321,328,GRH322..(D,P)..(GCC,NZ,VN) |
1 | ||
| 63127-26160 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-26090 |
GDH321..D;GDH322..D,N;GDH322..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63103-26360 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63141-26250 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63208-26030 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63149-26120 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-35020 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-35020 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-26060 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
6 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-26120 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
6 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63207F - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.7 | ||||
| 63207-26090 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63207-26080 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63413C - BOARD, ROOF INNER RACK, FRONT | ||||
| 63413-26020B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1# |
1 | ||
| 63438F - COVER, ROOF INNER RACK, NO.1 | ||||
| 63438-26010B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1# |
2 | ||
| 63438F - COVER, ROOF INNER RACK, NO.1 | ||||
| 63438-26010B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1# |
2 | ||
| 63439D - COVER, ROOF INNER RACK, NO.2 | ||||
| 63439-26020B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1#,LEFT SIDE |
1 | ||
| 63439-26010B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1#,RIGHT SIDE |
1 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-42010 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
6 | ||
| Common parts | ||||
| 90105-06325 | ||||
| 90119-06833 | ||||
| 90119-08D28 | ||||
| 90467-10161 | ||||

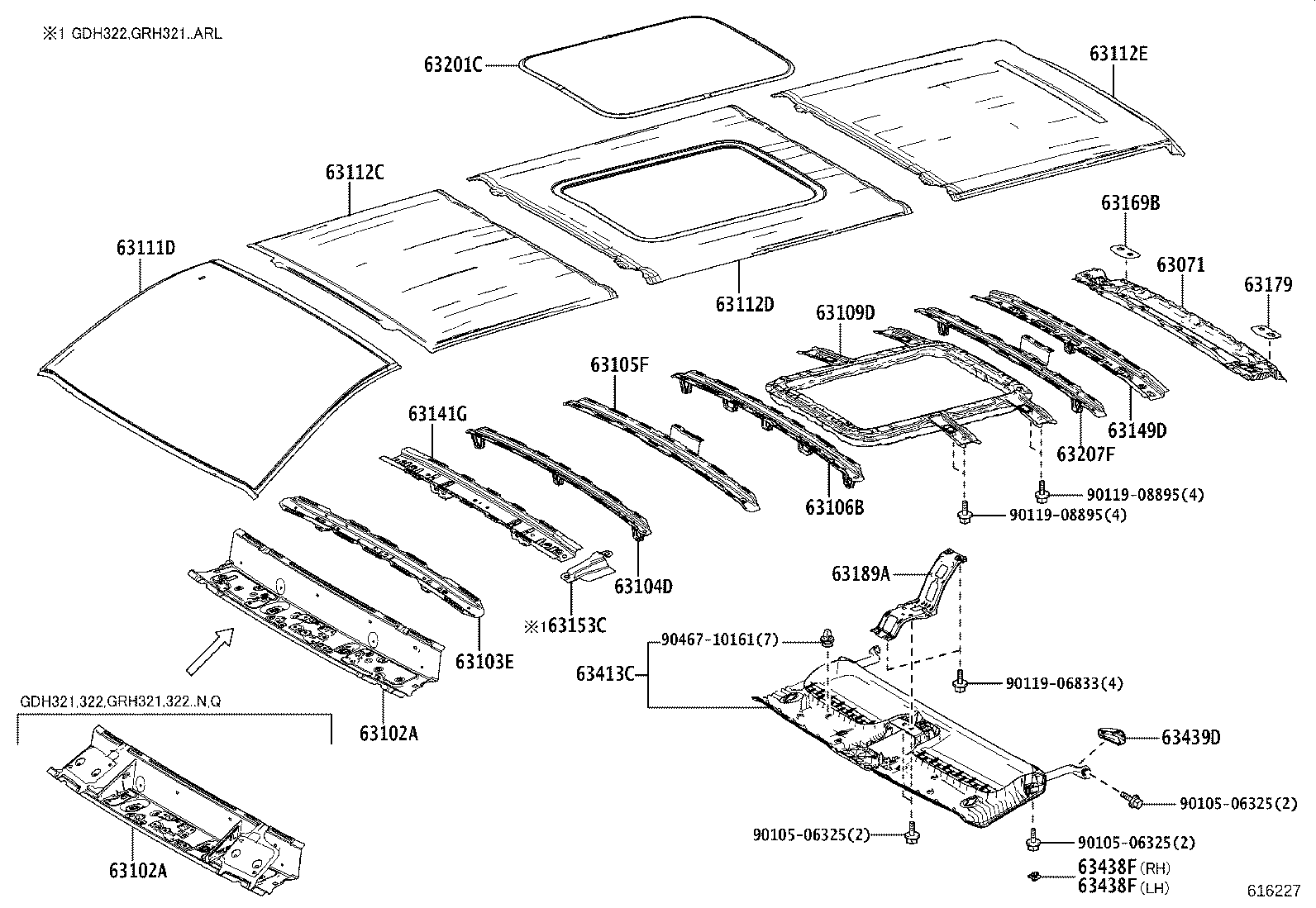

(1903- )GDH322,GRH321,322
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-26400 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63071-26400 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-26120 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) |
1 | ||
| 63132-26120 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-26120 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) |
1 | ||
| 63132-26120 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) |
1 | ||
| 63103E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.1 | ||||
| 63141-26240 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63141-26240 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63103-26350 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63103-26350 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-26320 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63104-26320 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63142-26160 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63142-26160 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63105F - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63105-26280 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63105-26280 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63105-26290 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63105-26290 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63106B - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 | ||||
| 63106-26160 |
GDH322..N;GDH321..NZ;GDH322..GCC,TH;GDH328,GRH321..6F;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63106-26160 |
GDH322..N;GDH321..NZ;GDH322..GCC,TH;GDH328,GRH321..6F;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63144-26180 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63144-26180 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63111D - PANEL, ROOF, FRONT | ||||
| 63111-26560 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH322..GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63111-26560 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH322..GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63112C - PANEL, ROOF, REAR NO.1 | ||||
| 63112-26110 |
GDH322..D..GEN;GDH322..P..GCC;GDH320..6FC..ARL;GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) |
1 | ||
| 63112-26110 |
GDH322..D..GEN;GDH322..P..GCC;GDH320..6FC..ARL;GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) |
1 | ||
| 63112D - PANEL, ROOF, REAR NO.2 | ||||
| 63112-26140 |
GDH322..D..GEN;GDH322..P..GCC;GDH320..6FC..ARL;GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) |
1 | ||
| 63112-26140 |
GDH322..D..GEN;GDH322..P..GCC;GDH320..6FC..ARL;GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) |
1 | ||
| 63112E - PANEL, ROOF, REAR NO.3 | ||||
| 63112-26170 |
GDH322..D..GEN;GDH322..P..GCC;GDH320..6FC..ARL;GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) |
1 | ||
| 63112-26170 |
GDH322..D..GEN;GDH322..P..GCC;GDH320..6FC..ARL;GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63103-26360 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63103-26360 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63141-26250 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63141-26250 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63208-26030 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63208-26030 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63149-26120 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63149-26120 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-35020 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63169-35020 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-35020 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63179-35020 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63189-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 63207F - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.7 | ||||
| 63207-26090 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63207-26090 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 63207-26080 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63207-26080 |
GDH322..N;GDH328,GRH321..6F;GDH322..6FC..(P,Q)..GEN;GDH321,322..ARL,GCC,NZ,TH;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 63413C - BOARD, ROOF INNER RACK, FRONT | ||||
| 63413-26020B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1# |
1 | ||
| 63413-26020B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1# |
1 | ||
| 63438F - COVER, ROOF INNER RACK, NO.1 | ||||
| 63438-26010B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1# |
2 | ||
| 63438-26010B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1# |
2 | ||
| 63438F - COVER, ROOF INNER RACK, NO.1 | ||||
| 63438-26010B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1# |
2 | ||
| 63438-26010B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1# |
2 | ||
| 63439D - COVER, ROOF INNER RACK, NO.2 | ||||
| 63439-26020B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1#,LEFT SIDE |
1 | ||
| 63439-26020B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1#,LEFT SIDE |
1 | ||
| 63439-26010B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1#,RIGHT SIDE |
1 | ||
| 63439-26010B0 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322,328..(D,N,P)..(ARL,GCC,NZ,PH,VN);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ) LT.GRAY,TRIM1#,RIGHT SIDE |
1 | ||
| Common parts | ||||
| 90105-06325 | ||||
| 90119-06833 | ||||
| 90119-08895 | ||||
| 90467-10161 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
