GRH322L-EDTPHV (2019)
Toyota Hiace

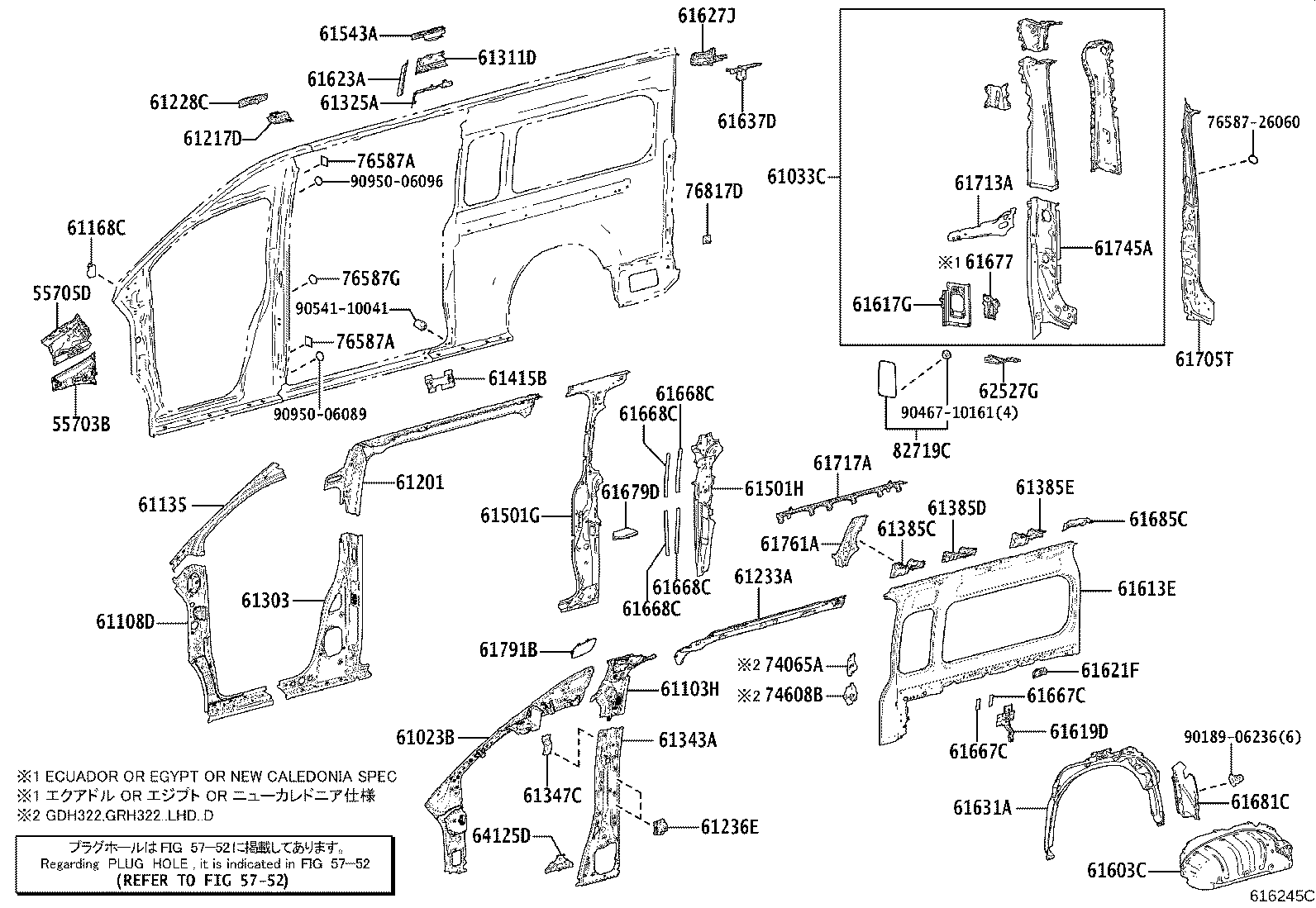

ILLUST NO. 2 OF 3(1903- )GDH322,328,GRH322..LHD..D
INNER PANEL, RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55703B - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH | ||||
| 55703-26220 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26110 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26220 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61033C - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61033-26630 |
GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH320,322,GRH320,322..LHD..SG..D |
1 | ||
| 61033-26800 |
GDH322,GRH322..P..GCC |
1 | ||
| 61033-26740 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC |
1 | ||
| 61033-26700 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61033-26790 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61103H - PANEL SUB-ASSY, SIDE, NO.2 RH | ||||
| 61103-26030 |
GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN;GDH320,GRH320..SP..(GCC,GEN);GDH320,GRH320,322..LHD..SG..D |
1 | ||
| 61103-26140 |
GRH322..LHD..D;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 61103-26140 |
GDH322..GCC;GDH328,GRH321..6F;GDH322..6FC..P..GEN;GRH322..LHD..(N,P,Q);GDH321,322..LHD..(N,Q)..GEN |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61168C - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-26050 |
GDH321,322,328,GRH321,322..LHD |
1 | ||
| 61217D - RAIL, ROOF SIDE, OUTER NO.4 RH | ||||
| 61217-26030 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61228C - RAIL, ROOF SIDE OUTER UPPER NO.3, RH | ||||
| 61228-26020 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-26420 |
GDH322..GCC;GDH328,GRH321..6F;GDH322..6FC..P..GEN;GRH322..LHD..(N,P,Q);GDH321,322..LHD..(N,Q)..GEN |
1 | ||
| 61233-26420 |
GRH322..LHD..D;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 61233-26400 |
GDH322..LHD..6FC..D;GDH320..SP..6FC..ARL;GDH322..LHD..6F..(D,P)..GEN;GDH320,GRH320..SP..(GCC,GEN);GDH320,GRH320,322..LHD..SG..D |
1 | ||
| 61236E - BRACKET, PILLAR ASSIST GRIP, LOWER | ||||
| 61236-26040 |
GRH303..RHD..GEN;GDH306,322,GRH321,322..LHD;GDH301,GRH301,303..LHD..(J,N);GDH303,304,321,328,GRH304..ARL,GCC,GEN,PH,TH,VN |
2 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-26060 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG |
1 | ||
| 61311D - PANEL, REAR BODY, FRONT OUTSIDE RH | ||||
| 61311-26110 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61325A - REINFORCEMENT, CENTER BODY PILLAR, CENTER RH | ||||
| 61325-26030 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-26570 |
GRH322..LHD..D;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 61343-26570 |
GDH322..GCC;GDH322..6FC..P..GEN;GDH304,328..PH,TH,VN;GRH322..LHD..(N,P,Q);GDH321,GRH304,321..(H,N,Q)..GEN;GDH301,303,322,GRH301..LHD..(H,N,Q)..GEN |
1 | ||
| 61347C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH | ||||
| 61347-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61385C - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26060 |
GDH322..GCC;GDH322..LHD..(D,N);GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH320,321,328,GRH32#..LHD..SG |
1 | ||
| 61385D - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26040 |
GDH321..D;GDH322..D,N;GDH322..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61385E - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-26030 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61501G - PILLAR SUB-ASSY, QUARTER LOCK, RH | ||||
| 61501-26340 |
GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH320,322,GRH320,322..LHD..SG..D |
1 | ||
| 61501-26350 |
GDH321,328,GRH321..LHD;GDH322,GRH322..LHD..(N,P,Q) |
1 | ||
| 61501-26350 |
GRH322..LHD..6F..D;GDH322..LHD..D..GEN REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61501H - PILLAR SUB-ASSY, QUARTER LOCK, RH | ||||
| 61501-26370 |
GDH321,328..LHD;GDH322..6FC..GCC;GDH322..LHD..6FC..N;GRH322..LHD..(N,P,Q);GDH322..LHD..6F..(N,P,Q) |
1 | ||
| 61501-26370 |
GRH322..LHD..6F..D;GDH322..LHD..D..GEN REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61543A - PANEL, REAR UPPER SIDE INNER CORNER, RH | ||||
| 61543-26020 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-26080 |
GRH300..GCC;GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH322,GRH322..(D,P)..(ARL,GCC,NZ,TH);GDH300,320,321,GRH320..D..(GCC,GEN,IDN,NZ,TH) |
1 | ||
| 61603-26090 |
GDH322..D..GEN;GDH301,328,GRH301,322..D |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26N30 |
GDH322,GRH322..P..GCC |
1 | ||
| 61613-26L90 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61613-26M20 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61617G - PANEL, QUARTER, INNER REAR RH | ||||
| 61617-26050 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 61617-26040 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61621F - EXTENSION, QUARTER PANEL, LOWER RH | ||||
| 61621-26010 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-26120 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61627J - PANEL, QUARTER INNER, UPPER REAR RH | ||||
| 61627-26171 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-26090 |
GRH300..4D..GEN;GRH300..(SG,SP)..GCC;GDH322,GRH322..LHD..D;GDH300,320,GRH320..(SG,SP)..(GCC,GEN,TH) |
1 | ||
| 61605-26E10 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61605-26E20 |
GDH322..LHD..P..GEN;GDH322..(D,P)..(ARL,GCC,NZ,TH);GDH321,GRH322..(D,P)..(GCC,IDN) |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-26071 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
2 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
2 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
2 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
2 | ||
| 61677 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH | ||||
| 61677-26040 |
GDH322..N;GDH303..LHD..H;GDH322..Q..GCC;GDH322..LHD..6F..P..GEN;GDH301,304,328..NZ,PH,TH;GDH321,322..(D,P,Q)..(ARL,IDN);GDH301,GRH301,304,321,322..(H,N,Q)..(GCC,GEN) |
1 | ||
| 61677-26040 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC |
1 | ||
| 61679D - SEAL, QUARTER WHEEL HOUSE | ||||
| 61679-26080 |
GDH321..N..GEN;GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH320,322,328,GRH32#..LHD..SG |
1 | ||
| 61681C - EXTENSION, REAR WHEEL OPENING, RH | ||||
| 61681-26060 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 61685C - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26360 |
GDH322..D,N;GDH321..6F..D;GDH321..N..GEN;GDH322..LHD..(P,Q);GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-26020 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-26110 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26130 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61791B - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61791-26030 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 62527G - PAD, QUARTER TRIM, LOWER RH | ||||
| 62527-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 64125D - ANCHOR, PILLAR SEAT BELT, RH | ||||
| 64125-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG |
2 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG |
2 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26010 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26060 |
GDH300..5D;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,321,322,GRH300..4D..D..(GEN,NZ,TH);GDH301,320,328,GRH301,320,322..(D,P)..(GCC,GEN,VN) |
2 | ||
| 82719-26060 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC |
2 | ||
| Common parts | ||||
| 76587-26060 | ||||
| 90189-06236 | ||||
| 90467-10161 | ||||
| 90541-10041 | ||||
| 90950-06089 | ||||
| 90950-06096 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 3(1903- )GDH321,322,328,GRH322..LHD..D
INNER PANEL, LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55704C - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH | ||||
| 55704-26090 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 58228M - PLATE, FLOOR PANEL SIDE, LH | ||||
| 58228-26050 |
GDH321,322,328,GRH321,322..LHD |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26210 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-26810 |
GDH322,GRH322..P..GCC |
1 | ||
| 61034-26760 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC |
1 | ||
| 61034-26720 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61034-26820 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61044C - EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH | ||||
| 61044-26020 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61104H - PANEL SUB-ASSY, SIDE, NO.2 LH | ||||
| 61104-26050 |
GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN;GDH320,GRH320,322..LHD..SG..D |
1 | ||
| 61104-26110 |
GRH322..LHD..D;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 61104-26110 |
GDH322..GCC;GDH328,GRH321..6F;GDH322..6FC..P..GEN;GRH322..LHD..(N,P,Q);GDH321,322..LHD..(N,Q)..GEN |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-26020 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61168E - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-26630 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-26080 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61328 - REINFORCEMENT, CENTER BODY PILLAR, OUTER LH | ||||
| 61328-26060 |
GDH300,301,32#,GRH300,301,32#..LHD..4D |
1 | ||
| 61329 - PLATE, CENTER BODY PILLAR, OUTER LH | ||||
| 61329-26040 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61334D - BASE, CENTER BODY PILLAR COVER, LH | ||||
| 61334-26010 |
GDH300,301,32#,GRH300,301,32#..LHD..4D |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26440 |
GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN;GDH300,301,320,GRH300,301,320,322..LHD..4D..D |
1 | ||
| 61344-26460 |
GDH322..GCC;GDH328,GRH321..6F;GDH322..6FC..P..GEN;GRH322..LHD..(N,P,Q);GDH301,321,322,GRH301..LHD..(N,Q)..GEN |
1 | ||
| 61344-26460 |
GRH322..LHD..D;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 61348C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH | ||||
| 61347-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61386D - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61385-26040 |
GDH322..GCC;GDH322..LHD..(D,N);GDH320,321,328,GRH32#..LHD..SG |
1 | ||
| 61386E - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61385-26040 |
GDH321..D;GDH322..D,N;GDH322..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61386F - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61385-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61398 - PATCH, CENTER BODY PILLAR, INNER LH | ||||
| 61398-26070 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61502A - PILLAR SUB-ASSY, QUARTER LOCK, LH | ||||
| 61502-26290 |
GDH301,321,322,328,GRH301,321,322..LHD |
1 | ||
| 61502F - PILLAR SUB-ASSY, QUARTER LOCK, LH | ||||
| 61502-26390 |
GDH321,322,328,GRH321,322..LHD |
1 | ||
| 61522D - REINFORCEMENT, REAR UPPER SIDE PANEL, LH | ||||
| 61522-26030 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-26090 |
GDH322..D..GEN;GDH301,328,GRH301,322..D |
1 | ||
| 61604-26150 |
GDH321..D;GDH322..LHD..P..GEN;GDH322,GRH322..(D,P)..(ARL,GCC,NZ,TH) |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26L00 |
GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN;GDH320,GRH320,322..LHD..SG..D |
1 | ||
| 61614-26L90 |
GDH322,328,GRH322..(D,P)..(GCC,VN) |
1 | ||
| 61614-26L90 |
GRH322..LHD..D;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 61614-26L90 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-26080 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 61618-26070 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 61628K - PANEL, QUARTER INNER, UPPER REAR LH | ||||
| 61628-26131 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-26G20 |
GDH322..P..ARL;GDH321..D..(GEN,NZ);GDH322,GRH322..LHD..D;GDH301,328,GRH301..D..(GEN,TH,VN) |
1 | ||
| 61606-26G30 |
GDH322..LHD..P..GEN;GDH322,GRH322..(D,P)..(GCC,NZ,TH) |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-26061 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH | ||||
| 61678-26020 |
GDH322..N;GDH303..LHD..H;GDH322..Q..GCC;GDH322..LHD..6F..P..GEN;GDH301,304,328..NZ,PH,TH;GDH301,GRH301,304,321,322..(H,N,Q)..(GCC,GEN) |
1 | ||
| 61678-26020 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC |
1 | ||
| 61682A - EXTENSION, REAR WHEEL OPENING, LH | ||||
| 61682-26040 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 61686A - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61686-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61686C - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61685-26050 |
GDH32#,GRH32#..LHD..SG |
2 | ||
| 61686C - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61685-26050 |
GDH32#,GRH32#..LHD..SG |
2 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26350 |
GDH322..D,N;GDH321..6F..D;GDH321..N..GEN;GDH322..LHD..(P,Q);GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-26090 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61718B - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-26070 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-26250 |
GDH322..6FC..P..GEN;GDH322,GRH322..P..GCC |
1 | ||
| 61734-26180 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61749A - REINFORCEMENT, ROOF SIDE, INNER REAR | ||||
| 61749-26010 |
GDH300,301,32#,GRH300,301,32#..LHD..4D |
1 | ||
| 61749B - REINFORCEMENT, ROOF SIDE, INNER REAR | ||||
| 61749-26020 |
GDH300,301,32#,GRH300,301,32#..LHD..4D |
1 | ||
| 61762A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH | ||||
| 61761-26130 |
GDH32#,GRH32#..LHD..SG |
2 | ||
| 61792 - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61792-26030 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 62528B - PAD, QUARTER TRIM, LOWER LH | ||||
| 62528-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN);GDH300,322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26060 |
GDH300..5D;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,321,322,GRH300..4D..D..(GEN,NZ,TH);GDH301,320,328,GRH301,320,322..(D,P)..(GCC,GEN,VN) |
2 | ||
| 82719-26060 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC |
2 | ||
| Common parts | ||||
| 76587-26060 | ||||
| 90119-08C89 | ||||
| 90189-06236 | ||||
| 90467-10161 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 3 OF 3(1903- )GDH32#,GRH32#..SG..D,P
SILENCER SHEET & PAD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62621B - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH | ||||
| 62621-26100 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 62621D - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH | ||||
| 62621-26110 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH303,321..LHD..(H,N);GDH322..LHD..(P,Q)..GEN;GDH304,320..6FC..(ARL,TH);GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,304,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 62622B - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH | ||||
| 62621-26100 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 62622D - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH | ||||
| 62621-26110 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62623E - PAD, QUARTER WHEEL HOUSE, INNER REAR RH | ||||
| 62623-26010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH303,321..LHD..(H,N);GDH322..LHD..(P,Q)..GEN;GDH304,320..6FC..(ARL,TH);GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,304,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 62624E - PAD, QUARTER WHEEL HOUSE, INNER REAR LH | ||||
| 62623-26010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-33020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62939E - SILENCER, QUARTER VENT | ||||
| 62939-33020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 67813F - SHEET, QUARTER PANEL SILENCER | ||||
| 67813-26100 |
GDH322..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,328,GRH301,322..D,P |
1 | ||
ILLUST NO. 2 OF 3(1903- )LHD..P ; (1903- )GDH321..D..GEN
INNER PANEL, RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55703B - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH | ||||
| 55703-26220 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26110 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26220 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61033C - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61033-26630 |
GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH320,322,GRH320,322..LHD..SG..D |
1 | ||
| 61033-26800 |
GDH322,GRH322..P..GCC |
1 | ||
| 61033-26740 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC |
1 | ||
| 61033-26700 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61033-26790 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61103H - PANEL SUB-ASSY, SIDE, NO.2 RH | ||||
| 61103-26030 |
GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN;GDH320,GRH320..SP..(GCC,GEN);GDH320,GRH320,322..LHD..SG..D |
1 | ||
| 61103-26140 |
GRH322..LHD..D;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 61103-26140 |
GDH322..GCC;GDH328,GRH321..6F;GDH322..6FC..P..GEN;GRH322..LHD..(N,P,Q);GDH321,322..LHD..(N,Q)..GEN |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61168C - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-26050 |
GDH321,322,328,GRH321,322..LHD |
1 | ||
| 61217D - RAIL, ROOF SIDE, OUTER NO.4 RH | ||||
| 61217-26030 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61228C - RAIL, ROOF SIDE OUTER UPPER NO.3, RH | ||||
| 61228-26020 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-26420 |
GDH322..GCC;GDH328,GRH321..6F;GDH322..6FC..P..GEN;GRH322..LHD..(N,P,Q);GDH321,322..LHD..(N,Q)..GEN |
1 | ||
| 61233-26420 |
GRH322..LHD..D;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 61233-26400 |
GDH322..LHD..6FC..D;GDH320..SP..6FC..ARL;GDH322..LHD..6F..(D,P)..GEN;GDH320,GRH320..SP..(GCC,GEN);GDH320,GRH320,322..LHD..SG..D |
1 | ||
| 61236E - BRACKET, PILLAR ASSIST GRIP, LOWER | ||||
| 61236-26040 |
GRH303..RHD..GEN;GDH306,322,GRH321,322..LHD;GDH301,GRH301,303..LHD..(J,N);GDH303,304,321,328,GRH304..ARL,GCC,GEN,PH,TH,VN |
2 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-26060 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG |
1 | ||
| 61311D - PANEL, REAR BODY, FRONT OUTSIDE RH | ||||
| 61311-26110 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61325A - REINFORCEMENT, CENTER BODY PILLAR, CENTER RH | ||||
| 61325-26030 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-26570 |
GRH322..LHD..D;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 61343-26570 |
GDH322..GCC;GDH322..6FC..P..GEN;GDH304,328..PH,TH,VN;GRH322..LHD..(N,P,Q);GDH321,GRH304,321..(H,N,Q)..GEN;GDH301,303,322,GRH301..LHD..(H,N,Q)..GEN |
1 | ||
| 61347C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH | ||||
| 61347-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61385C - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26060 |
GDH322..GCC;GDH322..LHD..(D,N);GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH320,321,328,GRH32#..LHD..SG |
1 | ||
| 61385D - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26040 |
GDH321..D;GDH322..D,N;GDH322..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61385E - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-26030 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61501G - PILLAR SUB-ASSY, QUARTER LOCK, RH | ||||
| 61501-26340 |
GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH320,322,GRH320,322..LHD..SG..D |
1 | ||
| 61501-26350 |
GDH321,328,GRH321..LHD;GDH322,GRH322..LHD..(N,P,Q) |
1 | ||
| 61501-26350 |
GRH322..LHD..6F..D;GDH322..LHD..D..GEN REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61501H - PILLAR SUB-ASSY, QUARTER LOCK, RH | ||||
| 61501-26370 |
GDH321,328..LHD;GDH322..6FC..GCC;GDH322..LHD..6FC..N;GRH322..LHD..(N,P,Q);GDH322..LHD..6F..(N,P,Q) |
1 | ||
| 61501-26370 |
GRH322..LHD..6F..D;GDH322..LHD..D..GEN REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61509 - REINFORCEMENT SUB-ASSY, REAR SEAT, NO.5 | ||||
| 61509-26030 |
GRH321,322..LHD..(P,Q);GDH322..LHD..6F..P..GEN;GDH321,322..(D,P,Q)..(ARL,GCC,IDN,TH) |
1 | ||
| 61543A - PANEL, REAR UPPER SIDE INNER CORNER, RH | ||||
| 61543-26020 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-26080 |
GRH300..GCC;GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH322,GRH322..(D,P)..(ARL,GCC,NZ,TH);GDH300,320,321,GRH320..D..(GCC,GEN,IDN,NZ,TH) |
1 | ||
| 61603-26090 |
GDH322..D..GEN;GDH301,328,GRH301,322..D |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26N30 |
GDH322,GRH322..P..GCC |
1 | ||
| 61613-26L90 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61613-26M20 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61617G - PANEL, QUARTER, INNER REAR RH | ||||
| 61617-26050 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 61617-26040 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61621F - EXTENSION, QUARTER PANEL, LOWER RH | ||||
| 61621-26010 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-26120 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61627J - PANEL, QUARTER INNER, UPPER REAR RH | ||||
| 61627-26171 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-26090 |
GRH300..4D..GEN;GRH300..(SG,SP)..GCC;GDH322,GRH322..LHD..D;GDH300,320,GRH320..(SG,SP)..(GCC,GEN,TH) |
1 | ||
| 61605-26E10 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61605-26E20 |
GDH322..LHD..P..GEN;GDH322..(D,P)..(ARL,GCC,NZ,TH);GDH321,GRH322..(D,P)..(GCC,IDN) |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-26071 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
2 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
2 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
2 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
2 | ||
| 61677 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH | ||||
| 61677-26040 |
GDH322..N;GDH303..LHD..H;GDH322..Q..GCC;GDH322..LHD..6F..P..GEN;GDH301,304,328..NZ,PH,TH;GDH321,322..(D,P,Q)..(ARL,IDN);GDH301,GRH301,304,321,322..(H,N,Q)..(GCC,GEN) |
1 | ||
| 61677-26040 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC |
1 | ||
| 61679D - SEAL, QUARTER WHEEL HOUSE | ||||
| 61679-26080 |
GDH321..N..GEN;GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH320,322,328,GRH32#..LHD..SG |
1 | ||
| 61681C - EXTENSION, REAR WHEEL OPENING, RH | ||||
| 61681-26060 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 61685C - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26360 |
GDH322..D,N;GDH321..6F..D;GDH321..N..GEN;GDH322..LHD..(P,Q);GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-26020 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-26110 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26130 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61791B - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61791-26030 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 62527G - PAD, QUARTER TRIM, LOWER RH | ||||
| 62527-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 64125D - ANCHOR, PILLAR SEAT BELT, RH | ||||
| 64125-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG |
2 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG |
2 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26010 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26060 |
GDH300..5D;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,321,322,GRH300..4D..D..(GEN,NZ,TH);GDH301,320,328,GRH301,320,322..(D,P)..(GCC,GEN,VN) |
2 | ||
| 82719-26060 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC |
2 | ||
| Common parts | ||||
| 76587-26060 | ||||
| 90189-06236 | ||||
| 90467-10161 | ||||
| 90541-10041 | ||||
| 90950-06089 | ||||
| 90950-06096 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 3(1903- )LHD..P
INNER PANEL, LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55704C - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH | ||||
| 55704-26090 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 58228M - PLATE, FLOOR PANEL SIDE, LH | ||||
| 58228-26050 |
GDH321,322,328,GRH321,322..LHD |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26210 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-26810 |
GDH322,GRH322..P..GCC |
1 | ||
| 61034-26760 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC |
1 | ||
| 61034-26720 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61034-26820 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61044C - EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH | ||||
| 61044-26020 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61104H - PANEL SUB-ASSY, SIDE, NO.2 LH | ||||
| 61104-26050 |
GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN;GDH320,GRH320,322..LHD..SG..D |
1 | ||
| 61104-26110 |
GRH322..LHD..D;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 61104-26110 |
GDH322..GCC;GDH328,GRH321..6F;GDH322..6FC..P..GEN;GRH322..LHD..(N,P,Q);GDH321,322..LHD..(N,Q)..GEN |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-26020 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61168E - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-26630 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-26080 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61328 - REINFORCEMENT, CENTER BODY PILLAR, OUTER LH | ||||
| 61328-26060 |
GDH300,301,32#,GRH300,301,32#..LHD..4D |
1 | ||
| 61329 - PLATE, CENTER BODY PILLAR, OUTER LH | ||||
| 61329-26040 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61334D - BASE, CENTER BODY PILLAR COVER, LH | ||||
| 61334-26010 |
GDH300,301,32#,GRH300,301,32#..LHD..4D |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26440 |
GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN;GDH300,301,320,GRH300,301,320,322..LHD..4D..D |
1 | ||
| 61344-26460 |
GDH322..GCC;GDH328,GRH321..6F;GDH322..6FC..P..GEN;GRH322..LHD..(N,P,Q);GDH301,321,322,GRH301..LHD..(N,Q)..GEN |
1 | ||
| 61344-26460 |
GRH322..LHD..D;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 61348C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH | ||||
| 61347-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61386D - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61385-26040 |
GDH322..GCC;GDH322..LHD..(D,N);GDH320,321,328,GRH32#..LHD..SG |
1 | ||
| 61386E - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61385-26040 |
GDH321..D;GDH322..D,N;GDH322..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61386F - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61385-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61398 - PATCH, CENTER BODY PILLAR, INNER LH | ||||
| 61398-26070 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61502A - PILLAR SUB-ASSY, QUARTER LOCK, LH | ||||
| 61502-26290 |
GDH301,321,322,328,GRH301,321,322..LHD |
1 | ||
| 61502F - PILLAR SUB-ASSY, QUARTER LOCK, LH | ||||
| 61502-26390 |
GDH321,322,328,GRH321,322..LHD |
1 | ||
| 61509 - REINFORCEMENT SUB-ASSY, REAR SEAT, NO.5 | ||||
| 61509-26030 |
GRH321,322..LHD..(P,Q);GDH322..LHD..6F..P..GEN;GDH321,322..(D,P,Q)..(ARL,GCC,IDN,TH) |
1 | ||
| 61522D - REINFORCEMENT, REAR UPPER SIDE PANEL, LH | ||||
| 61522-26030 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-26090 |
GDH322..D..GEN;GDH301,328,GRH301,322..D |
1 | ||
| 61604-26150 |
GDH321..D;GDH322..LHD..P..GEN;GDH322,GRH322..(D,P)..(ARL,GCC,NZ,TH) |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26L00 |
GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN;GDH320,GRH320,322..LHD..SG..D |
1 | ||
| 61614-26L90 |
GDH322,328,GRH322..(D,P)..(GCC,VN) |
1 | ||
| 61614-26L90 |
GRH322..LHD..D;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE) |
1 | ||
| 61614-26L90 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-26080 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 61618-26070 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 61628K - PANEL, QUARTER INNER, UPPER REAR LH | ||||
| 61628-26131 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-26G20 |
GDH322..P..ARL;GDH321..D..(GEN,NZ);GDH322,GRH322..LHD..D;GDH301,328,GRH301..D..(GEN,TH,VN) |
1 | ||
| 61606-26G30 |
GDH322..LHD..P..GEN;GDH322,GRH322..(D,P)..(GCC,NZ,TH) |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-26061 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
4 | ||
| 61667-26360 |
GDH32#,GRH32#..LHD..SG |
10 | ||
| 61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH | ||||
| 61678-26020 |
GDH322..N;GDH303..LHD..H;GDH322..Q..GCC;GDH322..LHD..6F..P..GEN;GDH301,304,328..NZ,PH,TH;GDH301,GRH301,304,321,322..(H,N,Q)..(GCC,GEN) |
1 | ||
| 61678-26020 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC |
1 | ||
| 61682A - EXTENSION, REAR WHEEL OPENING, LH | ||||
| 61682-26040 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 61686A - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61686-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61686C - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61685-26050 |
GDH32#,GRH32#..LHD..SG |
2 | ||
| 61686C - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61685-26050 |
GDH32#,GRH32#..LHD..SG |
2 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26350 |
GDH322..D,N;GDH321..6F..D;GDH321..N..GEN;GDH322..LHD..(P,Q);GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-26090 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61718B - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-26070 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-26250 |
GDH322..6FC..P..GEN;GDH322,GRH322..P..GCC |
1 | ||
| 61734-26180 |
GRH322..LHD..6F..D BOLIVIA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT) |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61749A - REINFORCEMENT, ROOF SIDE, INNER REAR | ||||
| 61749-26010 |
GDH300,301,32#,GRH300,301,32#..LHD..4D |
1 | ||
| 61749B - REINFORCEMENT, ROOF SIDE, INNER REAR | ||||
| 61749-26020 |
GDH300,301,32#,GRH300,301,32#..LHD..4D |
1 | ||
| 61762A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH | ||||
| 61761-26130 |
GDH32#,GRH32#..LHD..SG |
2 | ||
| 61792 - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61792-26030 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 62528B - PAD, QUARTER TRIM, LOWER LH | ||||
| 62528-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN);GDH300,322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26060 |
GDH300..5D;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,321,322,GRH300..4D..D..(GEN,NZ,TH);GDH301,320,328,GRH301,320,322..(D,P)..(GCC,GEN,VN) |
2 | ||
| 82719-26060 |
GDH322,GRH322..P..GCC UNITED ARAB EMIRATES SPEC |
2 | ||
| Common parts | ||||
| 76587-26060 | ||||
| 90119-08C89 | ||||
| 90189-06236 | ||||
| 90467-10161 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 1 OF 3(1903- )GDH32#,GRH32#..LHD..SG
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61111-26490 |
GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH32#,GRH320,322..LHD..SG..(D,P) |
1 | ||
| 61111-26510 |
GDH322..P..GCC;GRH322..LHD..(D,P) REAR SIDE GLASS(RH)-FIXED(UV CUT, GREEN)&*POSD & *ECS(*SD) |
1 | ||
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61112-26500 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-26050 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61225A - RAIL, ROOF SIDE OUTER UPPER NO.1, RH | ||||
| 61225-26120 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61225B - RAIL, ROOF SIDE OUTER UPPER NO.2, RH | ||||
| 61225-26130 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH | ||||
| 61226-26100 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61226B - RAIL, ROOF SIDE OUTER UPPER NO.2, LH | ||||
| 61226-26110 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61431 - PANEL, ROCKER, OUTER REAR RH | ||||
| 61431-26030 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-26630 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-26790 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61612B - PANEL, QUARTER, NO.2 LH | ||||
| 61612-26800 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61612D - PANEL, QUARTER, NO.3 LH | ||||
| 61612-26810 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61612G - PANEL, QUARTER, NO.4 LH | ||||
| 61612-26820 |
GDH32#,GRH32#..LHD..SG |
1 | ||
| 61612J - PANEL, QUARTER, NO.5 LH | ||||
| 61612-26830 |
GDH32#,GRH32#..LHD..SG |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
