Toyota Hiace GRH322 CONSOLE BOX & BRACKET

Manufacturers Home
Toyota
US
HIACE
GRH322L-EDTPHV (2019)
5855 - CONSOLE BOX & BRACKET

GRH322L-EDTPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 7GRFKS

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

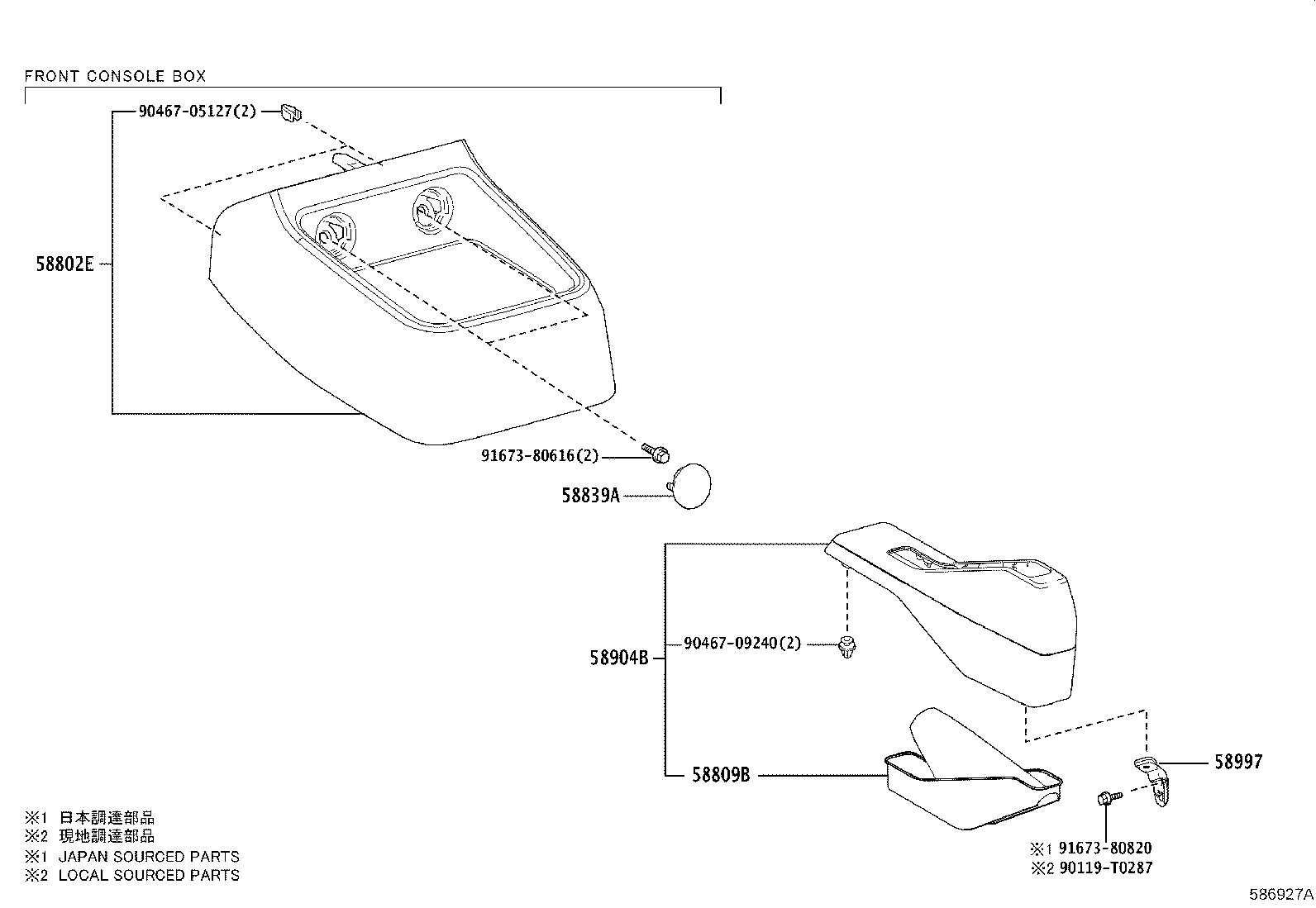

(1902- )

Click highlighted areas on diagram

W/O CONSOLE

Part #	Description	Period	Qty
58809B - COVER SUB-ASSY, PARKING BRAKE HOLE
58809-26010C0	GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1#	02/2019 - 12/2999	1
58839A - COVER, CONSOLE BOX HOLE
58839-26060C0	GDH321..D;GDH300..SHP..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,328,GRH322..(D,P)..(GCC,NZ,TH,VN) BLACK,TRIM1#	02/2019 - 12/2999	1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-26120C1	GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D BLACK,TRIM1#	02/2019 - 12/2999	1
58904-26100C1	GDH321..D..GEN;GDH322..LHD..P;GDH328,GRH322..(D,P)..(GCC,VN) BLACK,TRIM1#	03/2019 - 12/2999	1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-26030	GRH300..GCC;GDH303..RHD..H;GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH300,301..(SG,SHP)..D..(GCC,GEN);GDH304,320,322,GRH301,304,320,322..(D,H)..(GCC,GEN,TH)	02/2019 - 12/2999	1
Common parts
90119-T0287
90467-05127
90467-09240
91673-80616
91673-80820

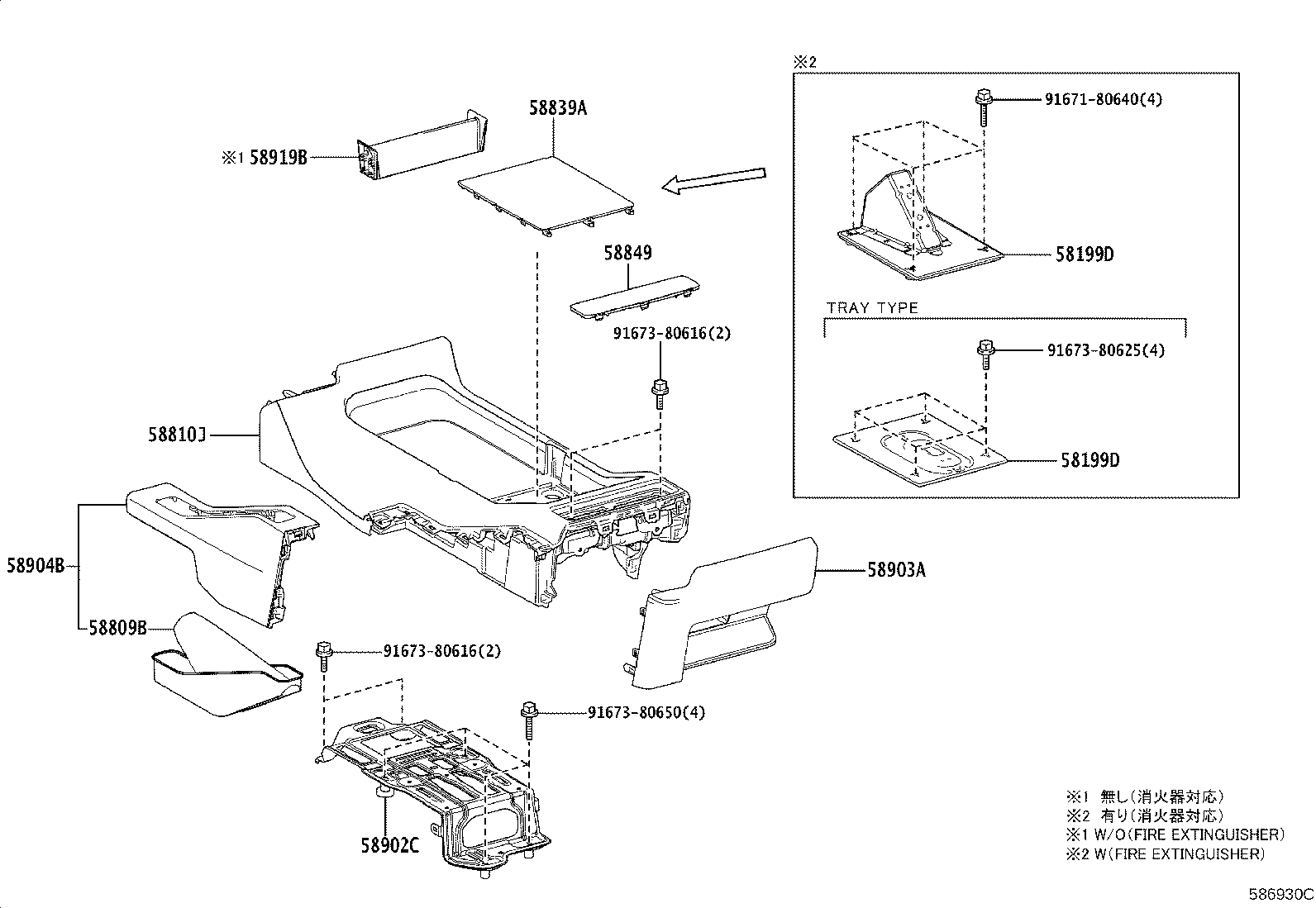

(1902- )LHD

Click highlighted areas on diagram

CONSOLE TRAY

Part #	Description	Period	Qty
58199D - BRACKET, EXTINGUISHER, NO.2
58199-26010	GDH322,GRH322..GCC EXTINGUISHER-WITH(INSTALLATION, FR)&LOADING(BRACKET)&REAR CONSOLE BOX-WITH(TRAY TYPE),WITHOUT(COVER)	03/2019 - 12/2999	1
58199-26010	GDH322,GRH322..GCC EXTINGUISHER-WITH(FOR INSTALLATION, FRONT)&REAR CONSOLE BOX-WITH(TRAY TYPE),WITHOUT(COVER)	11/2019 - 12/2999	1
58199D - BRACKET, EXTINGUISHER, NO.2
58199-26010	GDH322,GRH322..GCC EXTINGUISHER-WITH(INSTALLATION, FR)&LOADING(BRACKET)&REAR CONSOLE BOX-WITH(TRAY TYPE),WITHOUT(COVER)	03/2019 - 12/2999	1
58199-26010	GDH322,GRH322..GCC EXTINGUISHER-WITH(FOR INSTALLATION, FRONT)&REAR CONSOLE BOX-WITH(TRAY TYPE),WITHOUT(COVER)	11/2019 - 12/2999	1
58809B - COVER SUB-ASSY, PARKING BRAKE HOLE
58809-26010C0	GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1#	02/2019 - 12/2999	1
58810J - BOX ASSY, CONSOLE
58810-26240C0	GDH321..D..GEN;GDH322..LHD..P;GDH328,GRH322..(D,P)..(GCC,VN) BLACK,TRIM1#	03/2019 - 12/2999	1
58839A - COVER, CONSOLE BOX HOLE
58839-26060C0	GDH321..D;GDH300..SHP..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,328,GRH322..(D,P)..(GCC,NZ,TH,VN) BLACK,TRIM1#	02/2019 - 12/2999	1
58849 - COVER, CONSOLE BOX HOLE, NO.2
58849-26020C0	GDH321..D;GDH300..SHP..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,328,GRH322..(D,P)..(GCC,NZ,TH,VN) BLACK,TRIM1#	02/2019 - 12/2999	1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-26080	GDH303,306,321,328,GRH321..LHD;GDH301,322,GRH301,303,322..LHD..(J,N,P,Q)	02/2019 - 12/2999	1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-26050C0	GDH321..D..GEN;GDH322..LHD..P;GDH328,GRH322..(D,P)..(GCC,VN) BLACK,TRIM1#	03/2019 - 12/2999	1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-26120C1	GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D BLACK,TRIM1#	02/2019 - 12/2999	1
58904-26100C1	GDH321..D..GEN;GDH322..LHD..P;GDH328,GRH322..(D,P)..(GCC,VN) BLACK,TRIM1#	03/2019 - 12/2999	1
58919B - PLATE, CONSOLE BOX
58919-26020C0	GDH321..D;GDH300..SHP..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,328,GRH322..(D,P)..(GCC,NZ,TH,VN) BLACK,TRIM1#	02/2019 - 12/2999	1
Common parts
91671-80640
91673-80616
91673-80625
91673-80650

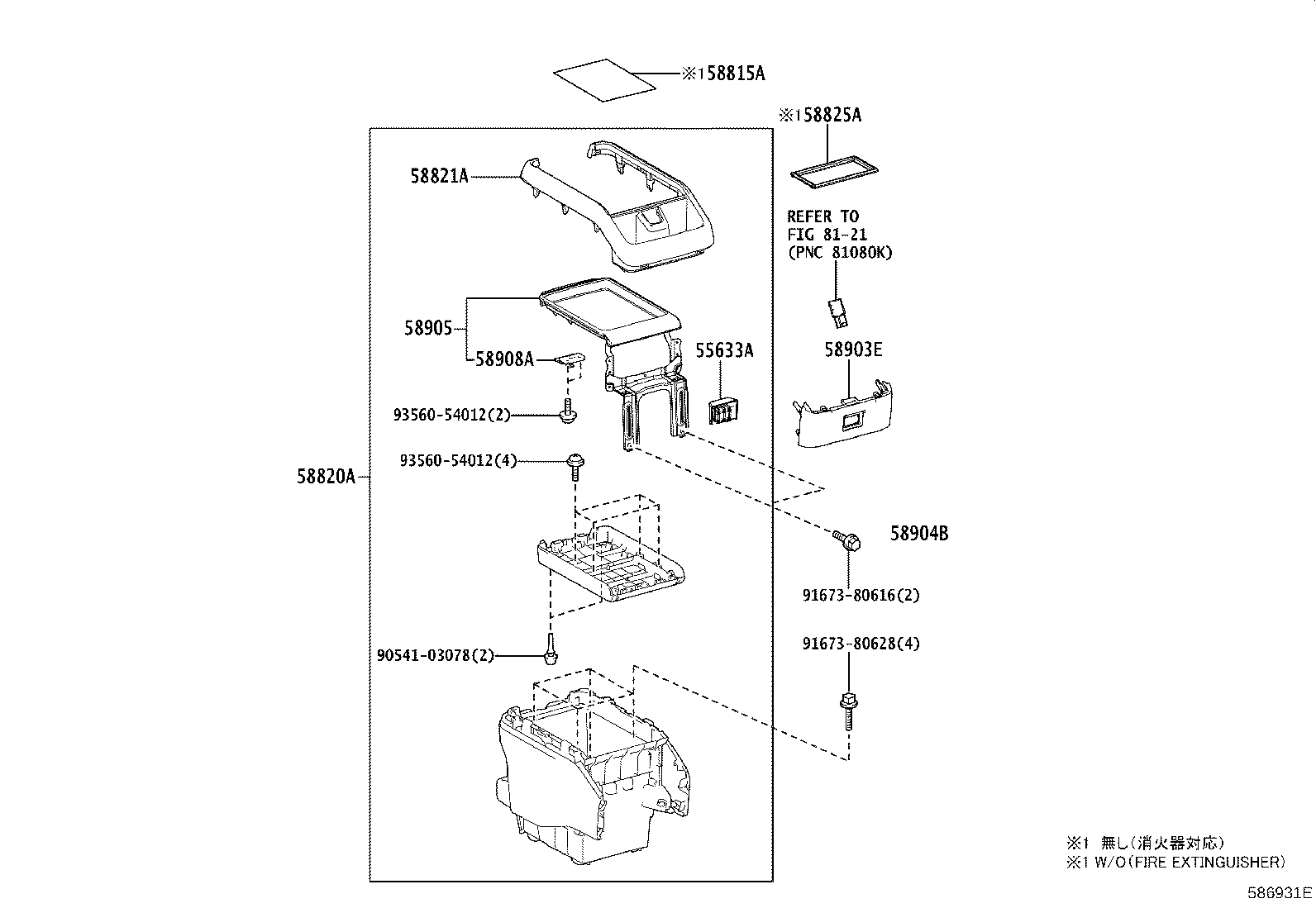

(1902- )

Click highlighted areas on diagram

CONSOLE BOX

Part #	Description	Period	Qty
58815A - CARPET, CONSOLE BOX
58815-26120	GDH303..LHD..H;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH301,303,321,322,328,GRH301,322..(G,J,N)..(ARL,GCC,GEN,PH)	02/2019 - 12/2999	1
58825A - POCKET, CONSOLE BOX
58825-26030	GDH303..LHD..H;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH301,303,321,322,328,GRH301,322..(G,J,N)..(ARL,GCC,GEN,PH)	02/2019 - 12/2999	1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-26120C1	GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D BLACK,TRIM1#	02/2019 - 12/2999	1
58904-26100C1	GDH321..D..GEN;GDH322..LHD..P;GDH328,GRH322..(D,P)..(GCC,VN) BLACK,TRIM1#	03/2019 - 12/2999	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-12080	GDH303..LHD..H;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH301,303,321,322,328,GRH301,322..(G,J,N)..(ARL,GCC,GEN,PH)	02/2019 - 12/2999	1
Common parts
90541-03078
91673-80616
91673-80628
93560-54012
