Toyota Hiace GRH322 FLOOR MAT & SILENCER PAD

Manufacturers Home
Toyota
US
HIACE
GRH322L-EDTPHV (2019)
5854 - FLOOR MAT & SILENCER PAD

GRH322L-EDTPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 7GRFKS

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

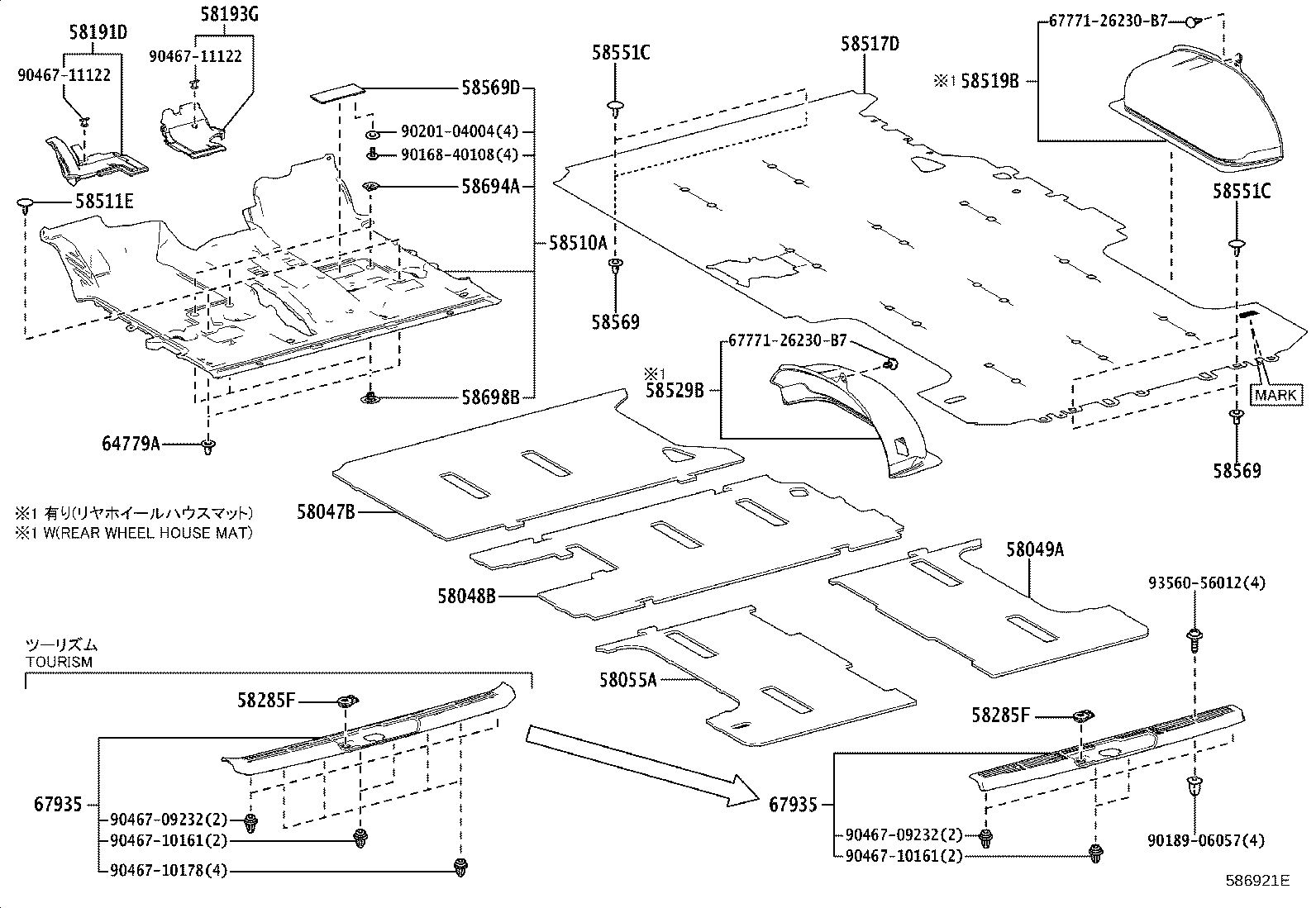

(1902- )GDH32#,GRH32#..LHD..SG

Click highlighted areas on diagram

Part #	Description	Period	Qty
58047B - BOARD SUB-ASSY, REAR FLOOR, UPPER NO.1
58047-26300	GRH322..LHD..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)	03/2019 - 12/2999	1
58047-26300	GRH322..LHD..D POSD & ECS(*SD)	03/2019 - 12/2999	1
58047-26300	GRH322..LHD..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)	03/2019 - 12/2999	1
58047-26300	GRH322..LHD..D POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)	03/2019 - 12/2999	1
58047-26460	GDH321..D..GEN;GDH322..6FC..P..GEN;GDH322,GRH322..P..GCC	03/2019 - 12/2999	1
58047-26450	GDH322,GRH322..P..GCC POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)	03/2019 - 12/2999	1
58047-26450	GDH322,GRH322..P..GCC POSD & ECS(*SD)	03/2019 - 12/2999	1
58047-26520	GRH322..LHD..6F..D;GDH322..LHD..D..GEN REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58047-26520	GRH322..LHD..6F..D;GDH322..LHD..D..GEN REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58047-26520	GRH322..LHD..6F..D;GDH322..LHD..D..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58047-V3020	GRH322..LHD..6F..D POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58047-26520	GRH322..LHD..6F..D;GDH322..LHD..D..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58047-V3020	GRH322..LHD..6F..D POSD & ECS(*SD)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58047-V3020	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58047-V3020	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58048B - BOARD SUB-ASSY, REAR FLOOR, UPPER NO.2
58048-26210	GRH322..LHD..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)	03/2019 - 12/2999	1
58048-26220	GRH322..LHD..D POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)	03/2019 - 12/2999	1
58048-26220	GRH322..LHD..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)	03/2019 - 12/2999	1
58048-26210	GRH322..LHD..D POSD & ECS(*SD)	03/2019 - 12/2999	1
58048-26430	GDH322,GRH322..P..GCC POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)	03/2019 - 12/2999	1
58048-26410	GDH322,GRH322..P..GCC POSD & ECS(*SD)	03/2019 - 12/2999	1
58048-26570	GDH321..D..GEN;GDH322,328,GRH322..(D,P)..(GCC,VN)	03/2019 - 12/2999	1
58048-26600	GDH321..D..GEN;GDH322,328,GRH322..(D,P)..(GCC,VN) REAR HEATER-WITH(FLOOR SET)	03/2019 - 12/2999	1
58048-26410	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58048-26410	GRH322..LHD..6F..D POSD & ECS(*SD)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58048-26430	GRH322..LHD..6F..D POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58048-26430	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58048-26570	GRH322..LHD..6F..D;GDH322..LHD..D..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58048-26570	GRH322..LHD..6F..D;GDH322..LHD..D..GEN REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58048-26600	GRH322..LHD..6F..D;GDH322..LHD..D..GEN REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58048-26600	GRH322..LHD..6F..D;GDH322..LHD..D..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58049A - BOARD SUB-ASSY, REAR FLOOR, UPPER NO.3
58049-26300	GDH322..LHD..P..GEN;GDH322..(D,P)..(ARL,GCC,NZ,TH);GDH321,GRH322..(D,P)..(GCC,IDN)	03/2019 - 12/2999	1
58049-26430	GRH322..LHD..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)	03/2019 - 12/2999	1
58049-26430	GRH322..LHD..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)	03/2019 - 12/2999	1
58049-26280	GRH322..LHD..6F..D;GDH322,GRH322..RHD..D..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58049-26280	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58049-26280	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58049-26340	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58049-26340	GRH322..LHD..6F..D;GDH322,GRH322..RHD..D..GEN POSD & ECS(*SD)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58049-26340	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58049-26340	GRH322..LHD..6F..D;GDH322,GRH322..RHD..D..GEN POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58049-26280	GRH322..LHD..6F..D;GDH322,GRH322..RHD..D..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58055A - BOARD SUB-ASSY, REAR FLOOR, UPR NO.4
58055-26270	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58055-26270	GRH322..LHD..6F..D;GDH322,GRH322..RHD..D..GEN POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58055-26270	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58055-26290	GDH322..LHD..P..GEN;GDH322,GRH322..(D,P)..(GCC,NZ,TH)	03/2019 - 12/2999	1
58055-26270	GRH322..LHD..6F..D;GDH322,GRH322..RHD..D..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58055-26270	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58055-26270	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58055-26270	GRH322..LHD..6F..D;GDH322,GRH322..RHD..D..GEN POSD & ECS(*SD)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58055-26270	GRH322..LHD..6F..D;GDH322,GRH322..RHD..D..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&POSD & ECS(*SD)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)	06/2020 - 12/2999	1
58191D - FOOTREST, FRONT FLOOR
58191-26100	GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,32#..LHD	02/2019 - 12/2999	1
58193G - FOOTREST, FRONT FLOOR, NO.3
58193-26050	GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD	02/2019 - 12/2999	1
58285F - COVER, REAR FLOOR HOLE
58285-26120C0	GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1#	02/2019 - 12/2999	1
58285F - COVER, REAR FLOOR HOLE
58285-26120C0	GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1#	02/2019 - 12/2999	1
58510A - MAT ASSY, FRONT FLOOR
58510-26K60B2	GDH321..D..GEN;GDH322..6FC..P..GEN;GDH322,GRH322..P..GCC GRAY,TRIM1#	03/2019 - 12/2999	1
58511E - CLIP(FOR FRONT FLOOR MAT)
64726-26010B0	GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) MD.GRAY,TRIM1#	02/2019 - 12/2999	2
58517D - MAT, REAR FLOOR
58517-2FA70B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&BOLIVIA SPEC&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 14 PERSONS),MEDIUM GRAY,TRIM1#	03/2019 - 06/2020	1
58517-2F350B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&AMBULANCE&REAR SEAT-WITHOUT,MEDIUM GRAY,TRIM1#	03/2019 - 06/2020	1
58517-2FA80B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 14 PERSONS),MEDIUM GRAY,TRIM1#	03/2019 - 06/2020	1
58517-2FG00B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&BOLIVIA SPEC&POSD & ECS(*SD),MEDIUM GRAY,TRIM1#	03/2019 - 06/2020	1
58517-2FB30B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&BOLIVIA SPEC&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 06/2020	1
58517-2FB50B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&BOLIVIA SPEC,MEDIUM GRAY,TRIM1#	03/2019 - 06/2020	1
58517-2FB40B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&BOLIVIA SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 06/2020	1
58517-2FA70B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LEBANON SPEC&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 14 PERSONS),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FA70B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 14 PERSONS),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FB30B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LEBANON SPEC&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FA80B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&REAR SEAT-4-ROW(FOR 14 PERSONS),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FA80B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LEBANON SPEC&REAR SEAT-4-ROW(FOR 14 PERSONS),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FB30B0	GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&MONGOLIA SPEC&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FB30B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FB40B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LEBANON SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FB40B0	GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&MONGOLIA SPEC&REAR HEATER-WITH(FLOOR SET)&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FG00B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LEBANON SPEC&POSD & ECS(*SD),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FB50B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC,MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FB40B0	GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&MONGOLIA SPEC&REAR HEATER-WITH(FLOOR SET)&SRS AIR BAG-W(DRIVER & PASSENGER),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FB50B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LEBANON SPEC,MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FB30B0	GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&MONGOLIA SPEC&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&SRS AIR BAG-W(DRIVER & PASSENGER),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FB40B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2FG00B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&POSD & ECS(*SD),MEDIUM GRAY,TRIM1#	03/2019 - 07/2021	1
58517-2F090B0	GRH322..LHD..D POSD & ECS(*SD),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-26S50B0	GDH322,GRH322..P..GCC POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-26S40B0	GDH322,GRH322..P..GCC POSD & ECS(*SD),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2F080B0	GRH322..LHD..D POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2F220B0	GDH322,GRH322..P..GCC MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2F230B0	GDH322,GRH322..P..GCC REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2F350B0	GDH322..LHD..D..GEN;GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&AMBULANCE&REAR SEAT-WITHOUT,MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2FA80B0	GDH322..LHD..D..GEN;GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&REAR SEAT-4-ROW(FOR 14 PERSONS),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2FA70B0	GDH322..LHD..D..GEN;GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 14 PERSONS),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2FB30B0	GRH322..LHD..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2FB30B0	GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2FB50B0	GDH322..LHD..D..GEN;GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC,MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2FB30B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TAHITI SPEC&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2FB40B0	GDH322..LHD..D..GEN;GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2FG00B0	GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&POSD & ECS(*SD),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2FG00B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TAHITI SPEC&POSD & ECS(*SD),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-2FG00B0	GRH322..LHD..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC&POSD & ECS(*SD),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58517-V3040B0	GRH322..LHD..6F..D BOLIVIA SPEC&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#	06/2020 - 12/2999	1
58517-V3060B0	GRH322..LHD..6F..D BOLIVIA SPEC&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#	06/2020 - 12/2999	1
58517-V3090B0	GRH322..LHD..6F..D BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#	06/2020 - 12/2999	1
58517-V3110B0	GRH322..LHD..6F..D BOLIVIA SPEC&POSD & ECS(*SD)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#	06/2020 - 12/2999	1
58517-V3190B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&BOLIVIA SPEC&POSD & ECS(*SD)&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#	06/2020 - 12/2999	1
58517-V3170B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&BOLIVIA SPEC&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#	06/2020 - 12/2999	1
58517-V3210B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#	06/2020 - 12/2999	1
58517-V3230B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&BOLIVIA SPEC&POSD & ECS(*SD)&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#	06/2020 - 12/2999	1
58519B - MAT, REAR WHEEL HOUSE, RH
58519-26460B1	GRH322..LHD..6FC..D COLD AREA SPEC(-20C AREA),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58529B - MAT, REAR WHEEL HOUSE, LH
58529-26330B1	GRH322..LHD..6FC..D COLD AREA SPEC(-20C AREA),MEDIUM GRAY,TRIM1#	03/2019 - 12/2999	1
58551C - CLIP(FOR FLOOR MAT, REAR)
64726-26010B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&AMBULANCE&REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	03/2019 - 06/2020	4
64726-26010B0	GDH322..D;GDH300,GRH300..SHP;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,328,GRH301,322..D,P MD.GRAY,TRIM1#	02/2019 - 12/2999	4
64726-26010B0	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&AMBULANCE&REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	03/2019 - 12/2999	4
58551C - CLIP(FOR FLOOR MAT, REAR)
64726-26010B0	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&AMBULANCE&REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	03/2019 - 06/2020	4
64726-26010B0	GDH322..D;GDH300,GRH300..SHP;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,328,GRH301,322..D,P MD.GRAY,TRIM1#	02/2019 - 12/2999	4
64726-26010B0	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&AMBULANCE&REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	03/2019 - 12/2999	4
58569 - STOPPER, REAR FLOOR MAT
64779-26020	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&AMBULANCE&REAR SEAT-WITHOUT	03/2019 - 06/2020	4
64779-26020	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH300,GRH300..SHP;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,328,GRH301,321,322..GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	4
64779-26020	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&AMBULANCE&REAR SEAT-WITHOUT	03/2019 - 12/2999	4
58569 - STOPPER, REAR FLOOR MAT
64779-26020	GRH322..LHD..6F..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&AMBULANCE&REAR SEAT-WITHOUT	03/2019 - 06/2020	4
64779-26020	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH300,GRH300..SHP;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,328,GRH301,321,322..GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	4
64779-26020	GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6FC..D EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&AMBULANCE&REAR SEAT-WITHOUT	03/2019 - 12/2999	4
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-26040C0	GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,320,322..LHD..(D,P) BLACK,TRIM1#	02/2019 - 12/2999	1
58694A - PLATE, MAT SET, UPPER
58694-78010	GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	3
58698B - PLATE, MAT SET, LOWER
58698-78010	GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	3
64779A - STOPPER, SPARE WHEEL COVER
64779-26020	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
67935 - PLATE, BACK DOOR SCUFF
67935-26220C0	GRH300..6F..GCC;GDH300,GRH322..(SG,SP)..6F..(D,P)..GCC YEMEN SPEC,BLACK,TRIM1#	02/2019 - 12/2999	1
67935-26210C0	GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) BLACK,TRIM1#	02/2019 - 12/2999	1
67935-26220C0	GDH300..SHP..GCC;GRH300,320,322..6F..(D,P)..GCC IRAQ SPEC,BLACK,TRIM1#	02/2019 - 12/2999	1
67935 - PLATE, BACK DOOR SCUFF
67935-26220C0	GRH300..6F..GCC;GDH300,GRH322..(SG,SP)..6F..(D,P)..GCC YEMEN SPEC,BLACK,TRIM1#	02/2019 - 12/2999	1
67935-26210C0	GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) BLACK,TRIM1#	02/2019 - 12/2999	1
67935-26220C0	GDH300..SHP..GCC;GRH300,320,322..6F..(D,P)..GCC IRAQ SPEC,BLACK,TRIM1#	02/2019 - 12/2999	1
Common parts
67771-26230B7
90168-40108
90189-06057
90201-04004
90467-09232
90467-10161
90467-10178
90467-11122
93560-56012

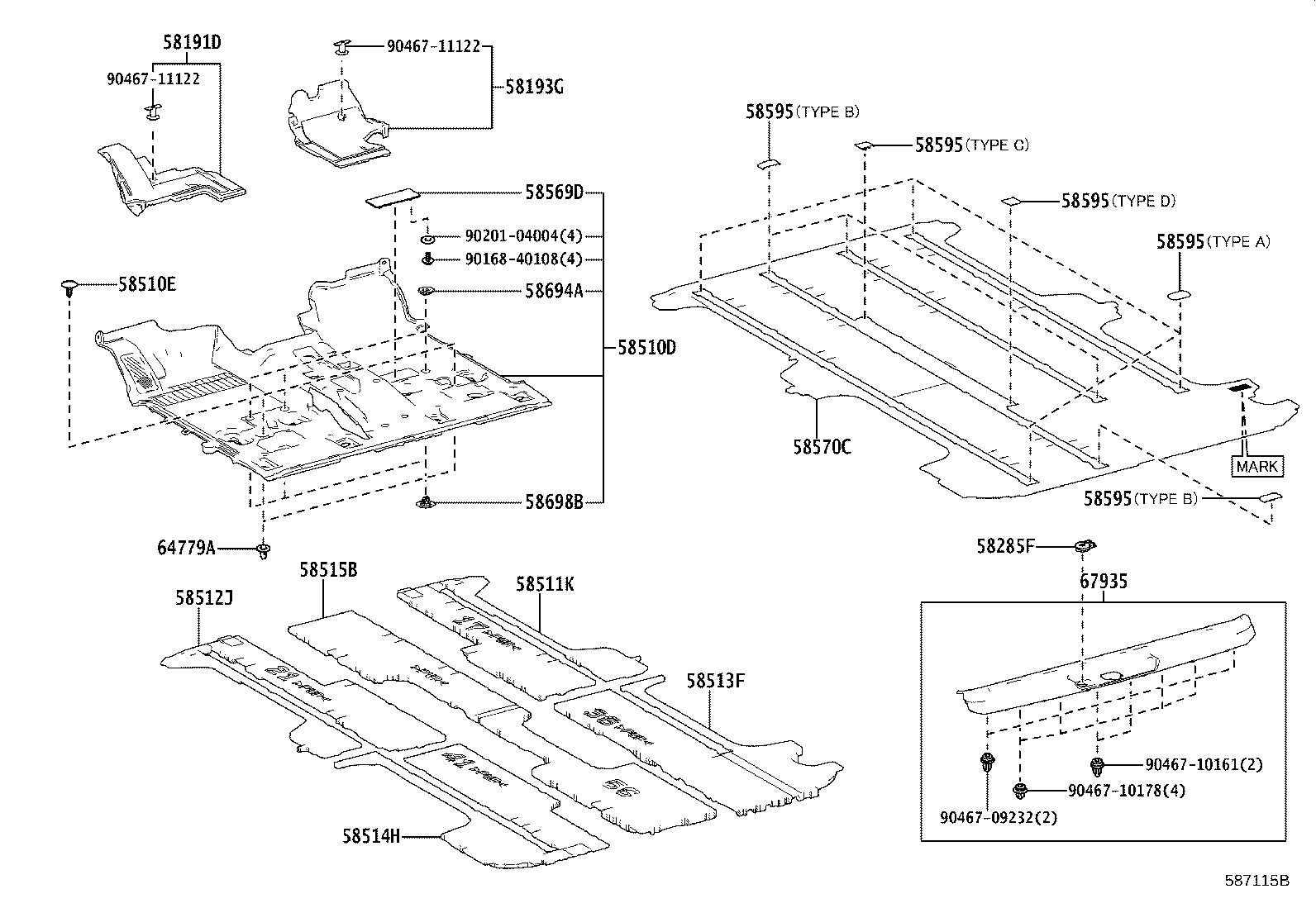

(1907- )GCC

Click highlighted areas on diagram

Part #	Description	Period	Qty
58191D - FOOTREST, FRONT FLOOR
58191-26100	GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,32#..LHD	02/2019 - 12/2999	1
58193G - FOOTREST, FRONT FLOOR, NO.3
58193-26050	GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD	02/2019 - 12/2999	1
58285F - COVER, REAR FLOOR HOLE
58285-26120C0	GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1#	02/2019 - 12/2999	1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-26040C0	GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,320,322..LHD..(D,P) BLACK,TRIM1#	02/2019 - 12/2999	1
58694A - PLATE, MAT SET, UPPER
58694-78010	GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	3
58698B - PLATE, MAT SET, LOWER
58698-78010	GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	3
64779A - STOPPER, SPARE WHEEL COVER
64779-26020	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
67935 - PLATE, BACK DOOR SCUFF
67935-26220C0	GRH300..6F..GCC;GDH300,GRH322..(SG,SP)..6F..(D,P)..GCC YEMEN SPEC,BLACK,TRIM1#	02/2019 - 12/2999	1
67935-26210C0	GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) BLACK,TRIM1#	02/2019 - 12/2999	1
67935-26220C0	GDH300..SHP..GCC;GRH300,320,322..6F..(D,P)..GCC IRAQ SPEC,BLACK,TRIM1#	02/2019 - 12/2999	1
Common parts
90168-40108
90201-04004
90467-09232
90467-10161
90467-10178
90467-11122

GRH322L-EDTPHV (2019)

(1902- )GDH32#,GRH32#..LHD..SG

(1907- )GCC

Part Price Details
