GRH322L-EDTPHV (2019)
Toyota Hiace

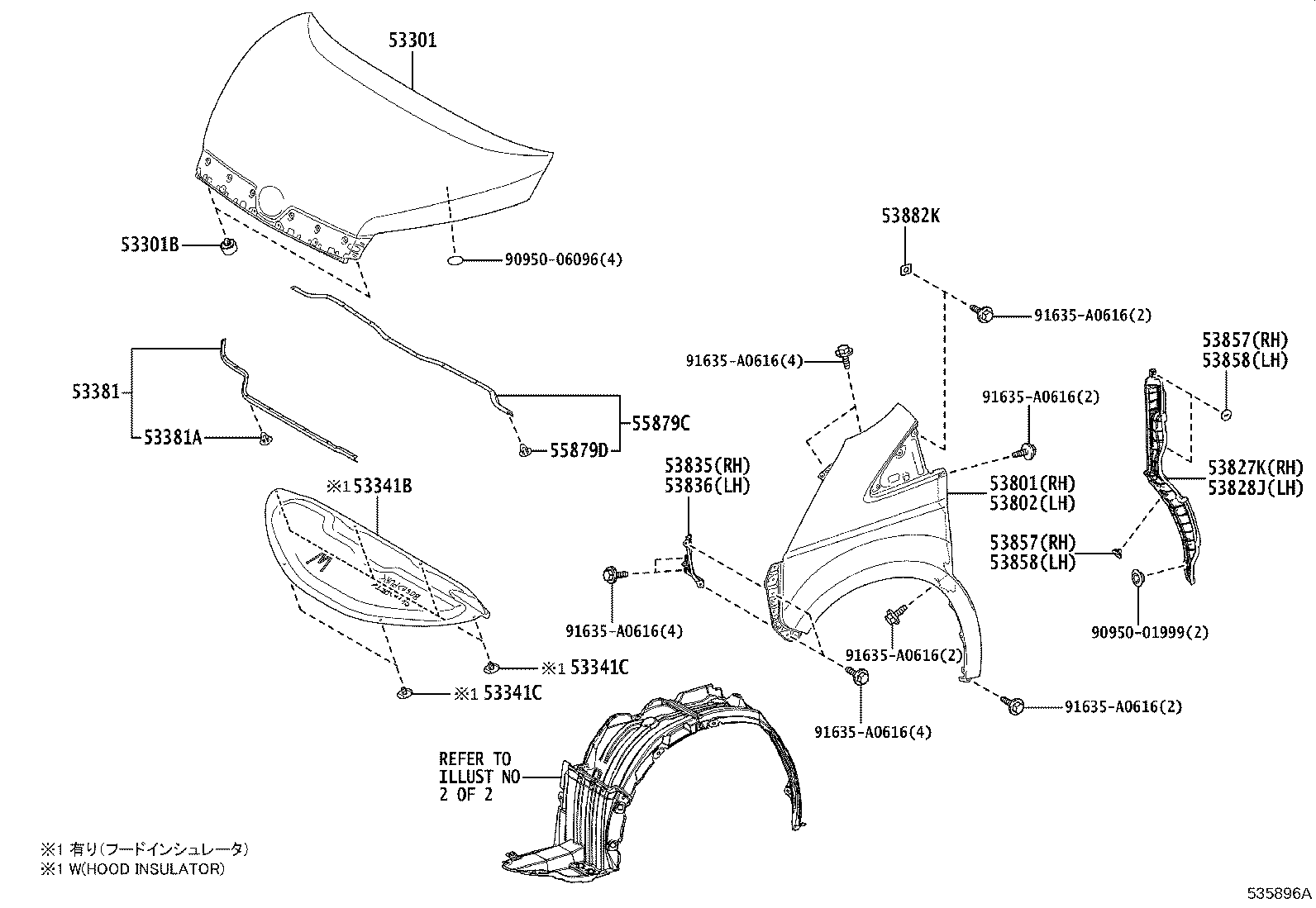

ILLUST NO. 1 OF 2(1902- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-26100 |
GDH322..LHD..6F;GDH322..6FC..GCC;GDH322..RHD..(ARL,GEN);GDH322..LHD..6FC..(D,N);GDH320,321,328,GRH32#..ARL,GCC,GEN,PH |
1 | ||
| 53301-V3010 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH322..ARL,GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-10044 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
2 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-26060 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
6 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
6 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-26130 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
11 | ||
| 90467-08011 |
GDH30#,32#,GRH30#,32# |
13 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-26040 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 53801-26030 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-26070 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 53802-26060 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-26030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 53835 - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 53836 - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-26010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-28030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-28030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-28030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-28030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-16030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
2 | ||
| 55879C - SEAL, COWL VENT | ||||
| 55879-26030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 55879D - CLIP(FOR COWL VENT SEAL) | ||||
| 90467-08011 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
14 | ||
| Common parts | ||||
| 90950-01999 | ||||
| 90950-06096 | ||||
| 91635-A0616 | ||||
