GRH322L-EDTPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )

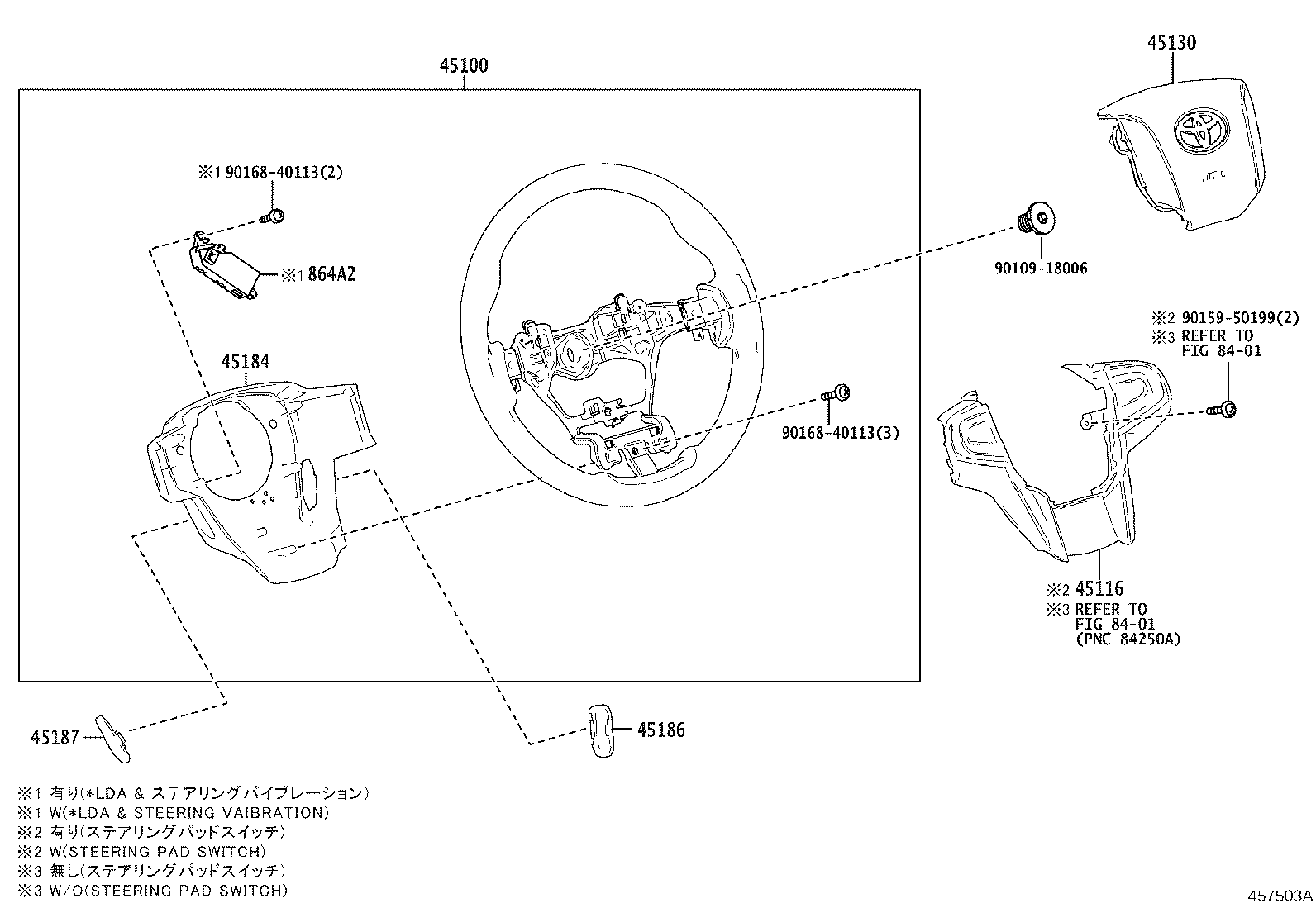

Click highlighted areas on diagram

diagram 45100 45116 45130 45184 45186 45187 8401 8401 864A2 9010918006 9015950199 9016840113 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26380E0

GDH322..N;GDH306,322..LHD..(G,Q);GDH303,GRH303..RHD..G..GEN;GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH)

3-SPOKE,URETHANE,ORCHID BROWN,TRIM0#

 1
45100-26380C0

GRH300..GCC;GDH322..LHD..P;GDH322..D..GEN;GDH300,320,328,GRH320..GCC,GEN,PH,TH;GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,TH)

3-SPOKE,URETHANE,BLACK,TRIM1#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-26030C0

GDH322..D;GDH321,322,GRH300..(D,P)..(GCC,IDN);GDH300,320,328,GRH320..GCC,GEN,PH,TH,VN;GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,TH)

BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-26400C0

GDH321..D;GDH301..NZ,TH;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH300,320,GRH300,320,322..(D,P)..GCC

BLACK,TRIM1#

 1
45130-26400E0

GDH322..N;GRH303..RHD..G..GEN;GDH322..Q..(ARL,GCC);GDH306,322..LHD..(G,Q)..GEN;GDH301,303,321,328,GRH301,321,322..(G,N,Q)..(GCC,GEN,PH)

ORCHID BROWN,TRIM0#

 1
45130-26400C0

GDH301,322..LHD..6FC..D

SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-26160C0

GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-26020C0

GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
45186-26020E0

GDH322..N;GRH303..RHD..G..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,Q)..GEN;GDH301,303,321,328,GRH301,322..(G,N,Q)..(ARL,GCC,GEN,PH)

ORCHID BROWN,TRIM0#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-26010E0

GDH322..N;GRH303..RHD..G..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,Q)..GEN;GDH301,303,321,328,GRH301,322..(G,N,Q)..(ARL,GCC,GEN,PH)

ORCHID BROWN,TRIM0#

 1
45187-26010C0

GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
Common parts
90109-18006
90159-50199
90168-40113
Linked diagrams
8401
