Toyota Hiace GRH322 POWER STEERING TUBE

Manufacturers Home
Toyota
US
HIACE
GRH322L-EDTPHV (2019)
4503 - POWER STEERING TUBE

GRH322L-EDTPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 7GRFKS

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1902- )GDH30#,32#..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21010	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21010	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-26300	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
44348-26310	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-26040	GDH30#,32#..LHD	02/2019 - 12/2999	1
44402-26070	GRH300,303,320,322..GCC	02/2019 - 12/2999	1
44406 - TUBE SUB-ASSY, RETURN
44406-26070	GDH30#,32#..LHD	02/2019 - 12/2999	1
44410 - TUBE ASSY, PRESSURE FEED
44410-26C30	GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)	02/2019 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30040	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
44412 - HOSE, RETURN
44428-26030	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
44428-26050	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
44412D - HOSE, RETURN, NO.1
44428-26010	GDH30#,32#..LHD;GRH30#,320,322..RHD..GEN	02/2019 - 12/2999	1
44412-26190	GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)	02/2019 - 12/2999	1
44412E - HOSE, RETURN, NO.2
44428-26020	GDH30#,32#..LHD;GRH30#,320,322..RHD..GEN	02/2019 - 12/2999	1
44428-26020	GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)	02/2019 - 12/2999	2
44412F - HOSE, RETURN, NO.3
44412-26190	GDH30#,32#..LHD NO.1	02/2019 - 12/2999	1
44412-26200	GDH30#,32#..LHD NO.2	02/2019 - 12/2999	1
44412F - HOSE, RETURN, NO.3
44412-26190	GDH30#,32#..LHD NO.1	02/2019 - 12/2999	1
44412-26200	GDH30#,32#..LHD NO.2	02/2019 - 12/2999	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-26090	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
44428 - HOSE, RETURN, NO.2
44428-26040	GDH30#,32#..LHD	02/2019 - 12/2999	1
Common parts
77197-42010
90301-07025
90466-16002
91671-80816
91673-80820
Linked diagrams
4502
4505

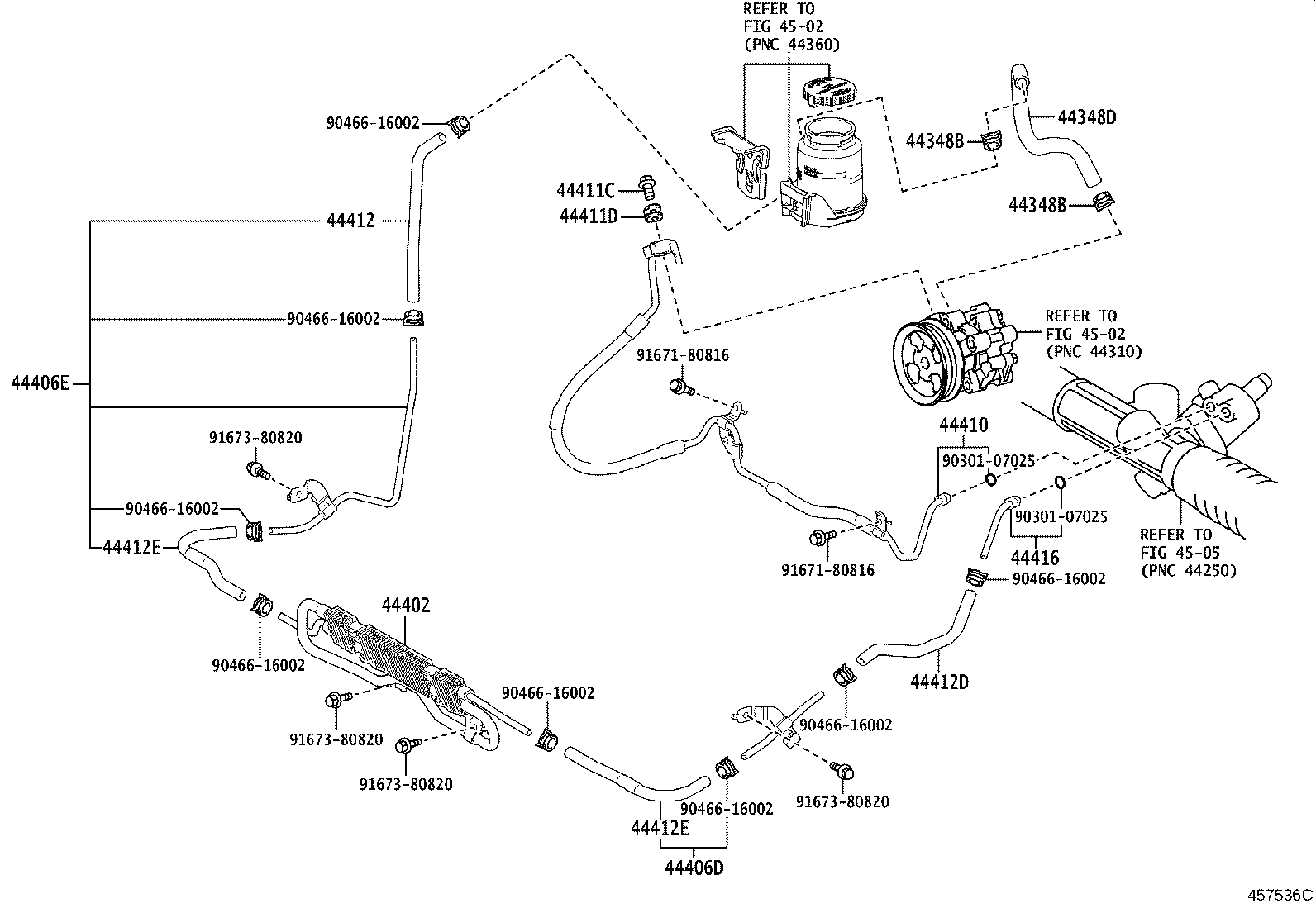

(1902- )GRH300,303,320,322..GCC

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21010	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21010	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-26300	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
44348-26310	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-26040	GDH30#,32#..LHD	02/2019 - 12/2999	1
44402-26070	GRH300,303,320,322..GCC	02/2019 - 12/2999	1
44406D - TUBE SUB-ASSY, RETURN, NO.1
44406-26090	GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)	02/2019 - 12/2999	1
44406E - TUBE SUB-ASSY, RETURN, NO.2
44406-26100	GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)	02/2019 - 12/2999	1
44410 - TUBE ASSY, PRESSURE FEED
44410-26C30	GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)	02/2019 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30040	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
44412 - HOSE, RETURN
44428-26030	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
44428-26050	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
44412D - HOSE, RETURN, NO.1
44428-26010	GDH30#,32#..LHD;GRH30#,320,322..RHD..GEN	02/2019 - 12/2999	1
44412-26190	GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)	02/2019 - 12/2999	1
44412E - HOSE, RETURN, NO.2
44428-26020	GDH30#,32#..LHD;GRH30#,320,322..RHD..GEN	02/2019 - 12/2999	1
44428-26020	GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)	02/2019 - 12/2999	2
44412E - HOSE, RETURN, NO.2
44428-26020	GDH30#,32#..LHD;GRH30#,320,322..RHD..GEN	02/2019 - 12/2999	1
44428-26020	GRH300..GCC;GRH300..4D..6F..GEN;GRH301,303,32#..LHD..(D,J,N,P,Q)	02/2019 - 12/2999	2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-26090	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
Common parts
90301-07025
90466-16002
91671-80816
91673-80820
Linked diagrams
4502
4505

GRH322L-EDTPHV (2019)

(1902- )GDH30#,32#..LHD

(1902- )GRH300,303,320,322..GCC
