Toyota Hiace GRH322 VANE PUMP & RESERVOIR (POWER STEERING)

Manufacturers Home
Toyota
US
HIACE
GRH322L-EDTPHV (2019)
4502 - VANE PUMP & RESERVOIR (POWER STEERING)

GRH322L-EDTPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 7GRFKS

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

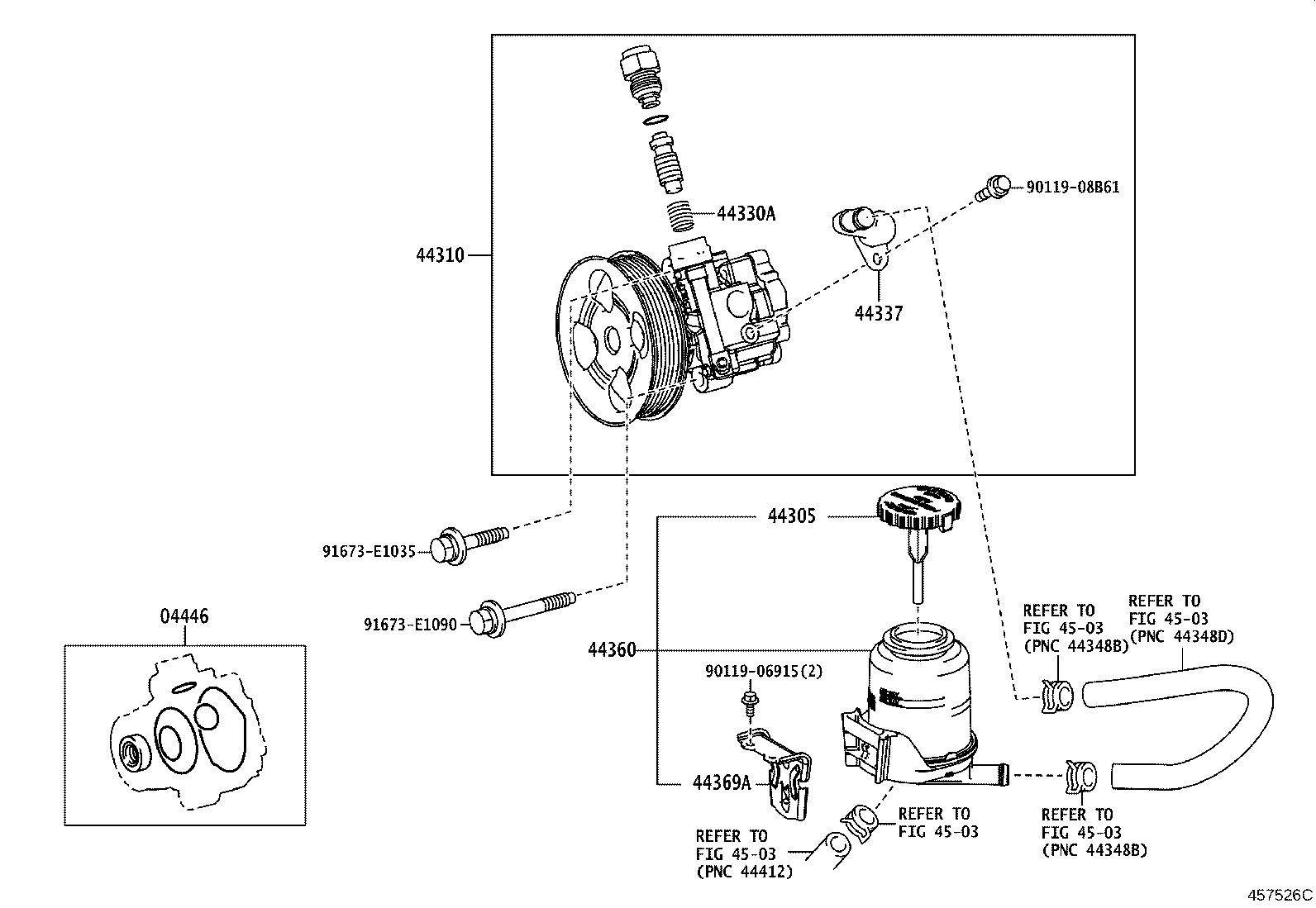

(1902- )GDH30#,32#..GCC,GEN,IDN,PH,TH,VN

Click highlighted areas on diagram

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-60260	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
04446-26110	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-37031	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
44310 - PUMP ASSY, VANE
44310-26420	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
44310-26400	GDH321..6F..D;GDH322..LHD..(P,Q);GDH306,321..LHD..(G,J,N);GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-14173	GDH322..D,N;GRH300..GCC;GRH303..RHD..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH,VN	02/2019 - 12/2999	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-26100	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
44337-26090	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-26180	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
44360-26170	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
44369A - BRACKET, OIL RESERVOIR, NO.1
44369-26050	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
44369-26060	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
Common parts
90119-06915
90119-08B61
91673-E1035
91673-E1090
Linked diagrams
4503

(1902- )GRH30#,32#..GCC,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-60260	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
04446-26110	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-60020	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-37031	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
44310 - PUMP ASSY, VANE
44310-26420	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
44310-26400	GDH321..6F..D;GDH322..LHD..(P,Q);GDH306,321..LHD..(G,J,N);GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-14173	GDH322..D,N;GRH300..GCC;GRH303..RHD..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH,VN	02/2019 - 12/2999	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-26100	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
44337-26090	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-26180	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
44360-26170	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
44369A - BRACKET, OIL RESERVOIR, NO.1
44369-26050	GDH300..5D;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321..LHD..(G,J,N);GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
44369-26060	GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN	02/2019 - 12/2999	1
Common parts
90119-06915
90119-08B61
91673-E1035
91673-E1090
Linked diagrams
4503
