GRH322L-EDTPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

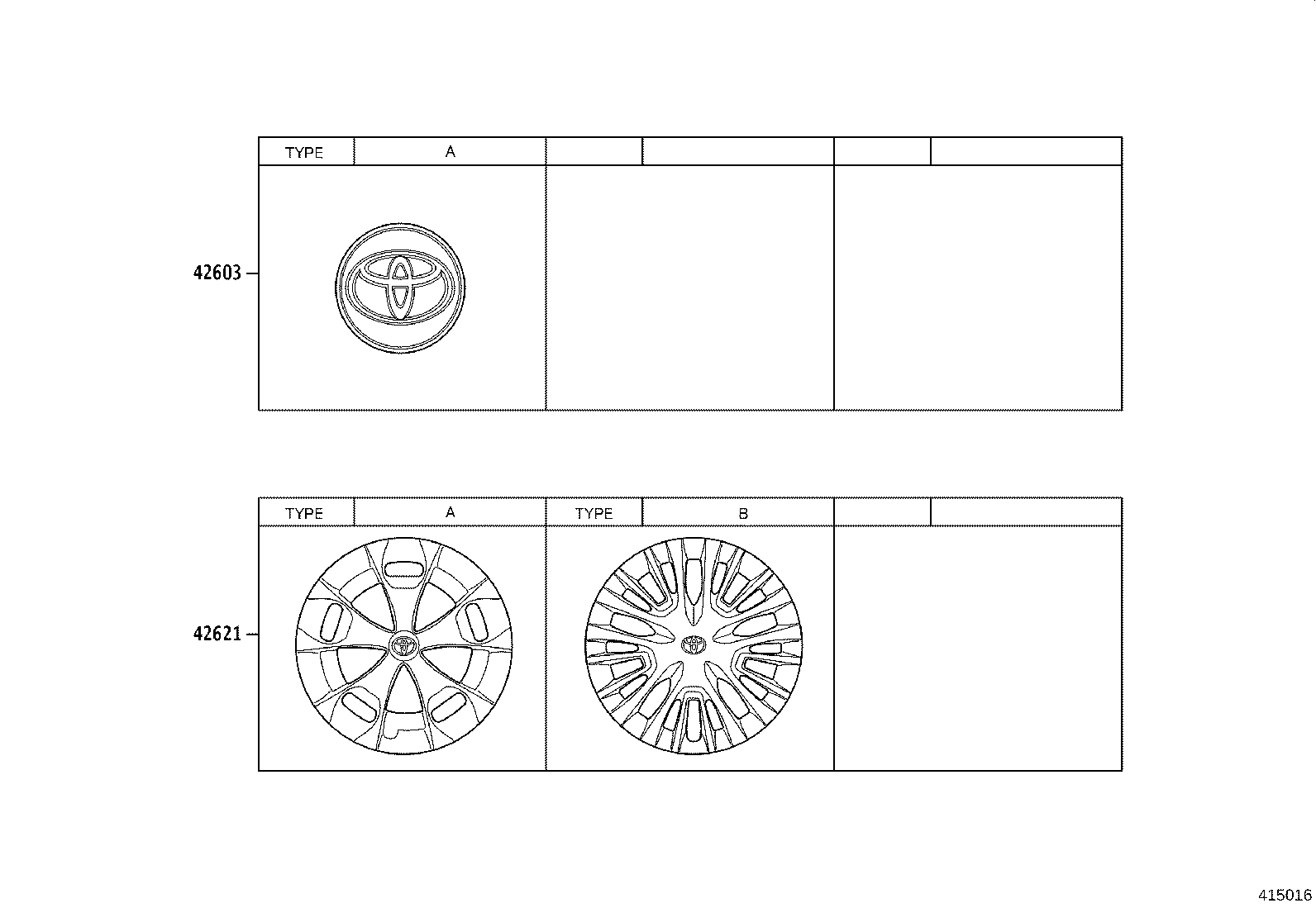

ILLUST NO. 2 OF 3(1902- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-42130

GRH322;GDH321..D;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,321,328,GRH301,321..(N,Q)..(GEN,PH)

*ALU,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE A:REFER ILLUST.

 4
42621 - CAP, WHEEL
42602-26050

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH)

TYPE A:REFER ILLUST.

 4

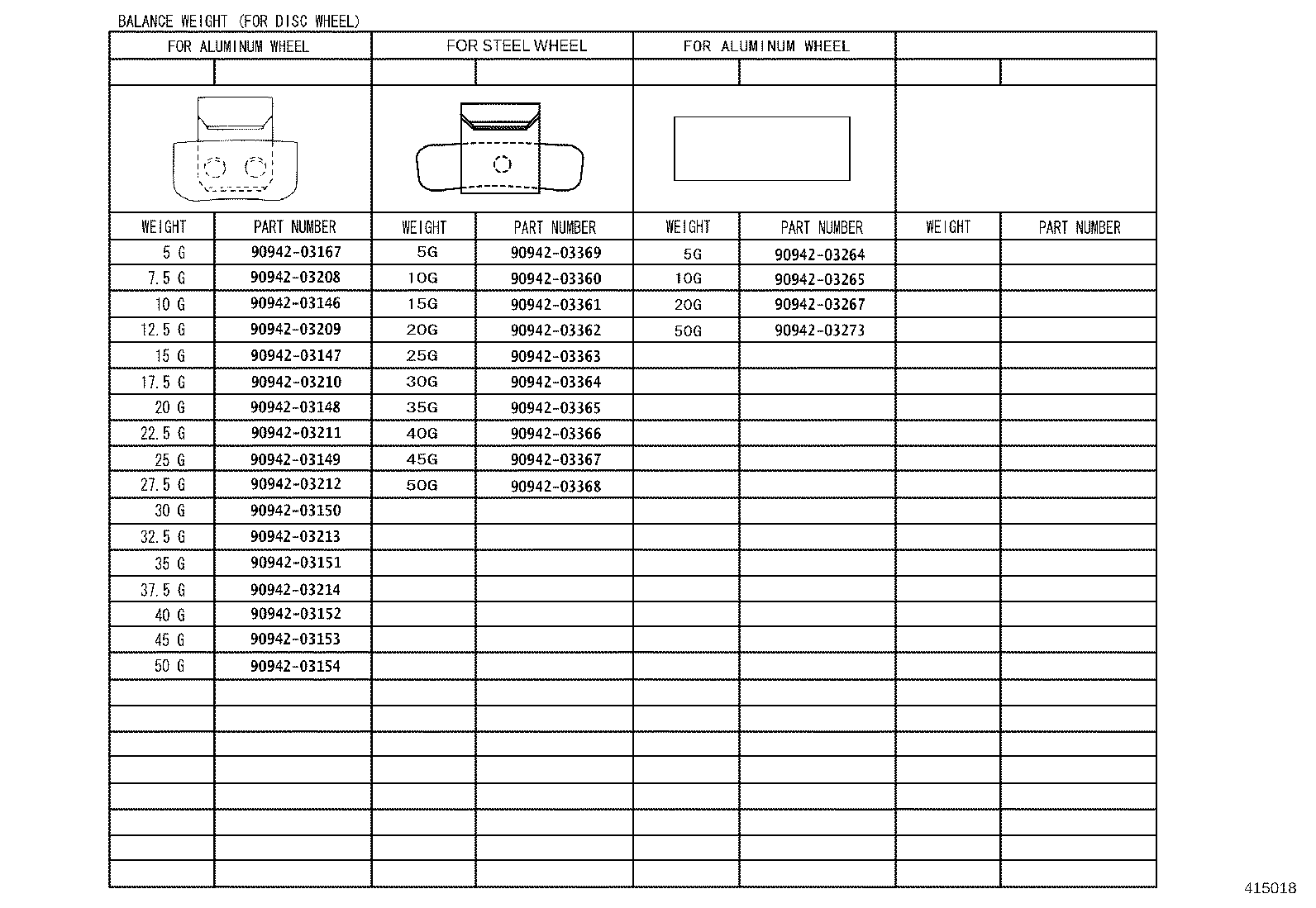

ILLUST NO. 3 OF 3(1902- )

Click highlighted areas on diagram

diagram 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273 9094203360 9094203361 9094203362 9094203363 9094203364 9094203365 9094203366 9094203367 9094203368 9094203369
Part # Description Qty Price
Common parts
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273
90942-03360
90942-03361
90942-03362
90942-03363
90942-03364
90942-03365
90942-03366
90942-03367
90942-03368
90942-03369

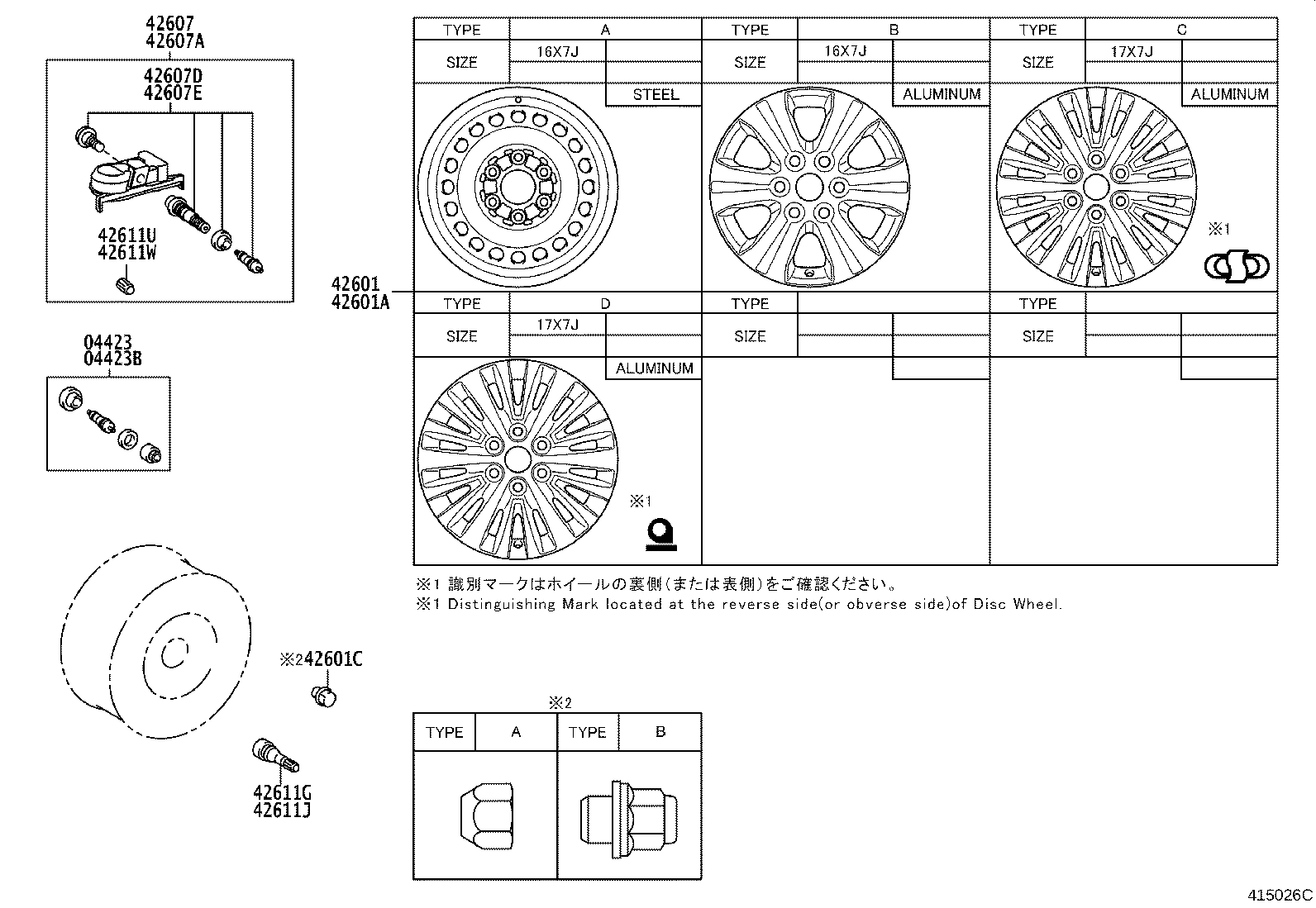

ILLUST NO. 1 OF 3(1902- )

Click highlighted areas on diagram

diagram 04423 04423B 42601 42601A 42601C 42607 42607A 42607D 42607E 42611G 42611J 42611U 42611W
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33060

GDH306..LHD;GDH300,303,320,322,GRH300,303,320,322..GCC

 4
04423B - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SP
04423-33060

GDH300,320,322,GRH300,320,322..GCC

 1
42601 - WHEEL, DISC
42611-26190

GDH321..D;GDH321..N..GEN;GDH322..(D,N)..GEN;GRH321,322..GCC,GEN;GDH300,320..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,322,328..ARL,GCC,NZ,PH

16X7J,#,TYPE A:REFER ILLUST.

 4
42611-26200

GDH321..D;GDH321..N..GEN;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH328,GRH321,322..GCC,GEN,PH

16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-26190

GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH

16X7J,#,TYPE A:REFER ILLUST.

 1
42611-26200

GRH322;GDH321..D;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH301,321,328,GRH301,321..(N,Q)..(GEN,PH)

16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01123

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

TYPE A:REFER ILLUST.

 24
90942-01121

GRH322;GDH321..D;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,321,328,GRH301,321..(N,Q)..(GEN,PH)

TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.

 24
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-26030

GDH306..LHD;GDH303,322,GRH303,322..GCC

 4
42607A - VALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42607-26030

GDH306..LHD;GDH300,303,320,322,GRH300,303,320,322..GCC

 1
42607D - VALVE, TIRE PRESSURE MONITOR
90942-05044

GDH306..LHD;GDH303,322,GRH303,322..GCC

 4
42607E - VALVE, TIRE PRESSURE MONITOR (FOR SPARE)
90942-05044

GDH306..LHD;GDH300,303,320,322,GRH300,303,320,322..GCC

 1
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

GDH300..RHD..5D;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH300,GRH300..4D..(GEN,TH);GDH321,GRH303..LHD..(J,N)..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH320,321,GRH320,321..(D,Q)..(GEN,IDN,NZ);GDH301,303,304,322,328,GRH301,304,322..(D,G,H,J,N)..(ARL,GEN,NZ,PH,TH,VN)

 1
42611U - CAP, TIRE VALVE
90942-05039

GDH306..LHD;GDH303,322,GRH303,322..GCC

 4
42611W - CAP, TIRE VALVE (FOR SPARE)
90942-05039

GDH306..LHD;GDH300,303,320,322,GRH300,303,320,322..GCC

 1
