Toyota Hiace GRH322 OIL COOLER & TUBE (ATM)

Manufacturers Home
Toyota
US
HIACE
GRH322L-EDTPHV (2019)
3514 - OIL COOLER & TUBE (ATM)

GRH322L-EDTPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 7GRFKS

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1902- )GRH30#,320,322..6FC..GCC,GEN

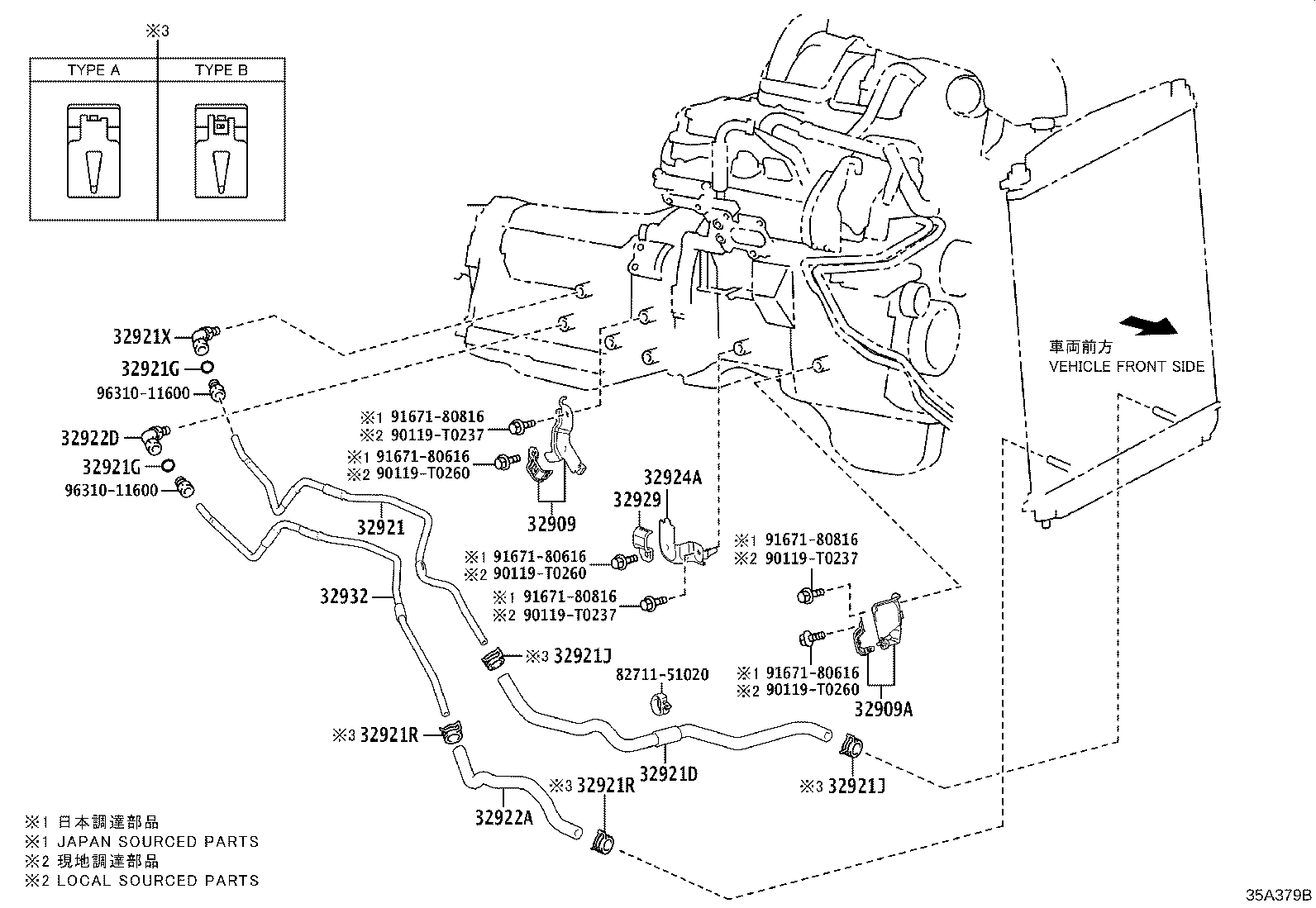

Click highlighted areas on diagram

AC60E

Part #	Description	Period	Qty
32909 - CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1
32909-26230	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC	02/2019 - 12/2999	1
32909-26250	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)	02/2019 - 12/2999	1
32909A - CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.2
32909-26270	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)	02/2019 - 12/2999	1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-26410	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC	02/2019 - 12/2999	1
32921-26420	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)	02/2019 - 12/2999	1
32921D - HOSE(FOR OIL COOLER INLET)
32941-26260	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC	02/2019 - 12/2999	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC	02/2019 - 12/2999	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC	02/2019 - 12/2999	2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC TYPE B:REFER ILLUST.	01/2020 - 12/2999	2
90466-16005	GDH30#,320,322,GRH30#,32#..6FC TYPE A:REFER ILLUST.	02/2019 - 01/2020	2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC TYPE B:REFER ILLUST.	01/2020 - 12/2999	2
90466-16005	GDH30#,320,322,GRH30#,32#..6FC TYPE A:REFER ILLUST.	02/2019 - 01/2020	2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16005	GDH30#,320,322,GRH30#,32#..6FC TYPE A:REFER ILLUST.	02/2019 - 01/2020	2
90466-16004	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC TYPE B:REFER ILLUST.	01/2020 - 12/2999	2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16005	GDH30#,320,322,GRH30#,32#..6FC TYPE A:REFER ILLUST.	02/2019 - 01/2020	2
90466-16004	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC TYPE B:REFER ILLUST.	01/2020 - 12/2999	2
32921X - UNION OR ELBOW, OIL COOLER INLET
90407-16009	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC	02/2019 - 12/2999	1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-26160	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC	02/2019 - 12/2999	1
32922D - UNION OR ELBOW, OIL COOLER OUTLET
90407-16009	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC	02/2019 - 12/2999	1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
32924-26190	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)	02/2019 - 12/2999	1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-24060	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)	02/2019 - 12/2999	1
32929-26040	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC	02/2019 - 12/2999	2
32932 - TUBE, OIL COOLER OUTLET
32922-26410	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)	02/2019 - 12/2999	1
32922-26400	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC	02/2019 - 12/2999	1
Common parts
82711-51020
90119-T0237
90119-T0260
91671-80616
91671-80816
96310-11600

(1902- )GDH30#,320,321,322..6FC

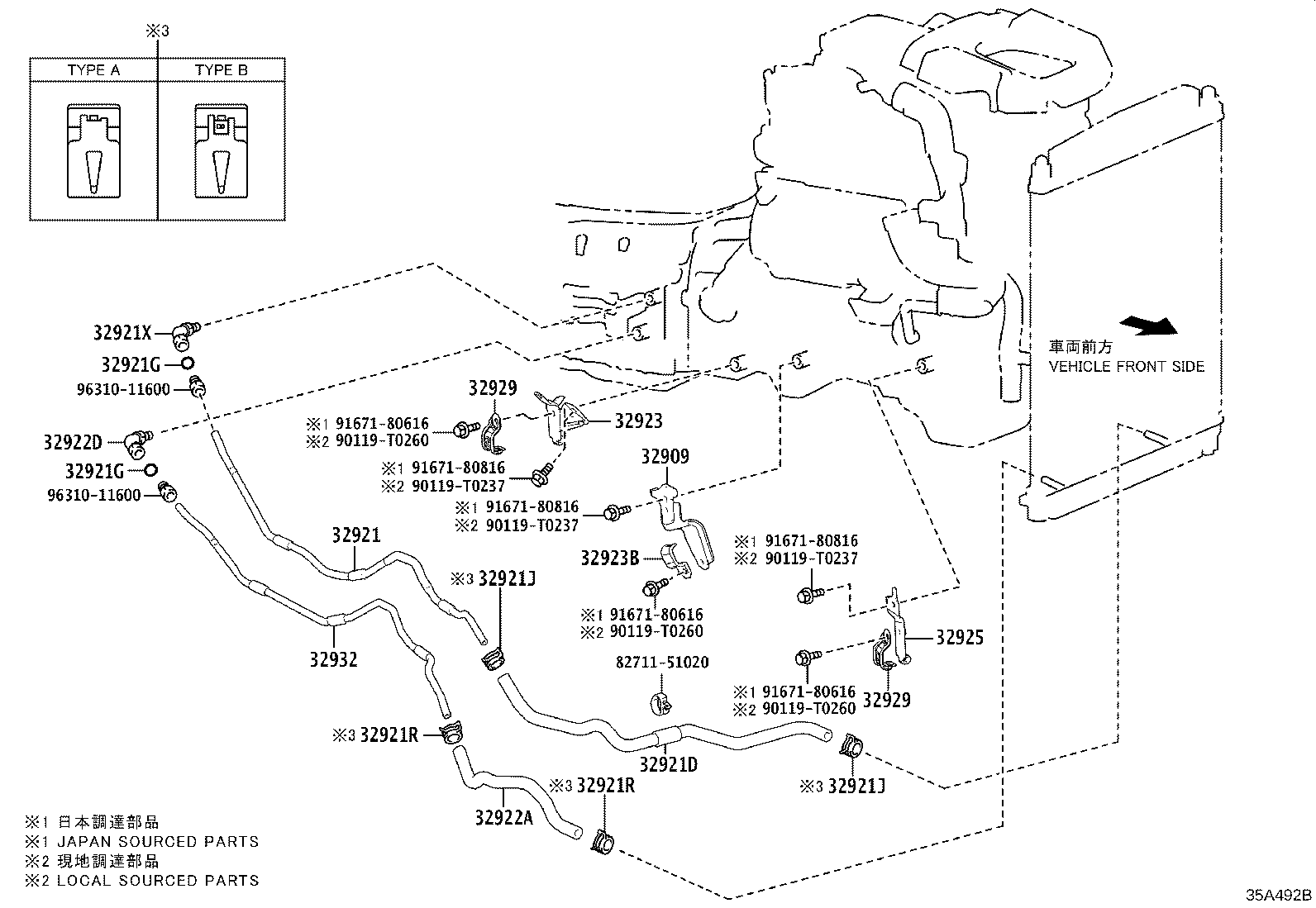

Click highlighted areas on diagram

AC60E

Part #	Description	Period	Qty
32909 - CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1
32909-26230	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC	02/2019 - 12/2999	1
32909-26250	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)	02/2019 - 12/2999	1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-26410	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC	02/2019 - 12/2999	1
32921-26420	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)	02/2019 - 12/2999	1
32921D - HOSE(FOR OIL COOLER INLET)
32941-26260	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC	02/2019 - 12/2999	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC	02/2019 - 12/2999	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC	02/2019 - 12/2999	2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC TYPE B:REFER ILLUST.	01/2020 - 12/2999	2
90466-16005	GDH30#,320,322,GRH30#,32#..6FC TYPE A:REFER ILLUST.	02/2019 - 01/2020	2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC TYPE B:REFER ILLUST.	01/2020 - 12/2999	2
90466-16005	GDH30#,320,322,GRH30#,32#..6FC TYPE A:REFER ILLUST.	02/2019 - 01/2020	2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16005	GDH30#,320,322,GRH30#,32#..6FC TYPE A:REFER ILLUST.	02/2019 - 01/2020	2
90466-16004	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC TYPE B:REFER ILLUST.	01/2020 - 12/2999	2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16005	GDH30#,320,322,GRH30#,32#..6FC TYPE A:REFER ILLUST.	02/2019 - 01/2020	2
90466-16004	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC TYPE B:REFER ILLUST.	01/2020 - 12/2999	2
32921X - UNION OR ELBOW, OIL COOLER INLET
90407-16009	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC	02/2019 - 12/2999	1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-26160	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC	02/2019 - 12/2999	1
32922D - UNION OR ELBOW, OIL COOLER OUTLET
90407-16009	GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC	02/2019 - 12/2999	1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-26140	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC	02/2019 - 12/2999	1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32929-0K030	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC (L)	02/2019 - 12/2999	1
32929-24060	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC (J)	02/2019 - 12/2999	1
32925 - CLAMP, OIL COOLER TUBE, NO.3
32925-26150	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC	02/2019 - 12/2999	1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-24060	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)	02/2019 - 12/2999	1
32929-26040	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC	02/2019 - 12/2999	2
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-24060	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)	02/2019 - 12/2999	1
32929-26040	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC	02/2019 - 12/2999	2
32932 - TUBE, OIL COOLER OUTLET
32922-26410	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)	02/2019 - 12/2999	1
32922-26400	GDH306..LHD;GDH300,301,303,304,320,321,322..6FC	02/2019 - 12/2999	1
Common parts
82711-51020
90119-T0237
90119-T0260
91671-80616
91671-80816
96310-11600

GRH322L-EDTPHV (2019)

(1902- )GRH30#,320,322..6FC..GCC,GEN

(1902- )GDH30#,320,321,322..6FC

Part Price Details
