GRH322L-EDTPHV (2019)
Toyota Hiace

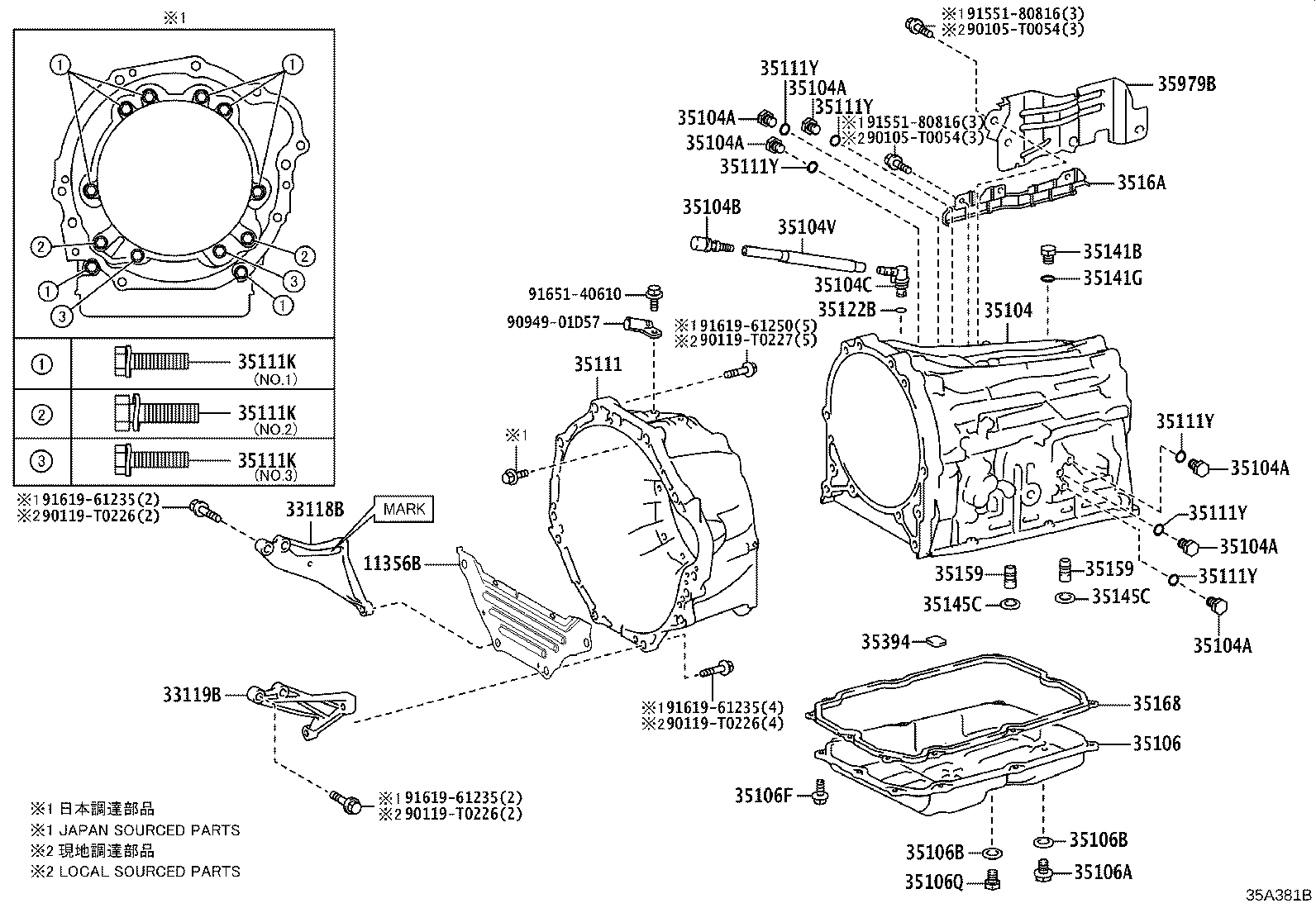

(1902- )6FC
AC60E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-0K030 |
GDH306..LHD;GDH300,301,303,304,320,321,322..6FC MARK=0K030 |
1 | ||
| 33118-0K050 |
GDH306..LHD;GDH300,301,303,304,320,321,322..6FC MARK=0K050 |
1 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-0K020 |
GDH306..LHD;GDH300,301,303,304,320,321,322..6FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-71020 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03211 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03220 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11081 |
GDH306..LHD;GDH300,301,303,304,320,321,322..6FC |
1 | ||
| 90447-11079 |
GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN) |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-71050 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
2 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
2 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06A02 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
10 | ||
| 35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90341-10021 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-26090 |
GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN) |
1 | ||
| 35111-71030 |
GDH306..LHD;GDH300,301,303,304,320,321,322..6FC |
1 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *12-1.75PX38-30,NO.2:REFER ILLUST. |
2 | ||
| 90119-10947 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *10-1.50PX35-29.3,NO.3:REFER ILLUST. |
2 | ||
| 90119-10232 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *10-1.5PX35-30,NO.1:REFER ILLUST. |
8 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *12-1.75PX38-30,NO.2:REFER ILLUST. |
2 | ||
| 90119-10947 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *10-1.50PX35-29.3,NO.3:REFER ILLUST. |
2 | ||
| 90119-10232 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *10-1.5PX35-30,NO.1:REFER ILLUST. |
8 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *12-1.75PX38-30,NO.2:REFER ILLUST. |
2 | ||
| 90119-10947 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *10-1.50PX35-29.3,NO.3:REFER ILLUST. |
2 | ||
| 90119-10232 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *10-1.5PX35-30,NO.1:REFER ILLUST. |
8 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-08015 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-14011 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-11030 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
2 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-71010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-71010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
2 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-71010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 3516A - INSULATOR, TRANSAXLE OIL PAN HEAT | ||||
| 3516A-60010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
4 | ||
| 35979B - INSULATOR, TRANSMISSION, RH | ||||
| 35979-26010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| Common parts | ||||
| 90105-T0054 | ||||
| 90119-T0226 | ||||
| 90119-T0227 | ||||
| 90949-01D57 | ||||
| 91551-80816 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||
| 91651-40610 | ||||

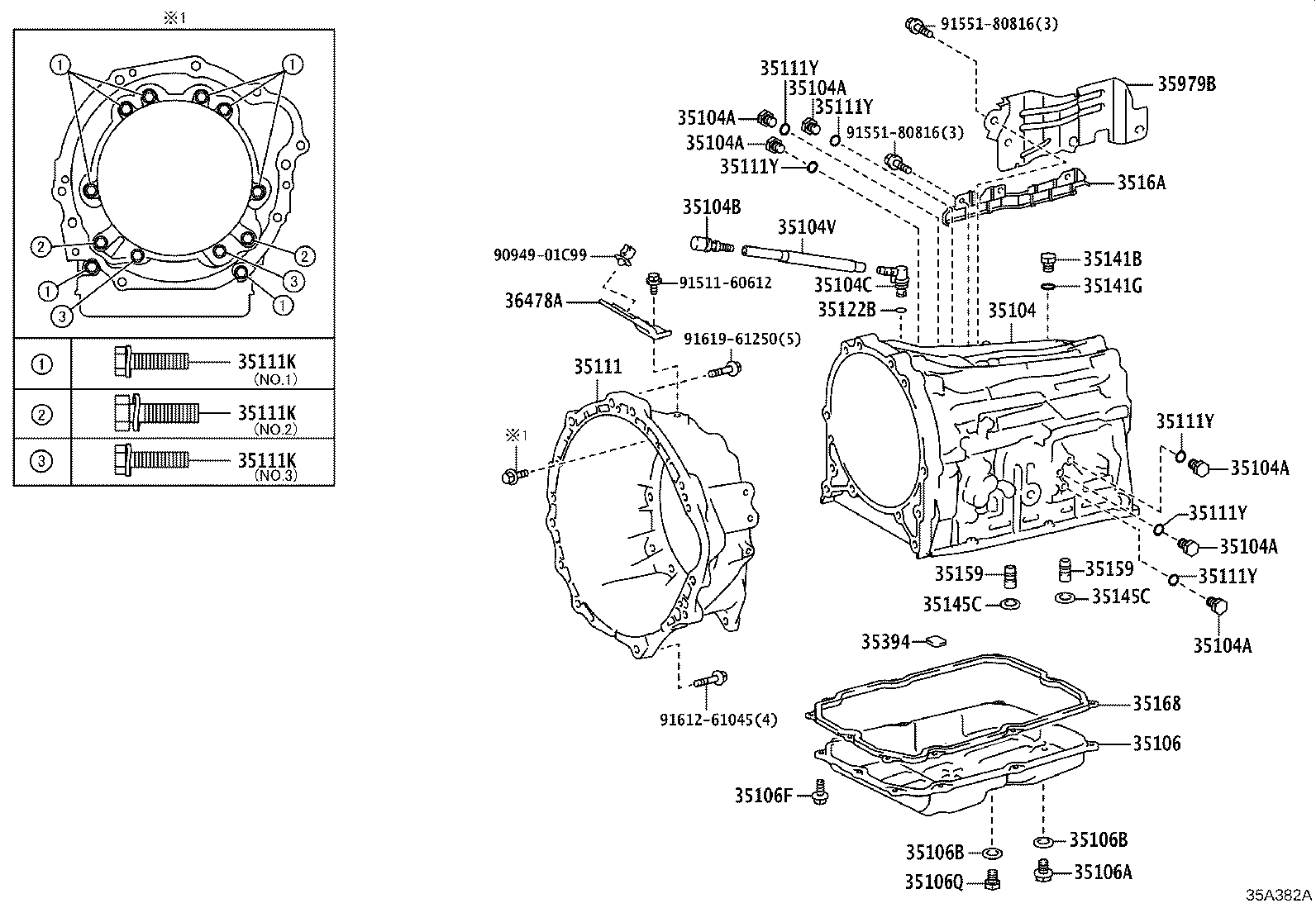

(1902- )6FC
AC60E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-71020 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03211 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03220 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11081 |
GDH306..LHD;GDH300,301,303,304,320,321,322..6FC |
1 | ||
| 90447-11079 |
GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN) |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-71050 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
2 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
2 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06A02 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
10 | ||
| 35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90341-10021 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-26090 |
GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN) |
1 | ||
| 35111-71030 |
GDH306..LHD;GDH300,301,303,304,320,321,322..6FC |
1 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *12-1.75PX38-30,NO.2:REFER ILLUST. |
2 | ||
| 90119-10947 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *10-1.50PX35-29.3,NO.3:REFER ILLUST. |
2 | ||
| 90119-10232 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *10-1.5PX35-30,NO.1:REFER ILLUST. |
8 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *12-1.75PX38-30,NO.2:REFER ILLUST. |
2 | ||
| 90119-10947 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *10-1.50PX35-29.3,NO.3:REFER ILLUST. |
2 | ||
| 90119-10232 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *10-1.5PX35-30,NO.1:REFER ILLUST. |
8 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *12-1.75PX38-30,NO.2:REFER ILLUST. |
2 | ||
| 90119-10947 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *10-1.50PX35-29.3,NO.3:REFER ILLUST. |
2 | ||
| 90119-10232 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC *10-1.5PX35-30,NO.1:REFER ILLUST. |
8 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
6 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-08015 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-14011 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-11030 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
2 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-71010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-71010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
2 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-71010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 3516A - INSULATOR, TRANSAXLE OIL PAN HEAT | ||||
| 3516A-60010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
4 | ||
| 35979B - INSULATOR, TRANSMISSION, RH | ||||
| 35979-26010 |
GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC |
1 | ||
| 36478A - BRACKET, TRANSMISSION BREATHER | ||||
| 36478-0K030 |
GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90949-01C99 | ||||
| 91511-60612 | ||||
| 91551-80816 | ||||
| 91612-61045 | ||||
| 91619-61250 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
