GRH322L-EDTPHV (2019)
Toyota Hiace
(1902- )GDH300,301,32#..6F

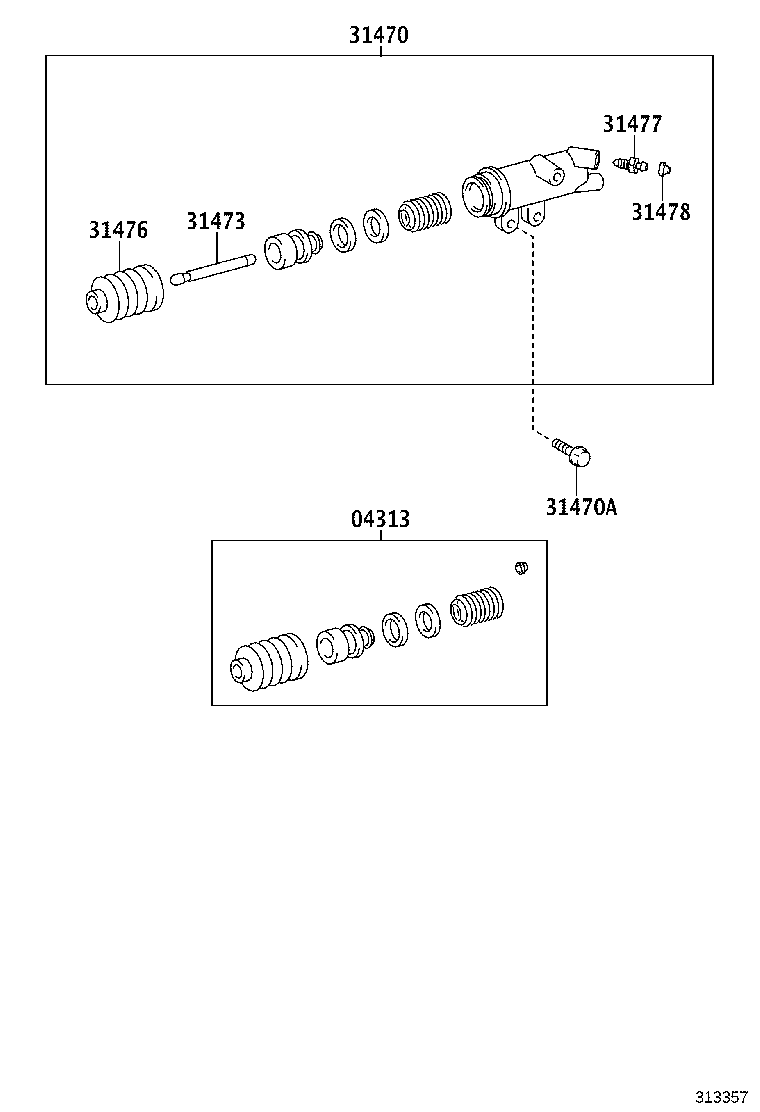

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04313 - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-0K080 |
GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) MADE IN THAILAND |
1 | ||
| 04313-35070 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) MADE IN JAPAN |
1 | ||
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-26140 |
GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) MADE IN JAPAN |
1 | ||
| 31470-0K100 |
GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) MADE IN THAILAND |
1 | ||
| 31470-35210 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-B0825 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) *8-1.25PX25-25 |
2 | ||
| 90109-08248 |
GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) *8-1.25PX25-20.1,(J) |
2 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-0K030 |
GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) |
1 | ||
| 31473-35060 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-04010 |
GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) |
1 | ||
| 31476-36010 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
(1902- )GRH300,301,32#..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04313 - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-0K080 |
GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) MADE IN THAILAND |
1 | ||
| 04313-35070 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) MADE IN JAPAN |
1 | ||
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-26140 |
GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) MADE IN JAPAN |
1 | ||
| 31470-0K100 |
GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) MADE IN THAILAND |
1 | ||
| 31470-35210 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-B0825 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) *8-1.25PX25-25 |
2 | ||
| 90109-08248 |
GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) *8-1.25PX25-20.1,(J) |
2 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-0K030 |
GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) |
1 | ||
| 31473-35060 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-04010 |
GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) |
1 | ||
| 31476-36010 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 47547-12010 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
