3102 - CLUTCH PEDAL & FLEXIBLE HOSE

GRH322L-EDTPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 7GRFKS

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1902- )6F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-26200	GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,32#..LHD..6F	02/2019 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-26020	GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,32#..LHD..6F	02/2019 - 12/2999	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-61000	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	1
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90541-06036	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	2
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90541-06036	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	2
31321 - PAD, CLUTCH PEDAL
31321-42010	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	1
31324 - SHAFT, CLUTCH PEDAL
90105-10524	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	1
31394A - SPRING, PEDAL W/HOOK
31394-42050	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) NO.2:REFER ILLUST.	02/2019 - 12/2999	1
31394-26010	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) NO.1:REFER ILLUST.	02/2019 - 12/2999	1
31394A - SPRING, PEDAL W/HOOK
31394-42050	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) NO.2:REFER ILLUST.	02/2019 - 12/2999	1
31394-26010	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) NO.1:REFER ILLUST.	02/2019 - 12/2999	1
31395 - HOOK, PEDAL SPRING
31395-33020	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08082	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=26.3	02/2019 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-26060	GDH300..5D..6F;GDH322..LHD..6F..P;GDH321,GRH300..D..(GCC,IDN);GDH320,GRH320,322..6F..(D,P)..(GCC,GEN);GDH300,301,322,328,GRH300,301..4D..6F..D..(GEN,TH,VN)	02/2019 - 12/2999	1
55194C - PLATE, PEDAL SUPPORT TO COWL
55194-26030	GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)	02/2019 - 12/2999	1
Common parts
90119-08C42
90185-08002
90468-07027
94151-81001
Linked diagrams
8401

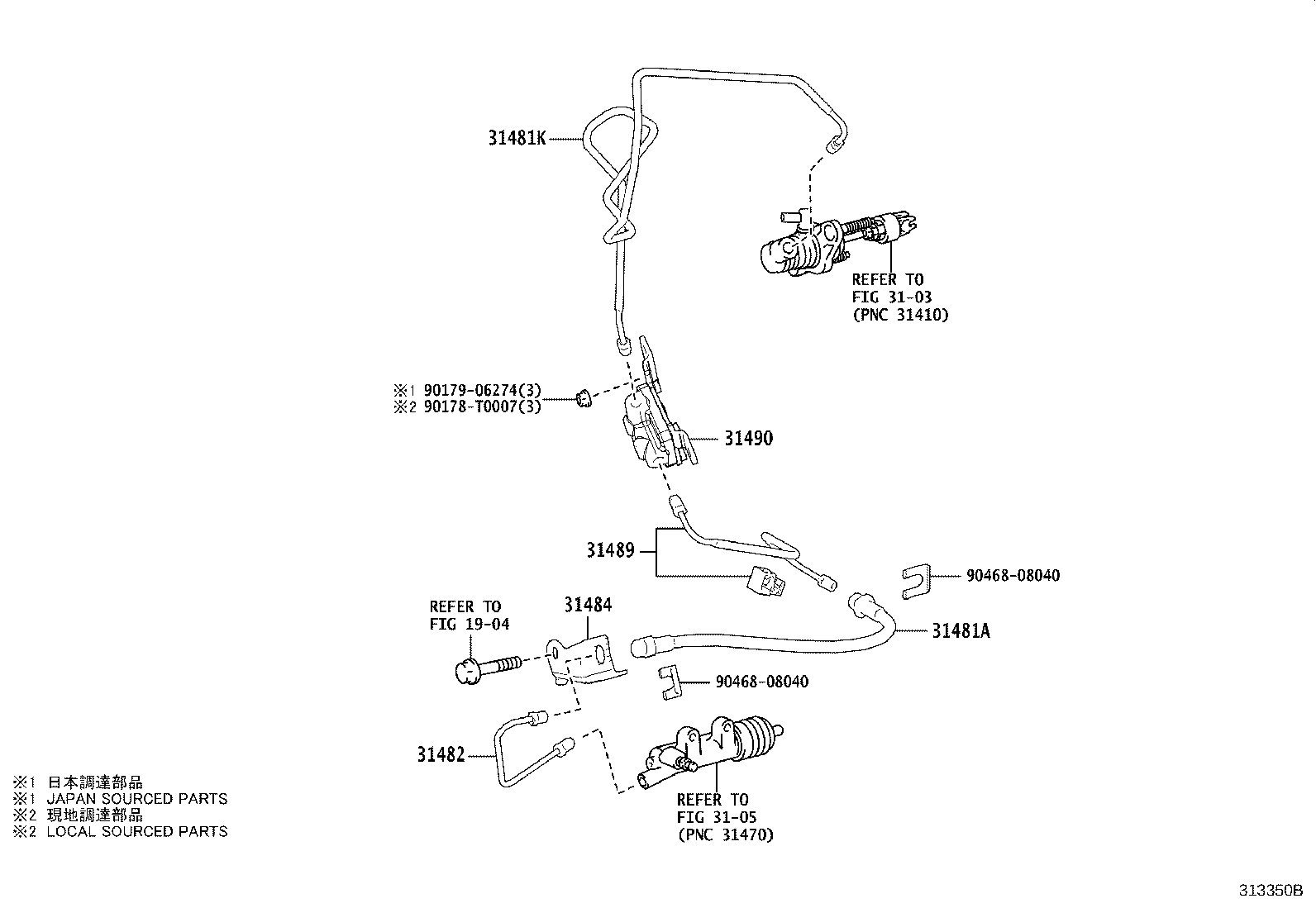

ILLUST NO. 2 OF 2(1902- )GDH300,301,32#..LHD..6F..GCC,GEN,PH

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481A - HOSE, CLUTCH, NO.1
90947-02G82	GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN)	02/2019 - 12/2999	1
90947-02E29	GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN)	02/2019 - 12/2999	1
31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR
31481-26350	GRH300..6F..GCC;GRH320..LHD..6F;GRH300,301,321,322..LHD..4D..6F	02/2019 - 12/2999	1
31481-26370	GDH300,301,32#..LHD..6F..(GCC,GEN,PH)	02/2019 - 12/2999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26300	GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN)	02/2019 - 12/2999	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26250	GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN)	02/2019 - 12/2999	1
31484-26230	GRH300..6F..GCC;GRH320..LHD..6F;GRH300,301,321,322..LHD..4D..6F	02/2019 - 12/2999	1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-35100	GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN)	02/2019 - 12/2999	1
31490-26050	GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN)	02/2019 - 12/2999	1
Common parts
90178-T0007
90179-06274
90468-08040
Linked diagrams
1904
3103
3105

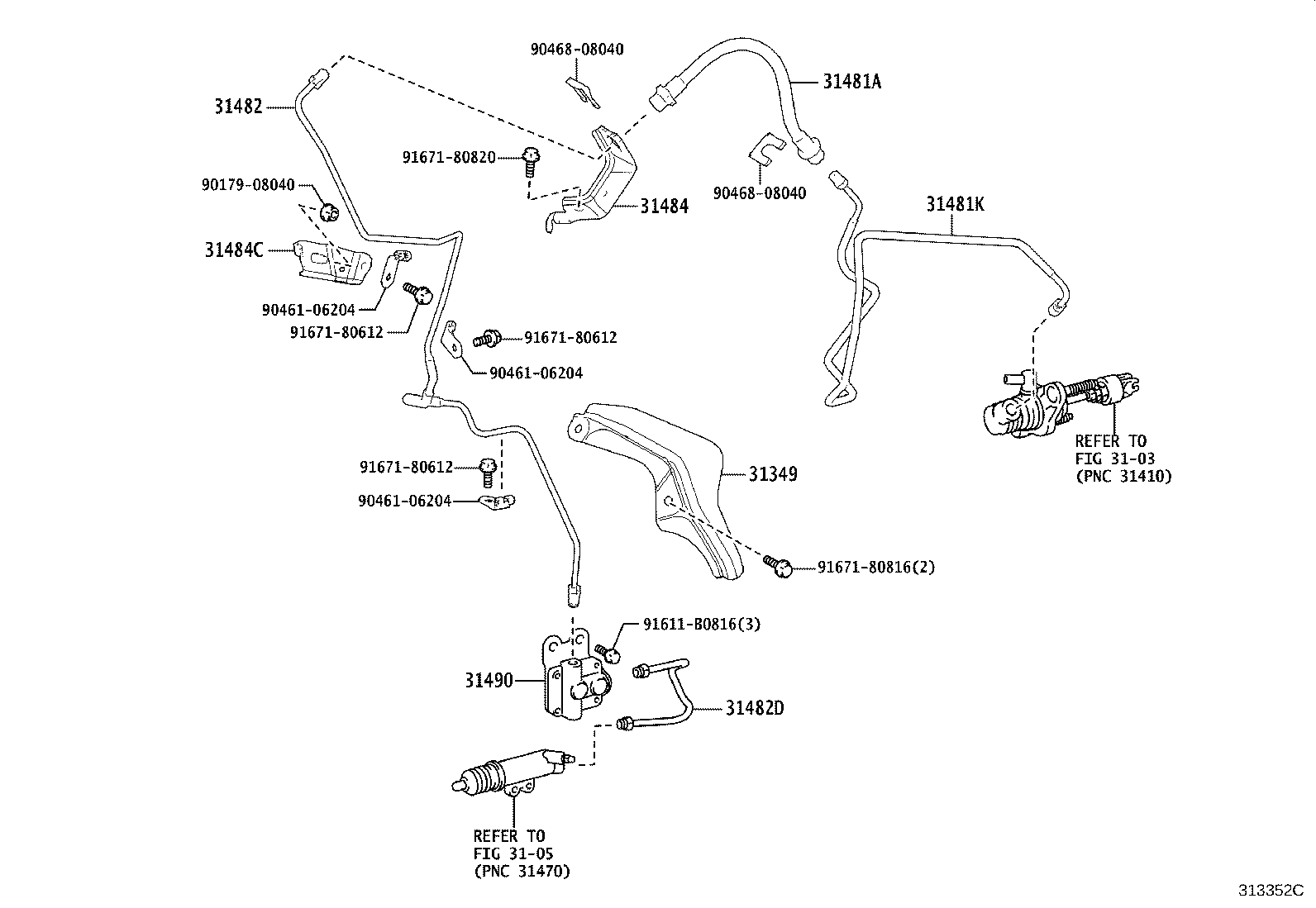

ILLUST NO. 2 OF 2(1902- )GRH300,301,32#..LHD..6F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26090	GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN)	02/2019 - 12/2999	1
31481A - HOSE, CLUTCH, NO.1
90947-02G82	GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN)	02/2019 - 12/2999	1
90947-02E29	GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN)	02/2019 - 12/2999	1
31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR
31481-26350	GRH300..6F..GCC;GRH320..LHD..6F;GRH300,301,321,322..LHD..4D..6F	02/2019 - 12/2999	1
31481-26370	GDH300,301,32#..LHD..6F..(GCC,GEN,PH)	02/2019 - 12/2999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26300	GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN)	02/2019 - 12/2999	1
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-26290	GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN)	02/2019 - 12/2999	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26250	GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN)	02/2019 - 12/2999	1
31484-26230	GRH300..6F..GCC;GRH320..LHD..6F;GRH300,301,321,322..LHD..4D..6F	02/2019 - 12/2999	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-26240	GRH300..6F..GCC;GRH320..LHD..6F;GRH300,301,321,322..LHD..4D..6F	02/2019 - 12/2999	1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-35100	GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN)	02/2019 - 12/2999	1
31490-26050	GDH300..5D..6F;GDH321..N..GEN;GDH322..LHD..6F..(P,Q);GDH320,321..6F..D..(GCC,GEN,IDN);GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN)	02/2019 - 12/2999	1
Common parts
90179-08040
90461-06204
90468-08040
91611-B0816
91671-80612
91671-80816
91671-80820
Linked diagrams
3103
3105
