Toyota Hiace GRH322 WATER PUMP - JDM Part Detective

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-39625	7GRFKS..GRH30#,32#	02/2019 - 04/2020	1
16100-39626	7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH301,304,32#..GCC,GEN	04/2020 - 12/2999	1
16193A - BOLT(FOR WATER PUMP COVER)
16193-31080	7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN	02/2019 - 12/2999	2
16210 - COUPLING ASSY, FLUID
16210-31040	7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN	02/2019 - 12/2999	1
16271 - GASKET, WATER PUMP
16271-31060	7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN	02/2019 - 12/2999	1
16371 - PULLEY, FAN
16371-31050	7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN	02/2019 - 12/2999	1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-31050	7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN	02/2019 - 12/2999	1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-31030	7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN	02/2019 - 12/2999	2
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-31090	7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN (J)	02/2019 - 12/2999	1
Common parts
91551-80622
91552-81035
91552-81050
94151-80800

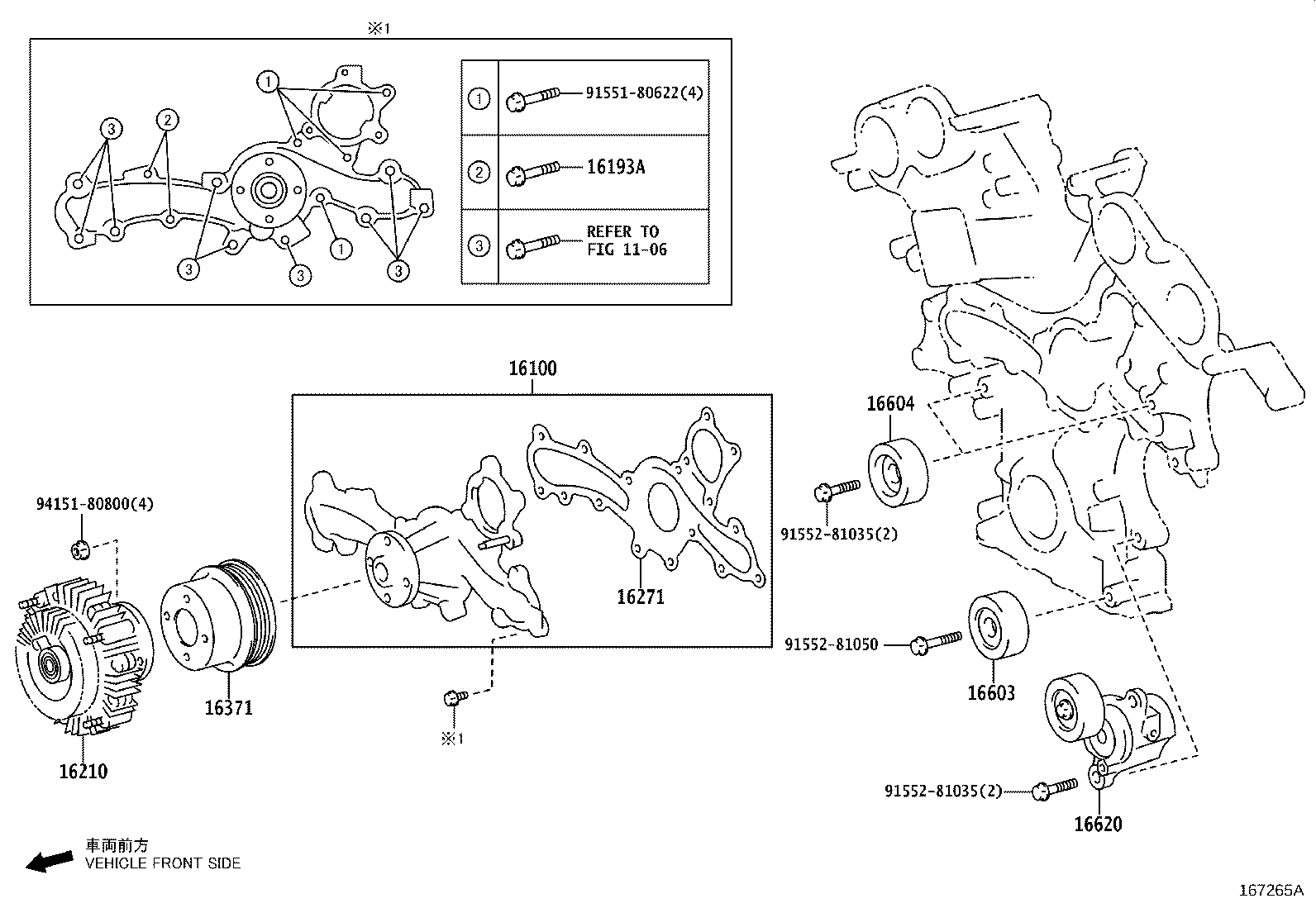

Linked diagrams
1106

GRH322L-EDTPHV (2019)

(1902- )7GRFKS
