GRH322L-EDTPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )7GRFKS

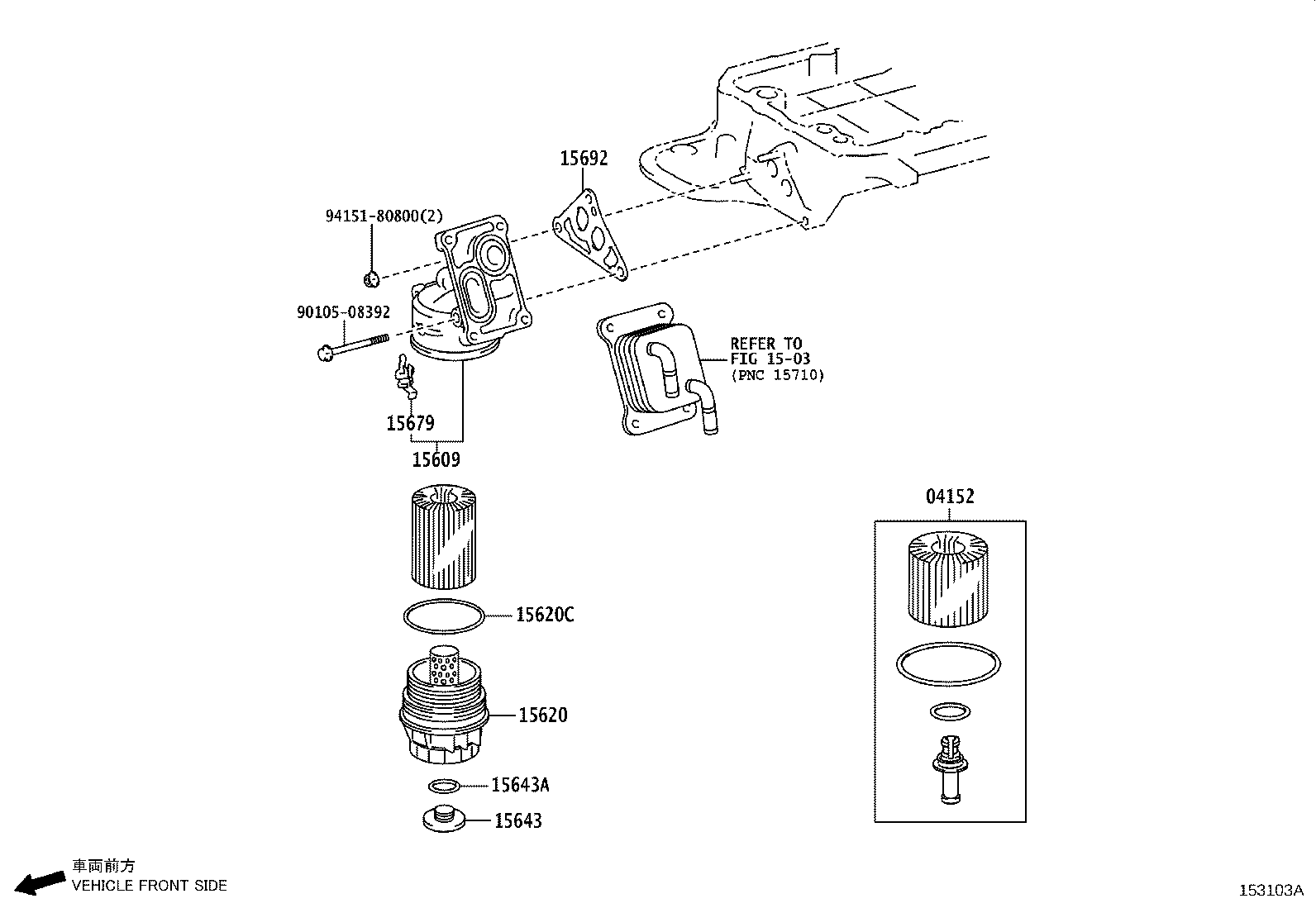

Click highlighted areas on diagram

diagram 04152 1503 15609 15620 15620C 15643 15643A 15679 15692 9010508392 9415180800
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-31090

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-31070

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
15620 - CAP ASSY, OIL FILTER
15620-36020

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
15620C - GASKET(FOR OIL FILTER CAP)
90301-79006

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
15643 - PLUG, OIL FILTER DRAIN
15643-31050

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
15643A - RING, O(FOR OIL FILTER DRAIN PLUG)
96723-35028

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
15679 - CLIP, OIL FILTER BRACKET
15679-37011

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
15692 - GASKET, OIL FILTER BRACKET
15692-31050

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
Common parts
90105-08392
94151-80800
Linked diagrams
1503
