GRH322L-EDTPHV (2019)
Toyota Hiace
ILLUST NO. 1 OF 2(1902- )7GRFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-42052 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
1 | ||
| 11310 - COVER ASSY, TIMING CHAIN | ||||
| 11310-31071 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
1 | ||
| 11324 - PLATE, TIMING CHAIN COVER | ||||
| 11324-31020 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-31030 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-31030 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-92011 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
1 | ||
| 15193A - GASKET, OIL PUMP | ||||
| 15193-31020 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
1 | ||
| 15370B - SOLENOID ASSY, CAM TIMING OIL CONTROL, RH | ||||
| 15370-31010 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
2 | ||
| 15370C - SOLENOID ASSY, CAM TIMING OIL CONTROL, LH | ||||
| 15370-31010 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
2 | ||
| 15370D - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID RH) | ||||
| 90301-50003 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
2 | ||
| 15370E - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID LH) | ||||
| 90301-50003 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
2 | ||
| 15370G - BOLT(FOR CAM TIMING OIL CONTROL SOLENOID RH) | ||||
| 91551-80616 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
4 | ||
| 15370H - BOLT(FOR CAM TIMING OIL CONTROL SOLENOID LH) | ||||
| 91551-80616 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
4 | ||
| Common parts | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| Linked diagrams | ||||
| 1601 | ||||
ILLUST NO. 2 OF 2(1902-1908)7GRFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91551-F0828 | ||||
| 91551-F0855 | ||||
| 91552-81040 | ||||
| 91552-81060 | ||||
| 94151-80800 | ||||

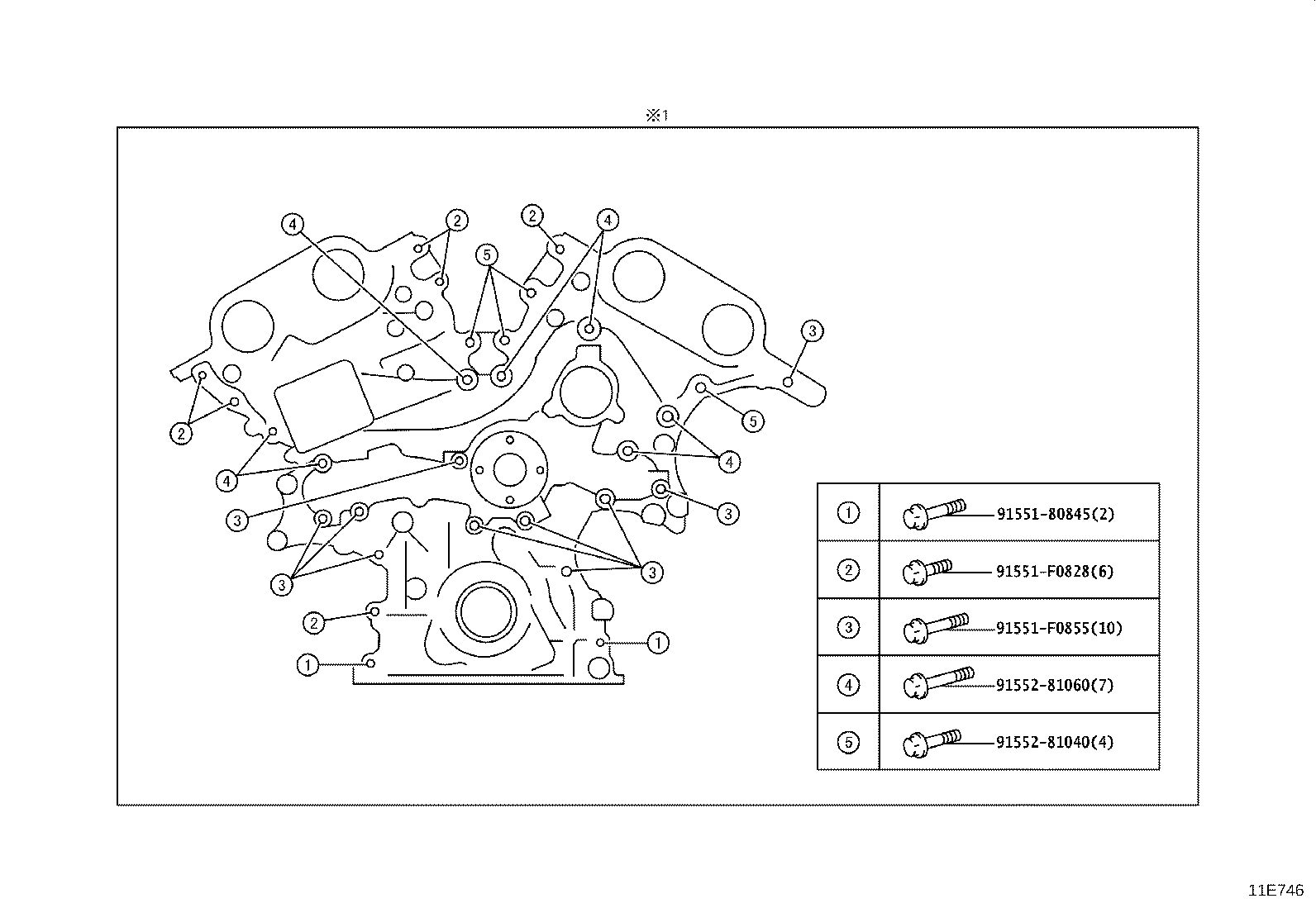

ILLUST NO. 2 OF 2(1908- )7GRFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91551-80845 | ||||
| 91551-F0828 | ||||
| 91551-F0855 | ||||
| 91552-81040 | ||||
| 91552-81060 | ||||
