GRH322L-EDFPHV (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

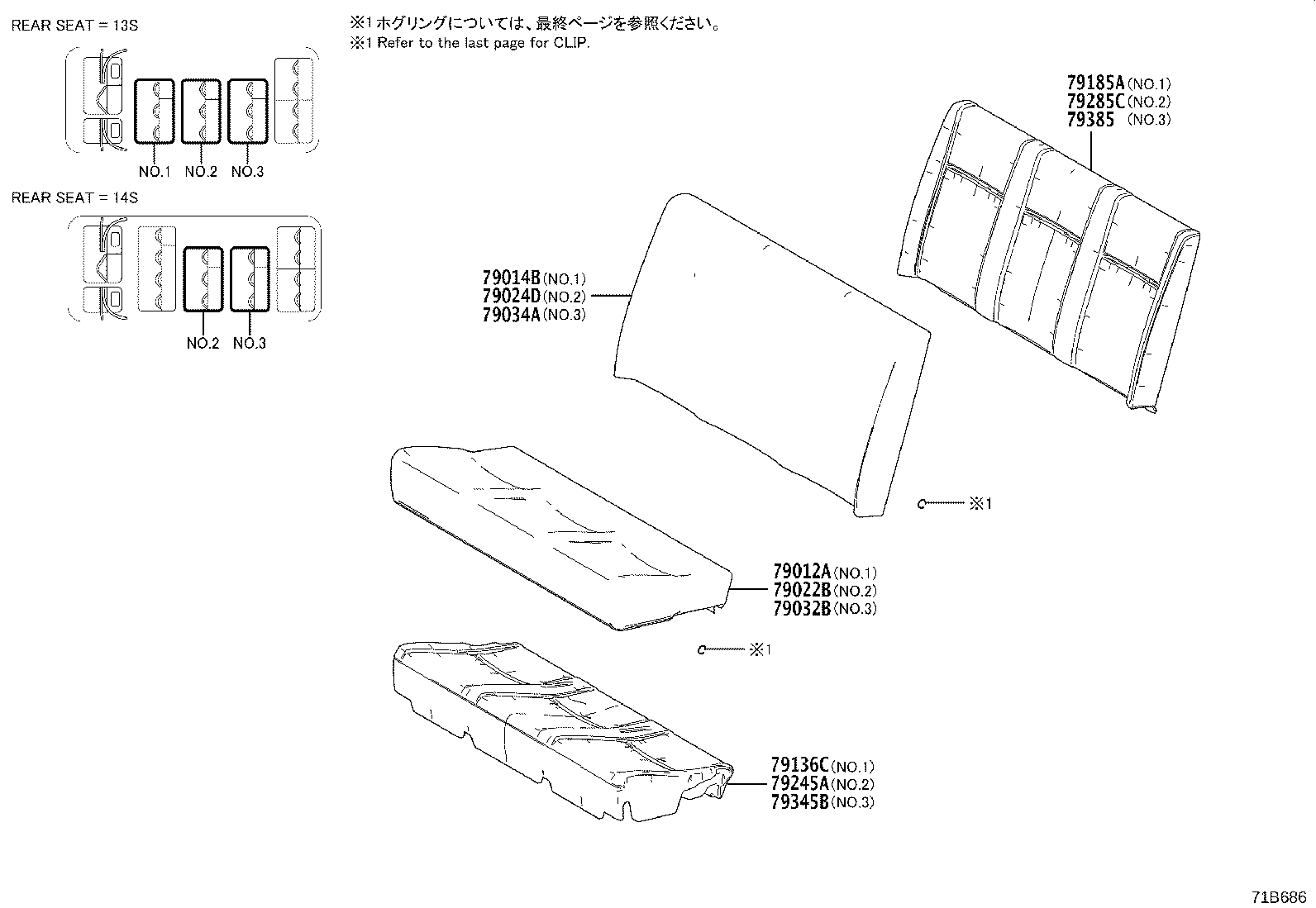

ILLUST NO. 5 OF 9(1903- )GDH322,GRH322..LHD..D

Click highlighted areas on diagram

NO.1-NO.3:FOR 3 PERSONS(COVER & PAD

diagram 79012A 79014B 79022B 79024D 79032B 79034A 79136C 79185A 79245A 79285C 79345B 79385
Part # Description Qty Price
79012A - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79022-26450B5

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79022-26430B5

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79032-V3010B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 1
79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79014-26420B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 3
79022B - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79022-26450B5

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79022-26450B5

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 1
79022-26430B5

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79024D - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79014-26420B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 2
79032B - COVER, SUB-ASSY, NO.3 SEAT CUSHION, LH
79022-26450B5

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79022-26430B5

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79022-26450B5

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 1
79034A - COVER SUB-ASSY, NO.3 SEAT BACK, LH
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 2
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 2
79014-26420B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79136C - PAD, NO.1 SEAT CUSHION, LH
79235-26190

GDH321,328,GRH321..GEN,PH;GDH322,GRH322..LHD..(N,P,Q)

 1
79185A - PAD, NO.1 SEAT BACK, LH
79175-26470

GDH322,GRH322..P..GCC

 1
79185-26110

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 3
79245A - PAD, NO.2 SEAT CUSHION, LH
79235-26190

GDH321,328,GRH321..GEN,PH;GDH301,322,GRH301,322..LHD..(N,P,Q)

 1
79235-26190

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79285C - PAD, NO.2 SEAT BACK, LH
79175-26470

GDH322,GRH322..P..GCC

 1
79185-26110

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
79345B - PAD, NO.3 SEAT CUSHION, LH
79235-26190

GDH321,328,GRH321..GEN,PH;GDH322,GRH322..LHD..(N,P,Q)

 1
79235-26190

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79385 - PAD, NO.3 SEAT BACK, LH
79175-26470

GDH322,GRH322..P..GCC

 2
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
79185-26110

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1

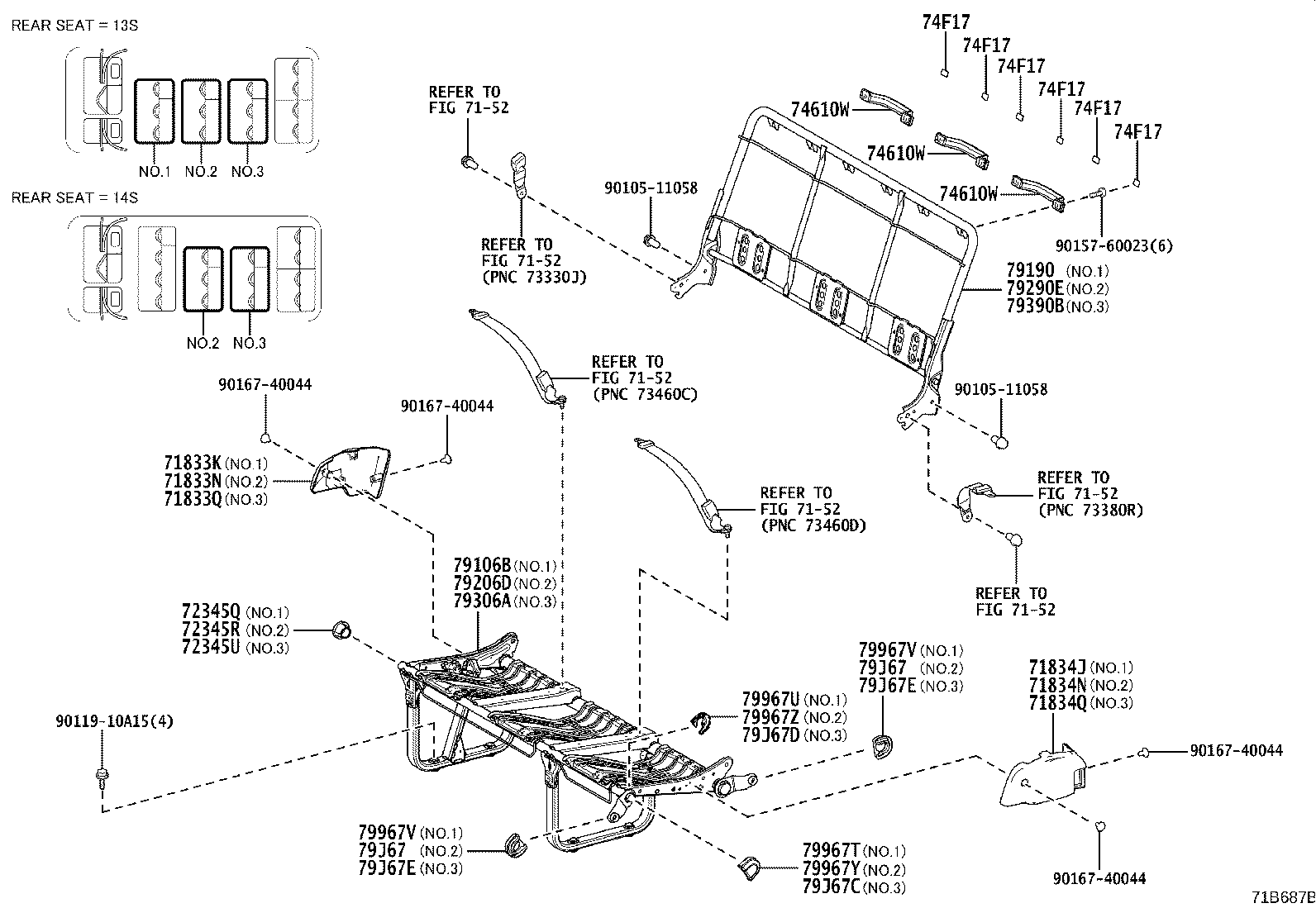

ILLUST NO. 6 OF 9(1903- )GDH322,GRH322..LHD..D

Click highlighted areas on diagram

NO.1-NO.3 SEAT:FOR 3 PERSONS(FRAME)

diagram 7152 7152 7152 7152 7152 7152 71833K 71833N 71833Q 71834J 71834N 71834Q 72345Q 72345R 72345U 74610W 74610W 74610W 74F17 74F17 74F17 74F17 74F17 74F17 79106B 79190 79206D 79290E 79306A 79390B 79967T 79967U 79967V 79967V 79967Y 79967Z 79J67 79J67 79J67C 79J67D 79J67E 79J67E 9010511058 9010511058 9011910A15 9016740044 9016740044 9016740044 9016740044
Part # Description Qty Price
71833K - COVER, NO.1 SEAT RECLINING, NO.1 RH OUTER
71833-26070B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71833-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71833N - COVER, REAR NO.2 SEAT RECLINING, NO.1 RH(FOR LH SEAT)
71833-26130B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71833-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71833-26070B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71833Q - COVER, REAR NO.3 SEAT RECLINING, NO.1 RH(FOR LH SEAT)
71833-26130B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71833-26070B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71833-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71834J - COVER, NO.1 SEAT RECLINING, NO.1 LH OUTER
71834-26090B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71834-26140B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71834N - COVER, REAR NO.2 SEAT RECLINING, NO.1 LH(FOR LH SEAT)
71834-26140B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71834-26090B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71834-26140B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71834Q - COVER, REAR NO.3 SEAT RECLINING, NO.1 LH(FOR LH SEAT)
71834-26140B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71834-26090B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71834-26140B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72345Q - CAP, SEAT STAND FRAME, LH NO.1
72345-36010

GDH301,GRH301..LHD..N;GDH321,322,328,GRH321,322..LHD..(GCC,GEN,PH)

 1
72345R - CAP, SEAT STAND FRAME, LH NO.2
72345-36010

GDH322..N;GRH322..N,P,Q;GDH321..GEN,NZ;GDH322..ARL,GCC;GDH322,GRH322..LHD..(D,P,Q)..GEN;GDH301,328,GRH301,321..GEN,PH,TH

 1
72345U - CAP, SEAT STAND FRAME, RH NO.3
72345-36010

GDH321..D;GDH321..N..GEN;GDH322..Q..GCC;GDH322..(D,N)..GEN;GDH322..LHD..6F..P..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH328,GRH321,322..(D,N,Q)..(GCC,GEN,PH)

 1
72345-36010

GDH322,GRH322..P..GCC

 2
72345-36010

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
72345-36010

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
79106B - LEG SUB-ASSY, NO.1 SEAT, LH
79206-26230

GDH322,GRH322..P..GCC

 1
79206-26170

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79306-V3010

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79190 - SPRING ASSY, NO.1 SEAT BACK, LH
79290-26130

GRH322..LHD..(N,Q);GDH322..LHD..6FC..N;GDH321,322..LHD..6F..(N,P)..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH321,GRH321..(D,Q)..(GEN,IDN,NZ);GDH301,322,328..(D,N,Q)..(GCC,NZ,PH)

 1
79290-26170

GDH322,GRH322..P..GCC

 1
79290-26130

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79206D - LEG SUB-ASSY, NO.2 SEAT, LH
79206-26230

GDH322,GRH322..P..GCC

 1
79206-26170

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79206-26230

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79290E - SPRING ASSY, NO.2 SEAT BACK LH
79290-26170

GDH322,GRH322..P..GCC

 1
79290-26130

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79290-26170

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79306A - LEG SUB-ASSY, NO.3 SEAT, LH
79206-26240

GDH322,GRH322..P..GCC

 1
79206-26240

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79206-26200

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79390B - SPRING ASSY, NO.3 SEAT BACK, LH
79290-26170

GDH322,GRH322..P..GCC

 1
79290-26130

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79290-26170

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79967T - COVER, REAR NO.1 SEAT LEG SIDE, NO.1
79967-26060C0

GDH322..D..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,GRH301,322..D,P

BLACK,TRIM1#

 1
79967U - COVER, REAR NO.1 SEAT LEG SIDE, NO.2
79967-26130C0

GDH322,GRH322..P..GCC

BLACK,TRIM1#,LH SEAT

 1
79967-26130C0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
79967V - COVER, REAR NO.1 SEAT LEG SIDE, NO.3
79967-26080C0

GDH322..D..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,GRH301,322..D,P

BLACK,TRIM1#

 2
79967V - COVER, REAR NO.1 SEAT LEG SIDE, NO.3
79967-26080C0

GDH322..D..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,GRH301,322..D,P

BLACK,TRIM1#

 2
79967Y - COVER, REAR NO.2 SEAT LEG SIDE, NO.1
79967-26060C0

GDH322..D..GEN;GDH321,GRH322..D,P;GDH322..LHD..P..GEN;GDH301,322..(D,P)..(ARL,GCC,NZ)

BLACK,TRIM1#

 1
79967Z - COVER, REAR NO.2 SEAT LEG SIDE, NO.2
79967-26130C0

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC;GDH301,321,GRH301..D..(GEN,TH)

BLACK,TRIM1#,LH SEAT

 1
79967-26130C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79J67 - COVER, REAR NO.2 SEAT LEG SIDE, NO.3
79967-26080C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 3
79967-26080C0

GDH321..D..(GEN,NZ);GDH322..LHD..6F..P..GEN;GDH322,GRH322..P..(ARL,GCC)

BLACK,TRIM1#

 3
79J67 - COVER, REAR NO.2 SEAT LEG SIDE, NO.3
79967-26080C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 3
79967-26080C0

GDH321..D..(GEN,NZ);GDH322..LHD..6F..P..GEN;GDH322,GRH322..P..(ARL,GCC)

BLACK,TRIM1#

 3
79J67C - COVER, REAR NO.3 SEAT LEG SIDE, NO.1
79967-26060C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#

 2
79967-26060C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 2
79J67D - COVER, REAR NO.3 SEAT LEG SIDE, NO.2
79967-26070C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,RH SEAT

 1
79967-26130C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79967-26130C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79967-26070C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,RH SEAT

 1
79J67E - COVER, REAR NO.3 SEAT LEG SIDE, NO.3
79967-26080C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#

 4
79967-26080C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 4
79J67E - COVER, REAR NO.3 SEAT LEG SIDE, NO.3
79967-26080C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#

 4
79967-26080C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 4
Common parts
90105-11058
90119-10A15
90167-40044
Linked diagrams
7152

ILLUST NO. 4 OF 5(1903- )GDH322,328,GRH322..D,P..GCC,VN ; (2006- )GDH322..LHD..D ; (2006- )

Click highlighted areas on diagram

NO.2-NO.3 SEAT:1 PERSONS W(*RRS)

diagram 7152 7152 7152 7152 7152 7152 71701A 71833M 71833P 71834M 71834P 71930Q 71931G 71940M 71H75G 71H75J 71H76G 71H76J 72345P 72345P 72345U 72525P 72525Q 72551N 72551P 72552L 72552M 74690A 79021D 79023D 79033B 79041C 79205C 79235F 79275F 79280E 79305E 79335B 79380C 79J67 79J67A 79J67B 79J67C 79J67D 79J67E 79J67E 79J67F 79J67G 9010511058 9010511058 9011910A15 9011910A15 9016740044 9016740044 9016740044 9016740044 9017610008 9331516025
Part # Description Qty Price
71701A - BOARD SUB-ASSY, REAR SEAT BACK, RH
71701-26090B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 8
71701-26080B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#,TYPE A:REFERILLUST.

 2
71833M - COVER, REAR NO.2 SEAT RECLINING, NO.1 RH(FOR RH SEAT)
71833-26110B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71833-26040B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71833-26110B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71833P - COVER, REAR NO.3 SEAT RECLINING, NO.1 RH(FOR RH SEAT)
71833-26110B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71833-26110B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71833-26040B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71834M - COVER, REAR NO.2 SEAT RECLINING, NO.1 LH(FOR RH SEAT)
71834-26050B0

GRH322..P;GDH321..D..GEN;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

MD.GRAY,TRIM1#

 1
71834-26050B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71834P - COVER, REAR NO.3 SEAT RECLINING, NO.1 LH(FOR RH SEAT)
71834-26050B0

GDH321..D..GEN;GDH322,GRH322..LHD..P

MD.GRAY,TRIM1#

 1
71834-26050B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71930-47020C4

GRH322..LHD..6F..D

W(LOCK),BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71931-47020C4

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71940M - HEADREST ASSY, REAR SEAT
71940-26620B1

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

MEDIUM GRAY,TRIM1#

 11
71940-26620B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#

 9
71H75G - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 RH S
71875-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71875-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H75J - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.3 RH S
71875-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71875-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H76G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 RH S
71876-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71876-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71876-36010C1

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
71H76J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.3 RH S
71876-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71876-36010C1

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
71876-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72345P - CAP, SEAT STAND FRAME, RH NO.2
72345-36010

GDH322,GRH322..P..GCC

 2
72345-36010

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
72345-36010

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
72345P - CAP, SEAT STAND FRAME, RH NO.2
72345-36010

GDH322,GRH322..P..GCC

 2
72345-36010

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
72345-36010

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
72345U - CAP, SEAT STAND FRAME, RH NO.3
72345-36010

GDH321..D;GDH321..N..GEN;GDH322..Q..GCC;GDH322..(D,N)..GEN;GDH322..LHD..6F..P..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH328,GRH321,322..(D,N,Q)..(GCC,GEN,PH)

 1
72345-36010

GDH322,GRH322..P..GCC

 2
72345-36010

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
72345-36010

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
72525P - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH
72525-26130B0

GRH322..P;GDH321..D..GEN;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

MD.GRAY,TRIM1#

 2
72525-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 2
72525Q - HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, RH
72525-26130B0

GDH321..D..GEN;GDH322,GRH322..LHD..P

MD.GRAY,TRIM1#

 2
72525-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 2
72551N - COVER, RECLINING HINGE, RH NO.2(FOR RH SEAT)
72551-26130B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72551-26040B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
72551-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72551P - COVER, RECLINING HINGE, RH NO.3(FOR RH SEAT)
72551-26130B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72551-26040B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
72551-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72552L - COVER, RECLINING HINGE, LH NO.2(FOR RH SEAT)
72552-26090B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72552-26030B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
72552-26090B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72552M - COVER, RECLINING HINGE, LH NO.3(FOR RH SEAT)
72552-26090B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72552-26090B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72552-26030B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
74690A - GRIP ASSY, SEAT ASSIST, REAR
74690-26010C0

GDH321..D..(GEN,NZ);GDH322,GRH322..P..GCC

BLACK,TRIM1#

 8
74690-26010C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 9
79021D - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79011-26F40B5

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79011-26F20B5

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79011-26F40B5

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 1
79023D - COVER SUB-ASSY, NO.2 SEAT BACK, RH
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 1
79013-26K50B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79033B - COVER SUB-ASSY, NO.3 SEAT BACK, RH
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 1
79013-26K50B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79041C - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH
79011-26F30B5

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 2
79011-26G20B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79205C - LEG SUB-ASSY, NO.2 SEAT, RH
79105-26560

GDH322,GRH322..P..GCC

 1
79105-26520

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79105-26560

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79235F - PAD, NO.2 SEAT CUSHION, RH
79135-26380

GDH322..GCC;GDH321,328..GEN,PH;GDH322..LHD..6FC..N;GDH322..LHD..6F..(N,P)..GEN;GDH301,GRH301,322..LHD..(N,P,Q)

 1
79135-26380

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79275F - PAD, NO.2 SEAT BACK, RH
79175-26470

GDH322,GRH322..P..GCC

 1
79175-26450

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79280E - SPRING ASSY, NO.2 SEAT BACK RH
79280-26190

GDH322,GRH322..P..GCC

 1
79280-26120

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79280-26190

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79305E - LEG SUB-ASSY, NO.3 SEAT, RH
79105-26570

GDH322,GRH322..P..GCC

 1
79105-26530

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79105-26570

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79335B - PAD, NO.3 SEAT CUSHION, RH
79135-26380

GDH321,328,GRH321..GEN,PH;GDH322,GRH322..LHD..(N,P,Q)

 1
79135-26380

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79380C - SPRING ASSY, NO.3 SEAT BACK, RH
79280-26190

GDH322,GRH322..P..GCC

LH SEAT

 1
79280-26120

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79280-26190

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
79J67 - COVER, REAR NO.2 SEAT LEG SIDE, NO.3
79967-26080C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 3
79967-26080C0

GDH321..D..(GEN,NZ);GDH322..LHD..6F..P..GEN;GDH322,GRH322..P..(ARL,GCC)

BLACK,TRIM1#

 3
79J67A - COVER, REAR NO.2 SEAT LEG SIDE, NO.4
79967-26090C0

GDH321..D;GDH322..P..(ARL,GCC,NZ);GDH322..LHD..6F..P..GEN;GDH301,GRH322..(D,P)..(GCC,TH)

BLACK,TRIM1#,RH SEAT

 1
79967-26100C0

GDH321..D..(GEN,NZ);GDH322..P..(ARL,GCC);GDH322..LHD..6F..P..GEN;GDH301,GRH322..(D,P)..(GCC,TH)

BLACK,TRIM1#,LH SEAT

 1
79967-26090C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,RH SEAT

 1
79967-26100C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79J67B - COVER, REAR NO.2 SEAT LEG SIDE, NO.5
79967-26110C0

GDH321..D;GDH322..P..(ARL,GCC,NZ);GDH322..LHD..6F..P..GEN;GDH301,GRH322..(D,P)..(GCC,TH)

BLACK,TRIM1#,RH SEAT

 1
79967-26120C0

GDH321..D..(GEN,NZ);GDH322..P..(ARL,GCC);GDH322..LHD..6F..P..GEN;GDH301,GRH322..(D,P)..(GCC,TH)

BLACK,TRIM1#,LH SEAT

 1
79967-26110C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,RH SEAT

 1
79967-26120C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79J67C - COVER, REAR NO.3 SEAT LEG SIDE, NO.1
79967-26060C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#

 2
79967-26060C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 2
79J67D - COVER, REAR NO.3 SEAT LEG SIDE, NO.2
79967-26070C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,RH SEAT

 1
79967-26130C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79967-26130C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79967-26070C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,RH SEAT

 1
79J67E - COVER, REAR NO.3 SEAT LEG SIDE, NO.3
79967-26080C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#

 4
79967-26080C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 4
79J67E - COVER, REAR NO.3 SEAT LEG SIDE, NO.3
79967-26080C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#

 4
79967-26080C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 4
79J67F - COVER, REAR NO.3 SEAT LEG SIDE, NO.4
79967-26090C0

GDH321..D;GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,RH SEAT

 1
79967-26090C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,RH SEAT

 1
79967-26100C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79967-26100C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79J67G - COVER, REAR NO.3 SEAT LEG SIDE, NO.5
79967-26110C0

GDH321..D;GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,RH SEAT

 1
79967-26120C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79967-26120C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79967-26110C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,RH SEAT

 1
Common parts
90105-11058
90119-10A15
90167-40044
90176-10008
93315-16025
Linked diagrams
7152

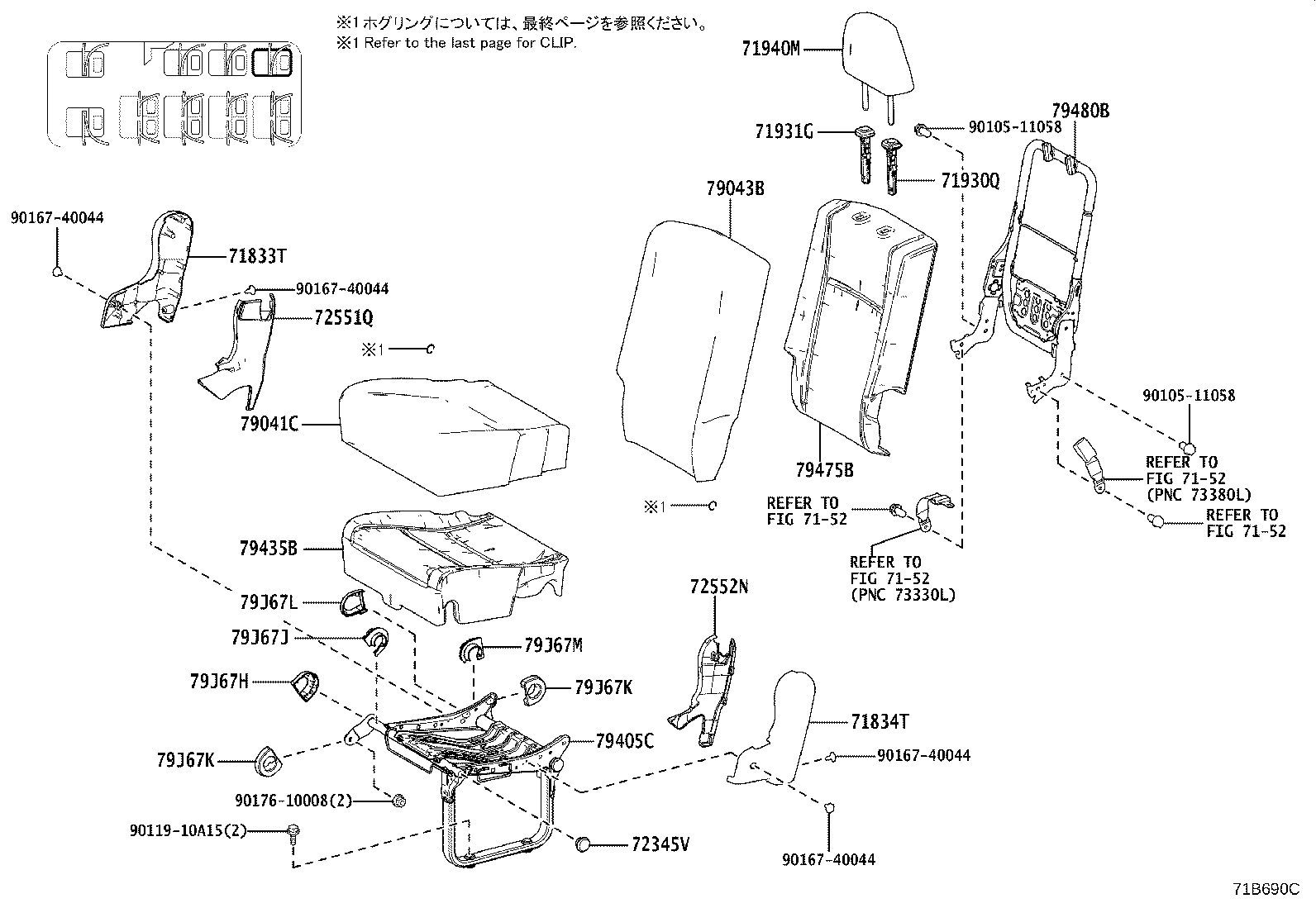

ILLUST NO. 5 OF 5(1903- )P..GCC

Click highlighted areas on diagram

NO.4 SEAT:1 PERSON W(*RRS)

diagram 7152 7152 7152 7152 71833T 71834T 71930Q 71931G 71940M 72345V 72551Q 72552N 79041C 79043B 79405C 79435B 79475B 79480B 79J67H 79J67J 79J67K 79J67K 79J67L 79J67M 9010511058 9010511058 9011910A15 9016740044 9016740044 9016740044 9016740044 9017610008
Part # Description Qty Price
71833T - COVER, REAR NO.4 SEAT RECLINING, RH(FOR RH SEAT)
71833-26270B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71833-26050B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71834T - COVER, REAR NO.4 SEAT RECLINING, LH(FOR RH SEAT)
71834-26070B0

GDH322,GRH322..LHD..P

MD.GRAY,TRIM1#

 1
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71930-47020C4

GRH322..LHD..6F..D

W(LOCK),BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71931-47020C4

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71940M - HEADREST ASSY, REAR SEAT
71940-26620B1

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

MEDIUM GRAY,TRIM1#

 11
71940-26620B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#

 9
72345V - CAP, SEAT STAND FRAME, RH NO.4
72345-36010

GRH321,322..LHD..(P,Q);GDH322..LHD..(P,Q)..GEN;GDH321,322..(D,P,Q)..(ARL,GCC,IDN)

 1
72551Q - COVER, RECLINING HINGE, RH NO.4(FOR RH SEAT)
72551-26090B0

GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,GRH322..(D,P)..(GCC,IDN)

MD.GRAY,TRIM1#

 1
72552N - COVER, RECLINING HINGE, LH NO.4(FOR RH SEAT)
72552-26060B0

GDH322,GRH322..LHD..P

MD.GRAY,TRIM1#

 1
79041C - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH
79011-26F30B5

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 2
79011-26G20B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79043B - COVER SUB-ASSY, NO.4 SEAT BACK, RH(FOR RH SEAT)
79013-26K80B3

GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,GRH322..(D,P)..(GCC,IDN)

GRAY,TRIM1#

 1
79023-V3010B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 1
79405C - LEG SUB-ASSY, NO.4 SEAT, RH
79105-26550

GDH322,GRH321,322..LHD..(P,Q)

 1
79435B - PAD, NO.4 SEAT CUSHION, RH
79135-26380

GDH322,GRH321,322..LHD..(P,Q)

 1
79235-26210

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79475B - PAD, NO.4 SEAT BACK, RH(FOR RH SEAT)
79175-26480

GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,GRH322..(D,P)..(GCC,IDN)

 1
79275-V3010

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79480B - SPRING ASSY, NO.4 SEAT BACK, RH(FOR RH SEAT)
79280-26210

GDH321..D..IDN;GDH322..ARL,GCC,NZ;GRH321,322..LHD..(P,Q);GDH322..LHD..(P,Q)..GEN

 1
79J67H - COVER, REAR NO.4 SEAT LEG SIDE, NO.1
79967-26060C0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

BLACK,TRIM1#

 2
79J67J - COVER, REAR NO.4 SEAT LEG SIDE, NO.2
79967-26070C0

GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,GRH322..(D,P)..(GCC,IDN)

BLACK,TRIM1#,RH SEAT

 1
79967-26130C0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79J67K - COVER, REAR NO.4 SEAT LEG SIDE, NO.3
79967-26080C0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

BLACK,TRIM1#

 4
79J67K - COVER, REAR NO.4 SEAT LEG SIDE, NO.3
79967-26080C0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

BLACK,TRIM1#

 4
79J67L - COVER, REAR NO.4 SEAT LEG SIDE, NO.4
79967-26090C0

GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,GRH322..(D,P)..(GCC,IDN)

BLACK,TRIM1#,RH SEAT

 1
79967-26100C0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79J67M - COVER, REAR NO.4 SEAT LEG SIDE, NO.5
79967-26120C0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79967-26110C0

GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,GRH322..(D,P)..(GCC,IDN)

BLACK,TRIM1#,RH SEAT

 1
Common parts
90105-11058
90119-10A15
90167-40044
90176-10008
Linked diagrams
7152

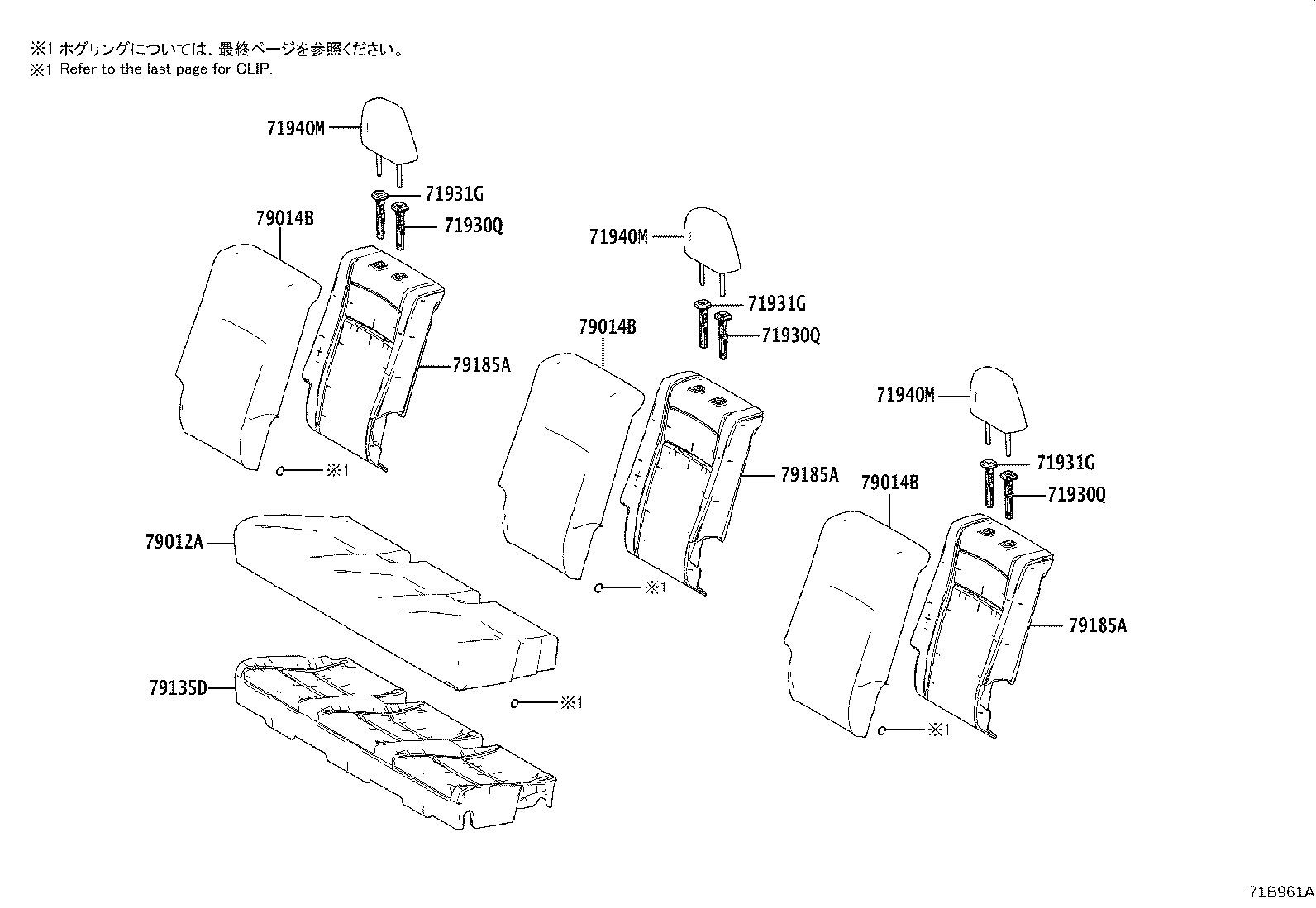

ILLUST NO. 1 OF 5(1903- )GDH322,328,GRH322..D,P..GCC,VN ; (2006- )GDH322..LHD..D ; (2006- )

Click highlighted areas on diagram

NO.1-NO.4 SEAT:2 PERSONS W(*RRS)

diagram 71930Q 71930Q 71931G 71931G 71940M 71940M 79012A 79014B 79014B 79022B 79024D 79024D 79032B 79034A 79034A 79042A 79043C 79044B 79136C 79185A 79185A 79245A 79285C 79285C 79345B 79385 79385 79435C 79475C 79485B
Part # Description Qty Price
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71930-47020C4

GRH322..LHD..6F..D

W(LOCK),BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71930-47020C4

GRH322..LHD..6F..D

W(LOCK),BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71931-47020C4

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71931-47020C4

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71940M - HEADREST ASSY, REAR SEAT
71940-26620B1

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

MEDIUM GRAY,TRIM1#

 11
71940-26620B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#

 9
71940M - HEADREST ASSY, REAR SEAT
71940-26620B1

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

MEDIUM GRAY,TRIM1#

 11
71940-26620B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#

 9
79012A - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79022-26450B5

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79022-26430B5

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79032-V3010B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 1
79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79014-26420B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 3
79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79014-26420B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 3
79022B - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79022-26450B5

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79022-26450B5

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 1
79022-26430B5

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79024D - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79014-26420B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 2
79024D - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79014-26420B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 2
79032B - COVER, SUB-ASSY, NO.3 SEAT CUSHION, LH
79022-26450B5

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79022-26430B5

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79022-26450B5

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 1
79034A - COVER SUB-ASSY, NO.3 SEAT BACK, LH
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 2
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 2
79014-26420B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79034A - COVER SUB-ASSY, NO.3 SEAT BACK, LH
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 2
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 2
79014-26420B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79042A - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH
79022-26450B5

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79022-26440B5

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79043C - COVER SUB-ASSY, NO.4 SEAT BACK, RH(FOR LH SEAT)
79013-26K60B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79013-26K90B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79044B - COVER SUB-ASSY, NO.4 SEAT BACK, LH(FOR LH SEAT)
79014-26430B3

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

GRAY,TRIM1#

 1
79024-V3010B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 1
79136C - PAD, NO.1 SEAT CUSHION, LH
79235-26190

GDH321,328,GRH321..GEN,PH;GDH322,GRH322..LHD..(N,P,Q)

 1
79185A - PAD, NO.1 SEAT BACK, LH
79175-26470

GDH322,GRH322..P..GCC

 1
79185-26110

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 3
79185A - PAD, NO.1 SEAT BACK, LH
79175-26470

GDH322,GRH322..P..GCC

 1
79185-26110

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 3
79245A - PAD, NO.2 SEAT CUSHION, LH
79235-26190

GDH321,328,GRH321..GEN,PH;GDH301,322,GRH301,322..LHD..(N,P,Q)

 1
79235-26190

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79285C - PAD, NO.2 SEAT BACK, LH
79175-26470

GDH322,GRH322..P..GCC

 1
79185-26110

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
79285C - PAD, NO.2 SEAT BACK, LH
79175-26470

GDH322,GRH322..P..GCC

 1
79185-26110

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
79345B - PAD, NO.3 SEAT CUSHION, LH
79235-26190

GDH321,328,GRH321..GEN,PH;GDH322,GRH322..LHD..(N,P,Q)

 1
79235-26190

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79385 - PAD, NO.3 SEAT BACK, LH
79175-26470

GDH322,GRH322..P..GCC

 2
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
79185-26110

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79385 - PAD, NO.3 SEAT BACK, LH
79175-26470

GDH322,GRH322..P..GCC

 2
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
79185-26110

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79435C - PAD, NO.4 SEAT CUSHION, LH
79235-26190

GDH322,GRH321,322..LHD..(P,Q)

 1
79245-26100

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79475C - PAD, NO.4 SEAT BACK, RH(FOR LH SEAT)
79175-26460

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79175-26490

GDH322,GRH322..P..GCC

 1
79485B - PAD, NO.4 SEAT BACK, LH(FOR LH SEAT)
79185-26120

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

 1
79285-V3010

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1

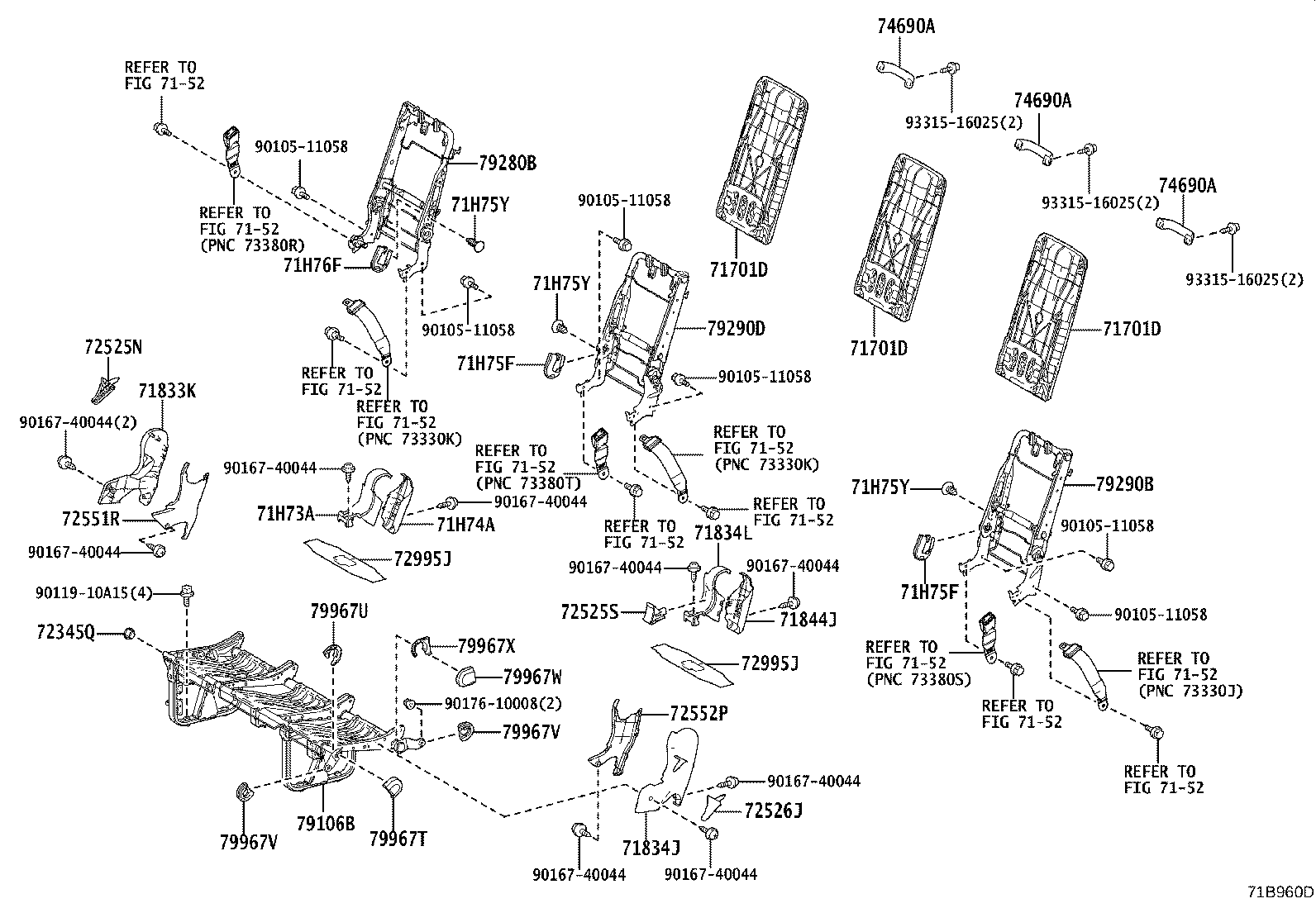

ILLUST NO. 2 OF 5(1903- )GDH322,328,GRH322..D,P..GCC,VN ; (2006- )GDH322..LHD..D ; (2006- )

Click highlighted areas on diagram

NO.1-NO.3 SEAT:2 PERSONS W(*RRS)

diagram 7152 7152 7152 7152 7152 7152 7152 7152 71701A 71701A 71833N 71833Q 71833S 71834N 71834Q 71834S 71H73A 71H73B 71H73C 71H74A 71H74B 71H74C 71H75F 71H75H 71H75R 71H75X 71H76F 71H76H 71H76N 71H76P 71T75A 71T75G 71T76C 71T76J 72345Q 72345R 72345U 72525N 72525P 72525Q 72526J 72526K 72526L 72551R 72551S 72551T 72552P 72552Q 72552R 72995J 72995K 72995L 74690A 74690A 79106B 79180B 79190 79206D 79280F 79290E 79306A 79380C 79390B 79967T 79967U 79967V 79967V 79967W 79967X 79967Y 79967Z 79J67 79J67 79J67A 79J67B 79J67C 79J67D 79J67E 79J67E 79J67F 79J67G 9010511058 9010511058 9010511058 9010511058 9011910A15 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9017610008 9331516025 9331516025
Part # Description Qty Price
71701A - BOARD SUB-ASSY, REAR SEAT BACK, RH
71701-26090B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 8
71701-26080B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#,TYPE A:REFERILLUST.

 2
71701A - BOARD SUB-ASSY, REAR SEAT BACK, RH
71701-26090B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 8
71701-26080B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#,TYPE A:REFERILLUST.

 2
71833N - COVER, REAR NO.2 SEAT RECLINING, NO.1 RH(FOR LH SEAT)
71833-26130B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71833-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71833-26070B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71833Q - COVER, REAR NO.3 SEAT RECLINING, NO.1 RH(FOR LH SEAT)
71833-26130B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71833-26070B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71833-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71833S - COVER, REAR SEAT RECLINING, NO.1 RH
71833-26130B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71834N - COVER, REAR NO.2 SEAT RECLINING, NO.1 LH(FOR LH SEAT)
71834-26140B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71834-26090B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71834-26140B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71834Q - COVER, REAR NO.3 SEAT RECLINING, NO.1 LH(FOR LH SEAT)
71834-26140B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71834-26090B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71834-26140B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71834S - COVER, REAR SEAT RECLINING, NO.1 LH
71834-26140B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71H73A - SHIELD, REAR NO.1 SEAT CUSHION, LOWER
71873-36010B1

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
71873-36010B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H73B - SHIELD, REAR NO.2 SEAT CUSHION, LOWER
71873-36010B1

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
71873-36010B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H73C - SHIELD, REAR NO.3 SEAT CUSHION, LOWER
71873-36010B1

GDH321..D;GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

MD.GRAY,TRIM1#

 1
71873-36010B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H74A - SHIELD, NO.1 SEAT CUSHION, LOWER LH
71874-36010B1

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
71874-36010B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H74B - SHIELD, NO.2 SEAT CUSHION, LOWER LH
71874-36010B1

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
71874-36010B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H74C - SHIELD, NO.3 SEAT CUSHION, LOWER LH
71874-36010B1

GDH321..D;GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

MD.GRAY,TRIM1#

 1
71874-36010B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H75F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH S
71875-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71875-26070B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 2
71875-36010C1

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
71H75H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 LH S
71875-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71875-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71875-36010C1

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
71H75R - COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT)
71875-26070B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71875-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H75X - COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR LH SEAT)
71875-26070B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71875-26070B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H76F - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH S
71876-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71876-36010C1

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
71876-26070B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 2
71H76H - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH S
71876-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71876-36010C1

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
71876-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H76N - COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)
71876-26070B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71876-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H76P - COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT)
71876-26070B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71876-26070B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71T75A - COVER, RECLINING ADJUSTER INSIDE, RH NO.2
71875-26070B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71875-26070B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71T75G - COVER, RECLINING ADJUSTER INSIDE, RH(FOR NO.3 LH SEAT B
71875-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71875-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71T76C - COVER, RECLINING ADJUSTER INSIDE, LH NO.2
71876-26070B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71876-26070B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71T76J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR NO.3 LH SEAT B
71876-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71876-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72345Q - CAP, SEAT STAND FRAME, LH NO.1
72345-36010

GDH301,GRH301..LHD..N;GDH321,322,328,GRH321,322..LHD..(GCC,GEN,PH)

 1
72345R - CAP, SEAT STAND FRAME, LH NO.2
72345-36010

GDH322..N;GRH322..N,P,Q;GDH321..GEN,NZ;GDH322..ARL,GCC;GDH322,GRH322..LHD..(D,P,Q)..GEN;GDH301,328,GRH301,321..GEN,PH,TH

 1
72345U - CAP, SEAT STAND FRAME, RH NO.3
72345-36010

GDH321..D;GDH321..N..GEN;GDH322..Q..GCC;GDH322..(D,N)..GEN;GDH322..LHD..6F..P..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH328,GRH321,322..(D,N,Q)..(GCC,GEN,PH)

 1
72345-36010

GDH322,GRH322..P..GCC

 2
72345-36010

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
72345-36010

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
72525N - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH
72525-26130B0

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
72525-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72525P - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH
72525-26130B0

GRH322..P;GDH321..D..GEN;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

MD.GRAY,TRIM1#

 2
72525-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 2
72525Q - HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, RH
72525-26130B0

GDH321..D..GEN;GDH322,GRH322..LHD..P

MD.GRAY,TRIM1#

 2
72525-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 2
72526J - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH
72526-26060B0

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
72526-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72526K - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH
72526-26060B0

GDH321..6F..D;GDH322..LHD..P..GEN;GDH301,322,GRH322..(D,P)..(GCC,NZ)

MD.GRAY,TRIM1#

 1
72526-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72526L - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72526-28090B2

GDH322..D..GEN;GDH301,GRH301,322..D

MD.GRAY,TRIM1#

 1
72526-28090B2

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#,FORSPACE UP SEAT,LH

 1
72526-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#,REAR NO.3 SEAT

 1
72551R - COVER, RECLINING HINGE, RH NO.1(FOR LH SEAT)
72551-26150B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72551-26110B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
72551-26150B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72551S - COVER, RECLINING HINGE, RH NO.2(FOR LH SEAT)
72551-26150B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72551-26110B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
72551-26150B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72551T - COVER, RECLINING HINGE, RH NO.3(FOR LH SEAT)
72551-26150B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72551-26110B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
72551-26150B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72552P - COVER, RECLINING HINGE, LH NO.1(FOR LH SEAT)
72552-26110B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72552-26070B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
72552-26110B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72552Q - COVER, RECLINING HINGE, LH NO.2(FOR LH SEAT)
72552-26110B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72552-26110B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72552-26070B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
72552R - COVER, RECLINING HINGE, LH NO.3(FOR LH SEAT)
72552-26110B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72552-26070B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
72552-26110B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72995J - COVER, REAR NO.1 SEAT CUSHION
72995-26140B0

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
72995-26140B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 2
72995K - COVER, REAR NO.2 SEAT CUSHION
72995-26140B0

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
72995-26140B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72995L - COVER, REAR NO.3 SEAT CUSHION
72995-26140B0

GDH321..D;GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

MD.GRAY,TRIM1#

 1
72995-26140B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
74690A - GRIP ASSY, SEAT ASSIST, REAR
74690-26010C0

GDH321..D..(GEN,NZ);GDH322,GRH322..P..GCC

BLACK,TRIM1#

 8
74690-26010C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 9
74690A - GRIP ASSY, SEAT ASSIST, REAR
74690-26010C0

GDH321..D..(GEN,NZ);GDH322,GRH322..P..GCC

BLACK,TRIM1#

 8
74690-26010C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 9
79106B - LEG SUB-ASSY, NO.1 SEAT, LH
79206-26230

GDH322,GRH322..P..GCC

 1
79206-26170

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79306-V3010

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79180B - SPRING ASSY, NO.1 SEAT BACK, RH
79280-26190

GDH322,GRH322..P..GCC

 1
79280-26120

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79190 - SPRING ASSY, NO.1 SEAT BACK, LH
79290-26130

GRH322..LHD..(N,Q);GDH322..LHD..6FC..N;GDH321,322..LHD..6F..(N,P)..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH321,GRH321..(D,Q)..(GEN,IDN,NZ);GDH301,322,328..(D,N,Q)..(GCC,NZ,PH)

 1
79290-26170

GDH322,GRH322..P..GCC

 1
79290-26130

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79206D - LEG SUB-ASSY, NO.2 SEAT, LH
79206-26230

GDH322,GRH322..P..GCC

 1
79206-26170

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79206-26230

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79280F - SPRING ASSY, NO.2 SEAT BACK RH
79280-26190

GDH322,GRH322..P..GCC

 1
79280-26190

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79280-26120

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79290E - SPRING ASSY, NO.2 SEAT BACK LH
79290-26170

GDH322,GRH322..P..GCC

 1
79290-26130

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79290-26170

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79306A - LEG SUB-ASSY, NO.3 SEAT, LH
79206-26240

GDH322,GRH322..P..GCC

 1
79206-26240

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79206-26200

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79380C - SPRING ASSY, NO.3 SEAT BACK, RH
79280-26190

GDH322,GRH322..P..GCC

LH SEAT

 1
79280-26120

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79280-26190

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 2
79390B - SPRING ASSY, NO.3 SEAT BACK, LH
79290-26170

GDH322,GRH322..P..GCC

 1
79290-26130

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79290-26170

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79967T - COVER, REAR NO.1 SEAT LEG SIDE, NO.1
79967-26060C0

GDH322..D..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,GRH301,322..D,P

BLACK,TRIM1#

 1
79967U - COVER, REAR NO.1 SEAT LEG SIDE, NO.2
79967-26130C0

GDH322,GRH322..P..GCC

BLACK,TRIM1#,LH SEAT

 1
79967-26130C0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
79967V - COVER, REAR NO.1 SEAT LEG SIDE, NO.3
79967-26080C0

GDH322..D..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,GRH301,322..D,P

BLACK,TRIM1#

 2
79967V - COVER, REAR NO.1 SEAT LEG SIDE, NO.3
79967-26080C0

GDH322..D..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,GRH301,322..D,P

BLACK,TRIM1#

 2
79967W - COVER, REAR NO.1 SEAT LEG SIDE, NO.4
79967-26100C0

GDH322,GRH322..P..GCC

BLACK,TRIM1#,LH SEAT

 1
79967-26100C0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
79967-26100C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 1
79967X - COVER, REAR NO.1 SEAT LEG SIDE, NO.5
79967-26120C0

GDH322,GRH322..P..GCC

BLACK,TRIM1#,LH SEAT

 1
79967-26120C0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
79967-26120C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 1
79967Y - COVER, REAR NO.2 SEAT LEG SIDE, NO.1
79967-26060C0

GDH322..D..GEN;GDH321,GRH322..D,P;GDH322..LHD..P..GEN;GDH301,322..(D,P)..(ARL,GCC,NZ)

BLACK,TRIM1#

 1
79967Z - COVER, REAR NO.2 SEAT LEG SIDE, NO.2
79967-26130C0

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC;GDH301,321,GRH301..D..(GEN,TH)

BLACK,TRIM1#,LH SEAT

 1
79967-26130C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79J67 - COVER, REAR NO.2 SEAT LEG SIDE, NO.3
79967-26080C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 3
79967-26080C0

GDH321..D..(GEN,NZ);GDH322..LHD..6F..P..GEN;GDH322,GRH322..P..(ARL,GCC)

BLACK,TRIM1#

 3
79J67 - COVER, REAR NO.2 SEAT LEG SIDE, NO.3
79967-26080C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 3
79967-26080C0

GDH321..D..(GEN,NZ);GDH322..LHD..6F..P..GEN;GDH322,GRH322..P..(ARL,GCC)

BLACK,TRIM1#

 3
79J67A - COVER, REAR NO.2 SEAT LEG SIDE, NO.4
79967-26090C0

GDH321..D;GDH322..P..(ARL,GCC,NZ);GDH322..LHD..6F..P..GEN;GDH301,GRH322..(D,P)..(GCC,TH)

BLACK,TRIM1#,RH SEAT

 1
79967-26100C0

GDH321..D..(GEN,NZ);GDH322..P..(ARL,GCC);GDH322..LHD..6F..P..GEN;GDH301,GRH322..(D,P)..(GCC,TH)

BLACK,TRIM1#,LH SEAT

 1
79967-26090C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,RH SEAT

 1
79967-26100C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79J67B - COVER, REAR NO.2 SEAT LEG SIDE, NO.5
79967-26110C0

GDH321..D;GDH322..P..(ARL,GCC,NZ);GDH322..LHD..6F..P..GEN;GDH301,GRH322..(D,P)..(GCC,TH)

BLACK,TRIM1#,RH SEAT

 1
79967-26120C0

GDH321..D..(GEN,NZ);GDH322..P..(ARL,GCC);GDH322..LHD..6F..P..GEN;GDH301,GRH322..(D,P)..(GCC,TH)

BLACK,TRIM1#,LH SEAT

 1
79967-26110C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,RH SEAT

 1
79967-26120C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79J67C - COVER, REAR NO.3 SEAT LEG SIDE, NO.1
79967-26060C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#

 2
79967-26060C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 2
79J67D - COVER, REAR NO.3 SEAT LEG SIDE, NO.2
79967-26070C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,RH SEAT

 1
79967-26130C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79967-26130C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79967-26070C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,RH SEAT

 1
79J67E - COVER, REAR NO.3 SEAT LEG SIDE, NO.3
79967-26080C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#

 4
79967-26080C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 4
79J67E - COVER, REAR NO.3 SEAT LEG SIDE, NO.3
79967-26080C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#

 4
79967-26080C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 4
79J67F - COVER, REAR NO.3 SEAT LEG SIDE, NO.4
79967-26090C0

GDH321..D;GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,RH SEAT

 1
79967-26090C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,RH SEAT

 1
79967-26100C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79967-26100C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79J67G - COVER, REAR NO.3 SEAT LEG SIDE, NO.5
79967-26110C0

GDH321..D;GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,RH SEAT

 1
79967-26120C0

GDH321..D..(GEN,NZ);GDH322..LHD..P..GEN;GDH322,GRH322..P..(ARL,GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79967-26120C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,LH SEAT

 1
79967-26110C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#,RH SEAT

 1
Common parts
90105-11058
90119-10A15
90167-40044
90176-10008
93315-16025
Linked diagrams
7152

ILLUST NO. 3 OF 5(1903- )P..GCC

Click highlighted areas on diagram

NO.4 SEAT:2 PERSONS W(*RRS)

diagram 7152 7152 7152 7152 7152 7152 7152 7152 71833U 71834U 71H73D 71H74D 72345X 72551U 72552S 72995M 79406C 79480C 79490B 79J67H 79J67J 79J67K 79J67K 79J67L 79J67M 9010511058 9010511058 9010511058 9010511058 9011910A15 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9017610008
Part # Description Qty Price
71833U - COVER, REAR NO.4 SEAT RECLINING, RH(FOR LH SEAT)
71833-26080B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71833-26140B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71834U - COVER, REAR NO.4 SEAT RECLINING, LH(FOR LH SEAT)
71834-26280B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71834-26100B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71H73D - SHIELD, NO.4 SEAT CUSHION, LOWER
71873-36020B1

GDH322..LHD..P..GEN;GDH322..(D,P)..(ARL,GCC,NZ,TH);GDH321,GRH322..(D,P)..(GCC,IDN)

MD.GRAY,TRIM1#

 1
71H74D - SHIELD, NO.4 SEAT CUSHION, LOWER LH
71874-36010B1

GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,GRH322..(D,P)..(GCC,IDN)

MD.GRAY,TRIM1#

 1
72345X - CAP, SEAT STAND FRAME, LH NO.4
72345-36010

GDH322,GRH321,322..LHD..(P,Q)

 1
72551U - COVER, RECLINING HINGE, RH NO.4(FOR LH SEAT)
72551-26160B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72551-26120B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
72552S - COVER, RECLINING HINGE, LH NO.4(FOR LH SEAT)
72552-26080B0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

MD.GRAY,TRIM1#

 1
72995M - COVER, REAR NO.4 SEAT CUSHION
72995-26140B0

GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,GRH322..(D,P)..(GCC,IDN)

MD.GRAY,TRIM1#

 1
79406C - LEG SUB-ASSY, NO.4 SEAT, LH
79206-26220

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79206-26230

GDH322,GRH322..P..GCC

 1
79480C - SPRING ASSY, NO.4 SEAT BACK, RH(FOR LH SEAT)
79280-26210

GDH322,GRH322..P..GCC

 1
79280-26170

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79490B - SPRING ASSY, NO.4 SEAT BACK, LH(FOR LH SEAT)
79290-26190

GDH322..GCC,NZ;GRH321,322..LHD..(P,Q);GDH322..LHD..(P,Q)..GEN

 1
79J67H - COVER, REAR NO.4 SEAT LEG SIDE, NO.1
79967-26060C0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

BLACK,TRIM1#

 2
79J67J - COVER, REAR NO.4 SEAT LEG SIDE, NO.2
79967-26070C0

GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,GRH322..(D,P)..(GCC,IDN)

BLACK,TRIM1#,RH SEAT

 1
79967-26130C0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79J67K - COVER, REAR NO.4 SEAT LEG SIDE, NO.3
79967-26080C0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

BLACK,TRIM1#

 4
79J67K - COVER, REAR NO.4 SEAT LEG SIDE, NO.3
79967-26080C0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

BLACK,TRIM1#

 4
79J67L - COVER, REAR NO.4 SEAT LEG SIDE, NO.4
79967-26090C0

GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,GRH322..(D,P)..(GCC,IDN)

BLACK,TRIM1#,RH SEAT

 1
79967-26100C0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79J67M - COVER, REAR NO.4 SEAT LEG SIDE, NO.5
79967-26120C0

GDH322..LHD..P..GEN;GDH322,GRH322..P..(GCC,NZ)

BLACK,TRIM1#,LH SEAT

 1
79967-26110C0

GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,GRH322..(D,P)..(GCC,IDN)

BLACK,TRIM1#,RH SEAT

 1
Common parts
90105-11058
90119-10A15
90167-40044
90176-10008
Linked diagrams
7152

(1907- )

Click highlighted areas on diagram

OTHER PARTS

diagram 71397G 71397H 72613H 72613H 72681E 9011910709 9011910709
Part # Description Qty Price
72613H - STRIKER, REAR SEAT LOCK
72613-26150

GDH304..TH;GDH303..LHD..H;GDH322..(D,N)..GEN;GDH301,328,GRH301,304,322..D,H,N

 4
72613H - STRIKER, REAR SEAT LOCK
72613-26150

GDH304..TH;GDH303..LHD..H;GDH322..(D,N)..GEN;GDH301,328,GRH301,304,322..D,H,N

 4
72681E - HOOK, REAR SEAT
72681-26050B0

GDH322..D..GEN;GRH322..RHD..D;GRH322..LHD..6F..D

REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),LT.GRAY,TRIM1#

 2
Common parts
90119-10709

ILLUST NO. 2 OF 2(1906- )VN ; (2006- )GDH322..LHD..D ; (2006- )GRH322..LHD..6F..D

Click highlighted areas on diagram

NO.1 SEAT:FOR 3 PERSONS

diagram 7152 7152 7152 7152 7152 7152 7152 7152 7152 7152 7152 7152 71701D 71701D 71701D 71833K 71834J 71834L 71844J 71H73A 71H74A 71H75F 71H75F 71H75Y 71H75Y 71H75Y 71H76F 72345Q 72525N 72525S 72526J 72551R 72552P 72995J 72995J 74690A 74690A 74690A 79106B 79280B 79290B 79290D 79967T 79967U 79967V 79967V 79967W 79967X 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9011910A15 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9017610008 9331516025 9331516025 9331516025
Part # Description Qty Price
71701D - BOARD SUB-ASSY, REAR SEAT BACK
71701-26090B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 9
71701D - BOARD SUB-ASSY, REAR SEAT BACK
71701-26090B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 9
71701D - BOARD SUB-ASSY, REAR SEAT BACK
71701-26090B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 9
71833K - COVER, NO.1 SEAT RECLINING, NO.1 RH OUTER
71833-26070B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71833-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71834J - COVER, NO.1 SEAT RECLINING, NO.1 LH OUTER
71834-26090B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
71834-26140B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71834L - COVER, REAR SEAT RECLINING, LH
71834-0L040B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71844J - COVER, REAR NO.1 SEAT RECLINING, NO.2 LH
71844-0L010B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H73A - SHIELD, REAR NO.1 SEAT CUSHION, LOWER
71873-36010B1

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
71873-36010B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H74A - SHIELD, NO.1 SEAT CUSHION, LOWER LH
71874-36010B1

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
71874-36010B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
71H75F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH S
71875-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71875-26070B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 2
71875-36010C1

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
71H75F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH S
71875-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71875-26070B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 2
71875-36010C1

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
71H75Y - CLIP, REAR SEAT RECLINING COVER
90467-0704923

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK

 8
71H75Y - CLIP, REAR SEAT RECLINING COVER
90467-0704923

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK

 8
71H75Y - CLIP, REAR SEAT RECLINING COVER
90467-0704923

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK

 8
71H76F - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH S
71876-26060B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
71876-36010C1

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
71876-26070B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 2
72345Q - CAP, SEAT STAND FRAME, LH NO.1
72345-36010

GDH301,GRH301..LHD..N;GDH321,322,328,GRH321,322..LHD..(GCC,GEN,PH)

 1
72525N - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH
72525-26130B0

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
72525-26130B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72525S - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, CENTER
72525-26140B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72526J - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH
72526-26060B0

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
72526-26060B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72551R - COVER, RECLINING HINGE, RH NO.1(FOR LH SEAT)
72551-26150B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72551-26110B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
72551-26150B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72552P - COVER, RECLINING HINGE, LH NO.1(FOR LH SEAT)
72552-26110B0

GDH322,GRH322..P..GCC

MD.GRAY,TRIM1#

 1
72552-26070B0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,MD.GRAY,TRIM1#

 1
72552-26110B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 1
72995J - COVER, REAR NO.1 SEAT CUSHION
72995-26140B0

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
72995-26140B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 2
72995J - COVER, REAR NO.1 SEAT CUSHION
72995-26140B0

GDH321..D;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH322..(D,P)..(GCC,NZ,TH)

MD.GRAY,TRIM1#

 1
72995-26140B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MD.GRAY,TRIM1#

 2
74690A - GRIP ASSY, SEAT ASSIST, REAR
74690-26010C0

GDH321..D..(GEN,NZ);GDH322,GRH322..P..GCC

BLACK,TRIM1#

 8
74690-26010C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 9
74690A - GRIP ASSY, SEAT ASSIST, REAR
74690-26010C0

GDH321..D..(GEN,NZ);GDH322,GRH322..P..GCC

BLACK,TRIM1#

 8
74690-26010C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 9
74690A - GRIP ASSY, SEAT ASSIST, REAR
74690-26010C0

GDH321..D..(GEN,NZ);GDH322,GRH322..P..GCC

BLACK,TRIM1#

 8
74690-26010C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 9
79106B - LEG SUB-ASSY, NO.1 SEAT, LH
79206-26230

GDH322,GRH322..P..GCC

 1
79206-26170

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79306-V3010

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79280B - SPRING ASSY, NO.1 SEAT BACK RH
79280-26190

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79290B - SPRING ASSY, NO.1 SEAT BACK LH
79290-26170

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79290D - SPRING ASSY, NO.1 SEAT BACK LH CENTER
79290-V3010

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79967T - COVER, REAR NO.1 SEAT LEG SIDE, NO.1
79967-26060C0

GDH322..D..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,GRH301,322..D,P

BLACK,TRIM1#

 1
79967U - COVER, REAR NO.1 SEAT LEG SIDE, NO.2
79967-26130C0

GDH322,GRH322..P..GCC

BLACK,TRIM1#,LH SEAT

 1
79967-26130C0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
79967V - COVER, REAR NO.1 SEAT LEG SIDE, NO.3
79967-26080C0

GDH322..D..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,GRH301,322..D,P

BLACK,TRIM1#

 2
79967V - COVER, REAR NO.1 SEAT LEG SIDE, NO.3
79967-26080C0

GDH322..D..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,GRH301,322..D,P

BLACK,TRIM1#

 2
79967W - COVER, REAR NO.1 SEAT LEG SIDE, NO.4
79967-26100C0

GDH322,GRH322..P..GCC

BLACK,TRIM1#,LH SEAT

 1
79967-26100C0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
79967-26100C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 1
79967X - COVER, REAR NO.1 SEAT LEG SIDE, NO.5
79967-26120C0

GDH322,GRH322..P..GCC

BLACK,TRIM1#,LH SEAT

 1
79967-26120C0

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,BLACK,TRIM1#

 1
79967-26120C0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 1
Common parts
90105-11058
90119-10A15
90167-40044
90176-10008
93315-16025
Linked diagrams
7152

ILLUST NO. 1 OF 2(1906- )VN ; (2006- )GDH322..LHD..D ; (2006- )GRH322..LHD..6F..D

Click highlighted areas on diagram

NO.1 SEAT:FOR 3 PERSONS

diagram 71930Q 71930Q 71930Q 71931G 71931G 71931G 71940M 71940M 71940M 79012A 79014B 79014B 79014B 79135D 79185A 79185A 79185A
Part # Description Qty Price
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71930-47020C4

GRH322..LHD..6F..D

W(LOCK),BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71930-47020C4

GRH322..LHD..6F..D

W(LOCK),BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71930-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71930-47020C4

GRH322..LHD..6F..D

W(LOCK),BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71931-47020C4

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71931-47020C4

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 33
71931-47020C4

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

BLACK,TRIM1#

 11
71931-47020C4

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),BLACK,TRIM1#

 13
71940M - HEADREST ASSY, REAR SEAT
71940-26620B1

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

MEDIUM GRAY,TRIM1#

 11
71940-26620B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#

 9
71940M - HEADREST ASSY, REAR SEAT
71940-26620B1

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

MEDIUM GRAY,TRIM1#

 11
71940-26620B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#

 9
71940M - HEADREST ASSY, REAR SEAT
71940-26620B1

GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC

MEDIUM GRAY,TRIM1#

 11
71940-26620B1

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),MEDIUM GRAY,TRIM1#

 9
79012A - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79022-26450B5

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79022-26430B5

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79032-V3010B0

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 1
79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79014-26420B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 3
79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79014-26420B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 3
79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79013-26K70B3

GDH322,GRH322..P..GCC

GRAY,TRIM1#

 1
79014-26420B3

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE,GRAY,TRIM1#

 1
79013-26K70B3

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT),GRAY,TRIM1#

 3
79135D - PAD, NO.1 SEAT CUSHION
79335-26150

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 1
79185A - PAD, NO.1 SEAT BACK, LH
79175-26470

GDH322,GRH322..P..GCC

 1
79185-26110

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 3
79185A - PAD, NO.1 SEAT BACK, LH
79175-26470

GDH322,GRH322..P..GCC

 1
79185-26110

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 3
79185A - PAD, NO.1 SEAT BACK, LH
79175-26470

GDH322,GRH322..P..GCC

 1
79185-26110

GDH322,GRH322..P..GCC

UNITED ARAB EMIRATES SPEC&REAR SEAT BELT-3 POINT TYPE

 1
79175-26470

GRH322..LHD..6F..D

BOLIVIA SPEC&REAR SEAT-4-ROW(FOR 13 PERSONS), W(SPACE-UP SEAT)

 3
