GRH321L-EDFQH (2019)
Toyota Hiace

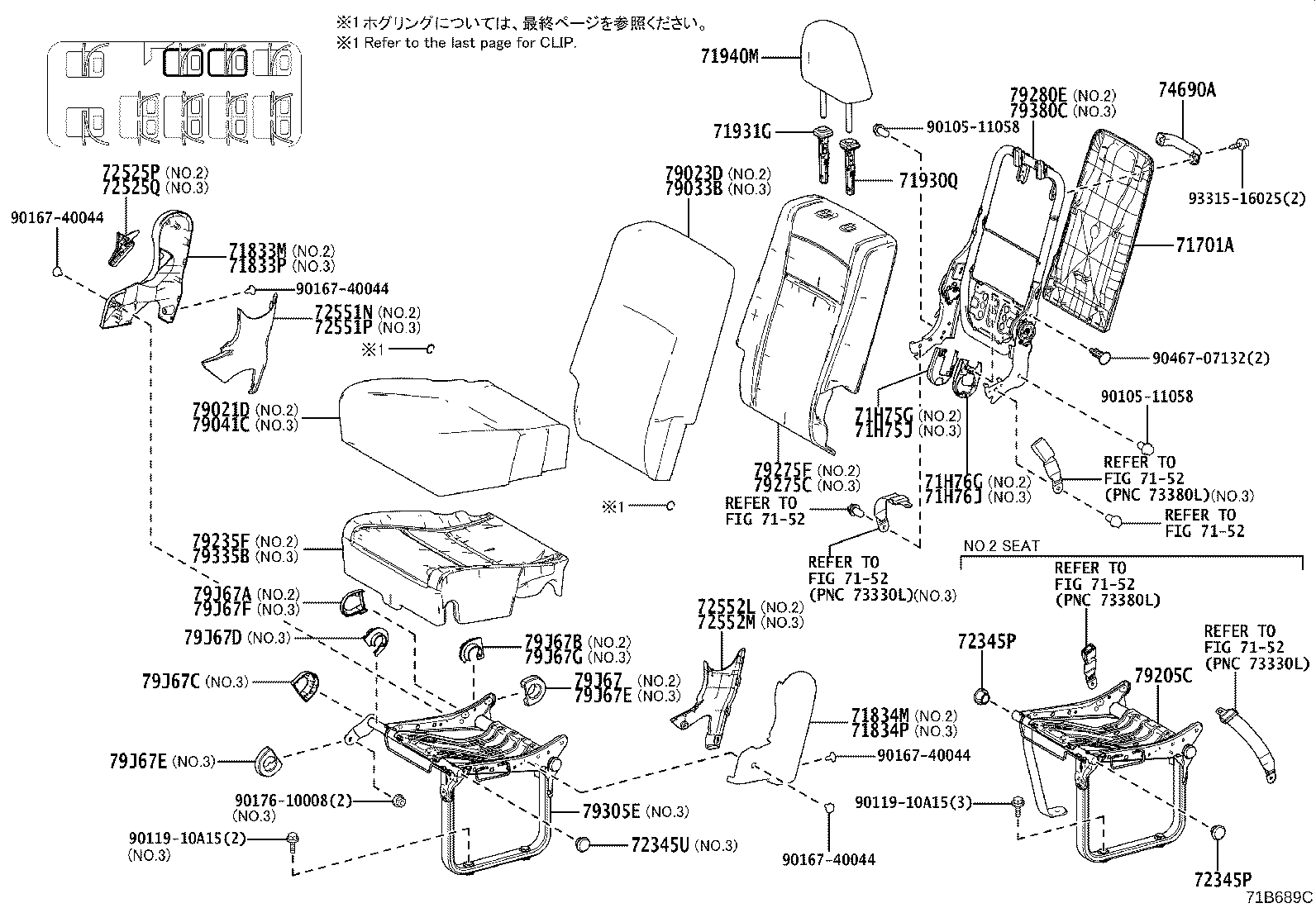

ILLUST NO. 4 OF 5(1903- )GDH322,328,GRH322..D,P..GCC,VN ; (2006- )GDH322..LHD..D ; (2006- )
NO.2-NO.3 SEAT:1 PERSONS W(*RRS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71701A - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26070E0 |
GDH322..6FC..Q..GEN;GDH301,GRH301,321..LHD..(N,Q) ORCHID BROWN,TRIM0#,TYPE B:REFER ILLUST. |
1 | ||
| 71833M - COVER, REAR NO.2 SEAT RECLINING, NO.1 RH(FOR RH SEAT) | ||||
| 71833-26040E0 |
GDH322..N;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 71833P - COVER, REAR NO.3 SEAT RECLINING, NO.1 RH(FOR RH SEAT) | ||||
| 71833-26040E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 71834M - COVER, REAR NO.2 SEAT RECLINING, NO.1 LH(FOR RH SEAT) | ||||
| 71834-26050E0 |
GDH322..Q..GCC;GRH322..LHD..(N,Q);GDH301,321,322,328,GRH301..LHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 71834P - COVER, REAR NO.3 SEAT RECLINING, NO.1 LH(FOR RH SEAT) | ||||
| 71834-26050E0 |
GDH321,322,328,GRH321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-47020L4 |
GRH321..Q;GDH322..6FC..Q..(ARL,GEN) ORCHID BROWN,TRIM0# |
30 | ||
| 71930-47020L4 |
GDH322..6FC..Q..(ARL,GEN);GDH301,GRH301,321..(N,Q)..GEN ORCHID BROWN,TRIM0# |
10 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47020L4 |
GRH321..Q;GDH322..6FC..Q..(ARL,GEN) ORCHID BROWN,TRIM0# |
30 | ||
| 71931-47020L4 |
GDH322..6FC..Q..(ARL,GEN);GDH301,GRH301,321..(N,Q)..GEN ORCHID BROWN,TRIM0# |
10 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-26610E1 |
GRH321..GEN;GDH322..6FC..Q..(ARL,GEN) ORCHID BROWN,TRIM0# |
10 | ||
| 71H76G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 RH S | ||||
| 71876-36010E0 |
GDH322..N;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 71H76J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.3 RH S | ||||
| 71876-36010E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 72345U - CAP, SEAT STAND FRAME, RH NO.3 | ||||
| 72345-36010 |
GDH321..D;GDH321..N..GEN;GDH322..Q..GCC;GDH322..(D,N)..GEN;GDH322..LHD..6F..P..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH328,GRH321,322..(D,N,Q)..(GCC,GEN,PH) |
1 | ||
| 72525P - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26130E0 |
GDH322..Q..GCC;GRH322..LHD..(N,Q);GDH301,321,322,328,GRH301..LHD..N ORCHID BROWN,TRIM0# |
2 | ||
| 72525-26130E0 |
GRH321..GEN;GDH322..6FC..Q..(ARL,GEN);GDH301,322,GRH301,322..RHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 72525Q - HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26130E0 |
GDH321,322,328,GRH321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
2 | ||
| 72551N - COVER, RECLINING HINGE, RH NO.2(FOR RH SEAT) | ||||
| 72551-26040E0 |
GDH322..N;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 72551P - COVER, RECLINING HINGE, RH NO.3(FOR RH SEAT) | ||||
| 72551-26040E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 72552L - COVER, RECLINING HINGE, LH NO.2(FOR RH SEAT) | ||||
| 72552-26030E0 |
GDH322..Q..GCC;GRH322..LHD..(N,Q);GDH301,321,322,328,GRH301..LHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 72552M - COVER, RECLINING HINGE, LH NO.3(FOR RH SEAT) | ||||
| 72552-26030E0 |
GDH321,322,328,GRH321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 74690A - GRIP ASSY, SEAT ASSIST, REAR | ||||
| 74690-26010C0 |
GDH322,GRH321..LHD..Q..GEN BLACK,TRIM0# |
7 | ||
| 79023D - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-26K00A2 |
GRH321..GEN REAR HEATER-WITH(FLOOR SET),FROMAGE,TRIM0# |
1 | ||
| 79033B - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79013-26K00A2 |
GRH321..GEN REAR HEATER-WITH(FLOOR SET),FROMAGE,TRIM0# |
1 | ||
| 79013-26K00A2 |
GRH321..GEN FROMAGE,TRIM0# |
2 | ||
| 79041C - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79011-26E90A4 |
GDH322,GRH321,322..LHD..Q FROMAGE,TRIM0# |
1 | ||
| 79275F - PAD, NO.2 SEAT BACK, RH | ||||
| 79175-26400 |
GRH321..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 79305E - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79105-26530 |
GDH322..LHD..P..GEN;GDH322,GRH322..LHD..(N,Q);GDH321,328,GRH321..GEN,PH |
1 | ||
| 79335B - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79135-26380 |
GDH321,328,GRH321..GEN,PH;GDH322,GRH322..LHD..(N,P,Q) |
1 | ||
| 79380C - SPRING ASSY, NO.3 SEAT BACK, RH | ||||
| 79280-26120 |
GRH321..GEN;GDH322..6FC..P..GEN |
2 | ||
| 79J67 - COVER, REAR NO.2 SEAT LEG SIDE, NO.3 | ||||
| 79967-26080C0 |
GDH322,GRH321..LHD..Q..GEN BLACK,TRIM0# |
2 | ||
| 79J67A - COVER, REAR NO.2 SEAT LEG SIDE, NO.4 | ||||
| 79967-26090C0 |
GDH322..N;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,RH SEAT |
1 | ||
| 79967-26100C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,LH SEAT |
1 | ||
| 79967-26100C0 |
GRH321..GEN BLACK,TRIM0# |
1 | ||
| 79967-26100C0 |
GRH321..GEN REAR HEATER-WITH(FLOOR SET),BLACK,TRIM0#,LH SEAT |
1 | ||
| 79J67B - COVER, REAR NO.2 SEAT LEG SIDE, NO.5 | ||||
| 79967-26120C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,LH SEAT |
1 | ||
| 79967-26110C0 |
GDH322..N;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,RH SEAT |
1 | ||
| 79967-26120C0 |
GRH321..GEN BLACK,TRIM0# |
1 | ||
| 79967-26120C0 |
GRH321..GEN REAR HEATER-WITH(FLOOR SET),BLACK,TRIM0#,LH SEAT |
1 | ||
| 79J67C - COVER, REAR NO.3 SEAT LEG SIDE, NO.1 | ||||
| 79967-26060C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
2 | ||
| 79J67D - COVER, REAR NO.3 SEAT LEG SIDE, NO.2 | ||||
| 79967-26070C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,RH SEAT |
1 | ||
| 79967-26130C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,LH SEAT |
1 | ||
| 79J67E - COVER, REAR NO.3 SEAT LEG SIDE, NO.3 | ||||
| 79967-26080C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
4 | ||
| 79J67E - COVER, REAR NO.3 SEAT LEG SIDE, NO.3 | ||||
| 79967-26080C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
4 | ||
| 79J67F - COVER, REAR NO.3 SEAT LEG SIDE, NO.4 | ||||
| 79967-26090C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,RH SEAT |
1 | ||
| 79967-26100C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,LH SEAT |
1 | ||
| 79J67G - COVER, REAR NO.3 SEAT LEG SIDE, NO.5 | ||||
| 79967-26110C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,RH SEAT |
1 | ||
| 79967-26120C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,LH SEAT |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90119-10A15 | ||||
| 90167-40044 | ||||
| 90176-10008 | ||||
| 93315-16025 | ||||
| Linked diagrams | ||||
| 7152 | ||||

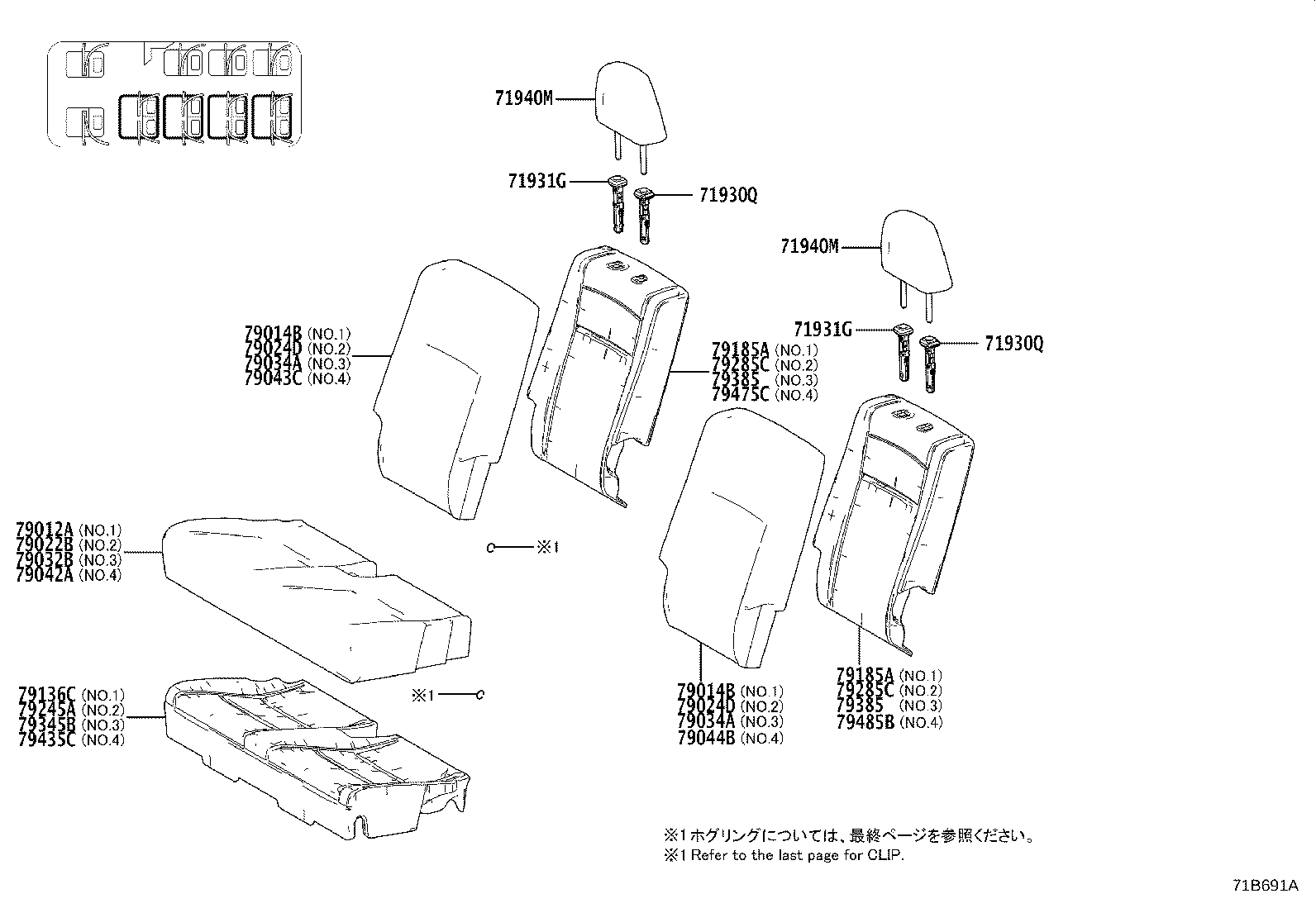

ILLUST NO. 1 OF 5(1903- )GDH322,328,GRH322..D,P..GCC,VN ; (2006- )GDH322..LHD..D ; (2006- )
NO.1-NO.4 SEAT:2 PERSONS W(*RRS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-47020L4 |
GRH321..Q;GDH322..6FC..Q..(ARL,GEN) ORCHID BROWN,TRIM0# |
30 | ||
| 71930-47020L4 |
GDH322..6FC..Q..(ARL,GEN);GDH301,GRH301,321..(N,Q)..GEN ORCHID BROWN,TRIM0# |
10 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-47020L4 |
GRH321..Q;GDH322..6FC..Q..(ARL,GEN) ORCHID BROWN,TRIM0# |
30 | ||
| 71930-47020L4 |
GDH322..6FC..Q..(ARL,GEN);GDH301,GRH301,321..(N,Q)..GEN ORCHID BROWN,TRIM0# |
10 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47020L4 |
GRH321..Q;GDH322..6FC..Q..(ARL,GEN) ORCHID BROWN,TRIM0# |
30 | ||
| 71931-47020L4 |
GDH322..6FC..Q..(ARL,GEN);GDH301,GRH301,321..(N,Q)..GEN ORCHID BROWN,TRIM0# |
10 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47020L4 |
GRH321..Q;GDH322..6FC..Q..(ARL,GEN) ORCHID BROWN,TRIM0# |
30 | ||
| 71931-47020L4 |
GDH322..6FC..Q..(ARL,GEN);GDH301,GRH301,321..(N,Q)..GEN ORCHID BROWN,TRIM0# |
10 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-26610E1 |
GRH321..GEN;GDH322..6FC..Q..(ARL,GEN) ORCHID BROWN,TRIM0# |
10 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-26610E1 |
GRH321..GEN;GDH322..6FC..Q..(ARL,GEN) ORCHID BROWN,TRIM0# |
10 | ||
| 79012A - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79022-26400A4 |
GDH321,322,328,GRH321,322..LHD..(N,Q) MEDIUM GRAY,TRIM0# |
1 | ||
| 79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-26380A2 |
GRH322..LHD..(N,Q);GDH322..Q..(ARL,GCC);GDH301,GRH301..RHD..N;GDH321,322,328,GRH321..LHD..(N,Q)..(GEN,PH) FROMAGE,TRIM0# |
1 | ||
| 79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-26380A2 |
GRH322..LHD..(N,Q);GDH322..Q..(ARL,GCC);GDH301,GRH301..RHD..N;GDH321,322,328,GRH321..LHD..(N,Q)..(GEN,PH) FROMAGE,TRIM0# |
1 | ||
| 79022B - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-26400A4 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) MEDIUM GRAY,TRIM0# |
1 | ||
| 79024D - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79014-26380A2 |
GRH322..LHD..(N,Q);GDH322..Q..(ARL,GCC);GDH322..LHD..(N,Q)..GEN;GDH301,321,328,GRH301,321..(N,Q)..(GEN,PH) FROMAGE,TRIM0# |
1 | ||
| 79024D - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79014-26380A2 |
GRH322..LHD..(N,Q);GDH322..Q..(ARL,GCC);GDH322..LHD..(N,Q)..GEN;GDH301,321,328,GRH301,321..(N,Q)..(GEN,PH) FROMAGE,TRIM0# |
1 | ||
| 79032B - COVER, SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79022-26400A4 |
GDH321,322,328,GRH321,322..LHD..(N,Q) MEDIUM GRAY,TRIM0# |
1 | ||
| 79034A - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79014-26380A2 |
GRH322..LHD..(N,Q);GDH322..Q..(ARL,GCC);GDH321,322,328,GRH321..LHD..(N,Q)..(GEN,PH) FROMAGE,TRIM0# |
1 | ||
| 79034A - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79014-26380A2 |
GRH322..LHD..(N,Q);GDH322..Q..(ARL,GCC);GDH321,322,328,GRH321..LHD..(N,Q)..(GEN,PH) FROMAGE,TRIM0# |
1 | ||
| 79042A - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79022-26420A4 |
GDH322,GRH321,322..LHD..Q MEDIUM GRAY,TRIM0# |
1 | ||
| 79043C - COVER SUB-ASSY, NO.4 SEAT BACK, RH(FOR LH SEAT) | ||||
| 79013-26K30A2 |
GDH322,GRH321,322..LHD..Q FROMAGE,TRIM0# |
1 | ||
| 79044B - COVER SUB-ASSY, NO.4 SEAT BACK, LH(FOR LH SEAT) | ||||
| 79014-26410A2 |
GDH322,GRH321,322..LHD..Q FROMAGE,TRIM0# |
1 | ||
| 79136C - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79235-26190 |
GDH321,328,GRH321..GEN,PH;GDH322,GRH322..LHD..(N,P,Q) |
1 | ||
| 79185A - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-26070 |
GRH322..LHD..(N,Q);GDH322..Q..(ARL,GCC);GDH301,GRH301..RHD..N;GDH321,322,328,GRH321..LHD..(N,Q)..(GEN,PH) |
1 | ||
| 79185A - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-26070 |
GRH322..LHD..(N,Q);GDH322..Q..(ARL,GCC);GDH301,GRH301..RHD..N;GDH321,322,328,GRH321..LHD..(N,Q)..(GEN,PH) |
1 | ||
| 79245A - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79235-26190 |
GDH321,328,GRH321..GEN,PH;GDH301,322,GRH301,322..LHD..(N,P,Q) |
1 | ||
| 79285C - PAD, NO.2 SEAT BACK, LH | ||||
| 79185-26070 |
GRH322..LHD..(N,Q);GDH322..Q..(ARL,GCC);GDH322..LHD..(N,Q)..GEN;GDH301,321,328,GRH301,321..(N,Q)..(GEN,PH) |
1 | ||
| 79285C - PAD, NO.2 SEAT BACK, LH | ||||
| 79185-26070 |
GRH322..LHD..(N,Q);GDH322..Q..(ARL,GCC);GDH322..LHD..(N,Q)..GEN;GDH301,321,328,GRH301,321..(N,Q)..(GEN,PH) |
1 | ||
| 79345B - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79235-26190 |
GDH321,328,GRH321..GEN,PH;GDH322,GRH322..LHD..(N,P,Q) |
1 | ||
| 79385 - PAD, NO.3 SEAT BACK, LH | ||||
| 79185-26070 |
GRH322..LHD..(N,Q);GDH322..Q..(ARL,GCC);GDH321,322,328,GRH321..LHD..(N,Q)..(GEN,PH) |
1 | ||
| 79385 - PAD, NO.3 SEAT BACK, LH | ||||
| 79185-26070 |
GRH322..LHD..(N,Q);GDH322..Q..(ARL,GCC);GDH321,322,328,GRH321..LHD..(N,Q)..(GEN,PH) |
1 | ||
| 79435C - PAD, NO.4 SEAT CUSHION, LH | ||||
| 79235-26190 |
GDH322,GRH321,322..LHD..(P,Q) |
1 | ||
| 79475C - PAD, NO.4 SEAT BACK, RH(FOR LH SEAT) | ||||
| 79175-26430 |
GDH322,GRH321,322..LHD..Q |
1 | ||
| 79485B - PAD, NO.4 SEAT BACK, LH(FOR LH SEAT) | ||||
| 79185-26100 |
GDH322,GRH321,322..LHD..Q |
1 | ||

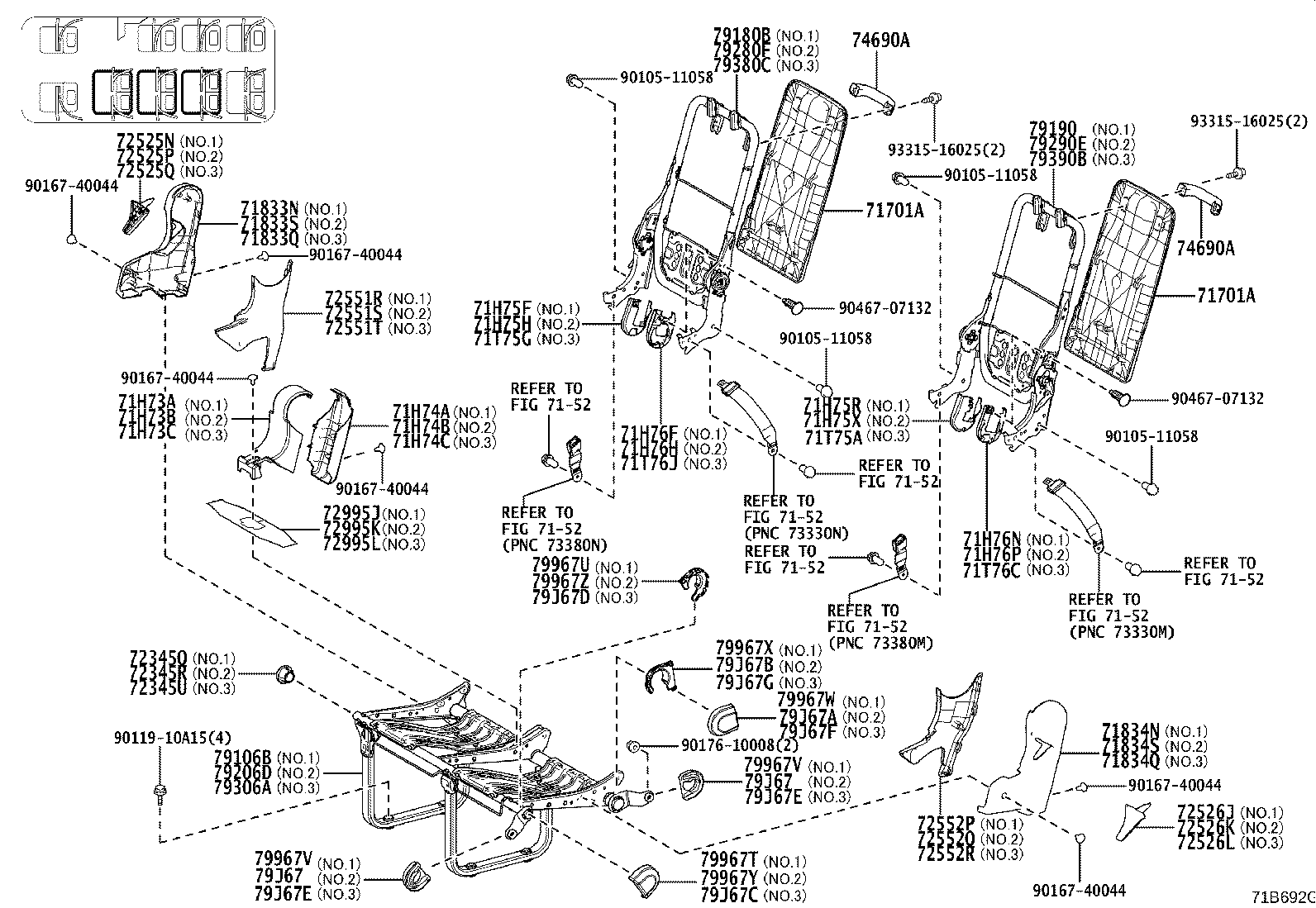

ILLUST NO. 2 OF 5(1903- )GDH322,328,GRH322..D,P..GCC,VN ; (2006- )GDH322..LHD..D ; (2006- )
NO.1-NO.3 SEAT:2 PERSONS W(*RRS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71701A - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26070E0 |
GDH322..6FC..Q..GEN;GDH301,GRH301,321..LHD..(N,Q) ORCHID BROWN,TRIM0#,TYPE B:REFER ILLUST. |
1 | ||
| 71701A - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26070E0 |
GDH322..6FC..Q..GEN;GDH301,GRH301,321..LHD..(N,Q) ORCHID BROWN,TRIM0#,TYPE B:REFER ILLUST. |
1 | ||
| 71833N - COVER, REAR NO.2 SEAT RECLINING, NO.1 RH(FOR LH SEAT) | ||||
| 71833-26070E0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 71833Q - COVER, REAR NO.3 SEAT RECLINING, NO.1 RH(FOR LH SEAT) | ||||
| 71833-26070E0 |
GDH321,322,328,GRH321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 71833S - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-26050E0 |
GRH321..GEN ORCHID BROWN,TRIM0#,RH SEAT |
1 | ||
| 71833-26070E0 |
GRH321..GEN REAR HEATER-WITH(FLOOR SET),ORCHID BROWN,TRIM0# |
1 | ||
| 71834N - COVER, REAR NO.2 SEAT RECLINING, NO.1 LH(FOR LH SEAT) | ||||
| 71834-26090E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 71834Q - COVER, REAR NO.3 SEAT RECLINING, NO.1 LH(FOR LH SEAT) | ||||
| 71834-26090E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 71834S - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-26070E0 |
GRH321..GEN ORCHID BROWN,TRIM0#,RH SEAT |
1 | ||
| 71834-26090E0 |
GRH321..GEN REAR HEATER-WITH(FLOOR SET),ORCHID BROWN,TRIM0# |
1 | ||
| 71H73A - SHIELD, REAR NO.1 SEAT CUSHION, LOWER | ||||
| 71873-36010E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 71H73B - SHIELD, REAR NO.2 SEAT CUSHION, LOWER | ||||
| 71873-36010E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 71H73C - SHIELD, REAR NO.3 SEAT CUSHION, LOWER | ||||
| 71873-36010E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 71H74A - SHIELD, NO.1 SEAT CUSHION, LOWER LH | ||||
| 71874-36010E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 71H74B - SHIELD, NO.2 SEAT CUSHION, LOWER LH | ||||
| 71874-36010E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 71H74C - SHIELD, NO.3 SEAT CUSHION, LOWER LH | ||||
| 71874-36010E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 71H75F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH S | ||||
| 71875-36010E0 |
GDH321,322,328,GRH321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 71H75H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 LH S | ||||
| 71875-36010E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 71H76F - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH S | ||||
| 71876-36010E0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 71H76H - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH S | ||||
| 71876-36010E0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 72345Q - CAP, SEAT STAND FRAME, LH NO.1 | ||||
| 72345-36010 |
GDH301,GRH301..LHD..N;GDH321,322,328,GRH321,322..LHD..(GCC,GEN,PH) |
1 | ||
| 72345R - CAP, SEAT STAND FRAME, LH NO.2 | ||||
| 72345-36010 |
GDH322..N;GRH322..N,P,Q;GDH321..GEN,NZ;GDH322..ARL,GCC;GDH322,GRH322..LHD..(D,P,Q)..GEN;GDH301,328,GRH301,321..GEN,PH,TH |
1 | ||
| 72345U - CAP, SEAT STAND FRAME, RH NO.3 | ||||
| 72345-36010 |
GDH321..D;GDH321..N..GEN;GDH322..Q..GCC;GDH322..(D,N)..GEN;GDH322..LHD..6F..P..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH328,GRH321,322..(D,N,Q)..(GCC,GEN,PH) |
1 | ||
| 72525N - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26130E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 72525P - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26130E0 |
GDH322..Q..GCC;GRH322..LHD..(N,Q);GDH301,321,322,328,GRH301..LHD..N ORCHID BROWN,TRIM0# |
2 | ||
| 72525-26130E0 |
GRH321..GEN;GDH322..6FC..Q..(ARL,GEN);GDH301,322,GRH301,322..RHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 72525Q - HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26130E0 |
GDH321,322,328,GRH321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
2 | ||
| 72526J - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26060E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 72526K - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26060E0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 72551R - COVER, RECLINING HINGE, RH NO.1(FOR LH SEAT) | ||||
| 72551-26110E0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 72551S - COVER, RECLINING HINGE, RH NO.2(FOR LH SEAT) | ||||
| 72551-26110E0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 72551T - COVER, RECLINING HINGE, RH NO.3(FOR LH SEAT) | ||||
| 72551-26110E0 |
GDH321,322,328,GRH321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 72552P - COVER, RECLINING HINGE, LH NO.1(FOR LH SEAT) | ||||
| 72552-26070E0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 72552Q - COVER, RECLINING HINGE, LH NO.2(FOR LH SEAT) | ||||
| 72552-26070E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 72552R - COVER, RECLINING HINGE, LH NO.3(FOR LH SEAT) | ||||
| 72552-26070E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 72995J - COVER, REAR NO.1 SEAT CUSHION | ||||
| 72995-26140E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 72995K - COVER, REAR NO.2 SEAT CUSHION | ||||
| 72995-26140E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 72995L - COVER, REAR NO.3 SEAT CUSHION | ||||
| 72995-26140E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 74690A - GRIP ASSY, SEAT ASSIST, REAR | ||||
| 74690-26010C0 |
GDH322,GRH321..LHD..Q..GEN BLACK,TRIM0# |
7 | ||
| 74690A - GRIP ASSY, SEAT ASSIST, REAR | ||||
| 74690-26010C0 |
GDH322,GRH321..LHD..Q..GEN BLACK,TRIM0# |
7 | ||
| 79106B - LEG SUB-ASSY, NO.1 SEAT, LH | ||||
| 79206-26210 |
GDH321,322,328,GRH321,322..LHD..(N,Q) |
1 | ||
| 79180B - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79280-26120 |
GDH322,GRH322..RHD..N;GDH322..LHD..(P,Q)..GEN;GDH321,GRH321..6F..(D,Q) |
1 | ||
| 79190 - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79290-26130 |
GRH322..LHD..(N,Q);GDH322..LHD..6FC..N;GDH321,322..LHD..6F..(N,P)..GEN;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH321,GRH321..(D,Q)..(GEN,IDN,NZ);GDH301,322,328..(D,N,Q)..(GCC,NZ,PH) |
1 | ||
| 79206D - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-26170 |
GDH322..Q..GCC;GDH322..LHD..N;GDH321,328,GRH321,322..LHD..(N,Q) REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 79206-26210 |
GDH322..Q..GCC;GDH322..LHD..N;GDH321,328,GRH321,322..LHD..(N,Q) |
1 | ||
| 79280F - SPRING ASSY, NO.2 SEAT BACK RH | ||||
| 79280-26120 |
GDH321..D..GEN;GDH322..LHD..(P,Q)..GEN;GDH301,GRH301,321..LHD..(N,Q) |
1 | ||
| 79290E - SPRING ASSY, NO.2 SEAT BACK LH | ||||
| 79290-26130 |
GDH301..TH;GDH322..Q..GCC;GDH301,GRH301..N;GRH322..LHD..(N,Q);GDH322..LHD..6FC..N;GDH322..LHD..6F..(N,P)..GEN;GDH321,328,GRH321..GEN,NZ,PH;GDH322..6FC..(P,Q)..(ARL,GEN) |
1 | ||
| 79306A - LEG SUB-ASSY, NO.3 SEAT, LH | ||||
| 79206-26200 |
GDH322..LHD..P..GEN;GDH322,GRH322..LHD..(N,Q);GDH321,328,GRH321..GEN,PH |
1 | ||
| 79380C - SPRING ASSY, NO.3 SEAT BACK, RH | ||||
| 79280-26120 |
GRH321..GEN;GDH322..6FC..P..GEN |
2 | ||
| 79390B - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79290-26130 |
GDH322..Q..GCC;GRH322..LHD..(N,Q);GDH322..LHD..6FC..N;GDH322..LHD..6F..(N,P)..GEN;GDH321,328,GRH321..GEN,NZ,PH;GDH322..6FC..(P,Q)..(ARL,GEN,NZ) |
1 | ||
| 79967T - COVER, REAR NO.1 SEAT LEG SIDE, NO.1 | ||||
| 79967-26060C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
1 | ||
| 79967-26060C0 |
GDH322..D..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,GRH301,322..D,P BLACK,TRIM1# |
1 | ||
| 79967U - COVER, REAR NO.1 SEAT LEG SIDE, NO.2 | ||||
| 79967-26130C0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) BLACK,TRIM0# |
1 | ||
| 79967-26130C0 |
GDH301,321,322,GRH301,322..LHD..(D,P)..GEN BLACK,TRIM1# |
1 | ||
| 79967V - COVER, REAR NO.1 SEAT LEG SIDE, NO.3 | ||||
| 79967-26080C0 |
GDH322..D..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,GRH301,322..D,P BLACK,TRIM1# |
2 | ||
| 79967-26080C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
2 | ||
| 79967V - COVER, REAR NO.1 SEAT LEG SIDE, NO.3 | ||||
| 79967-26080C0 |
GDH322..D..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,GRH301,322..D,P BLACK,TRIM1# |
2 | ||
| 79967-26080C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
2 | ||
| 79967W - COVER, REAR NO.1 SEAT LEG SIDE, NO.4 | ||||
| 79967-26100C0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) BLACK,TRIM0# |
1 | ||
| 79967X - COVER, REAR NO.1 SEAT LEG SIDE, NO.5 | ||||
| 79967-26120C0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) BLACK,TRIM0# |
1 | ||
| 79967Y - COVER, REAR NO.2 SEAT LEG SIDE, NO.1 | ||||
| 79967-26060C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
1 | ||
| 79967Z - COVER, REAR NO.2 SEAT LEG SIDE, NO.2 | ||||
| 79967-26130C0 |
GDH322,GRH322..LHD..Q;GDH301,321,GRH301..N..GEN BLACK,TRIM0#,LH SEAT |
1 | ||
| 79967-26130C0 |
GRH322..P;GDH322..LHD..6F..P;GDH322..6FC..P..GCC;GDH301,321,GRH301..D..(GEN,TH) BLACK,TRIM1#,LH SEAT |
1 | ||
| 79967-26130C0 |
GDH322..LHD..N;GDH328,GRH321,322..LHD..(N,Q)..(GEN,PH) BLACK,TRIM0# |
1 | ||
| 79967-26130C0 |
GDH322..LHD..N;GDH328,GRH321,322..LHD..(N,Q)..(GEN,PH) REAR HEATER-WITH(FLOOR SET),BLACK,TRIM0#,LH SEAT |
1 | ||
| 79J67 - COVER, REAR NO.2 SEAT LEG SIDE, NO.3 | ||||
| 79967-26080C0 |
GDH322,GRH321..LHD..Q..GEN BLACK,TRIM0# |
2 | ||
| 79J67 - COVER, REAR NO.2 SEAT LEG SIDE, NO.3 | ||||
| 79967-26080C0 |
GDH322,GRH321..LHD..Q..GEN BLACK,TRIM0# |
2 | ||
| 79J67A - COVER, REAR NO.2 SEAT LEG SIDE, NO.4 | ||||
| 79967-26090C0 |
GDH322..N;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,RH SEAT |
1 | ||
| 79967-26100C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,LH SEAT |
1 | ||
| 79967-26100C0 |
GRH321..GEN BLACK,TRIM0# |
1 | ||
| 79967-26100C0 |
GRH321..GEN REAR HEATER-WITH(FLOOR SET),BLACK,TRIM0#,LH SEAT |
1 | ||
| 79J67B - COVER, REAR NO.2 SEAT LEG SIDE, NO.5 | ||||
| 79967-26120C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,LH SEAT |
1 | ||
| 79967-26110C0 |
GDH322..N;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,RH SEAT |
1 | ||
| 79967-26120C0 |
GRH321..GEN BLACK,TRIM0# |
1 | ||
| 79967-26120C0 |
GRH321..GEN REAR HEATER-WITH(FLOOR SET),BLACK,TRIM0#,LH SEAT |
1 | ||
| 79J67C - COVER, REAR NO.3 SEAT LEG SIDE, NO.1 | ||||
| 79967-26060C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
2 | ||
| 79J67D - COVER, REAR NO.3 SEAT LEG SIDE, NO.2 | ||||
| 79967-26070C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,RH SEAT |
1 | ||
| 79967-26130C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,LH SEAT |
1 | ||
| 79J67E - COVER, REAR NO.3 SEAT LEG SIDE, NO.3 | ||||
| 79967-26080C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
4 | ||
| 79J67E - COVER, REAR NO.3 SEAT LEG SIDE, NO.3 | ||||
| 79967-26080C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
4 | ||
| 79J67F - COVER, REAR NO.3 SEAT LEG SIDE, NO.4 | ||||
| 79967-26090C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,RH SEAT |
1 | ||
| 79967-26100C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,LH SEAT |
1 | ||
| 79J67G - COVER, REAR NO.3 SEAT LEG SIDE, NO.5 | ||||
| 79967-26110C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,RH SEAT |
1 | ||
| 79967-26120C0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0#,LH SEAT |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90119-10A15 | ||||
| 90167-40044 | ||||
| 90176-10008 | ||||
| 93315-16025 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1907- )
OTHER PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10709 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
