GRH321L-EDFQH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )GDH300,301,32#,GRH300,301,32#..LHD..SG,SP ; (2006-2107)GDH301..LHD..6FC.

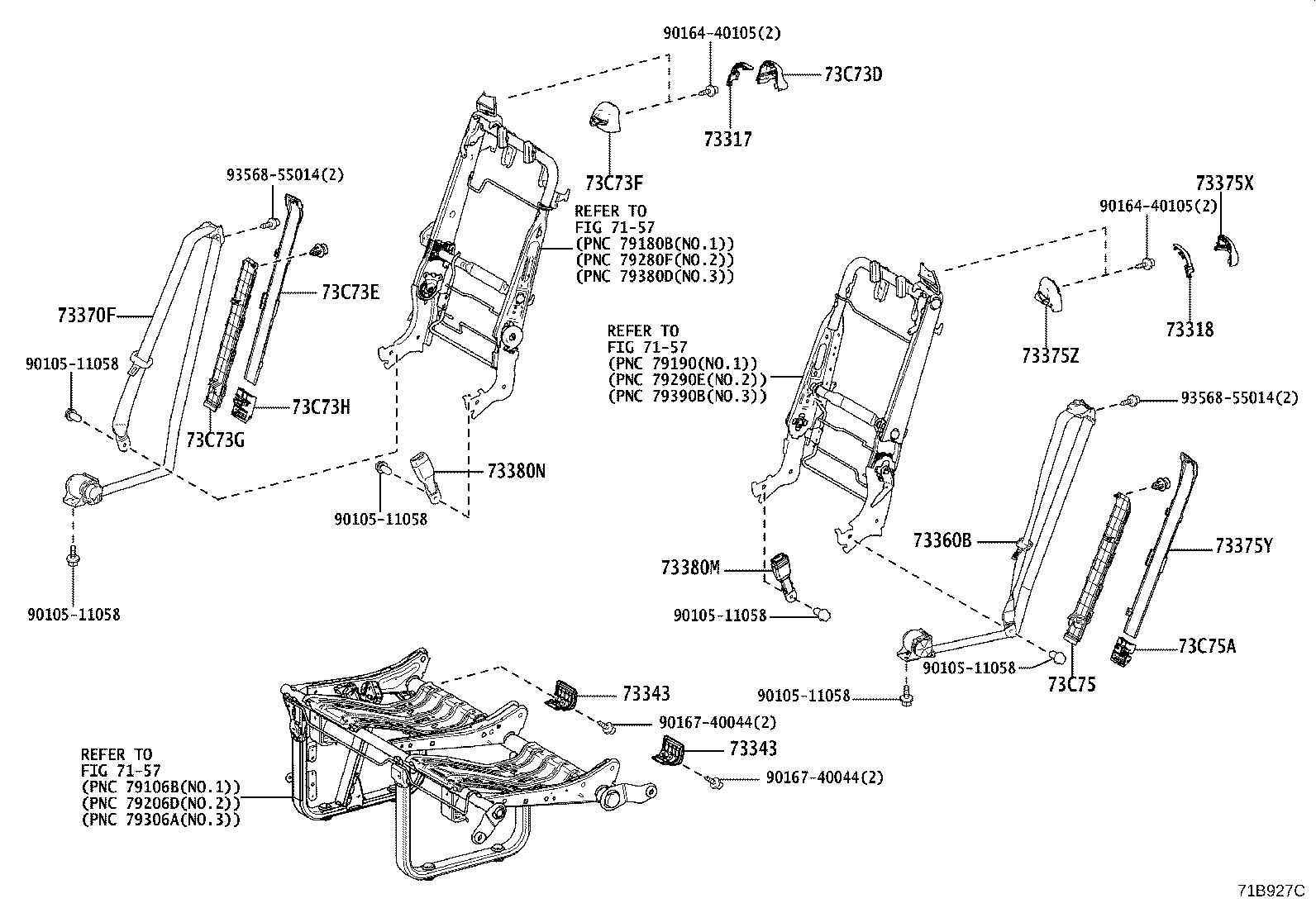

Click highlighted areas on diagram

NO.1-NO.3 SEAT:FOR 2 PERSONS W(*45)

diagram 7157 7157 7157 73317 73318 73343 73343 73360B 73370F 73375X 73375Y 73375Z 73380M 73380N 73C73D 73C73E 73C73F 73C73G 73C73H 73C75 73C75A 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9016440105 9016440105 9016740044 9016740044 9356855014 9356855014
Part # Description Qty Price
73317 - CAP, REAR SEAT BELT, RH
73317-26010A0

GDH321,322,328,GRH321,322..LHD..(N,Q)..(GEN,PH)

FROMAGE,TRIM0#

 5
73318 - CAP, REAR SEAT BELT, LH
73318-26010A0

GDH322,GRH322..LHD..(N,Q);GDH301,321,328,GRH301,321..(N,Q)..(GEN,PH)

FROMAGE,TRIM0#

 3
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-26020C0

GDH322..6FC..Q..GEN;GDH321,GRH321..(N,Q)..GEN

BLACK,TRIM0#

 4
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-26020C0

GDH322..6FC..Q..GEN;GDH321,GRH321..(N,Q)..GEN

BLACK,TRIM0#

 4
73360B - BELT ASSY, REAR SEAT, OUTER
73350-26260C0

GDH322,GRH321,322..LHD..Q;GDH301,321,GRH301..LHD..N

BLACK,TRIM0#

 1
73370F - BELT ASSY, REAR SEAT, OUTER LH(FOR 2 PERSONS)
73370-26610C0

GDH322,GRH321,322..LHD..Q;GDH301,321,GRH301..LHD..N

BLACK,TRIM0#

 1
73375X - COVER, REAR SEAT SHOULDER BELT, LH NO.1
73375-26050C0

GDH322,GRH322..LHD..(N,Q);GDH301,321,328,GRH301,321..(N,Q)..(GEN,PH)

BLACK,TRIM0#

 3
73375Y - COVER, REAR SEAT SHOULDER BELT, LH NO.2
73375-26080

GDH301..TH;GDH301,GRH301..N;GDH322..LHD..P..GEN;GDH322,GRH322..LHD..(N,Q);GDH321,328,GRH321..GEN,PH

 3
73375Z - COVER, REAR SEAT SHOULDER BELT, LH NO.3
73375-26030C0

GDH322,GRH322..LHD..(N,Q);GDH301,321,328,GRH301,321..(N,Q)..(GEN,PH)

BLACK,TRIM0#

 3
73380M - BELT ASSY, REAR SEAT, INNER CENTER(FOR 2 PERSONS)
73380-26800C0

GRH321,322..LHD..Q;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,GRH301..LHD..N

BLACK,TRIM0#

 2
73380N - BELT ASSY, REAR SEAT, INNER(FOR 2 PERSONS)
73380-26790C0

GRH321,322..LHD..Q;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC)

BLACK,TRIM0#

 2
73C73D - COVER, REAR SEAT SHOULDER BELT, RH NO.1
73373-26050C0

GDH321,322,328,GRH321,322..LHD..(N,Q)..(GEN,PH)

BLACK,TRIM0#

 5
73C73E - COVER, REAR SEAT SHOULDER BELT, RH NO.2
73373-26070

GDH322..6FC..P..GEN;GDH321,328,GRH321..GEN,PH;GDH322,GRH322..LHD..(N,Q)..GEN

 5
73C73F - COVER, REAR SEAT SHOULDER BELT, RH NO.3
73373-26040C0

GDH321,322,328,GRH321,322..LHD..(N,Q)..(GEN,PH)

BLACK,TRIM0#

 5
73C73G - COVER, REAR SEAT SHOULDER BELT, RH NO.4
73373-36010

GDH322..6FC..P..GEN;GDH321,328,GRH321..GEN,PH;GDH322,GRH322..LHD..(N,Q)..GEN

 5
73C73H - COVER, REAR SEAT SHOULDER BELT HOLE, RH
73373-36020

GDH322..6FC..P..GEN;GDH321,328,GRH321..GEN,PH;GDH322,GRH322..LHD..(N,Q)..GEN

 5
73C75 - COVER, REAR SEAT SHOULDER BELT, LH NO.4
73375-36010

GDH301..TH;GDH301,GRH301..N;GDH322..LHD..P..GEN;GDH322,GRH322..LHD..(N,Q);GDH321,328,GRH321..GEN,PH

 3
73C75A - COVER, REAR SEAT SHOULDER BELT HOLE, LH
73375-36020

GDH301..TH;GDH301,GRH301..N;GDH322..LHD..P..GEN;GDH322,GRH322..LHD..(N,Q);GDH321,328,GRH321..GEN,PH

 3
Common parts
90105-11058
90164-40105
90167-40044
93568-55014
Linked diagrams
7157
