GRH321L-EDFQH (2019)
Toyota Hiace

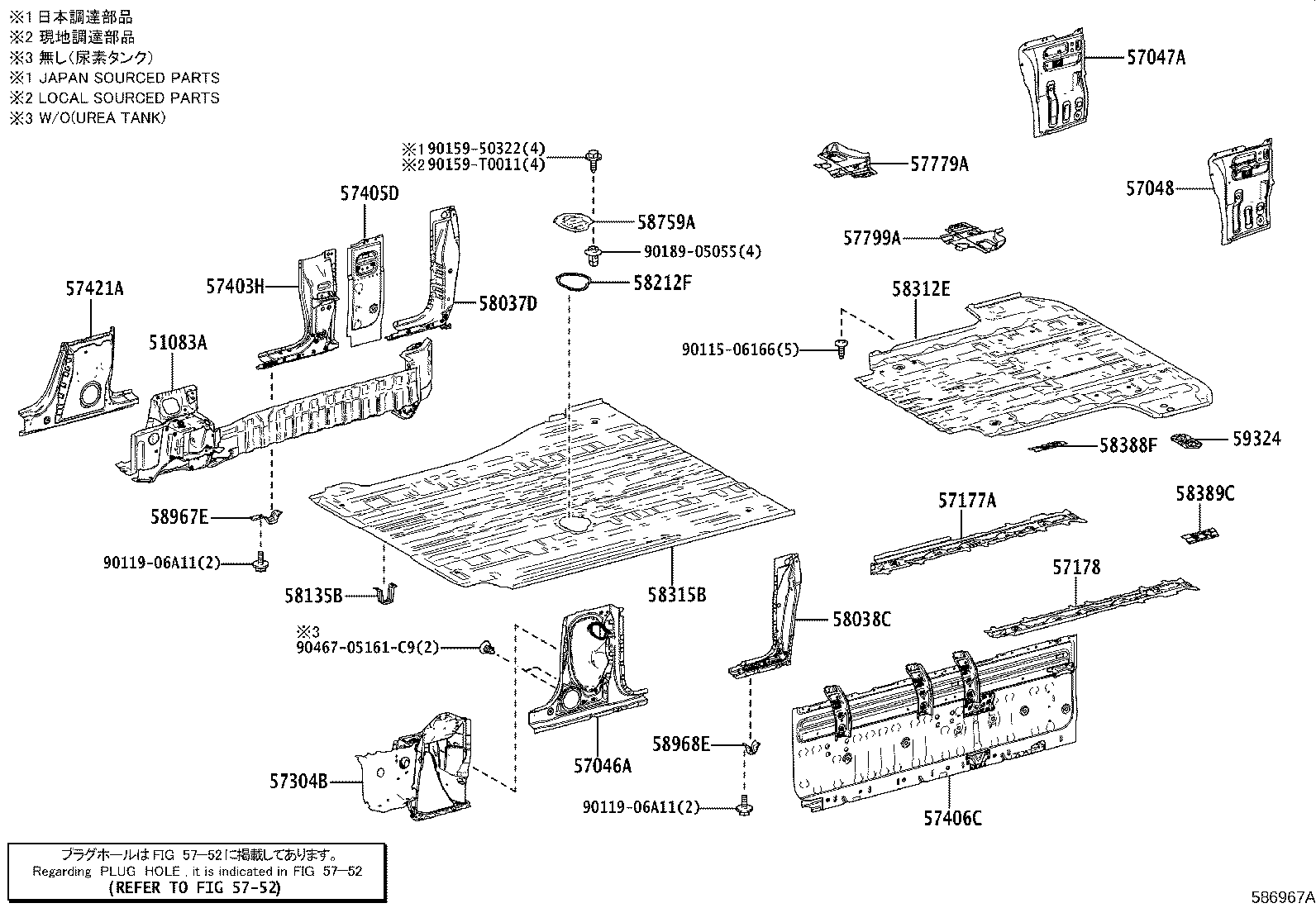

ILLUST NO. 1 OF 2(1903- )GRH321..GEN
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51083A - STEP SUB-ASSY, RH | ||||
| 51083-26500 |
GDH322..LHD..D..GEN;GRH321,322..LHD..(D,Q)..GEN |
1 | ||
| 51083-26490 |
GDH322..LHD..D..GEN;GRH321,322..LHD..(D,Q)..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 51083-26630 |
GRH321,322..LHD..(D,Q)..GEN *POSD & *ECS(*SD)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 51083-26640 |
GRH321,322..LHD..(D,Q)..GEN *POSD & *ECS(*SD) |
1 | ||
| 57046A - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-26430 |
GDH322..GCC;GDH328,GRH321..6F;GDH322..6FC..P..GEN;GRH322..LHD..(N,P,Q);GDH301,321,322,GRH301..LHD..(N,Q)..GEN |
1 | ||
| 57047A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH | ||||
| 57047-26410 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,NZ);GDH322,GRH322..(D,P)..(GCC,TH) |
1 | ||
| 57047-26350 |
GDH321..N..GEN;GRH321,322..LHD..Q;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC) |
1 | ||
| 57048 - RAIL SUB-ASSY, FLOOR SIDE, REAR LH | ||||
| 57048-26420 |
GRH300..GCC;GRH300..4D..GEN;GDH322,GRH322..(D,P)..(ARL,GCC,TH);GDH300,320,321,GRH320..D..(GCC,GEN,IDN,NZ,TH) |
1 | ||
| 57048-26360 |
GDH321..N..GEN;GDH322,GRH321,322..LHD..Q |
1 | ||
| 57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH | ||||
| 57177-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,328,GRH301,321,322..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH | ||||
| 57178-26020 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,328,GRH301,321,322..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 57304B - OUTRIGGER SUB-ASSY, NO.2 LH | ||||
| 57304-26260 |
GDH322..LHD..6F;GDH322..6FC..GCC;GDH322..LHD..6FC..(D,N);GDH300,301,320,321,328,GRH300,301,32#..LHD..4D |
1 | ||
| 57403H - RAIL SUB-ASSY, FLOOR SIDE, RH | ||||
| 57403-26100 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 57405D - RAIL SUB-ASSY, FLOOR SIDE, CENTER RH | ||||
| 57405-26F90 |
GDH321,322,328,GRH321,322..LHD..(N,Q) |
1 | ||
| 57406C - RAIL SUB-ASSY, FLOOR SIDE, CENTER LH | ||||
| 57406-26850 |
GDH321,322,328,GRH321,322..LHD..(N,Q) |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-26250 |
GDH322..GCC;GDH322..6FC..P..GEN;GDH304,328..PH,TH,VN;GRH322..LHD..(N,P,Q);GDH321,GRH304,321..(H,N,Q)..GEN;GDH301,303,322,GRH301..LHD..(H,N,Q)..GEN |
1 | ||
| 57421-26290 |
GDH322..GCC;GRH322..LHD..(N,P,Q);GDH301,321,322,328,GRH301,321..LHD..(N,Q)..(GEN,PH) *POSD & *ECS(*SD) |
1 | ||
| 57779A - GUSSET, REAR FLOOR CROSSMEMBER, B | ||||
| 57779-26100 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,328,GRH301,321,322..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 57799A - GUSSET, REAR FLOOR CROSSMEMBER, A | ||||
| 57799-26070 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,328,GRH301,321,322..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 58037D - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH | ||||
| 58037-26050 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 58038C - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH | ||||
| 58038-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 58135B - BRACKET, FLOOR INSULATOR SUPPORT | ||||
| 58135-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 58212F - SEAL, CENTER FLOOR | ||||
| 58212-26010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26650 |
GDH322..GCC,NZ,TH;GRH321,322..LHD..(P,Q);GDH322..LHD..(P,Q)..GEN |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26J80 |
GRH321..GEN *POSD & *ECS(*SD) |
1 | ||
| 58315-26J70 |
GRH321..GEN *POSD & *ECS(*SD)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 58315-26J90 |
GRH321..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 58315-26P80 |
GRH321..GEN |
1 | ||
| 58388F - PLATE, FLOOR, REAR RH | ||||
| 58388-26040 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 58389C - PLATE, FLOOR, REAR LH | ||||
| 58389-26010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58967E - BRACKET, JACK SUPPORT, NO.1 | ||||
| 58967-26110 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 58968E - BRACKET, JACK SUPPORT, NO.2 | ||||
| 58967-26090 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH301,303,304,328,GRH301,304;GDH306,320,321,322,GRH32#..LHD..SG |
1 | ||
| 59324 - BASE, SUB FLOOR LEG, NO.2 | ||||
| 59324-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,328,GRH301,321,322..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90119-06A11 | ||||
| 90159-50322 | ||||
| 90159-T0011 | ||||
| 90189-05055 | ||||
| 90467-05161C9 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 2(1903- )LHD..P,Q ; (1903- )GDH321..D..GEN
FLOOR MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-26040 |
GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51096-26020 |
GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 51564 - BRACKET, CENTER BEARING, REAR | ||||
| 51564-26010 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 51569A - GUARD, PROPELLER SHAFT | ||||
| 51569-26100 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 51569K - GUARD, PROPELLER SHAFT | ||||
| 51569-26110 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 52295A - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-V3010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH322..ARL,GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 52295-26030 |
GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32# |
1 | ||
| 52296A - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-26020 |
GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32# |
1 | ||
| 52296-V3010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH322..ARL,GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26770 |
GDH301,321,322,328,GRH301,322..N..(GEN,PH) |
1 | ||
| 57023-26730 |
GDH322..D..GEN;GDH301,321,328,GRH301,322..D..(GEN,NZ,TH,VN) |
1 | ||
| 57023-26780 |
GRH321,322..LHD..Q;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC) |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26740 |
GDH322..D..GEN;GDH301,321,328,GRH301,322..D..(GEN,NZ,TH,VN) |
1 | ||
| 57024-26780 |
GDH301,321,322,328,GRH301,322..N..(GEN,PH) |
1 | ||
| 57024-26790 |
GRH321,322..LHD..Q;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC) |
1 | ||
| 57041 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH | ||||
| 57041-26240 |
GRH320..SP..(GCC,GEN);GRH32#..LHD..SG..(D,Q)..GEN |
1 | ||
| 57042 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH | ||||
| 57042-26230 |
GDH321,322,328,GRH321,322..LHD |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26410 |
GDH321..D..IDN;GDH322..ARL,GCC,NZ,TH;GRH321,322..LHD..(P,Q);GDH322..LHD..(P,Q)..GEN |
1 | ||
| 57066-26400 |
GDH322..(D,N)..GEN;GDH301,321,328,GRH301,322..GEN,NZ,PH,TH,VN |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26220 |
GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) |
1 | ||
| 57069-26240 |
GDH322..N;GDH322..LHD..Q;GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) |
1 | ||
| 57069-26230 |
GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH300,301,32#,GRH301,320,322..D..(GEN,IDN,VN) ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 57069-26250 |
GDH322..N;GDH322..6FC..Q..GEN;GDH301,321,328,GRH301,321,322..(N,Q)..(GEN,PH) ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-26470 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,GRH301..RHD..N;GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-26500 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH321,328,GRH321,322..(N,Q)..(GCC,GEN,PH) |
1 | ||
| 57105H - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57105-26310 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 57106H - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57106-26230 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 57430 - MEMBER ASSY, CENTER FLOOR CROSS | ||||
| 57430-26140 |
GDH322..N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,321,GRH301..D..(GEN,IDN,NZ);GDH321,328,GRH321,322..(N,P,Q)..(GCC,GEN,PH) |
1 | ||
| 57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26B30 |
GDH321..D;GDH322..N;GDH328,GRH321..6F;GDH322..ARL,GCC,NZ,TH;GDH322..LHD..(P,Q)..GEN;GDH321,GRH322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26480 |
GDH321..D;GDH322..N;GDH328,GRH321..6F;GDH322..LHD..(P,Q)..GEN;GDH301,322..ARL,GCC,NZ,TH;GDH301,321,GRH301,322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26500 |
GDH321..D;GDH322..N;GDH328,GRH321..6F;GDH322..LHD..(P,Q)..GEN;GDH301,322..ARL,GCC,NZ,TH;GDH301,321,GRH301,322..(N,P,Q)..(GCC,GEN) |
1 | ||
| 57647A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT RH | ||||
| 57647-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 57648A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT LH | ||||
| 57648-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57067-26360 |
GDH321..D;GDH322..D,N;GDH303,321..LHD..(H,N);GDH322..LHD..(P,Q)..GEN;GDH304,322..(H,P,Q)..(ARL,GCC,NZ,TH);GDH301,328,GRH301,304,321,322..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 57661C - MEMBER, REAR FLOOR REAR CROSS, OUTER | ||||
| 57661-26180 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-26050 |
GDH322..N;GDH322..LHD..Q;GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) |
1 | ||
| 58307-26020 |
GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) |
1 | ||
| 58307-26030 |
GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH300,301,32#,GRH301,320,322..D..(GEN,IDN,VN) ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 58307-26060 |
GDH322..N;GDH322..6FC..Q..GEN;GDH301,321,328,GRH301,321,322..(N,Q)..(GEN,PH) ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 58336J - REINFORCEMENT, REAR FLOOR END, LOWER RH | ||||
| 58336-26080 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58337E - REINFORCEMENT, REAR FLOOR END, LOWER LH | ||||
| 58337-26050 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58346G - REINFORCE, REAR FLOOR REAR CORNER, RH | ||||
| 58346-26030 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 58346-26040 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 58347A - REINFORCE, REAR FLOOR REAR CORNER, LH | ||||
| 58347-26040 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 58347-26050 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-10866 | ||||
| 90119-T0380 | ||||
| 90119-T0526 | ||||
| 91645-C1232 | ||||
| 91673-80825 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 1 OF 2(1907- )LHD..H
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51083A - STEP SUB-ASSY, RH | ||||
| 51083-26500 |
GDH322..LHD..D..GEN;GRH321,322..LHD..(D,Q)..GEN |
1 | ||
| 51083-26490 |
GDH322..LHD..D..GEN;GRH321,322..LHD..(D,Q)..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 51083-26630 |
GRH321,322..LHD..(D,Q)..GEN *POSD & *ECS(*SD)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 51083-26640 |
GRH321,322..LHD..(D,Q)..GEN *POSD & *ECS(*SD) |
1 | ||
| 57046A - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-26430 |
GDH322..GCC;GDH328,GRH321..6F;GDH322..6FC..P..GEN;GRH322..LHD..(N,P,Q);GDH301,321,322,GRH301..LHD..(N,Q)..GEN |
1 | ||
| 57047A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH | ||||
| 57047-26410 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,NZ);GDH322,GRH322..(D,P)..(GCC,TH) |
1 | ||
| 57047-26350 |
GDH321..N..GEN;GRH321,322..LHD..Q;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC) |
1 | ||
| 57048 - RAIL SUB-ASSY, FLOOR SIDE, REAR LH | ||||
| 57048-26420 |
GRH300..GCC;GRH300..4D..GEN;GDH322,GRH322..(D,P)..(ARL,GCC,TH);GDH300,320,321,GRH320..D..(GCC,GEN,IDN,NZ,TH) |
1 | ||
| 57048-26360 |
GDH321..N..GEN;GDH322,GRH321,322..LHD..Q |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-26250 |
GDH322..GCC;GDH322..6FC..P..GEN;GDH304,328..PH,TH,VN;GRH322..LHD..(N,P,Q);GDH321,GRH304,321..(H,N,Q)..GEN;GDH301,303,322,GRH301..LHD..(H,N,Q)..GEN |
1 | ||
| 57421-26290 |
GDH322..GCC;GRH322..LHD..(N,P,Q);GDH301,321,322,328,GRH301,321..LHD..(N,Q)..(GEN,PH) *POSD & *ECS(*SD) |
1 | ||
| 57779A - GUSSET, REAR FLOOR CROSSMEMBER, B | ||||
| 57779-26100 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,328,GRH301,321,322..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 57799A - GUSSET, REAR FLOOR CROSSMEMBER, A | ||||
| 57799-26070 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,328,GRH301,321,322..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 58037D - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH | ||||
| 58037-26050 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 58038C - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH | ||||
| 58038-26040 |
GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN |
1 | ||
| 58135B - BRACKET, FLOOR INSULATOR SUPPORT | ||||
| 58135-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 58212F - SEAL, CENTER FLOOR | ||||
| 58212-26010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26650 |
GDH322..GCC,NZ,TH;GRH321,322..LHD..(P,Q);GDH322..LHD..(P,Q)..GEN |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26J80 |
GRH321..GEN *POSD & *ECS(*SD) |
1 | ||
| 58315-26J70 |
GRH321..GEN *POSD & *ECS(*SD)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 58315-26J90 |
GRH321..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 58315-26P80 |
GRH321..GEN |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58967E - BRACKET, JACK SUPPORT, NO.1 | ||||
| 58967-26110 |
GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN) |
1 | ||
| 58968E - BRACKET, JACK SUPPORT, NO.2 | ||||
| 58967-26090 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH301,303,304,328,GRH301,304;GDH306,320,321,322,GRH32#..LHD..SG |
1 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90115-06166 | ||||
| 90119-06A06 | ||||
| 90119-06A11 | ||||
| 90159-50322 | ||||
| 90159-T0011 | ||||
| 90189-05055 | ||||
| 90467-05161C9 | ||||
| Linked diagrams | ||||
| 5752 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
