GRH321L-EDFQH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

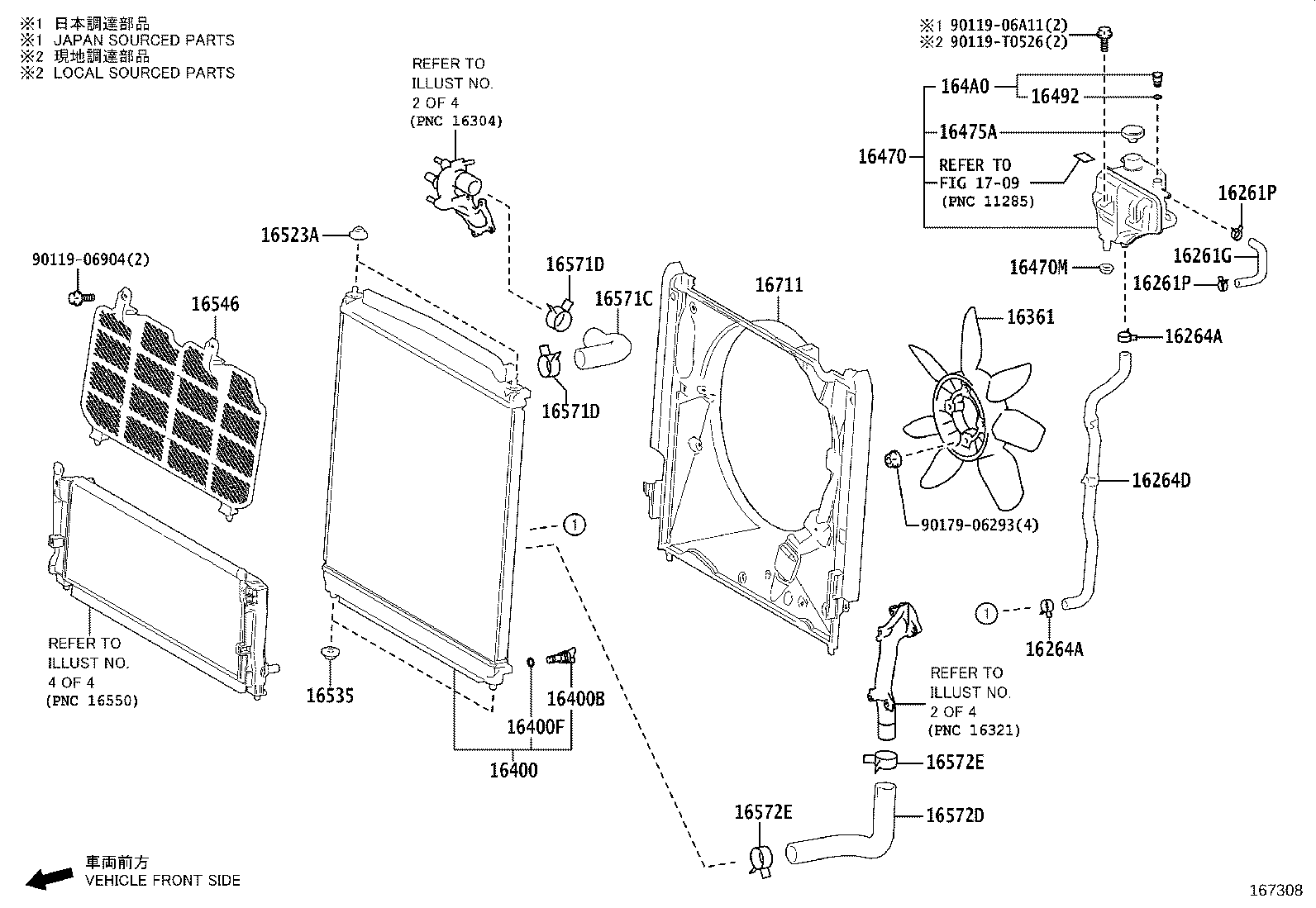

ILLUST NO. 1 OF 4(1912- )1GDFTV..GDH300..SHP..GEN ; (1912-)1GDFTV..GDH320..LHD..SP..6F..GEN ;

Click highlighted areas on diagram

W(INTERCOOLER(WATER COOLED TYPE))

diagram 16261G 16261P 16261P 16264A 16264A 16264D 16361 16400 16400B 16400F 16470 16470M 16475A 16492 164A0 16523A 16535 16546 16571C 16571D 16571D 16572D 16572E 16572E 16711 1709 9011906904 9011906A11 90119T0526 9017906293
Part # Description Qty Price
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41301

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41301

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 2
16361 - FAN
16361-31060

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16400 - RADIATOR ASSY
16400-31B40

7GRFKS..GRH300..6F..GCC;7GRFKS..GRH320..6F..(GCC,GEN);7GRFKS..GRH300,301,321,322..4D..6F..(GCC,GEN)

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-30170

1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-15520

1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-31210

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16470M - GROMMET
90480-25025

1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-11060

1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-11040

1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
16571C - HOSE, RADIATOR, NO.1
16571-31460

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16571D - CLIP, RADIATOR HOSE, NO.1
96136-54301

7GRFKS..GRH30#,32#

 2
16571D - CLIP, RADIATOR HOSE, NO.1
96136-54301

7GRFKS..GRH30#,32#

 2
16572D - HOSE, RADIATOR, NO.2
16572-31530

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16572E - CLIP, RADIATOR HOSE, NO.2
96136-54301

7GRFKS..GRH30#,32#

 2
96136-44301

7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH301,304,32#..GCC,GEN

 4
16572E - CLIP, RADIATOR HOSE, NO.2
96136-54301

7GRFKS..GRH30#,32#

 2
96136-44301

7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH301,304,32#..GCC,GEN

 4
16711 - SHROUD, FAN
16711-31740

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
Common parts
90119-06904
90119-06A11
90119-T0526
90179-06293
Linked diagrams
1709

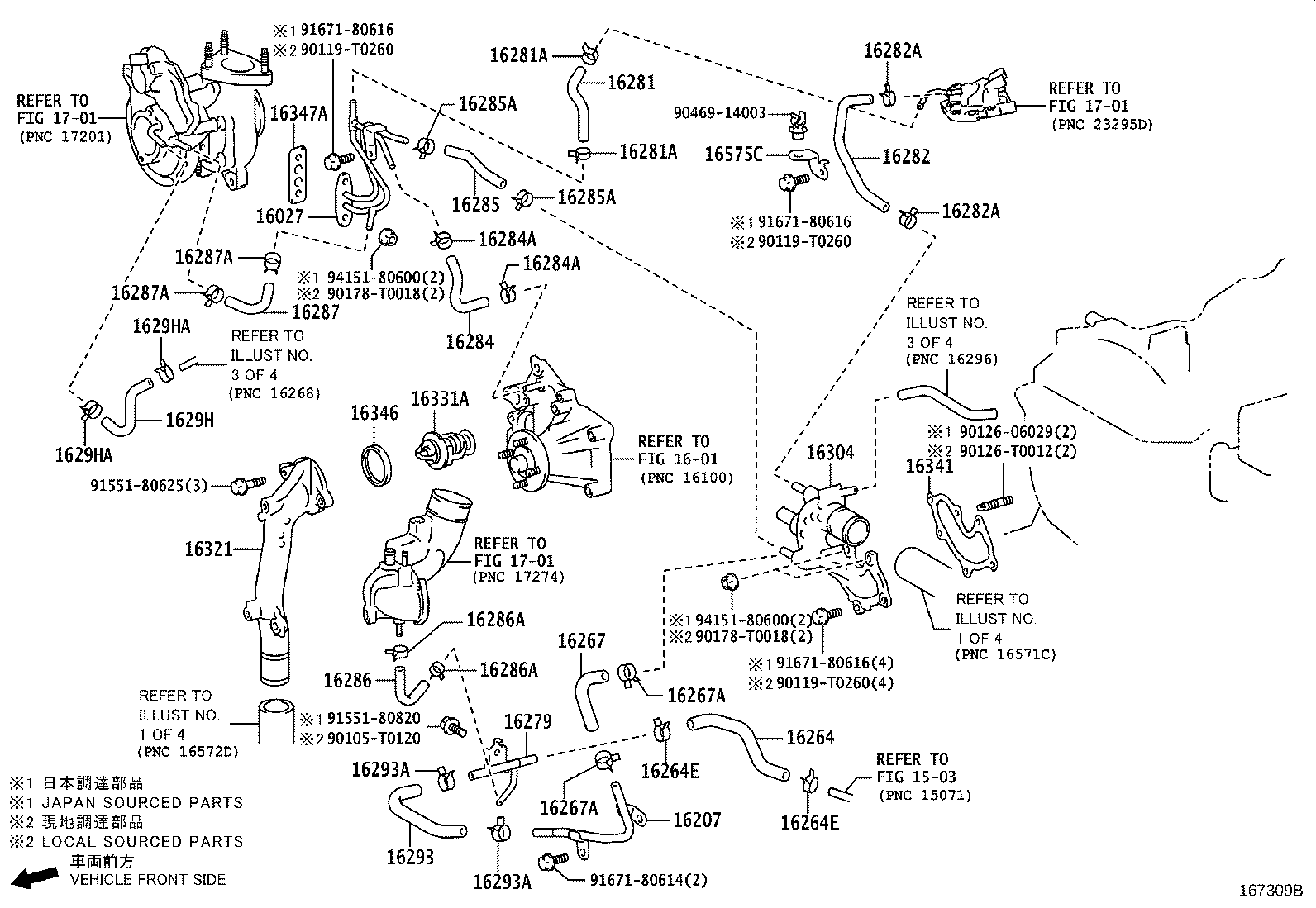

ILLUST NO. 2 OF 4(1912- )1GDFTV..GDH300..SHP..GEN ; (1912-)1GDFTV..GDH320..LHD..SP..6F..GEN ;

Click highlighted areas on diagram

W(INTERCOOLER(WATER COOLED TYPE))

diagram 1503 1601 16027 16207 16264 16264E 16264E 16267 16267A 16267A 16279 16281 16281A 16281A 16282 16282A 16282A 16284 16284A 16284A 16285 16285A 16285A 16286 16286A 16286A 16287 16287A 16287A 16293 16293A 16293A 1629H 1629HA 1629HA 16304 16321 16331A 16341 16346 16347A 16575C 1701 1701 1701 90105T0120 90119T0260 90119T0260 90119T0260 9012606029 90126T0012 90178T0018 90178T0018 9046914003 9155180625 9155180820 9167180614 9167180616 9167180616 9167180616 9415180600 9415180600
Part # Description Qty Price
16264 - HOSE, WATER BY-PASS, NO.2
16264-31170

7GRFKS..GRH30#,32#

 1
16264-31171

7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH301,304,32#..GCC,GEN

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-31150

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-52501

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-52501

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 2
16281 - HOSE, WATER BY-PASS, NO.4
16281-31090

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-41501

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-41501

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 2
16282 - HOSE, WATER BY-PASS, NO.5
16282-31090

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-41501

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 2
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-41501

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 2
Common parts
90105-T0120
90119-T0260
90126-06029
90126-T0012
90178-T0018
90469-14003
91551-80625
91551-80820
91671-80614
91671-80616
94151-80600
Linked diagrams
1503
1601
1701

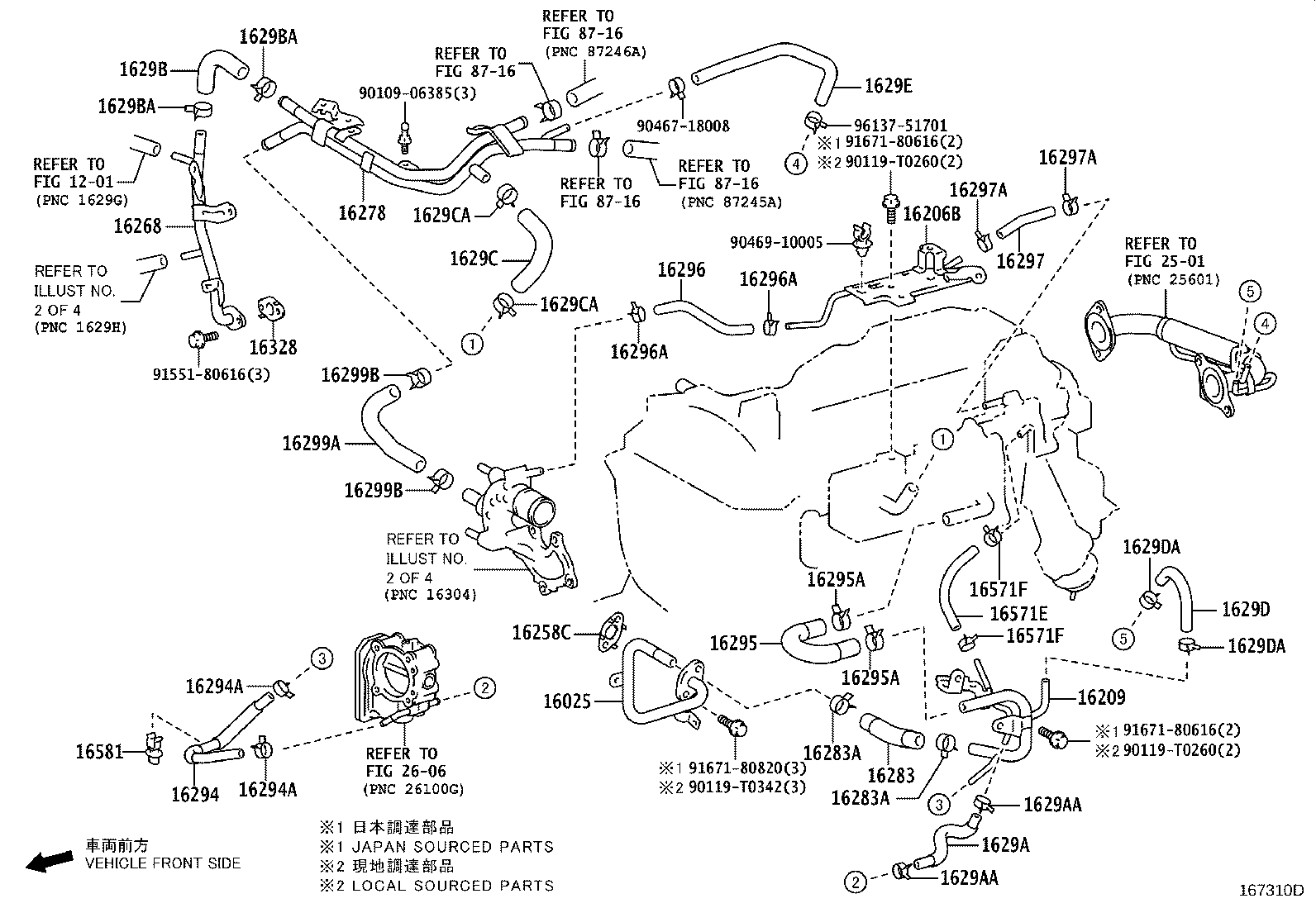

ILLUST NO. 3 OF 4(1912- )1GDFTV..GDH300..SHP..GEN ; (1912-)1GDFTV..GDH320..LHD..SP..6F..GEN ;

Click highlighted areas on diagram

W(INTERCOOLER(WATER COOLED TYPE))

diagram 1201 16025 16206B 16209 16258C 16268 16278 16283 16283A 16283A 16294 16294A 16294A 16295 16295A 16295A 16296 16296A 16296A 16297 16297A 16297A 16299A 16299B 16299B 1629A 1629AA 1629AA 1629B 1629BA 1629BA 1629C 1629CA 1629CA 1629D 1629DA 1629DA 1629E 16328 16571E 16571F 16571F 16581 2501 2606 8716 8716 8716 8716 9010906385 90119T0260 90119T0260 90119T0342 9046718008 9046910005 9155180616 9167180616 9167180616 9167180820 9613751701
Part # Description Qty Price
16268 - PIPE, WATER BY-PASS, NO.1
16268-31060

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16283 - HOSE, WATER BY-PASS, NO.6
16283-31060

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
96136-42101

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
96136-42101

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16295 - HOSE, WATER BY-PASS, NO.7
16295-31040

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-42101

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-42101

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16296 - HOSE, WATER BY-PASS, NO.8
16296-31110

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96136-42101

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96136-42101

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16297 - HOSE, WATER BY-PASS, NO.9
16297-31080

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
96136-42101

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
96136-42101

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-31070

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
Common parts
90109-06385
90119-T0260
90119-T0342
90467-18008
90469-10005
91551-80616
91671-80616
91671-80820
96137-51701
Linked diagrams
1201
2501
2606
8716

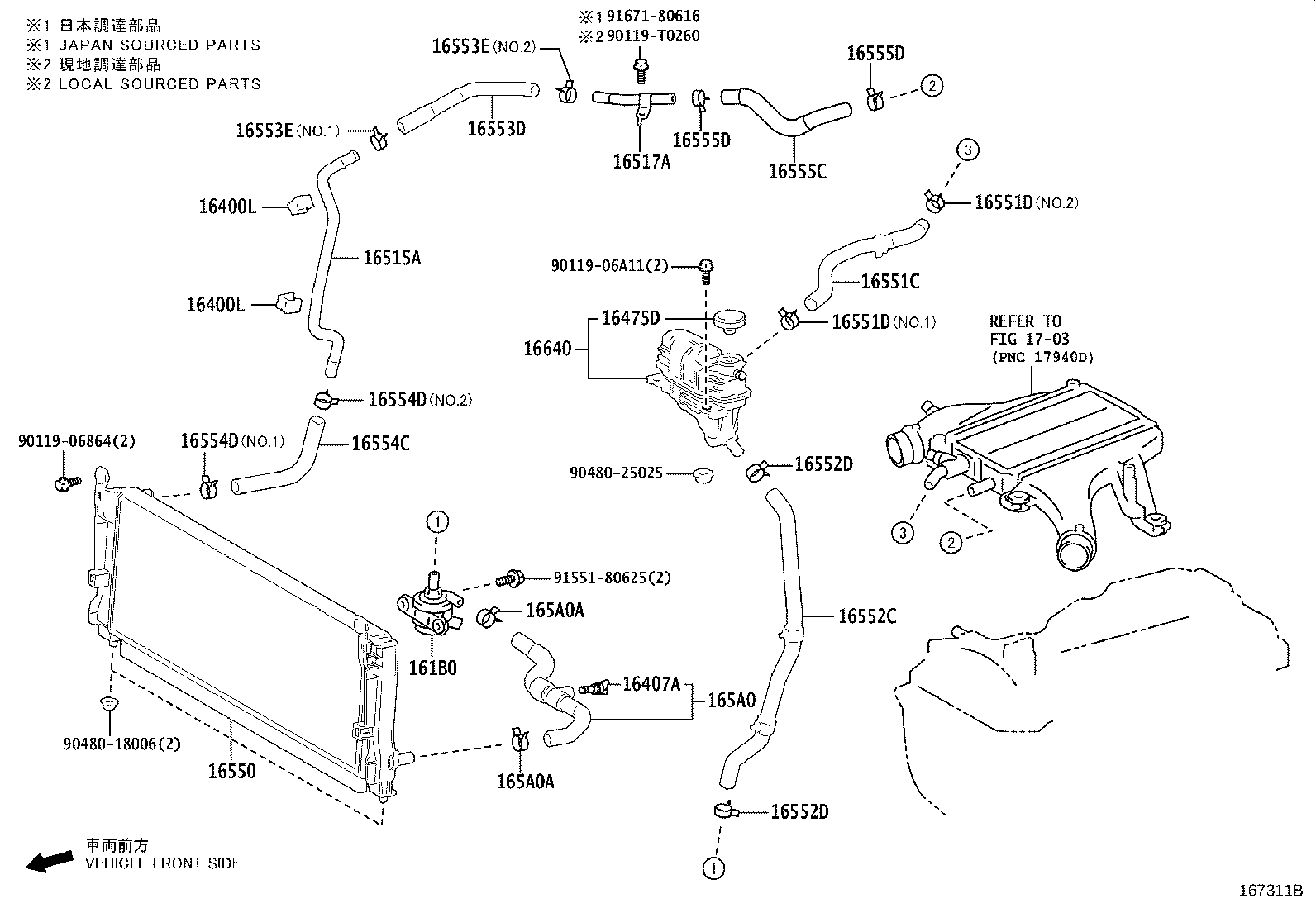

ILLUST NO. 4 OF 4(1912- )1GDFTV..GDH300..SHP..GEN ; (1912-)1GDFTV..GDH320..LHD..SP..6F..GEN ;

Click highlighted areas on diagram

W(INTERCOOLER(WATER COOLED TYPE))

diagram 161B0 16400L 16400L 16407A 16475D 16515A 16517A 16550 16551C 16551D 16551D 16552C 16552D 16552D 16553D 16553E 16553E 16554C 16554D 16554D 16555C 16555D 16555D 165A0 165A0A 165A0A 16640 1703 9011906864 9011906A11 90119T0260 9048018006 9048025025 9155180625 9167180616
Part # Description Qty Price
Common parts
90119-06864
90119-06A11
90119-T0260
90480-18006
90480-25025
91551-80625
91671-80616
Linked diagrams
1703
