GRH321L-EDFQH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )1GDFTV..GDH300..SHP..GEN ; (1912-)1GDFTV..GDH320..LHD..SP..6F..GEN ;

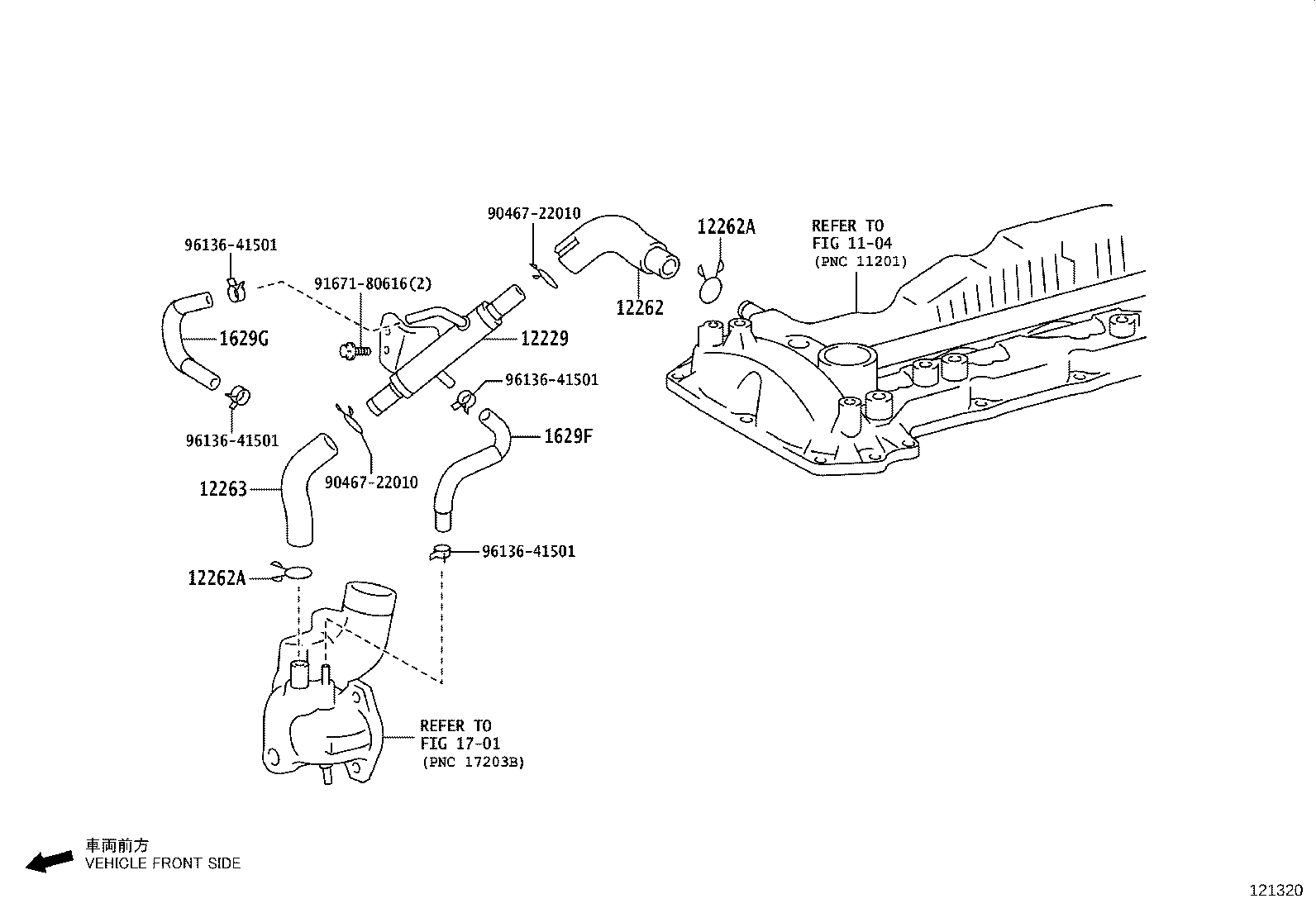

Click highlighted areas on diagram

W(INTERCOOLER (WATER COOLED TYPE))

diagram 1104 12229 12262 12262A 12262A 12263 1629F 1629G 1701 9046722010 9167180616 9613641501 9613641501 9613641501 9613641501
Part # Description Qty Price
12262 - HOSE, VENTILATION, NO.2
12262-31240

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 2
Common parts
90467-22010
91671-80616
96136-41501
Linked diagrams
1104
1701
