GRH321L-EDFQH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )1GDFTV..GDH300..SHP..GEN ; (1912-)1GDFTV..GDH320..LHD..SP..6F..GEN ;

Click highlighted areas on diagram

W(INTERCOOLER (WATER COOLED TYPE))

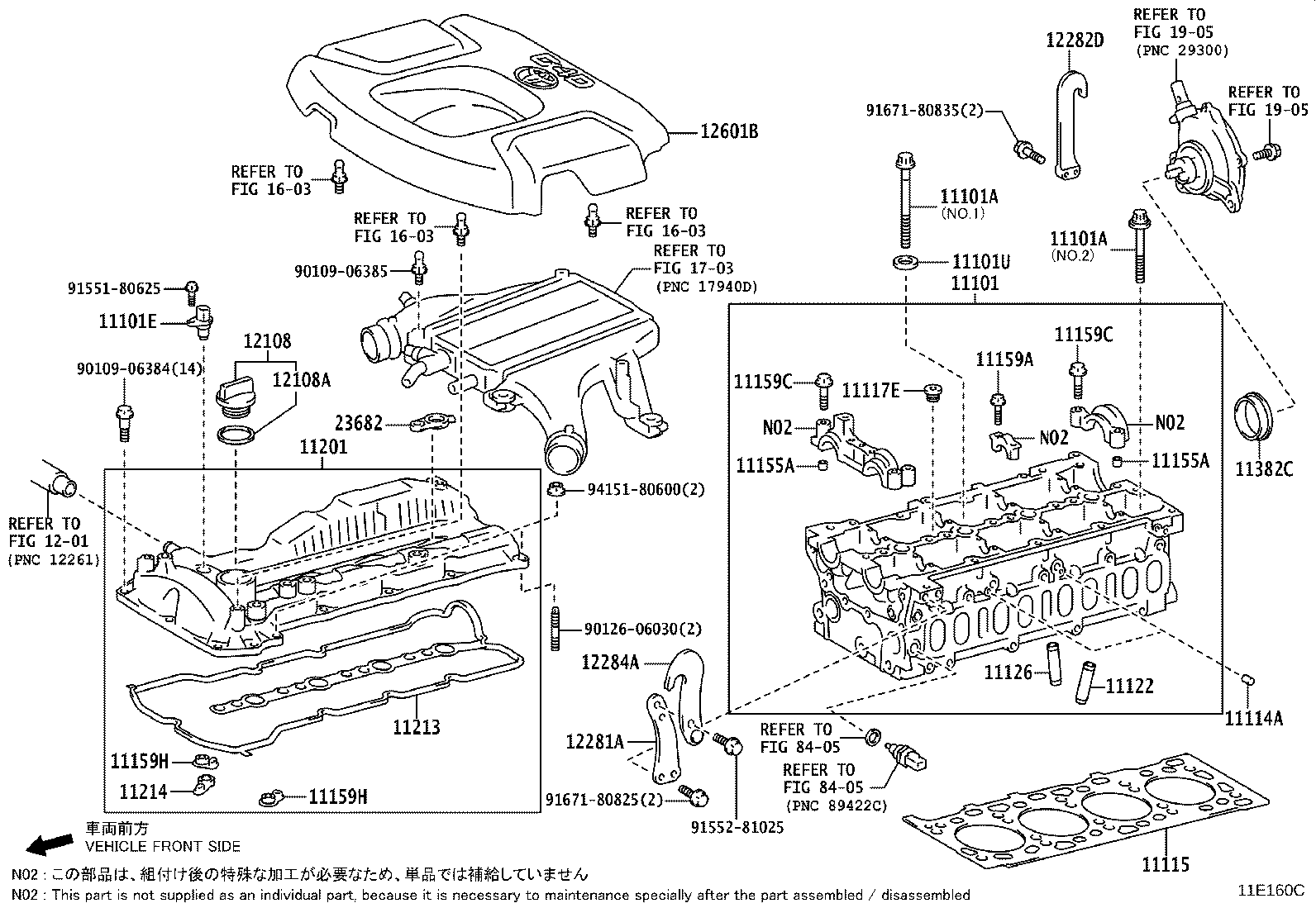

diagram 11101 11101A 11101A 11101E 11101U 11114A 11115 11117E 11122 11126 11155A 11155A 11159A 11159C 11159C 11159H 11159H 11201 11213 11214 11382C 1201 12108 12108A 12281A 12282D 12284A 12601B 1603 1603 1603 1703 1905 1905 23682 8405 8405 9010906384 9010906385 9012606030 9155180625 9155281025 9167180825 9167180835 9415180600
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-80001

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02164

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 16
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02164

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 16
11101E - SENSOR, CAM POSITION
90919-05061

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
11114A - PIN, STRAIGHT
90250-05021

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

L=13.8,OD=5.0

 1
11115 - GASKET, CYLINDER HEAD
11115-31120

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-31301

7GRFKS..GRH30#,32#..GCC,GEN

 1
11201-31302

7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH301,304,32#..GCC,GEN

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-38010

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
12281A - HANGER, ENGINE, NO.1
12281-31070

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
12282D - HANGER, ENGINE, NO.2
12282-31161

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 1
12601B - COVER SUB-ASSY, ENGINE, NO.1
12601-31060

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

NO.2

 1
12601-31050

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

NO.1

 1
Common parts
90109-06384
90109-06385
90126-06030
91551-80625
91552-81025
91671-80825
91671-80835
94151-80600
Linked diagrams
1201
1603
1703
1905
8405
