GRH320L-HBFDH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1907- )LHD..H

Click highlighted areas on diagram

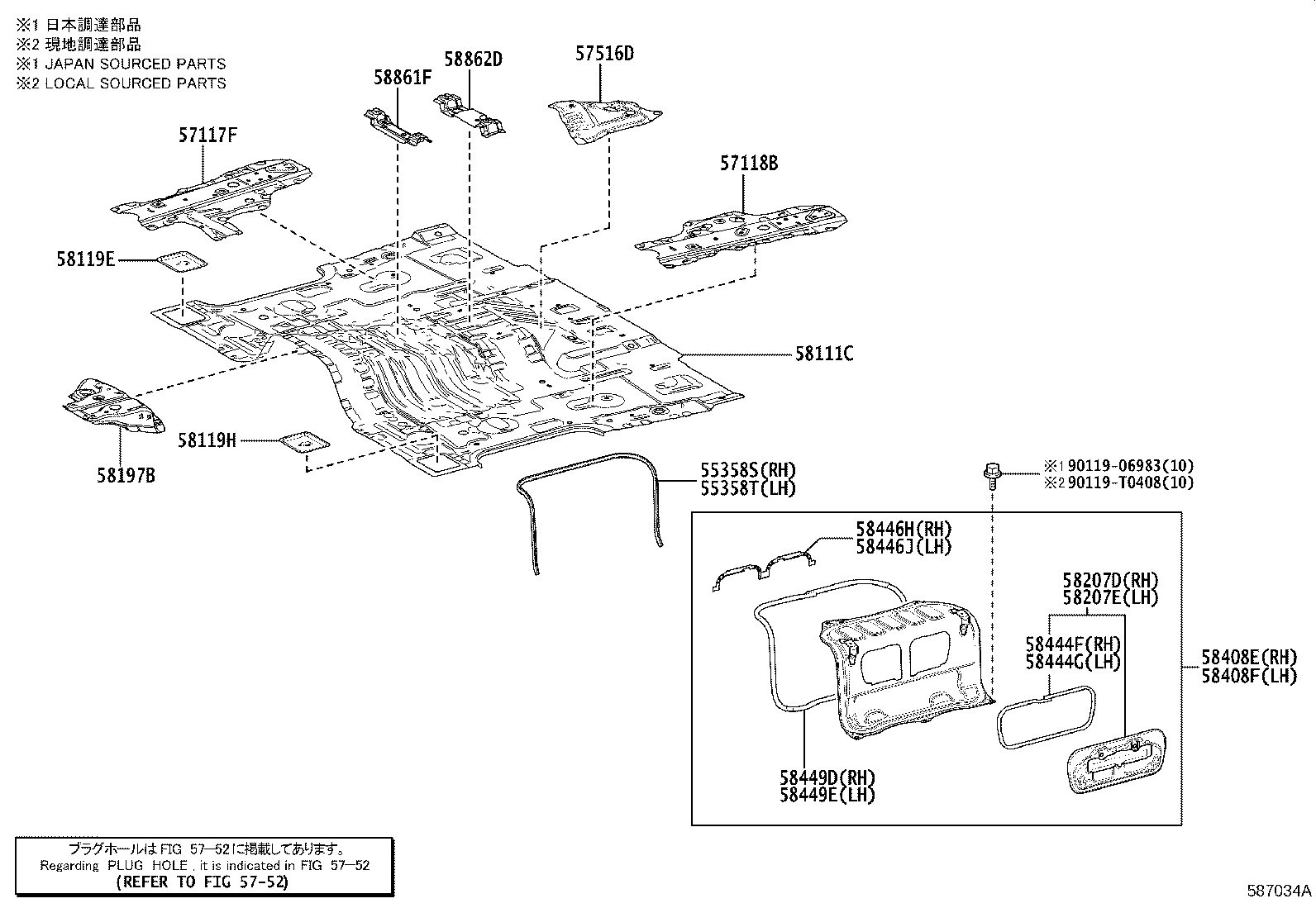

FLOOR PANEL(FRONT BENCH SEAT)

diagram 55358T 57117F 57118B 57516D 5752 58111C 58119E 58119H 58175A 58197B 58207E 58408F 58444G 58446J 58449E 89966 9011906983 90119T0408
Part # Description Qty Price
55358T - PROTECTOR, EDGE
55358-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57117F - PLATE, FRONT SIDE MEMBER, NO.2 RH
57117-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57118B - PLATE, FRONT SIDE MEMBER, NO.2 LH
57118-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57516D - BRACKET, PARKING BRAKE, LH
57516-26030

GRH303..LHD..J;GDH320..LHD..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH322,GRH300..LHD..4D..(GCC,GEN);GDH301,303,304,306,321,328,GRH301,321,322..LHD

 1
58111C - PAN, FRONT FLOOR
58111-26D60

GDH300,320..LHD..6F..GEN

COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D60

GDH320..LHD..SG;GRH300,320..LHD..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D60

GDH300,320..LHD..SP..6F..GEN

CHILE SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D60

GDH300,320..LHD..SP..6F..GEN

PERU SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D60

GDH300,320..LHD..SP..6F..GEN

MYANMAR SPEC&NCAP-ASEAN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-WITH(D2&PC2,DK,FR-S,FRCSA)

 1
58111-26D60

GDH300,320..LHD..6F..GEN

PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D60

GDH300,320..LHD..SP..6F..GEN

MYANMAR SPEC&NCAP-ASEAN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D80

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)

 1
58111-26D60

GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D60

GDH300,320..LHD..SP..6F..GEN

PERU SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)

 1
58111-26D60

GDH300,320..LHD..6F..GEN

PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)

 1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58119H - COVER, FRONT FLOOR SIDE, FRONT
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1
58175-26010

GRH300..GCC;GDH303..RHD..H;GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH300,301..(SG,SHP)..D..(GCC,GEN);GDH304,320,322,GRH301,304,320,322..(D,H)..(GCC,GEN,TH)

 1
58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET
58197-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58207E - COVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH
58207-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58408F - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH
58408-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58444G - PACKING, BATTERY SERVICE OPENING LID
58444-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58446J - PROTECTOR, BATTERY SERVICE OPENING LID
58446-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58449E - PACKING, BATTERY SERVICE HOLE COVER
58449-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
Common parts
90119-06983
90119-T0408
Linked diagrams
5752

ILLUST NO. 1 OF 2(1903- )LHD..6F..P..GEN ; (1903- )GDH320..LHD..SP..6F..GEN

Click highlighted areas on diagram

FLOOR PANEL(FRONT SEPARATE SEAT)

diagram 55358S 55358T 57117F 57118B 57516D 5752 58111C 58119E 58119H 58197B 58207D 58207E 58408E 58408F 58444F 58444G 58446H 58446J 58449D 58449E 58861F 58862D 9011906983 90119T0408
Part # Description Qty Price
55358T - PROTECTOR, EDGE
55358-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57117F - PLATE, FRONT SIDE MEMBER, NO.2 RH
57117-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57118B - PLATE, FRONT SIDE MEMBER, NO.2 LH
57118-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57516D - BRACKET, PARKING BRAKE, LH
57516-26030

GRH303..LHD..J;GDH320..LHD..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH322,GRH300..LHD..4D..(GCC,GEN);GDH301,303,304,306,321,328,GRH301,321,322..LHD

 1
58111C - PAN, FRONT FLOOR
58111-26D60

GDH300,320..LHD..6F..GEN

COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D60

GDH320..LHD..SG;GRH300,320..LHD..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D60

GDH300,320..LHD..SP..6F..GEN

CHILE SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D60

GDH300,320..LHD..SP..6F..GEN

PERU SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D60

GDH300,320..LHD..SP..6F..GEN

MYANMAR SPEC&NCAP-ASEAN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-WITH(D2&PC2,DK,FR-S,FRCSA)

 1
58111-26D60

GDH300,320..LHD..6F..GEN

PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D60

GDH300,320..LHD..SP..6F..GEN

MYANMAR SPEC&NCAP-ASEAN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D80

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)

 1
58111-26D60

GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D60

GDH300,320..LHD..SP..6F..GEN

PERU SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)

 1
58111-26D60

GDH300,320..LHD..6F..GEN

PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)

 1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58119H - COVER, FRONT FLOOR SIDE, FRONT
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET
58197-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58207E - COVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH
58207-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58408F - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH
58408-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58444G - PACKING, BATTERY SERVICE OPENING LID
58444-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58446J - PROTECTOR, BATTERY SERVICE OPENING LID
58446-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58449E - PACKING, BATTERY SERVICE HOLE COVER
58449-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
Common parts
90119-06983
90119-T0408
Linked diagrams
5752
