GRH320L-EDFDH (2019)
Toyota Hiace
(1903- )LHD..6F..P..GEN ; (1903- )GDH320,GRH320..LHD..SG ; (1903- )GDH322.

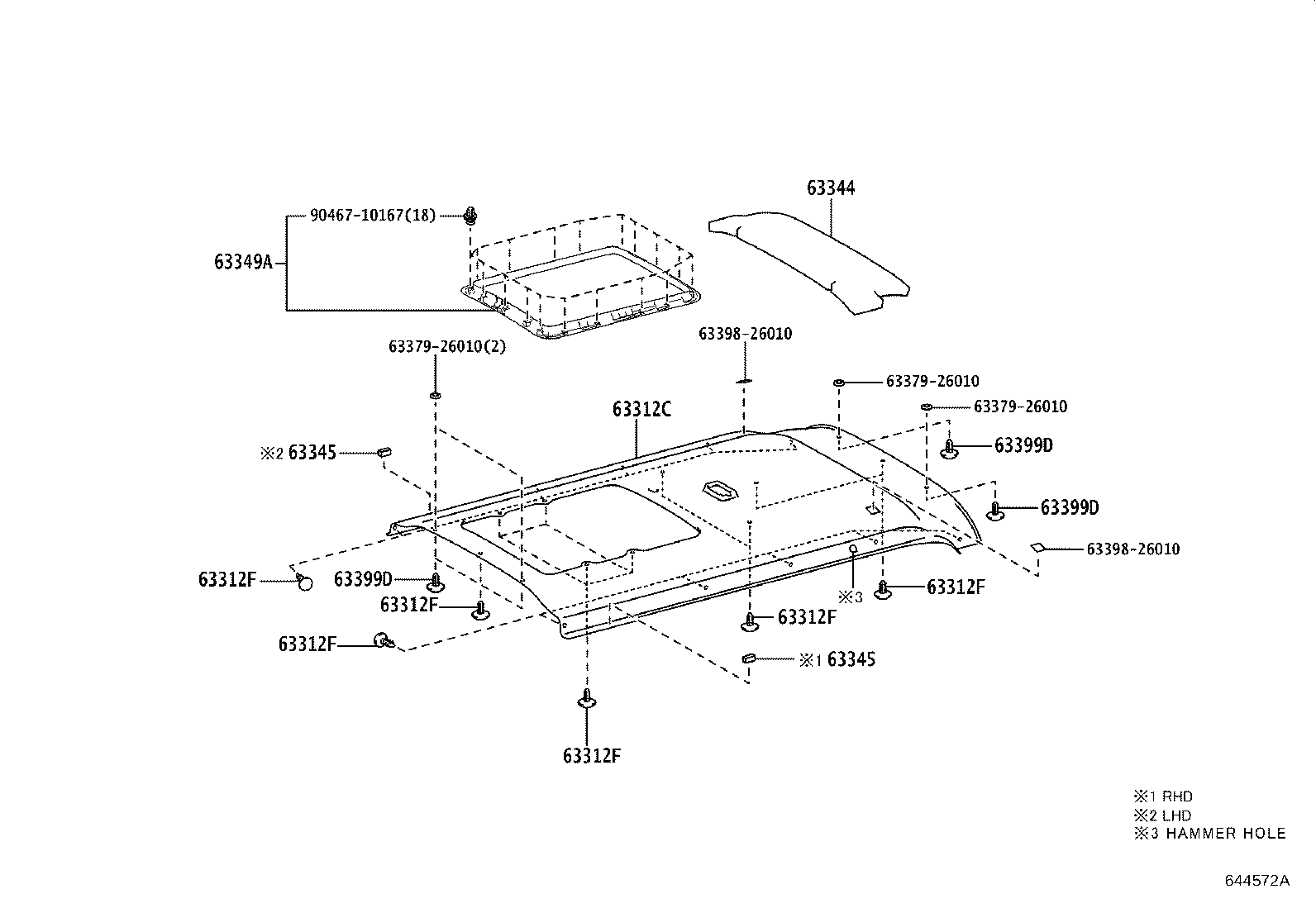

REAR(WITH ESCAPE HATCH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63312C - HEADLINING, ROOF, REAR | ||||
| 63302-26070B2 |
GDH320,322,GRH320,322..LHD..SG..D..GEN LT.GRAY,TRIM1# |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
21 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
21 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
21 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
21 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
21 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
21 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63341-26250 |
GDH320..6FC..ARL;GDH320,GRH320..GCC,GEN;GDH322..LHD..6F..P..GEN;GDH322..6FC..P..(ARL,GEN,NZ) |
1 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63342-26160 |
GDH322..D;GDH320..SG..6FC;GDH320..SG..6F..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,328,GRH320,322..SG..(D,P) |
1 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63342-26160 |
GDH322..D;GDH320..SG..6FC;GDH320..SG..6F..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,328,GRH320,322..SG..(D,P) |
1 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 90467-05021P4 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) LT.GRAY,TRIM1# |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 90467-05021P4 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) LT.GRAY,TRIM1# |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 90467-05021P4 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) LT.GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 63379-26010 | ||||
| 63398-26010 | ||||
| 90467-10167 | ||||
(1903- )GRH322..D,P ; (1903- )GDH322..P..GCC ; (1903- )GDH322..LHD..D ; (1
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63312C - HEADLINING, ROOF, REAR | ||||
| 63302-26070B2 |
GDH320,322,GRH320,322..LHD..SG..D..GEN LT.GRAY,TRIM1# |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
21 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
21 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
21 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63341-26250 |
GDH320..6FC..ARL;GDH320,GRH320..GCC,GEN;GDH322..LHD..6F..P..GEN;GDH322..6FC..P..(ARL,GEN,NZ) |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63341-26250 |
GDH320..6FC..ARL;GDH320,GRH320..GCC,GEN;GDH322..LHD..6F..P..GEN;GDH322..6FC..P..(ARL,GEN,NZ) |
1 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63342-26160 |
GDH322..D;GDH320..SG..6FC;GDH320..SG..6F..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,328,GRH320,322..SG..(D,P) |
1 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 90467-05021P4 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) LT.GRAY,TRIM1# |
4 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 90467-05021P4 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) LT.GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 63379-26010 | ||||
| 63398-26010 | ||||
| 90183-10001 | ||||
(1903- )GDH32#,GRH32#..LHD..GCC,GEN,PH
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63379A - WASHER, ROOF HEADLINING SETTING | ||||
| 63379-26010 |
GDH322..D,N;GDH301..NZ,TH;GRH303..LHD..J;GDH301,GRH301..N;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH303,304,328,GRH304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 90467-05021P4 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) LT.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-06536 | ||||
(1903- )D..IDN ; (1903- )GDH321..N..GEN ;(1903- )GDH320,322,328,GRH30#,32
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63301-26720B1 |
GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN;GDH320,GRH320,322..LHD..SG..D LT.GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-26240 |
GDH320..6FC..ARL;GDH320,GRH320..GCC,GEN |
1 | ||
| 63341D - PAD, ROOF SILENCER, FRONT | ||||
| 63342-26220 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-26160 |
GDH322..D;GDH320..SG..6FC;GDH320..SG..6F..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,328,GRH320,322..SG..(D,P) |
3 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-26160 |
GDH322..D;GDH320..SG..6FC;GDH320..SG..6F..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,328,GRH320,322..SG..(D,P) |
3 | ||
| 63379A - WASHER, ROOF HEADLINING SETTING | ||||
| 63379-26010 |
GDH322..D,N;GDH301..NZ,TH;GRH303..LHD..J;GDH301,GRH301..N;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH303,304,328,GRH304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 63398 - PLATE, ROOF HEADLINING SUPPORT | ||||
| 63398-26010 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) |
2 | ||
| 63398 - PLATE, ROOF HEADLINING SUPPORT | ||||
| 63398-26010 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) |
2 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 90467-05021P4 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) LT.GRAY,TRIM1# |
2 | ||
(1903- )GDH320,328 ; (1903- )GRH320..RHD ;(1903- )GRH320..LHD..SP ; (1903
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63301-26720B1 |
GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN;GDH320,GRH320,322..LHD..SG..D LT.GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN) LT.GRAY,TRIM1# |
14 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-26240 |
GDH320..6FC..ARL;GDH320,GRH320..GCC,GEN |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-26240 |
GDH320..6FC..ARL;GDH320,GRH320..GCC,GEN |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-26240 |
GDH320..6FC..ARL;GDH320,GRH320..GCC,GEN |
1 | ||
| 63341D - PAD, ROOF SILENCER, FRONT | ||||
| 63342-26220 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-26160 |
GDH322..D;GDH320..SG..6FC;GDH320..SG..6F..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,328,GRH320,322..SG..(D,P) |
3 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-26160 |
GDH322..D;GDH320..SG..6FC;GDH320..SG..6F..GEN;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,328,GRH320,322..SG..(D,P) |
3 | ||
| 63379A - WASHER, ROOF HEADLINING SETTING | ||||
| 63379-26010 |
GDH322..D,N;GDH301..NZ,TH;GRH303..LHD..J;GDH301,GRH301..N;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH303,304,328,GRH304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 63398 - PLATE, ROOF HEADLINING SUPPORT | ||||
| 63398-26010 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) |
2 | ||
| 63398 - PLATE, ROOF HEADLINING SUPPORT | ||||
| 63398-26010 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) |
2 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 90467-05021P4 |
GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN) LT.GRAY,TRIM1# |
2 | ||
