GRH301R-GDTDH (2019)
Toyota Hiace
(1902- )GRH30#,320,322..RHD..GEN

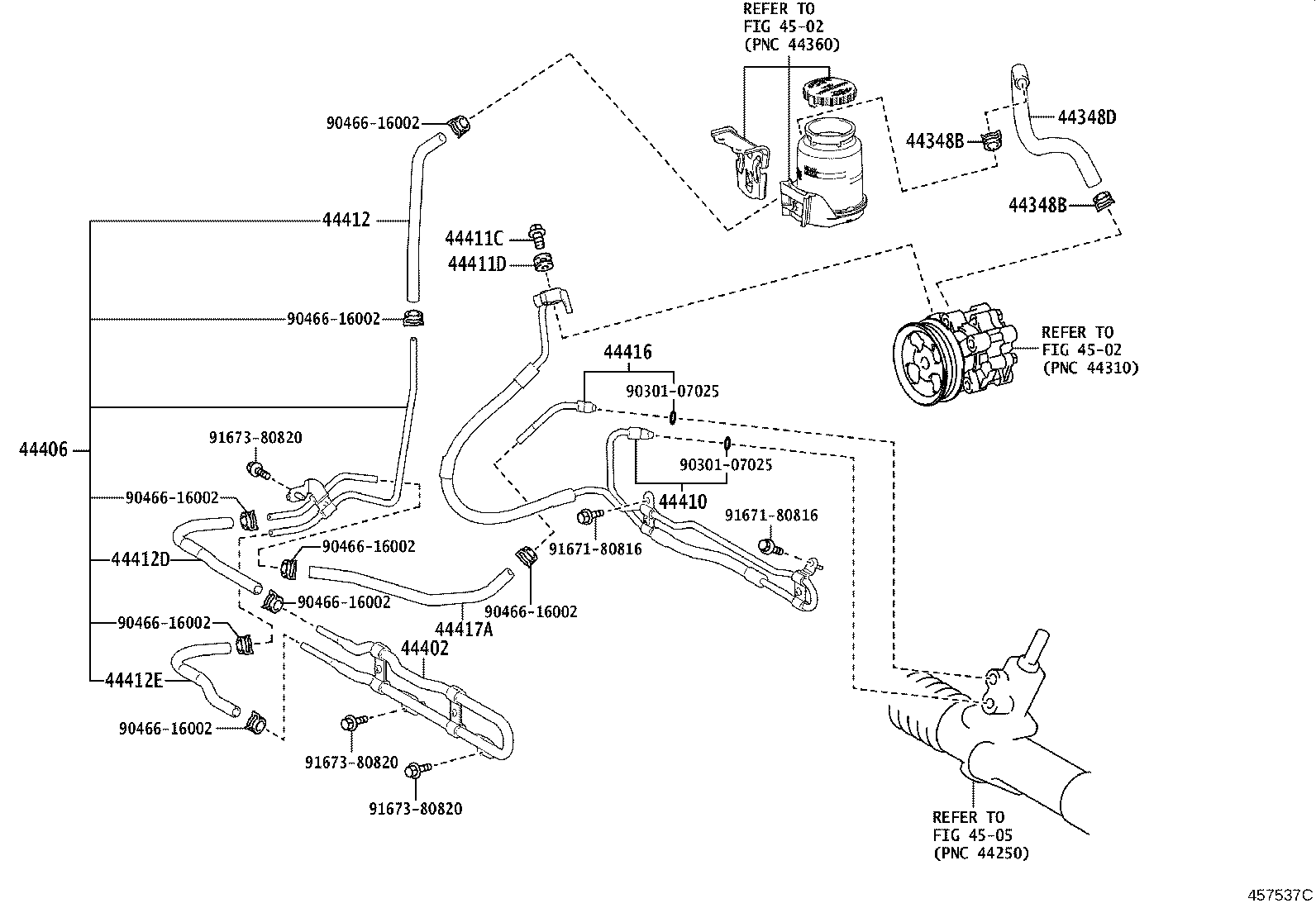

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90467-21010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90467-21010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-26310 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-26050 |
GRH30#,320,322..RHD..GEN |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-26080 |
GRH30#,320,322..RHD..GEN |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-26C10 |
GRH30#,320,322..RHD..GEN |
1 | ||
| 44410-26880 |
GDH321..D..IDN;GDH322..RHD..(D,N)..GEN;GDH300,301,303,304,320..RHD..(GEN,TH) |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16034 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44428-26030 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44428-26010 |
GDH30#,32#..LHD;GRH30#,320,322..RHD..GEN |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 44428-26020 |
GDH30#,32#..LHD;GRH30#,320,322..RHD..GEN |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-26090 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2) | ||||
| 44412-26180 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..ARL;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| Common parts | ||||
| 90301-07025 | ||||
| 90466-16002 | ||||
| 91671-80816 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
