GRH301R-GDFDH (2019)
Toyota Hiace

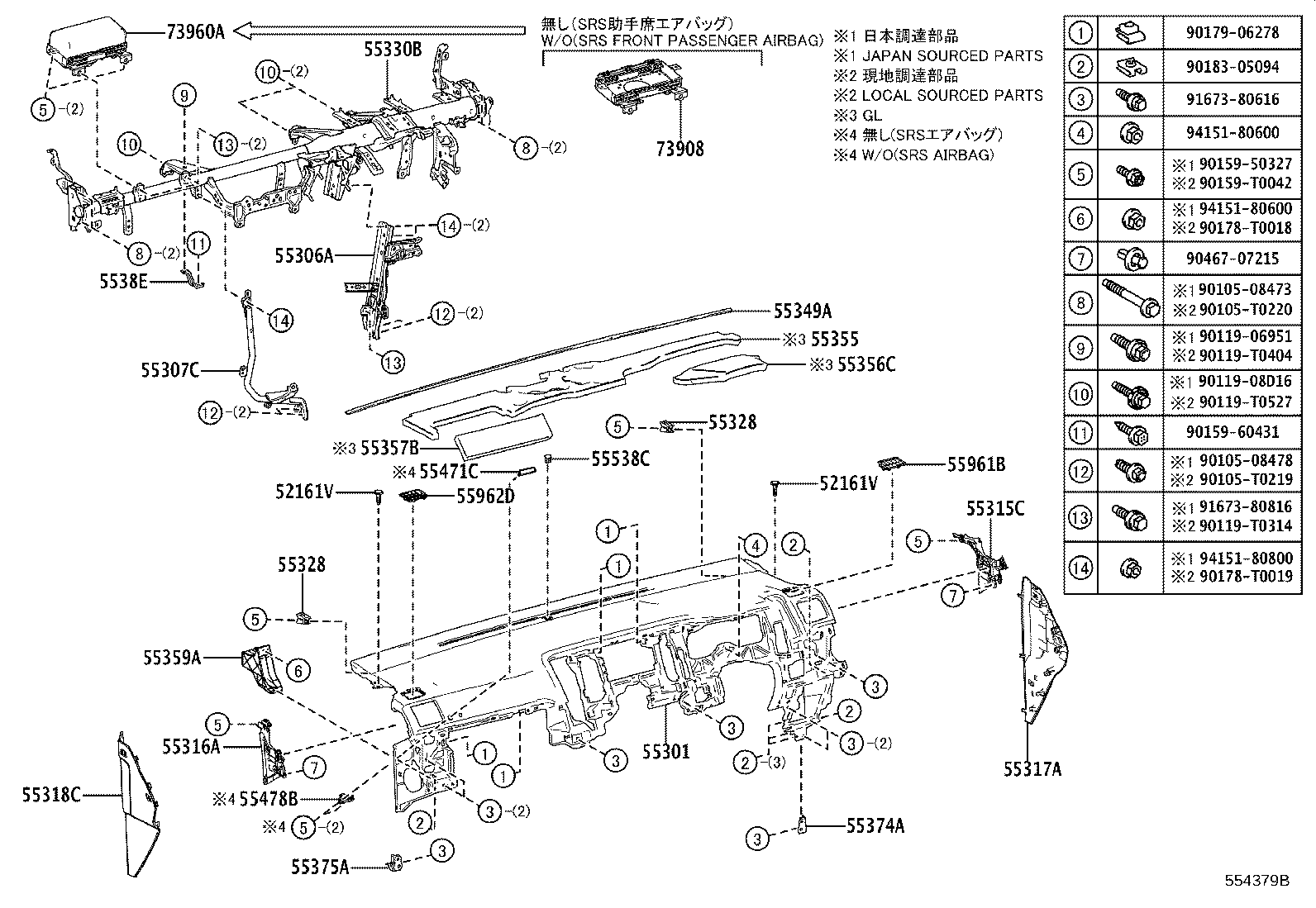

ILLUST NO. 1 OF 3(1902- )GDH300,301,320,321,322,GRH300,301,32#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-26080E0 |
GDH301,322,GRH301,322..RHD..N SRS AIR BAG-W(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
1 | ||
| 55301-26080C0 |
GRH301..RHD..D SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 55301-26080C0 |
GDH300,301,320,322,GRH300,301,320,322..RHD..D..GEN SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 55301-26100E0 |
GDH301,322,GRH301,322..RHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 55301-26100C0 |
GDH300,301,320,322,GRH300,301,320,322..RHD..D..GEN BLACK,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-26070 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-26030 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55315C - PATCH, INSTRUMENT SIDE, UPPER RH | ||||
| 55315-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55316A - PATCH, INSTRUMENT SIDE, UPPER LH | ||||
| 55316-26030 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-26090E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 55317-26090C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-26070E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 55318-26070C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-28130 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-28130 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-26350 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-26110 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-26040 |
GDH322..N;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-26070 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 55359A - PROTECTOR, INSTRUMENT PANEL, NO.2 | ||||
| 55359-26010 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 5538E - BRACKET, ELECTRICAL PARTS MOUNTING | ||||
| 5538E-26030 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55471C - PLATE, INSTRUMENT PANEL NAME | ||||
| 55471-26060 |
GRH300..4D..GEN;GRH301,322..RHD;GRH301,322..LHD..D;GDH300,301,320,322,328,GRH320..(D,N)..(GEN,PH) |
1 | ||
| 55478B - RETAINER, INSTRUMENT PANEL SAFETY PAD, NO.4 | ||||
| 55478-26020 |
GRH300..4D..GEN;GRH301,322..RHD;GRH301,322..LHD..D;GDH300,301,320,322,328,GRH320..(D,N)..(GEN,PH) |
1 | ||
| 55538C - COVER, COOLER SWITCH HOLE | ||||
| 55538-26020 |
GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,328,GRH301,320,322..D..(GEN,IDN,VN) LIGHT CONTROL SYSTEM-WITH(LIGHT SENSOR ONLY) |
1 | ||
| 55538-26020 |
GDH322,GRH300..4D..D..GEN;GDH300,301,320,328,GRH301,320,322..D..(GEN,VN) LIGHT CONTROL SYSTEM-WITH(LIGHT SENSOR ONLY)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 55538-26020 |
GDH300..RHD..5D;GDH320..6FC..ARL;GDH300,GRH300..4D..GEN;GDH300,322..4D..6FC..(D,P)..(ARL,NZ);GDH301,32#,GRH301,320,322..D..(GEN,IDN,NZ,VN) |
1 | ||
| 55538-26020 |
GDH300..RHD..5D;GDH320..6FC..ARL;GDH300,GRH300..4D..GEN;GDH300,322..4D..6FC..(D,P)..ARL;GDH301,32#,GRH301,320,322..D..(GEN,IDN,NZ,VN) LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM) |
1 | ||
| 55538-26020 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH322,GRH300..4D..D..GEN;GDH301,320,328,GRH301,320,322..D..(GEN,VN) LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 55538-26020 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH322,GRH300..4D..D..GEN;GDH301,320,328,GRH301,320,322..D..(GEN,VN) FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-26030C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
1 | ||
| 55961-26030E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 55962D - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-26030E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 55962-26030C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
1 | ||
| 73908 - CASE SUB-ASSY, INSTRUMENT PANEL PASSENGER AIR BAG | ||||
| 73908-26150 |
GRH300..4D..GEN;GRH301,322..RHD;GRH301,322..LHD..D;GDH300,301,320,322,328,GRH320..(D,N)..(GEN,PH) |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-26180 |
GDH301,GRH301..RHD..D..GEN FIJI SPEC&REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 73960-26160 |
GDH300,301,320,322,GRH300,301,320,322..RHD..D..GEN SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 73960-26180 |
GDH301,322,GRH301,322..RHD..N SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90105-T0219 | ||||
| 90105-T0220 | ||||
| 90119-06951 | ||||
| 90119-08D16 | ||||
| 90119-T0314 | ||||
| 90119-T0404 | ||||
| 90119-T0527 | ||||
| 90159-50327 | ||||
| 90159-60431 | ||||
| 90159-T0042 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-07215 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||

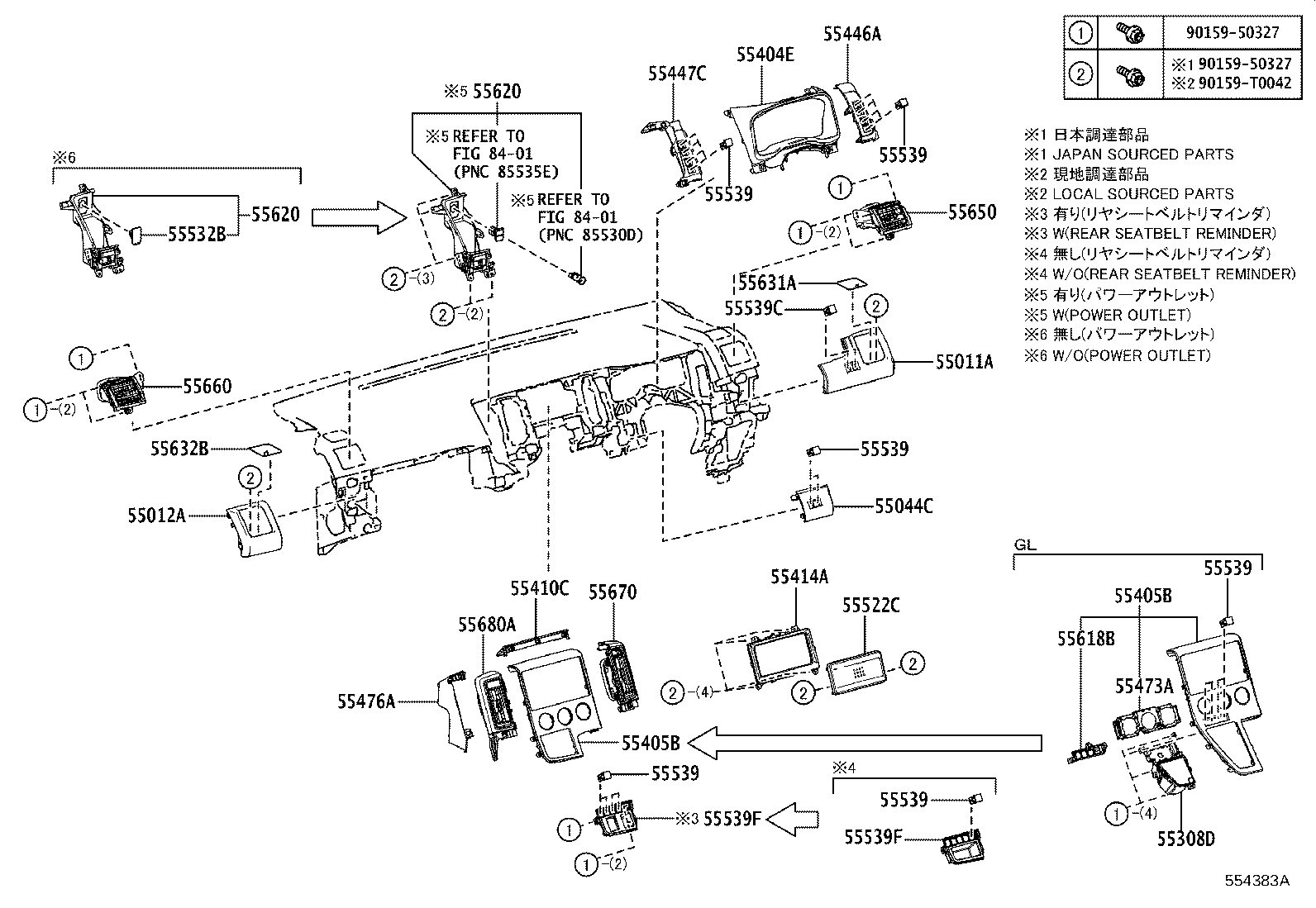

ILLUST NO. 2 OF 3(1902- )GDH300,301,320,321,322,GRH300,301,32#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-26010B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55011-26010A0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-26010A0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55012-26010B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55044C - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55044-26010A0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55044-26010B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-26110 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N |
1 | ||
| 55404E - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, UPR | ||||
| 55404-26470 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-26320 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) |
1 | ||
| 55405-26350 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-26320 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) |
1 | ||
| 55405-26350 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-26200 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-26170 |
GDH301,322,GRH301,322..D..(GEN,TH) AUDIO-AM & FM & CD & *BT & 4SPEAKER |
1 | ||
| 55414-26170 |
GDH301,322,GRH301,322..N AUDIO-AM & FM & CD & *BT & 6SPEAKER |
1 | ||
| 55414-26170 |
GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH301,303,322,GRH301,322..(G,J,N)..GEN AUDIO-*DA & CD & *BT |
1 | ||
| 55414-26170 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,P,Q);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,321,GRH300..(D,H)..(GCC,IDN,TH);GDH300,301,303,320,328,GRH301,304,320,322..GCC,GEN,PH,TH,VN |
1 | ||
| 55414-26170 |
GDH322..LHD..(P,Q);GDH300,320,322,GRH320..(D,N)..(GEN,TH);GDH300,320,321,GRH300,320..6F..D..(GCC,IDN);GDH301,328,GRH300,301,322..4D..(GCC,GEN,PH,TH,VN) AUDIO-AM & FM & CD & *BT |
1 | ||
| 55414-26170 |
GRH303..RHD..G..GEN;GDH301,303,322,GRH301,322..(G,N)..GEN AUDIO-*DA(AM & CD & *BT) |
1 | ||
| 55414-26170 |
GDH301..6F..GEN;GRH300..4D..GEN;GDH301..6FC..D..GEN;GRH322..LHD..6FC..D;GDH320,GRH322..RHD..GEN;GDH320..LHD..SP..6FC..GEN;GDH320,GRH322..LHD..6F..GEN;GDH300,322,GRH301,320..(D,N)..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 55414-26180B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55414-26170 |
GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH301,303,322,328,GRH301,304,322..(G,H,J,N)..(GEN,PH) AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 55414-26170 |
GRH303..RHD..GEN;GDH301,GRH322..6F..N;GDH303,GRH303..LHD..(H,J);GDH300,320..LHD..SP..6FC..GEN;GDH303,322,GRH301..(G,N)..GEN;GDH304,322,GRH322..(H,Q)..(GCC,TH) AUDIO-*DA(DVD & CD & *BT & 17CY PLUS) |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-26020 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-26010 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55473A - RETAINER, INSTRUMENT PANEL FINISH PANEL | ||||
| 55473-26020 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55476-26010 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55522C - COVER, RADIO RECEIVER OPENING | ||||
| 55522-52020 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,P,Q);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,321,GRH300..(D,H)..(GCC,IDN,TH);GDH300,301,303,320,328,GRH301,304,320,322..GCC,GEN,PH,TH,VN |
1 | ||
| 55522-52020 |
GDH301,322,GRH301,322..D..(GEN,TH) AUDIO-AM & FM & CD & *BT & 4SPEAKER |
1 | ||
| 55522-52020 |
GDH322..LHD..(P,Q);GDH300,320,322,GRH320..(D,N)..(GEN,TH);GDH300,320,321,GRH300,320..6F..D..(GCC,IDN);GDH301,328,GRH300,301,322..4D..(GCC,GEN,PH,TH,VN) AUDIO-AM & FM & CD & *BT |
1 | ||
| 55522-52020 |
GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH301,303,322,GRH301,322..(G,J,N)..GEN AUDIO-*DA & CD & *BT |
1 | ||
| 55522-52020 |
GDH301,322,GRH301,322..N AUDIO-AM & FM & CD & *BT & 6SPEAKER |
1 | ||
| 55522-52020 |
GRH303..RHD..GEN;GDH301,GRH322..6F..N;GDH303,GRH303..LHD..(H,J);GDH300,320..LHD..SP..6FC..GEN;GDH303,322,GRH301..(G,N)..GEN;GDH304,322,GRH322..(H,Q)..(GCC,TH) AUDIO-*DA(DVD & CD & *BT & 17CY PLUS) |
1 | ||
| 55522-52020 |
GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH301,303,322,328,GRH301,304,322..(G,H,J,N)..(GEN,PH) AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 55522-52020 |
GDH301..6F..GEN;GRH300..4D..GEN;GDH301..6FC..D..GEN;GRH322..LHD..6FC..D;GDH320,GRH322..RHD..GEN;GDH320..LHD..SP..6FC..GEN;GDH320,GRH322..LHD..6F..GEN;GDH300,322,GRH301,320..(D,N)..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 55522-52020 |
GRH303..RHD..G..GEN;GDH301,303,322,GRH301,322..(G,N)..GEN AUDIO-*DA(AM & CD & *BT) |
1 | ||
| 55532B - COVER, CIGAR LIGHTER HOLE | ||||
| 55532-26050 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH300,322,GRH300..4D..D..(GEN,TH);GDH321,322..(D,P)..(ARL,GCC,IDN,NZ);GDH301,320,328,GRH301,320,322..(D,P)..(GCC,GEN,NZ,TH,VN) ACCESSORY CONNECTOR-12V(1) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,32#..D,P BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH301,321,322,328,GRH301,321,322..N,Q BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..(D,P)..(ARL,GCC,GEN,NZ);GDH300,301,320,GRH300,301,32#..D,P INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..Q..GCC;GDH322..LHD..N;GDH322..RHD..(N,Q)..GEN;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH322..6FC..P..GCC;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P);GDH322..RHD..(D,P)..(GEN,TH);GDH300,301,320,328,GRH300,301,320,322..(D,P)..(GCC,GEN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..D..GEN;GDH300,301,320,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH300..4D..GEN;GDH300,301,320,322,328,GRH301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GRH300..GCC;GDH322..LHD..6F..P;GDH322..6FC..P..GCC;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..Q..GCC;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||

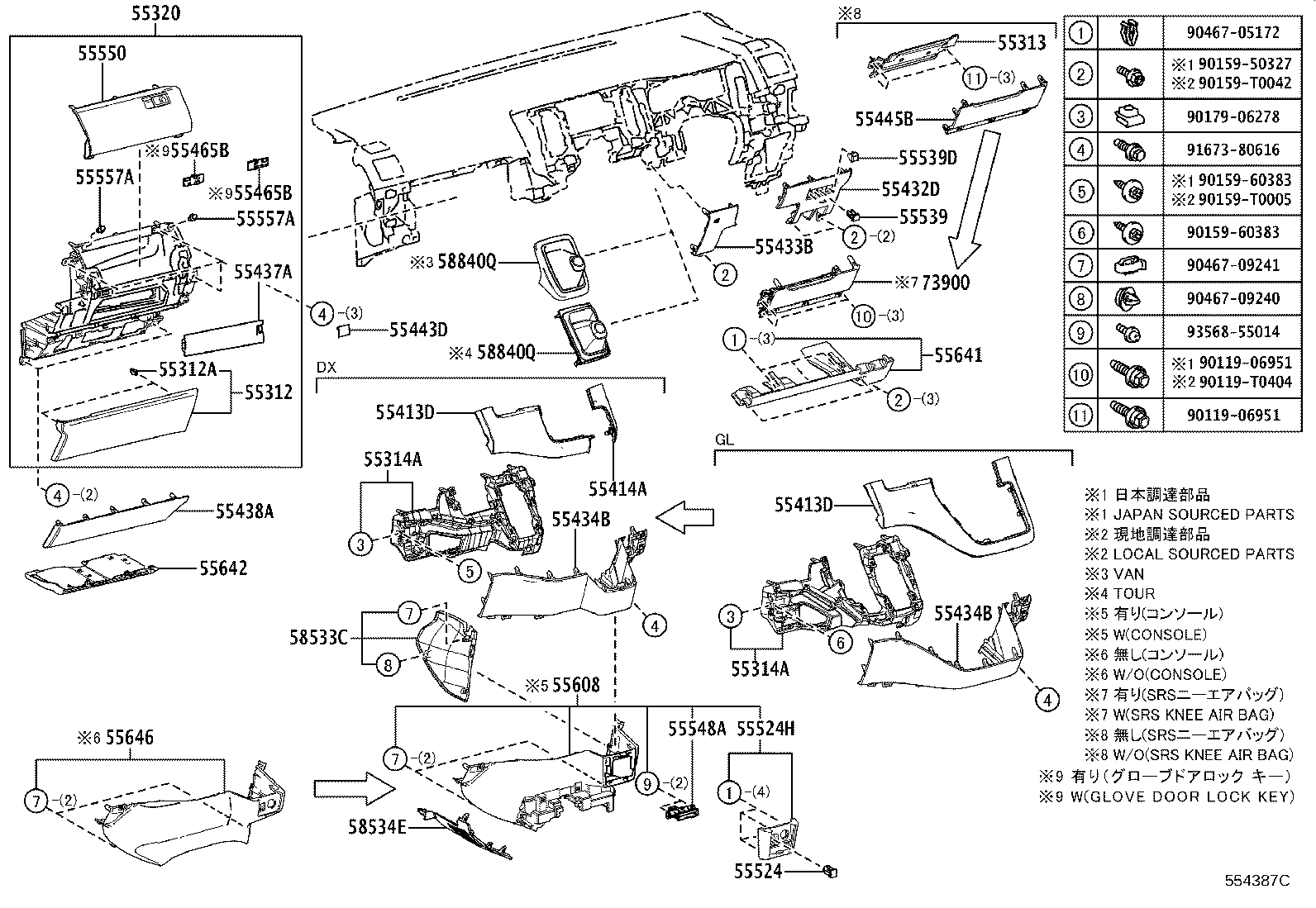

| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,32#..D,P BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH301,321,322,328,GRH301,321,322..N,Q BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..(D,P)..(ARL,GCC,GEN,NZ);GDH300,301,320,GRH300,301,32#..D,P INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..Q..GCC;GDH322..LHD..N;GDH322..RHD..(N,Q)..GEN;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH322..6FC..P..GCC;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P);GDH322..RHD..(D,P)..(GEN,TH);GDH300,301,320,328,GRH300,301,320,322..(D,P)..(GCC,GEN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..D..GEN;GDH300,301,320,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH300..4D..GEN;GDH300,301,320,322,328,GRH301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GRH300..GCC;GDH322..LHD..6F..P;GDH322..6FC..P..GCC;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..Q..GCC;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,32#..D,P BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH301,321,322,328,GRH301,321,322..N,Q BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..(D,P)..(ARL,GCC,GEN,NZ);GDH300,301,320,GRH300,301,32#..D,P INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..Q..GCC;GDH322..LHD..N;GDH322..RHD..(N,Q)..GEN;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH322..6FC..P..GCC;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P);GDH322..RHD..(D,P)..(GEN,TH);GDH300,301,320,328,GRH300,301,320,322..(D,P)..(GCC,GEN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..D..GEN;GDH300,301,320,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH300..4D..GEN;GDH300,301,320,322,328,GRH301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GRH300..GCC;GDH322..LHD..6F..P;GDH322..6FC..P..GCC;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..Q..GCC;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,32#..D,P BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH301,321,322,328,GRH301,321,322..N,Q BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..(D,P)..(ARL,GCC,GEN,NZ);GDH300,301,320,GRH300,301,32#..D,P INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..Q..GCC;GDH322..LHD..N;GDH322..RHD..(N,Q)..GEN;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH322..6FC..P..GCC;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P);GDH322..RHD..(D,P)..(GEN,TH);GDH300,301,320,328,GRH300,301,320,322..(D,P)..(GCC,GEN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..D..GEN;GDH300,301,320,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH300..4D..GEN;GDH300,301,320,322,328,GRH301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GRH300..GCC;GDH322..LHD..6F..P;GDH322..6FC..P..GCC;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..Q..GCC;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,32#..D,P BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH301,321,322,328,GRH301,321,322..N,Q BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..(D,P)..(ARL,GCC,GEN,NZ);GDH300,301,320,GRH300,301,32#..D,P INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..Q..GCC;GDH322..LHD..N;GDH322..RHD..(N,Q)..GEN;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH322..6FC..P..GCC;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P);GDH322..RHD..(D,P)..(GEN,TH);GDH300,301,320,328,GRH300,301,320,322..(D,P)..(GCC,GEN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..D..GEN;GDH300,301,320,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH300..4D..GEN;GDH300,301,320,322,328,GRH301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GRH300..GCC;GDH322..LHD..6F..P;GDH322..6FC..P..GCC;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..Q..GCC;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,32#..D,P BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH301,321,322,328,GRH301,321,322..N,Q BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..(D,P)..(ARL,GCC,GEN,NZ);GDH300,301,320,GRH300,301,32#..D,P INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..Q..GCC;GDH322..LHD..N;GDH322..RHD..(N,Q)..GEN;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH322..6FC..P..GCC;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P);GDH322..RHD..(D,P)..(GEN,TH);GDH300,301,320,328,GRH300,301,320,322..(D,P)..(GCC,GEN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..D..GEN;GDH300,301,320,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH300..4D..GEN;GDH300,301,320,322,328,GRH301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GRH300..GCC;GDH322..LHD..6F..P;GDH322..6FC..P..GCC;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..Q..GCC;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-26190 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55539-26190 |
GRH322;GDH322..ARL,GCC,NZ;GDH322..RHD..(D,N)..GEN;GDH322..LHD..(N,Q)..GEN;GDH301,321..D..(IDN,NZ,TH);GDH301,321,328,GRH301,321..(N,Q)..(GEN,PH) *POSD & *ECS(*SD) |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-26220 |
GDH320..6FC..ARL;GDH300..RHD..4D..6FC;GDH300..RHD..5D..(SG,SP);GDH320,GRH300,320..RHD..GEN;GDH300..RHD..4D..6F..(GEN,TH);GDH300,301,321,322,GRH301,322..RHD..(SG,SHP)..D..(GEN,IDN) |
1 | ||
| 55539-26220 |
GDH301,322,GRH301,322..RHD..D..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 55539-26220 |
GDH300,301,GRH301..RHD..(SG,SHP)..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 55539-26220 |
GDH301,GRH301..RHD..D..GEN REAR HEATER-WITH(FLOOR SET)&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-26220 |
GDH320..6FC..ARL;GDH300..RHD..4D..6FC;GDH300..RHD..5D..(SG,SP);GDH320,GRH300,320..RHD..GEN;GDH300..RHD..4D..6F..(GEN,TH);GDH300,301,321,322,GRH301,322..RHD..(SG,SHP)..D..(GEN,IDN) |
1 | ||
| 55539-26220 |
GDH301,322,GRH301,322..RHD..D..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 55539-26220 |
GDH300,301,GRH301..RHD..(SG,SHP)..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 55539-26220 |
GDH301,GRH301..RHD..D..GEN REAR HEATER-WITH(FLOOR SET)&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 55618B - BASE, SWITCH HOLE, NO.3 | ||||
| 55618-26080 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-26130 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) ACCESSORY CONNECTOR-12V(1) |
1 | ||
| 55620-26100 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-26130 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) ACCESSORY CONNECTOR-12V(1) |
1 | ||
| 55620-26100 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55631A - STOPPER, INSTRUMENT PANEL UNDER TRAY, NO.1 | ||||
| 55631-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55632B - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55632-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-26070 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-26060 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-26080B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55670-26080A0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-26030A0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55680-26030B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90159-T0042 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(1902- )GDH300,301,320,321,322,GRH300,301,32#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-26130A0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55312-26130B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) MELLOW WHITE |
2 | ||
| 55313 - PANEL, INSTRUMENT, LOWER LH | ||||
| 55313-26010 |
GDH321..D..IDN;GDH301..RHD..(GEN,TH);GDH300,320,322,GRH300,301,320,322..RHD..(D,N)..GEN |
1 | ||
| 55314A - PANEL, INSTRUMENT, LOWER CENTER | ||||
| 55314-26030 |
GDH322..Q..ARL;GRH303..RHD..GEN;GDH301,303,304,322,GRH301,304,322..RHD..(G,H,J,N) |
1 | ||
| 55314-26010 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) |
1 | ||
| 55314A - PANEL, INSTRUMENT, LOWER CENTER | ||||
| 55314-26030 |
GDH322..Q..ARL;GRH303..RHD..GEN;GDH301,303,304,322,GRH301,304,322..RHD..(G,H,J,N) |
1 | ||
| 55314-26010 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) |
1 | ||
| 55320 - PANEL ASSY, INSTRUMENT, LOWER NO.2 | ||||
| 55320-26010A0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55320-26010B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-26170A0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55413-26150B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-26170A0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55413-26150B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-26170 |
GDH301,322,GRH301,322..D..(GEN,TH) AUDIO-AM & FM & CD & *BT & 4SPEAKER |
1 | ||
| 55414-26170 |
GDH301,322,GRH301,322..N AUDIO-AM & FM & CD & *BT & 6SPEAKER |
1 | ||
| 55414-26170 |
GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH301,303,322,GRH301,322..(G,J,N)..GEN AUDIO-*DA & CD & *BT |
1 | ||
| 55414-26170 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,P,Q);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,321,GRH300..(D,H)..(GCC,IDN,TH);GDH300,301,303,320,328,GRH301,304,320,322..GCC,GEN,PH,TH,VN |
1 | ||
| 55414-26170 |
GDH322..LHD..(P,Q);GDH300,320,322,GRH320..(D,N)..(GEN,TH);GDH300,320,321,GRH300,320..6F..D..(GCC,IDN);GDH301,328,GRH300,301,322..4D..(GCC,GEN,PH,TH,VN) AUDIO-AM & FM & CD & *BT |
1 | ||
| 55414-26170 |
GRH303..RHD..G..GEN;GDH301,303,322,GRH301,322..(G,N)..GEN AUDIO-*DA(AM & CD & *BT) |
1 | ||
| 55414-26170 |
GDH301..6F..GEN;GRH300..4D..GEN;GDH301..6FC..D..GEN;GRH322..LHD..6FC..D;GDH320,GRH322..RHD..GEN;GDH320..LHD..SP..6FC..GEN;GDH320,GRH322..LHD..6F..GEN;GDH300,322,GRH301,320..(D,N)..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 55414-26180B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55414-26170 |
GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH301,303,322,328,GRH301,304,322..(G,H,J,N)..(GEN,PH) AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 55414-26170 |
GRH303..RHD..GEN;GDH301,GRH322..6F..N;GDH303,GRH303..LHD..(H,J);GDH300,320..LHD..SP..6FC..GEN;GDH303,322,GRH301..(G,N)..GEN;GDH304,322,GRH322..(H,Q)..(GCC,TH) AUDIO-*DA(DVD & CD & *BT & 17CY PLUS) |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-26200A0 |
GDH322..Q..ARL;GRH303..RHD..G..GEN;GDH301,303,322,GRH301,322..RHD..(G,N) FROMAGE,TRIM0# |
1 | ||
| 55432-26200B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-26090B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55433-26090A0 |
GDH322..Q..ARL;GRH303..RHD..G..GEN;GDH301,303,322,GRH301,322..RHD..(G,N) FROMAGE,TRIM0# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-26170B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55434-26190A0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-26170B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55434-26190A0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-26070 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55438A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55438-26060C0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) BLACK,TRIM1# |
1 | ||
| 55438-26060E0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-26050 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-26100B0 |
GDH301..RHD..D..(GEN,TH);GDH300,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN) LT.GRAY,TRIM1# |
1 | ||
| 55445-26100A0 |
GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55465B - KNOB, INSTRUMENT PANEL BOX LOCK | ||||
| 55465-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55465B - KNOB, INSTRUMENT PANEL BOX LOCK | ||||
| 55465-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-12010C0 |
GDH322..D,N;GRH303..RHD..GEN;GDH322..LHD..(P,Q);GDH304,GRH300..GCC,TH;GDH321,GRH303..LHD..(J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,320,328,GRH301,304,32#..GCC,GEN,PH,TH,VN BLACK |
1 | ||
| 55524-12010C0 |
GRH300..4D..GEN;GDH300,320,GRH300,320..6F..GCC;GDH300,301,320,322,GRH301,320,322..(D,N)..(GEN,TH) AUDIO-AM & FM & CD & *BT,BLACK |
1 | ||
| 55524-12010C0 |
GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..(D,N)..GEN AUDIO-AM & FM & CD & *BT,BLACK |
1 | ||
| 55524-12010C0 |
GDH301,322,GRH301,322..D..(GEN,TH) AUDIO-AM & FM & CD & *BT & 4SPEAKER,BLACK |
1 | ||
| 55524-12010C0 |
GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH301,303,322,GRH301,322..(G,J,N)..GEN AUDIO-*DA & CD & *BT,BLACK |
1 | ||
| 55524-12010C0 |
GDH301,322,GRH301,322..N AUDIO-AM & FM & CD & *BT & 6SPEAKER,BLACK |
1 | ||
| 55524-12010C0 |
GRH303..RHD..G..GEN;GDH301,303,322,GRH301,322..(G,N)..GEN AUDIO-*DA(AM & CD & *BT),BLACK |
1 | ||
| 55524-12010C0 |
GRH303..RHD..GEN;GDH301,GRH322..6F..N;GDH303,GRH303..LHD..(H,J);GDH300,320..LHD..SP..6FC..GEN;GDH303,321,322,GRH301..(G,N)..GEN;GDH304,322,GRH322..(H,Q)..(GCC,TH) AUDIO-*DA(DVD & CD & *BT & 17CY PLUS),BLACK |
1 | ||
| 55524-12010C0 |
GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH301,303,322,328,GRH301,304,322..(G,H,J,N)..(GEN,PH) AUDIO-*DA(DVD & CD & *BT),BLACK |
1 | ||
| 55524H - COVER, SWITCH BASE HOLE | ||||
| 55524-26010E0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,32#..D,P BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH301,321,322,328,GRH301,321,322..N,Q BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328,GRH300,301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..(D,P)..(ARL,GCC,GEN,NZ);GDH300,301,320,GRH300,301,32#..D,P INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH300,301,320,322,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C0 |
GDH322..Q..GCC;GDH322..LHD..N;GDH322..RHD..(N,Q)..GEN;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C0 |
GDH322..6FC..P..GCC;GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P);GDH322..RHD..(D,P)..(GEN,TH);GDH300,301,320,328,GRH300,301,320,322..(D,P)..(GCC,GEN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300,301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..D..GEN;GDH300,301,320,328..D..(GEN,VN) FRONT HEATER-WITH(PTC HEATER),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH300..4D..GEN;GDH300,301,320,322,328,GRH301,320,322..D..(GEN,VN) VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH300..4D..GEN;GRH322..LHD..6FC..D;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE),BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GRH322..LHD..N;GDH328,GRH301..N;GDH301,322..6FC..N;GDH301,322..LHD..6F..N VEHICLE STABILITY CONTROL-WITH,BLACK,TRIM0# |
1 | ||
| 55539-33170C3 |
GRH300..GCC;GDH322..LHD..6F..P;GDH322..6FC..P..GCC;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1# |
1 | ||
| 55539-33170C3 |
GDH322..N;GDH322..Q..GCC;GDH301,321,GRH301,321,322..(N,Q)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-26200 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH306,GRH321..LHD;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH320,322,GRH320..(D,N)..(GCC,GEN,TH);GDH301,303,304,321,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 55539-26200 |
GDH301..LHD..D;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH301,321..N..GEN;GDH320,GRH300,320..6F..GCC;GDH300,301..RHD..4D..6F..D..GEN;GDH320,322,GRH301,320,322..(D,N)..GEN HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47020E2 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-26050B0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 55550-26050A0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N FROMAGE,TRIM0# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-26010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-26010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3 | ||||
| 55608-26010E0 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 55641 - COVER, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-26100C0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) BLACK,TRIM1# |
1 | ||
| 55641-26100E0 |
GDH322..Q..ARL;GRH303..RHD..G..GEN;GDH301,303,322,GRH301,322..RHD..(G,N) ORCHID BROWN,TRIM0# |
1 | ||
| 55642 - COVER, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-26040 |
GDH322..Q..ARL;GDH301,322,GRH301,322..RHD..N |
1 | ||
| 55642-26070 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) |
1 | ||
| 55646 - COVER, INSTRUMENT PANEL UNDER, NO.3 | ||||
| 55646-26010C0 |
GDH320..6FC..ARL;GDH300..RHD..4D..6FC;GDH300..RHD..5D..(SG,SP);GDH300..RHD..4D..6F..(GEN,TH);GDH320,322,GRH300,320..RHD..D..(GEN,TH);GDH300,301,GRH301,322..RHD..(SG,SHP)..D..GEN BLACK,TRIM1# |
1 | ||
| 58533C - COVER, FLOOR CARPET, CENTER RH | ||||
| 58533-26010C0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) BLACK,TRIM1# |
1 | ||
| 58533-26010E0 |
GDH322..Q..ARL;GRH303..RHD..G..GEN;GDH301,303,322,GRH301,322..RHD..(G,N) ORCHID BROWN,TRIM0# |
1 | ||
| 58534E - COVER, FLOOR CARPET, CENTER LH | ||||
| 58534-26020E0 |
GDH322..Q..ARL;GRH303..RHD..G..GEN;GDH301,303,322,GRH301,322..RHD..(G,N) ORCHID BROWN,TRIM0# |
1 | ||
| 58534-26020C0 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH) BLACK,TRIM1# |
1 | ||
| 58840Q - COVER ASSY, SHIFTING HOLE | ||||
| 58840-26090 |
GDH301,322,GRH301,322..RHD..6F..N |
1 | ||
| 58840-26071B0 |
GDH300..RHD..5D..6F;GDH320,GRH320..RHD..6F..GEN;GDH300,301,321,322,GRH301,322..RHD..4D..6F..D..(GEN,IDN,TH) LT.GRAY,TRIM1# |
1 | ||
| 58840Q - COVER ASSY, SHIFTING HOLE | ||||
| 58840-26090 |
GDH301,322,GRH301,322..RHD..6F..N |
1 | ||
| 58840-26071B0 |
GDH300..RHD..5D..6F;GDH320,GRH320..RHD..6F..GEN;GDH300,301,321,322,GRH301,322..RHD..4D..6F..D..(GEN,IDN,TH) LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-50327 | ||||
| 90159-60383 | ||||
| 90159-T0005 | ||||
| 90159-T0042 | ||||
| 90179-06278 | ||||
| 90467-05172 | ||||
| 90467-09240 | ||||
| 90467-09241 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
