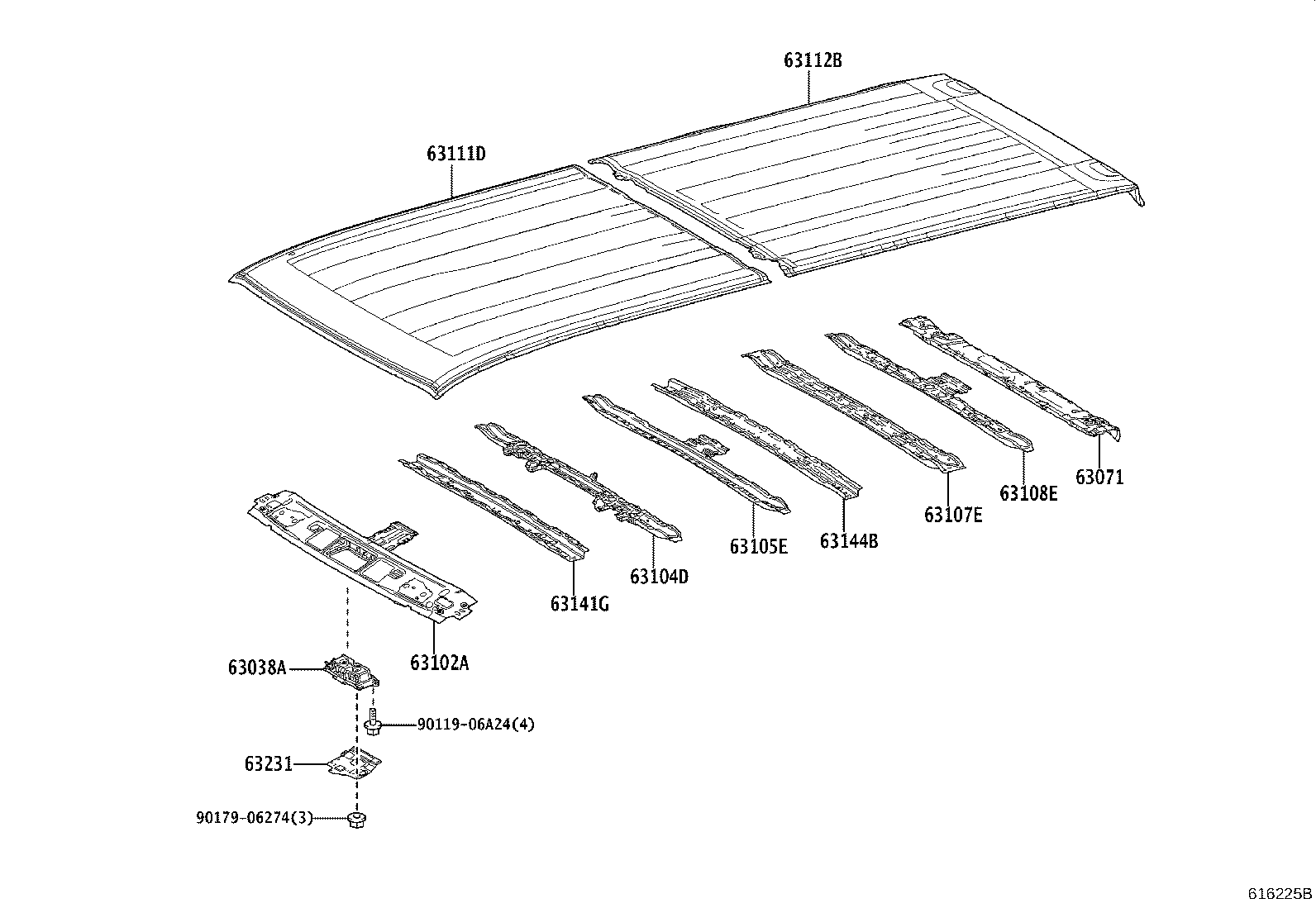

GRH301L-GDFNH (2019)
Toyota Hiace
(1902- )GDH300,301,GRH300,301..D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-26390 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-26200 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) |
1 | ||
| 63102-26230 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26230 |
GRH300..4D..GEN;GDH300,301,GRH301..D..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26340 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-26200 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) |
1 | ||
| 63102-26230 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26230 |
GRH300..4D..GEN;GDH300,301,GRH301..D..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26340 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-26330 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 63104-26330 |
GDH301..NZ,TH;GDH301,GRH301..N |
1 | ||
| 63104-26340 |
GDH300..5D;GDH303..RHD;GRH300..GCC;GDH301..D..GEN;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J);GDH300..4D..6FC..ARL;GDH300,GRH300,301..4D..D..(GEN,TH) |
1 | ||
| 63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63105-26260 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 63107E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5 | ||||
| 63107-26160 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..D..(GEN,NZ,TH) |
1 | ||
| 63107-26190 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 63108E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6 | ||||
| 63108-26100 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH) |
1 | ||
| 63111D - PANEL, ROOF, FRONT | ||||
| 63111-26570 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..(G,H,J,N)..(GCC,GEN,TH) |
1 | ||
| 63111-26540 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,NZ,TH) |
1 | ||
| 63112B - PANEL, ROOF, REAR | ||||
| 63112-26050 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..D..(GEN,NZ,TH) |
1 | ||
| 63112-26080 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63103-26340 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 63103-26340 |
GDH301..NZ,TH;GDH303..LHD..H;GDH301,GRH301..N;GDH304,GRH304..RHD |
1 | ||
| 63141-26230 |
GDH300..5D;GDH303..RHD;GRH300..GCC;GDH301..D..GEN;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J);GDH300..4D..6FC..ARL;GDH300,GRH300,301..4D..D..(GEN,TH) |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63106-26210 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-26060 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
6 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-26060 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
6 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-26060 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
6 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-26120 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
6 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-26120 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
6 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-26120 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
6 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-42010 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
6 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-42010 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
6 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-42010 |
GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
6 | ||
| Common parts | ||||
| 90119-08D28 | ||||
(1902- )GDH301,GRH301..N
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63038A - DAMPER SUB-ASSY, WINDSHIELD HEADER PANEL, RH | ||||
| 63038-26020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 63038-26010 |
GDH301,GRH301..N |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-26390 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-26200 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) |
1 | ||
| 63102-26230 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26230 |
GRH300..4D..GEN;GDH300,301,GRH301..D..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26340 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-26330 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 63104-26330 |
GDH301..NZ,TH;GDH301,GRH301..N |
1 | ||
| 63104-26340 |
GDH300..5D;GDH303..RHD;GRH300..GCC;GDH301..D..GEN;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J);GDH300..4D..6FC..ARL;GDH300,GRH300,301..4D..D..(GEN,TH) |
1 | ||
| 63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63105-26260 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 63107E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5 | ||||
| 63107-26160 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..D..(GEN,NZ,TH) |
1 | ||
| 63107-26190 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 63108E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6 | ||||
| 63108-26100 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH) |
1 | ||
| 63111D - PANEL, ROOF, FRONT | ||||
| 63111-26570 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..(G,H,J,N)..(GCC,GEN,TH) |
1 | ||
| 63111-26540 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,NZ,TH) |
1 | ||
| 63112B - PANEL, ROOF, REAR | ||||
| 63112-26050 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..D..(GEN,NZ,TH) |
1 | ||
| 63112-26080 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63103-26340 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 63103-26340 |
GDH301..NZ,TH;GDH303..LHD..H;GDH301,GRH301..N;GDH304,GRH304..RHD |
1 | ||
| 63141-26230 |
GDH300..5D;GDH303..RHD;GRH300..GCC;GDH301..D..GEN;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J);GDH300..4D..6FC..ARL;GDH300,GRH300,301..4D..D..(GEN,TH) |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63106-26210 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 63231 - BRACKET, ROOM LAMP | ||||
| 63231-26200 |
GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH301,303,304,GRH301,304..(G,H,J,N)..(ARL,GEN,TH) |
1 | ||
| Common parts | ||||
| 90119-06A24 | ||||
| 90179-06274 | ||||
(1903- )GDH321..NZ ; (1903- )GDH321..N..GEN ; (1903- )GDH320,GRH320..GCC ;
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-26390 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 63071-26390 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-26200 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) |
1 | ||
| 63102-26200 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) |
1 | ||
| 63102-26230 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26230 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26230 |
GRH300..4D..GEN;GDH300,301,GRH301..D..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26230 |
GRH300..4D..GEN;GDH300,301,GRH301..D..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26340 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 63102-26340 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-26200 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) |
1 | ||
| 63102-26200 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) |
1 | ||
| 63102-26230 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26230 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26230 |
GRH300..4D..GEN;GDH300,301,GRH301..D..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26230 |
GRH300..4D..GEN;GDH300,301,GRH301..D..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 63102-26340 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 63102-26340 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-26330 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 63104-26330 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 63104-26330 |
GDH301..NZ,TH;GDH301,GRH301..N |
1 | ||
| 63104-26330 |
GDH301..NZ,TH;GDH301,GRH301..N |
1 | ||
| 63104-26340 |
GDH300..5D;GDH303..RHD;GRH300..GCC;GDH301..D..GEN;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J);GDH300..4D..6FC..ARL;GDH300,GRH300,301..4D..D..(GEN,TH) |
1 | ||
| 63104-26340 |
GDH300..5D;GDH303..RHD;GRH300..GCC;GDH301..D..GEN;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J);GDH300..4D..6FC..ARL;GDH300,GRH300,301..4D..D..(GEN,TH) |
1 | ||
| 63111D - PANEL, ROOF, FRONT | ||||
| 63111-26570 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..(G,H,J,N)..(GCC,GEN,TH) |
1 | ||
| 63111-26570 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..(G,H,J,N)..(GCC,GEN,TH) |
1 | ||
| 63111-26540 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,NZ,TH) |
1 | ||
| 63111-26540 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,NZ,TH) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63103-26340 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 63103-26340 |
GDH300,GRH300..SHP;GDH301,GRH301..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 63103-26340 |
GDH301..NZ,TH;GDH303..LHD..H;GDH301,GRH301..N;GDH304,GRH304..RHD |
1 | ||
| 63103-26340 |
GDH301..NZ,TH;GDH303..LHD..H;GDH301,GRH301..N;GDH304,GRH304..RHD |
1 | ||
| 63141-26230 |
GDH300..5D;GDH303..RHD;GRH300..GCC;GDH301..D..GEN;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J);GDH300..4D..6FC..ARL;GDH300,GRH300,301..4D..D..(GEN,TH) |
1 | ||
| 63141-26230 |
GDH300..5D;GDH303..RHD;GRH300..GCC;GDH301..D..GEN;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J);GDH300..4D..6FC..ARL;GDH300,GRH300,301..4D..D..(GEN,TH) |
1 | ||
| Common parts | ||||
| 90105-06325 | ||||
| 90119-06833 | ||||
| 90119-08895 | ||||
| 90467-10161 | ||||
