8718 - HEATING & AIR CONDITIONING - COOLER PIPING

GRH300R-GBTDH (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999

Engine 7GRFKS

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

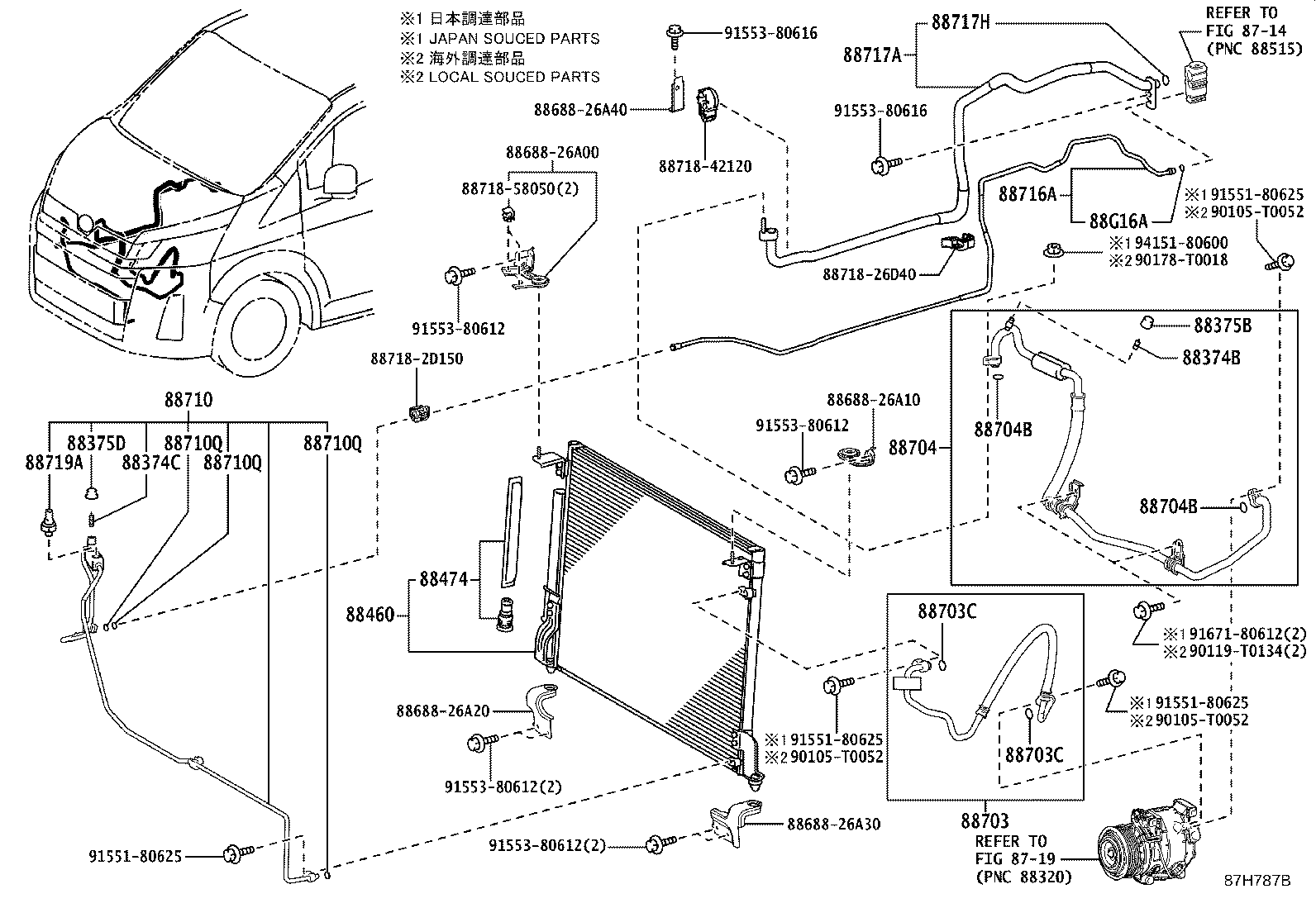

ILLUST NO. 2 OF 3(1902- )GRH300,301,320,322..RHD..D

Click highlighted areas on diagram

FRONT:SINGLE A/C

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
884A0-26040	GRH300..4D..GEN;GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88474 - DRYER, COOLER
88474-12020	GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-26010	GRH300..4D..GEN;GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120	GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=10.8,OD=15.6,FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120	GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=10.8,OD=15.6,FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	2
88704 - HOSE SUB-ASSY, SUCTION
88704-26020	GRH300..4D..GEN;GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121	GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121	GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	2
88710 - TUBE ASSY, AIR CONDITIONER
88710-26A50	GRH300..4D..GEN;GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GRH300..4D..GEN;GRH301,320,322..D..GEN ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	3
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GRH300..4D..GEN;GRH301,320,322..D..GEN ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	3
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GRH300..4D..GEN;GRH301,320,322..D..GEN ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	3
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-26A40	GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH320,GRH320..RHD..GEN;GDH300,301,321,322,GRH300,301,322..RHD..4D..D..(GEN,IDN) FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88716-26A30	GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-26A50	GDH300..RHD..5D;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH320,GRH320..RHD..GEN;GDH300,301,321,322,GRH300,301,322..RHD..4D..D..(GEN,IDN) FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88717-26A40	GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE)
90099-14121	GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-47010	GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
88G16A - RING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14119	GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
Common parts
88688-26A00
88688-26A10
88688-26A20
88688-26A30
88688-26A40
88718-26D40
88718-2D150
88718-42120
88718-58050
90105-T0052
90119-T0134
90178-T0018
91551-80625
91553-80612
91553-80616
91671-80612
94151-80600
Linked diagrams
8714
8719

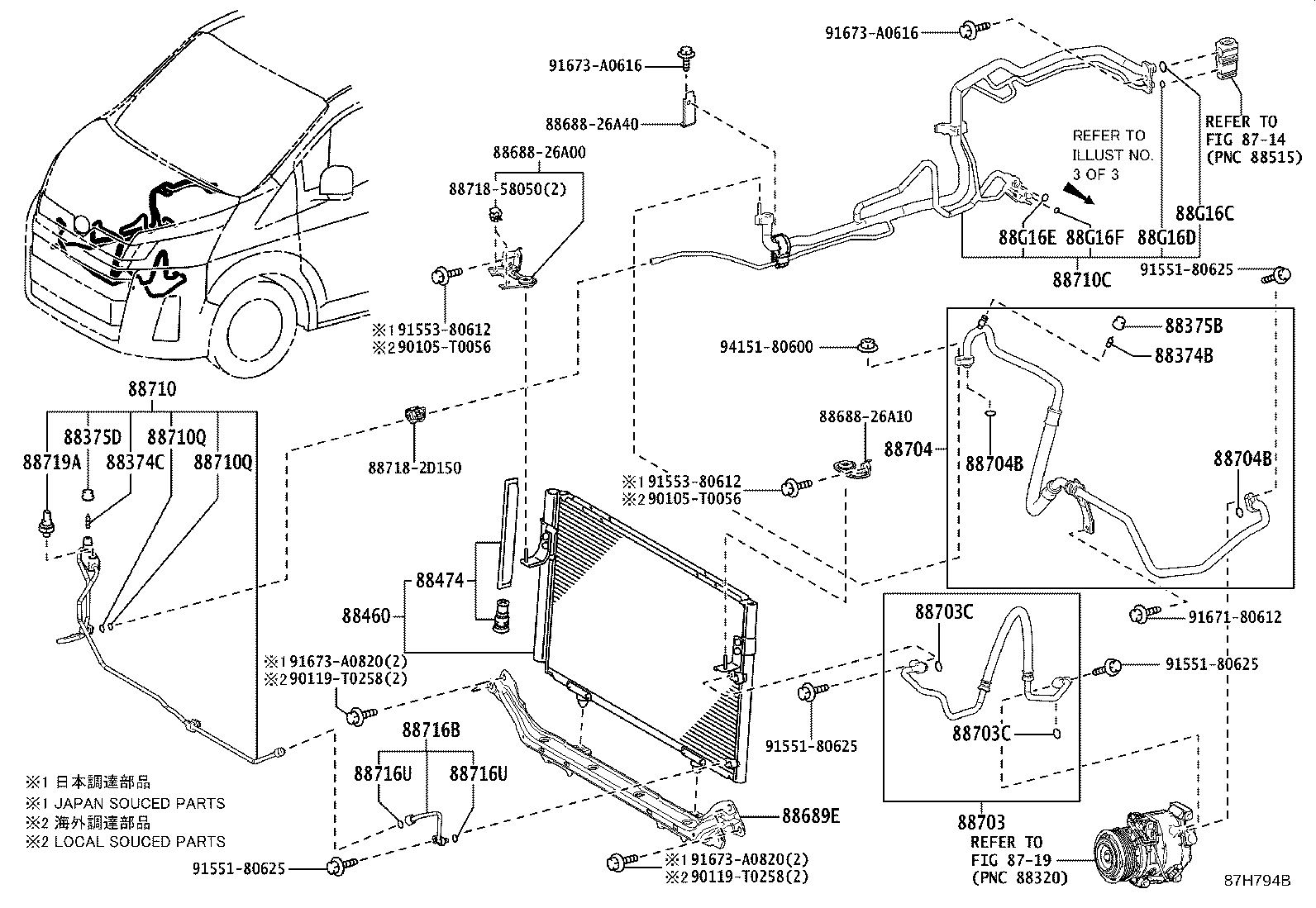

ILLUST NO. 2 OF 3(1902- )RHD..SHP ; (1902- )GDH322..RHD..ARL,GEN,NZ ; (1902- )GDH301,303,30
