Toyota Hiace GRH300 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
US
HIACE
GRH300R-GBTDH (2019)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

GRH300R-GBTDH (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999

Engine 7GRFKS

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

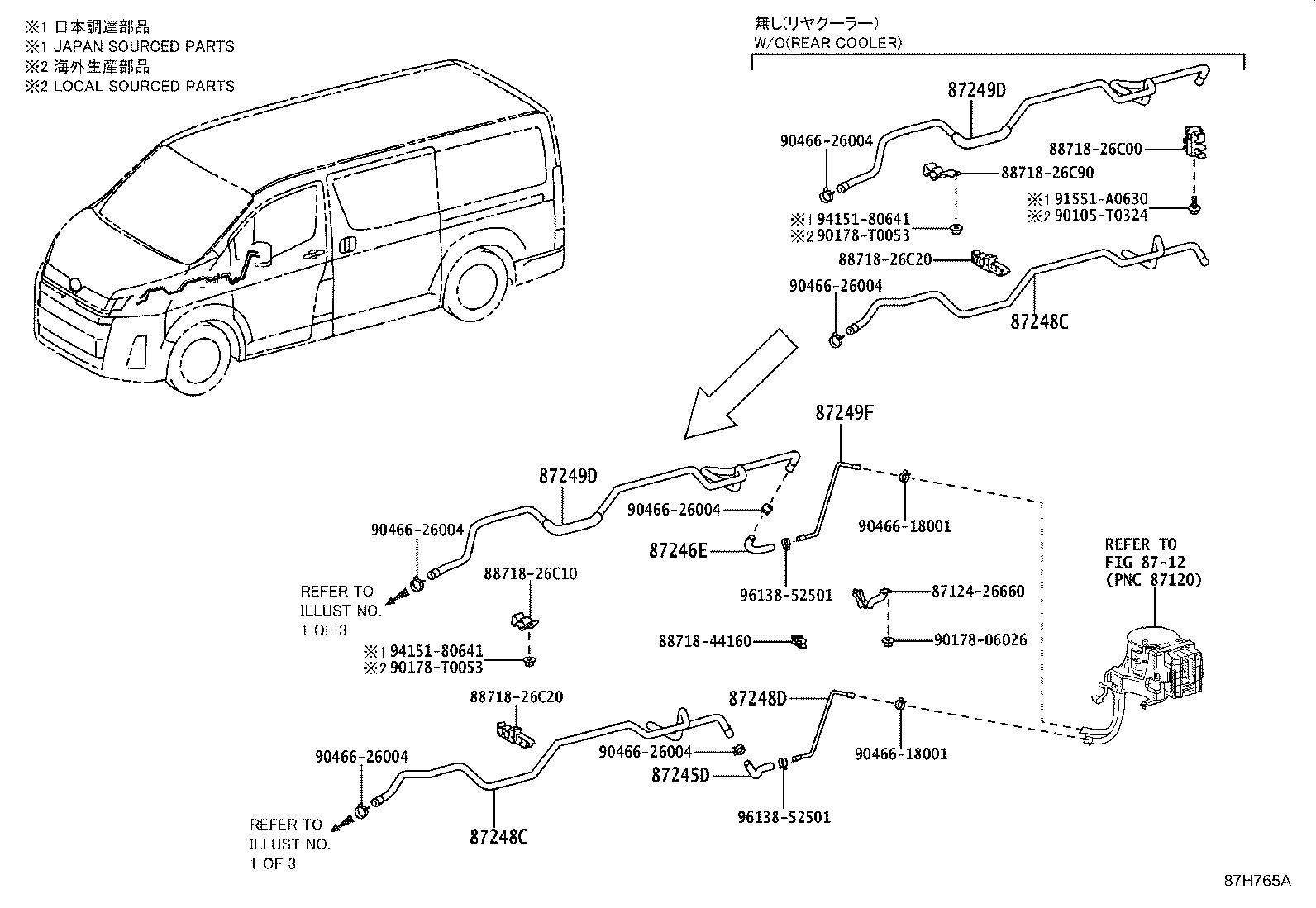

ILLUST NO. 3 OF 3(1902- )GDH300,301,GRH300,301..RHD

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty	Price
Common parts
87124-26660
88718-26C00
88718-26C10
88718-26C20
88718-26C90
88718-44160
90105-T0324
90178-06026
90178-T0053
90466-18001
90466-26004
91551-A0630
94151-80641
96138-52501
Linked diagrams
8712

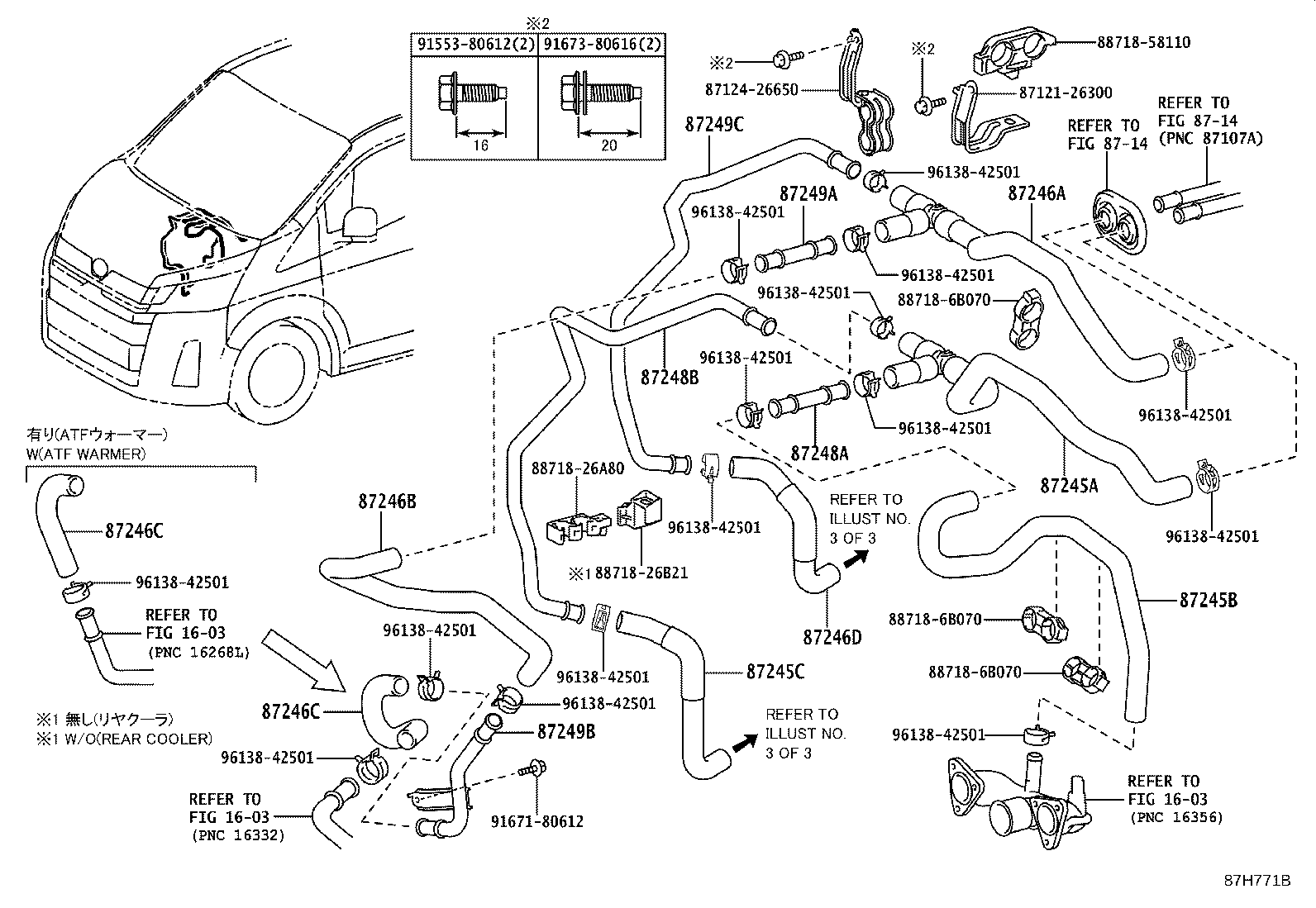

ILLUST NO. 1 OF 3(1902- )GRH30#,32#..RHD

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26L10	GRH300,301,320,322..RHD..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87245-26L10	GRH300,301,320,322..RHD..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-26L20	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87245-26L20	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-26L00	GRH300,301,320,322..RHD..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87245-26L00	GRH300,301,320,322..RHD..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26L30	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87245-26L30	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-26L40	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87245-26L40	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-26L40	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87245-26L40	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26E10	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87248-26E10	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26E10	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87248-26E10	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26E20	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87248-26E20	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
Common parts
87121-26300
87124-26650
88718-58110
88718-6B070
91553-80612
91671-80612
96138-42501
Linked diagrams
1603
8714

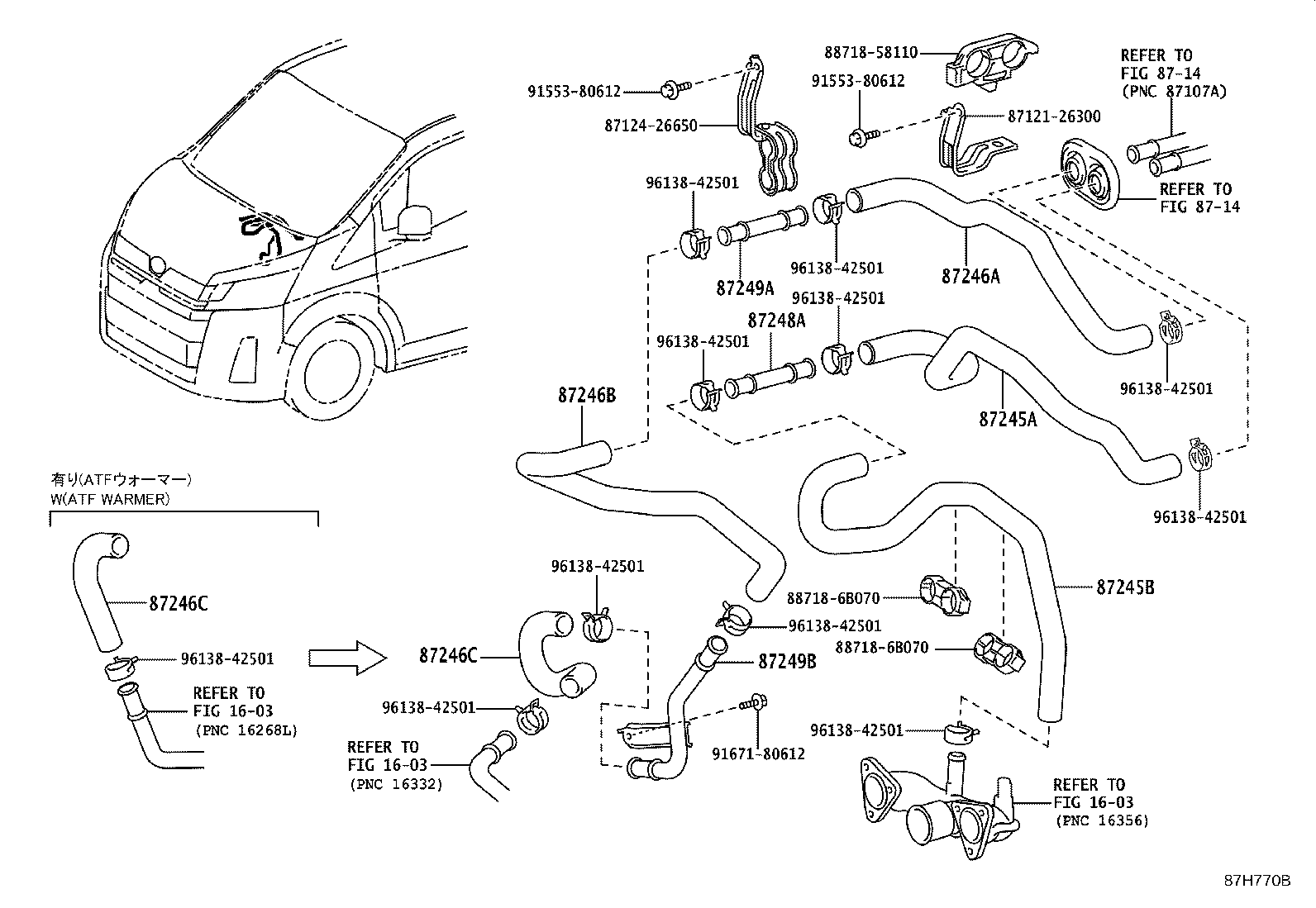

ILLUST NO. 1 OF 3(1902- )GRH30#,32#..RHD

Click highlighted areas on diagram

FRONT ,W(REAR HEATER)

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26L10	GRH300,301,320,322..RHD..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87245-26L10	GRH300,301,320,322..RHD..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-26L20	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87245-26L20	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-26L00	GRH300,301,320,322..RHD..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87245-26L00	GRH300,301,320,322..RHD..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26L30	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87245-26L30	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-26L40	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87245-26L40	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-26L40	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87245-26L40	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26E10	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87248-26E10	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26E10	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
87248-26E10	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26E20	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
87248-26E20	GRH300..4D..GEN;GRH301,320,322..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
Common parts
87121-26300
87124-26650
88718-26A80
88718-26B21
88718-58110
88718-6B070
91553-80612
91671-80612
91673-80616
96138-42501
Linked diagrams
1603
8714

GRH300R-GBTDH (2019)

ILLUST NO. 3 OF 3(1902- )GDH300,301,GRH300,301..RHD

ILLUST NO. 1 OF 3(1902- )GRH30#,32#..RHD

ILLUST NO. 1 OF 3(1902- )GRH30#,32#..RHD

Part Price Details
