GRH300R-GBTDH (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 7GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(1902- )RHD

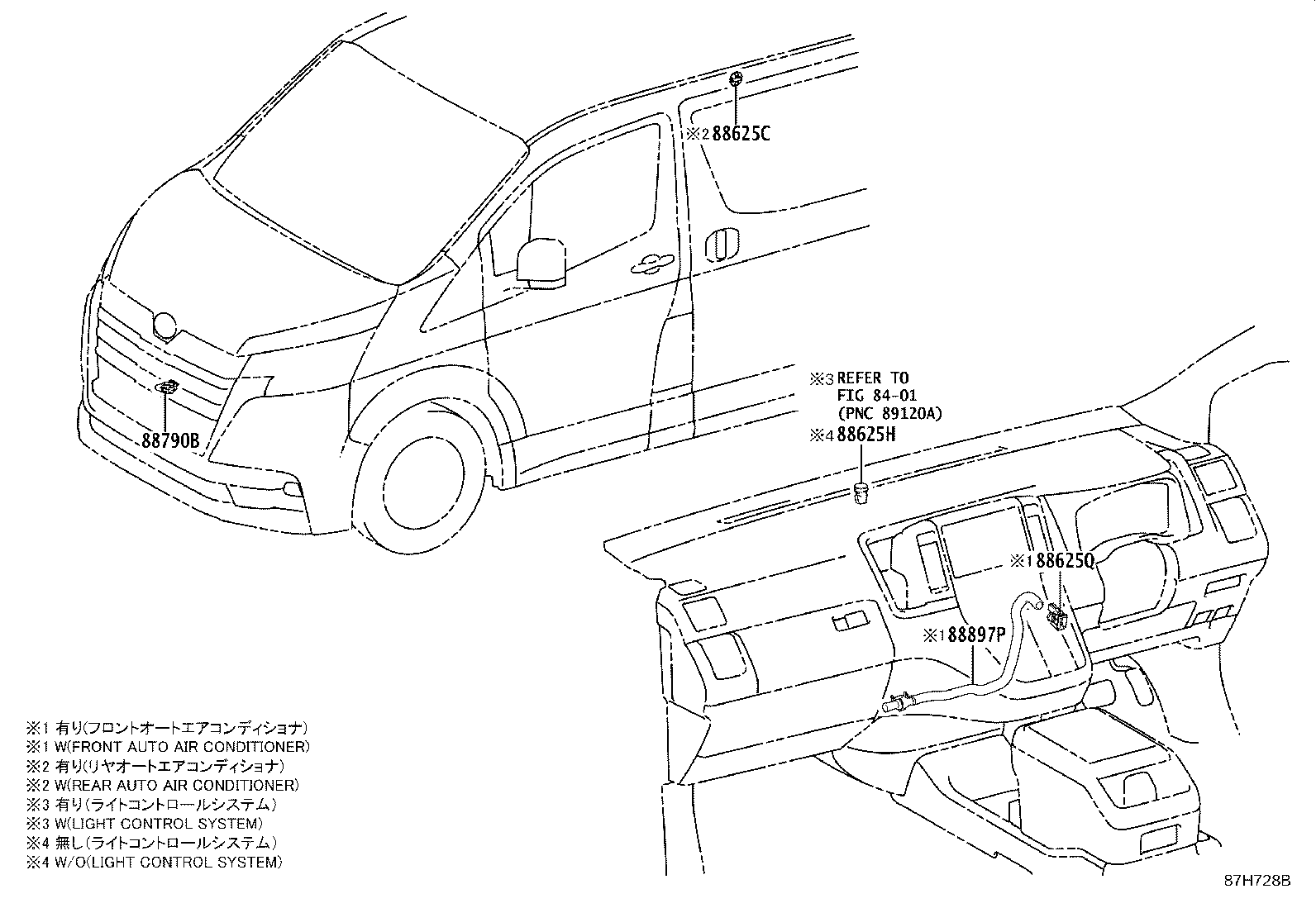

Click highlighted areas on diagram

SENSOR

diagram 8401 88625C 88625H 88625Q 88790B 88897P
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-52130

GRH300..4D..GEN;GDH300,301,320,321,322,GRH301,320,322..D..(GEN,IDN)

LIGHT CONTROL SYSTEM-WITH(LIGHT SENSOR ONLY)

 1
88790B - THERMISTOR ASSY
88790-28100

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

(J)

 1
88790-0K010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

(L)

 1
Linked diagrams
8401

ILLUST NO. 1 OF 4(1902- )RHD

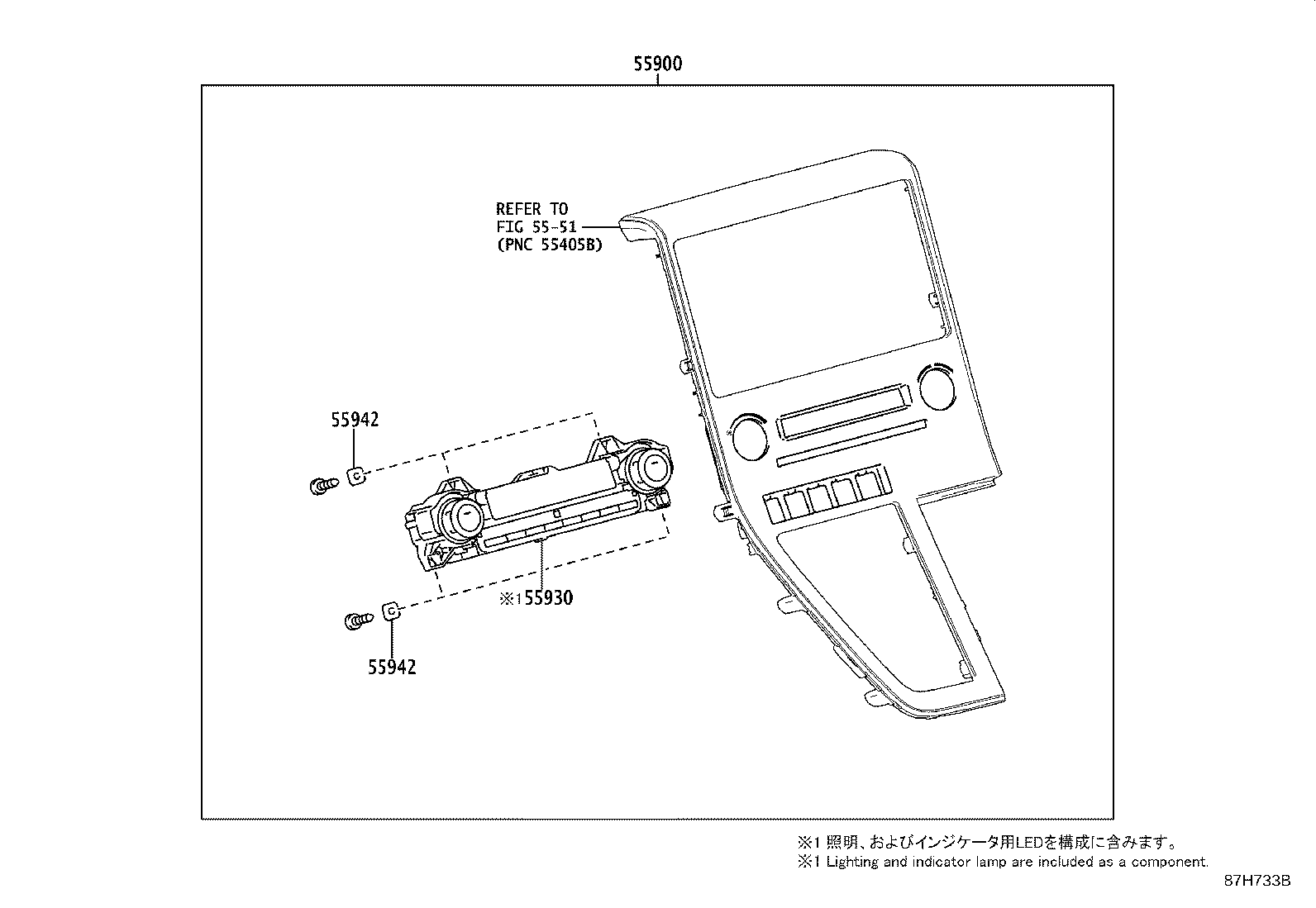

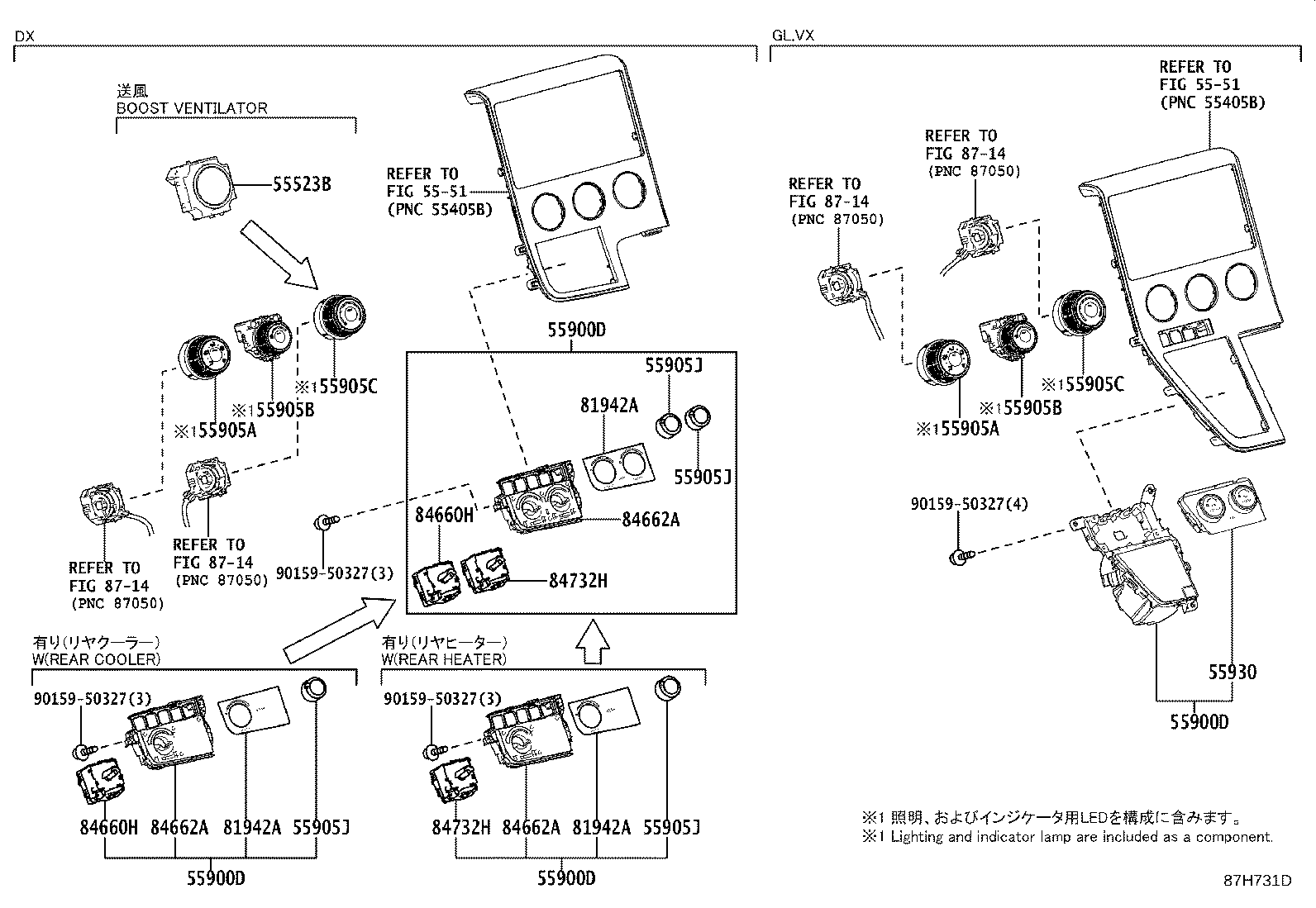

Click highlighted areas on diagram

FRONT CONTROL---MANUAL

diagram 5551 5551 55523B 55900D 55900D 55900D 55900D 55905A 55905A 55905B 55905B 55905C 55905C 55905J 55905J 55905J 55905J 55930 81942A 81942A 81942A 84660H 84660H 84662A 84662A 84662A 84732H 84732H 8714 8714 8714 8714 9015950327 9015950327 9015950327 9015950327
Part # Description Qty Price
55523B - COVER, HEATER CONTROL OPENING
55523-26090

GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

 1
55905A - KNOB, HEATER CONTROL
55901-26230

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55901-26220

GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..D..(GEN,IDN,TH)

 1
55901-26230

GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..D..(GEN,IDN,TH)

REAR WINDOW DEFOGGER-WITH

 1
55901-26230

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55901-26230

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)

 1
55901-26230

GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55901-26230

GRH300..4D..GEN;GDH300,301,320,321,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH

 1
55905A - KNOB, HEATER CONTROL
55901-26230

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55901-26220

GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..D..(GEN,IDN,TH)

 1
55901-26230

GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..D..(GEN,IDN,TH)

REAR WINDOW DEFOGGER-WITH

 1
55901-26230

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55901-26230

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)

 1
55901-26230

GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55901-26230

GRH300..4D..GEN;GDH300,301,320,321,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH

 1
55905B - KNOB, HEATER CONTROL, NO.2
55902-26150

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

 1
55905B - KNOB, HEATER CONTROL, NO.2
55902-26150

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

 1
55905C - KNOB, HEATER CONTROL, NO.3
55903-26100

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55903-26080

GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

FRONT AIR CONDITIONER-MANUAL COOLER

 1
55903-26090

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH

 1
55903-26080

GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55903-26090

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

FRONT HEATER-WITH

 1
55903-26100

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55903-26130

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)

 1
55903-26130

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
55903-26140

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55903-26140

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55905C - KNOB, HEATER CONTROL, NO.3
55903-26100

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55903-26080

GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

FRONT AIR CONDITIONER-MANUAL COOLER

 1
55903-26090

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH

 1
55903-26080

GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55903-26090

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

FRONT HEATER-WITH

 1
55903-26100

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55903-26130

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)

 1
55903-26130

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
55903-26140

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER

 1
55903-26140

GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN

FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER

 1
Common parts
90159-50327
Linked diagrams
5551
8714

ILLUST NO. 1 OF 4(1902- )GDH30#,320,322,GRH30#,32#..RHD

Click highlighted areas on diagram

FRONT CONTROL---AUTO

diagram 5551 55900 55930 55942 55942
Part # Description Qty Price
Linked diagrams
5551

ILLUST NO. 2 OF 4(1902- )GDH321..N ; (1902- )GDH30#,320,322,328,GRH30#,32#

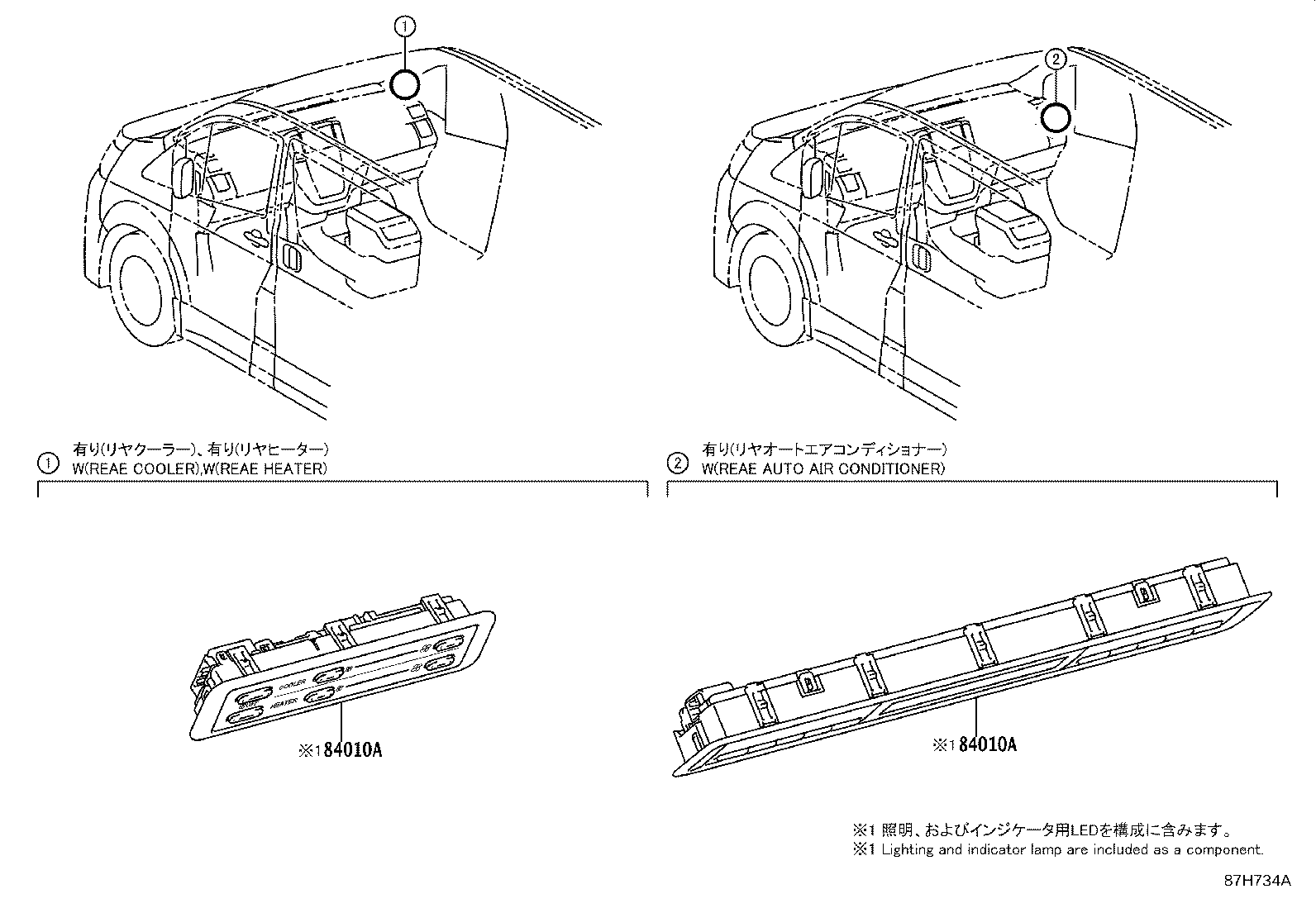

Click highlighted areas on diagram

REAR CONTROL

diagram 84010A 84010A
Part # Description Qty Price

ILLUST NO. 3 OF 4(1902- )RHD

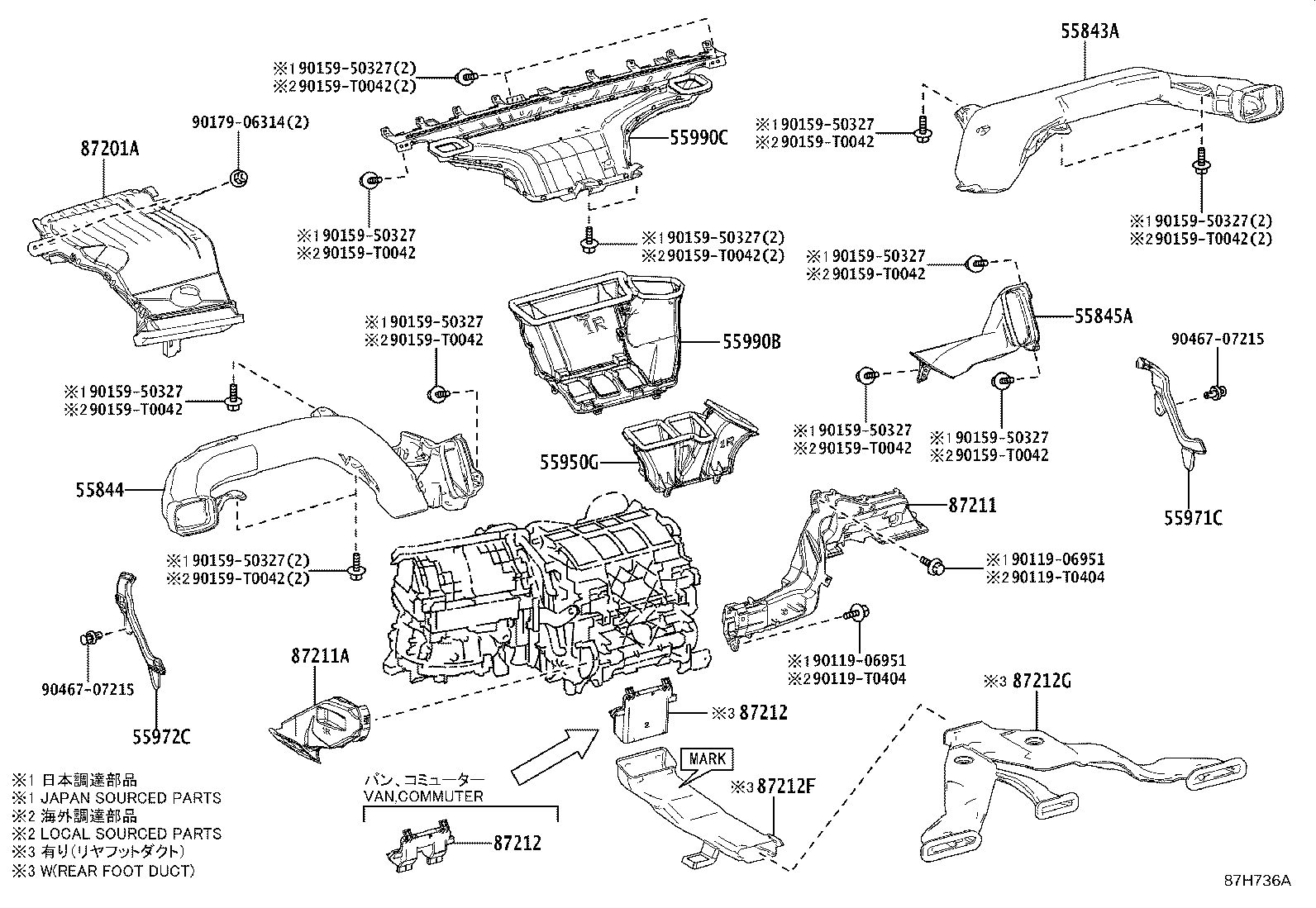

Click highlighted areas on diagram

AIR DUCT---FRONT

diagram 55843A 55844 55845A 55950G 55971C 55972C 55990B 55990C 87201A 87211 87211A 87212 87212 87212F 87212G 9011906951 9011906951 90119T0404 90119T0404 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 90159T0042 90159T0042 90159T0042 90159T0042 90159T0042 90159T0042 90159T0042 90159T0042 90159T0042 90159T0042 90159T0042 9017906314 9046707215 9046707215
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-26090

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
55843-26100

GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,32#..LHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55085-26020

GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,32#..LHD

 1
55085-26010

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55844-26050

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
55950G - NOZZLE ASSY, DEFROSTER
55960-26010

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-26070

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-26070

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-26010

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
55990C - NOZZLE ASSY, CENTER DEFROSTER
55950-26060

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
87201A - DUCT SUB-ASSY, AIR
87201-26070

GDH300..RHD..5D;GDH322..RHD..D..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH)

 1
87211 - DUCT, AIR, NO.1
87211-26210

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,GRH301,304,322..RHD;GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
87211-26240

GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD..(GCC,GEN,PH)

 1
87211A - DUCT, AIR, NO.2
87211-26220

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,GRH301,304,322..RHD;GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
87211-26230

GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD..(GCC,GEN,PH)

 1
87212 - DUCT, AIR, REAR NO.1
87211-26260

GRH300..GCC;GDH303..RHD..H;GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH300,301..(SG,SHP)..D..(GCC,GEN);GDH304,320,322,GRH301,304,320,322..(D,H)..(GCC,GEN,TH)

 1
87212 - DUCT, AIR, REAR NO.1
87211-26260

GRH300..GCC;GDH303..RHD..H;GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH300,301..(SG,SHP)..D..(GCC,GEN);GDH304,320,322,GRH301,304,320,322..(D,H)..(GCC,GEN,TH)

 1
Common parts
90119-06951
90119-T0404
90159-50327
90159-T0042
90179-06314
90467-07215
