GRH300R-GBTDH (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 7GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )GDH30#,GRH30#

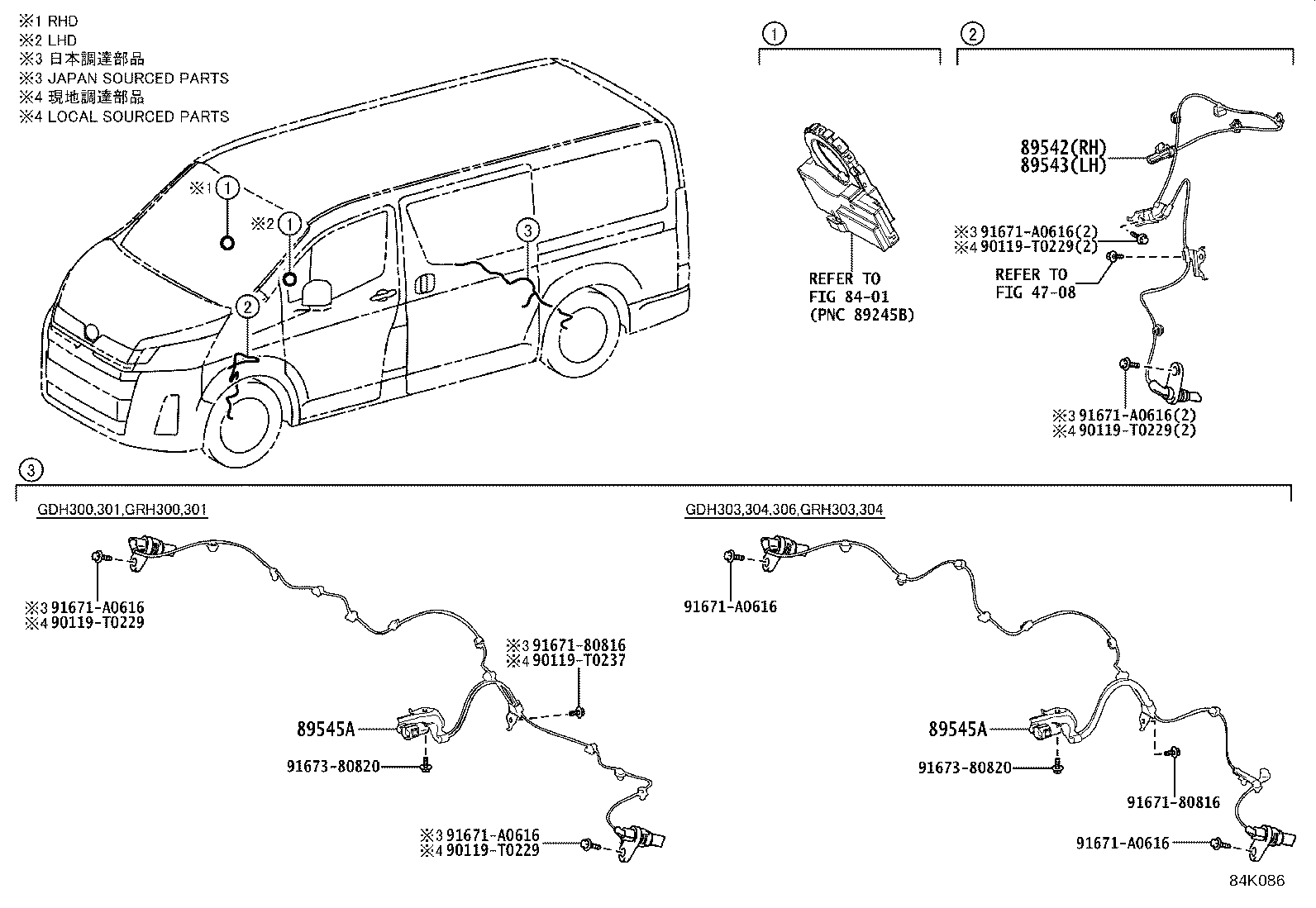

Click highlighted areas on diagram

diagram 4708 8401 89542 89543 89545A 89545A 90119T0229 90119T0229 90119T0229 90119T0229 90119T0237 9167180816 9167180816 91671A0616 91671A0616 91671A0616 91671A0616 91671A0616 91671A0616 9167380820 9167380820
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-26180

GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH30#,320,321,328,GRH30#,32#

 1
89542-26181

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH322..ARL,GCC;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
89543 - SENSOR, SPEED, FRONT LH
89543-26191

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH322..ARL,GCC;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
89543-26190

GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH30#,320,321,328,GRH30#,32#

 1
89545A - SENSOR, SPEED, REAR
89545-26090

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 1
89545A - SENSOR, SPEED, REAR
89545-26090

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 1
Common parts
90119-T0229
90119-T0237
91671-80816
91671-A0616
91673-80820
Linked diagrams
4708
8401
