GRH300R-GBTDH (2019)
Toyota Hiace

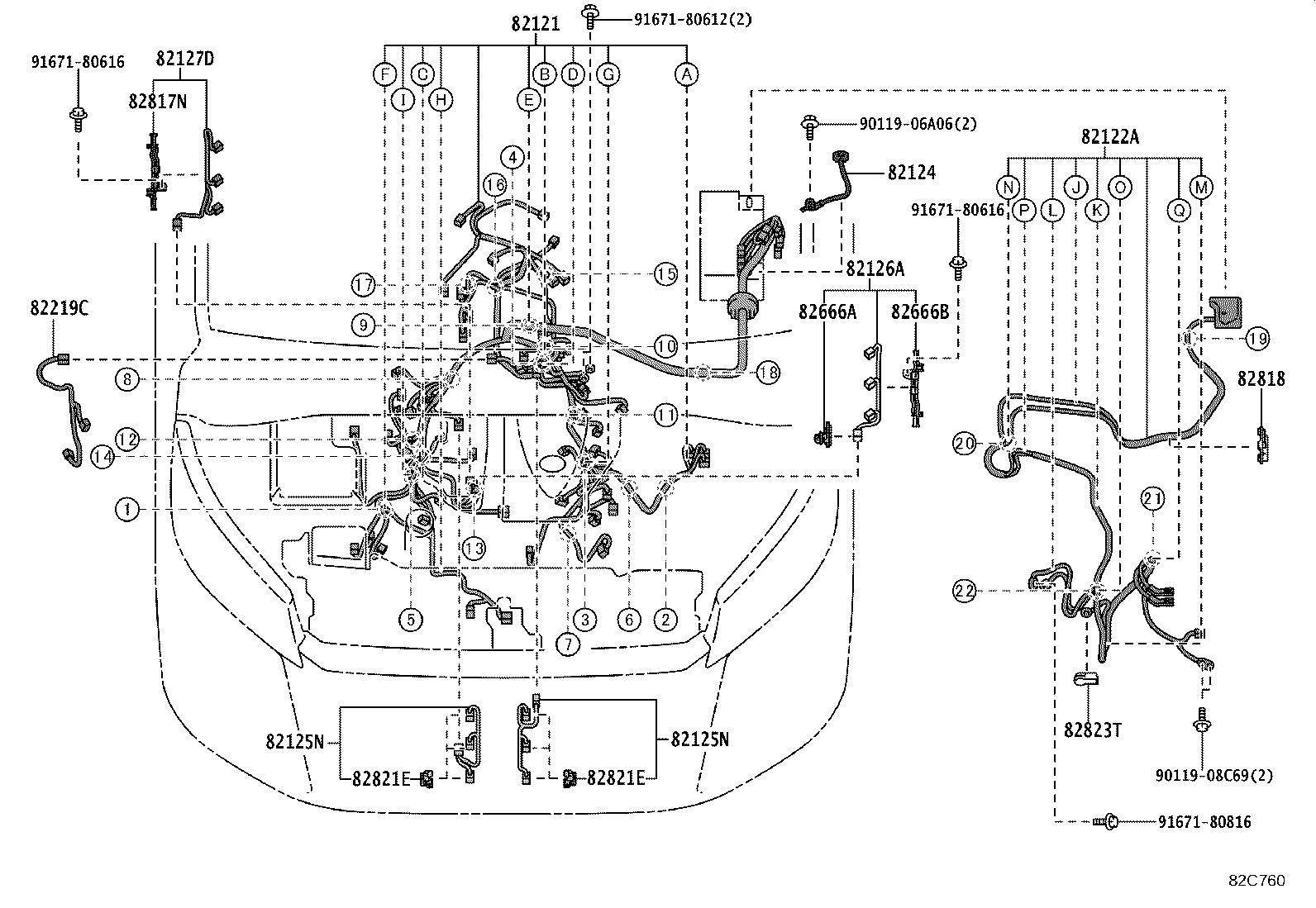

ILLUST NO.11 OF38(1902- )GRH30#,32#..RHD..6FC
ENGINE 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26W40 |
GRH300,301,320,322..RHD..6FC..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 82121-26J50 |
GRH300,301,320,322..RHD..6FC..D..GEN |
1 | ||
| 82122A - WIRE, ENGINE, NO.2 | ||||
| 82122-26B50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26210 |
GRH300..GCC;GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-60680 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
2 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-60680 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
2 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-60020 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-60120 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-60110 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-48130 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82817-30R30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-30R30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26M40 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-48240 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
6 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-48240 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
6 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-08C69 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||

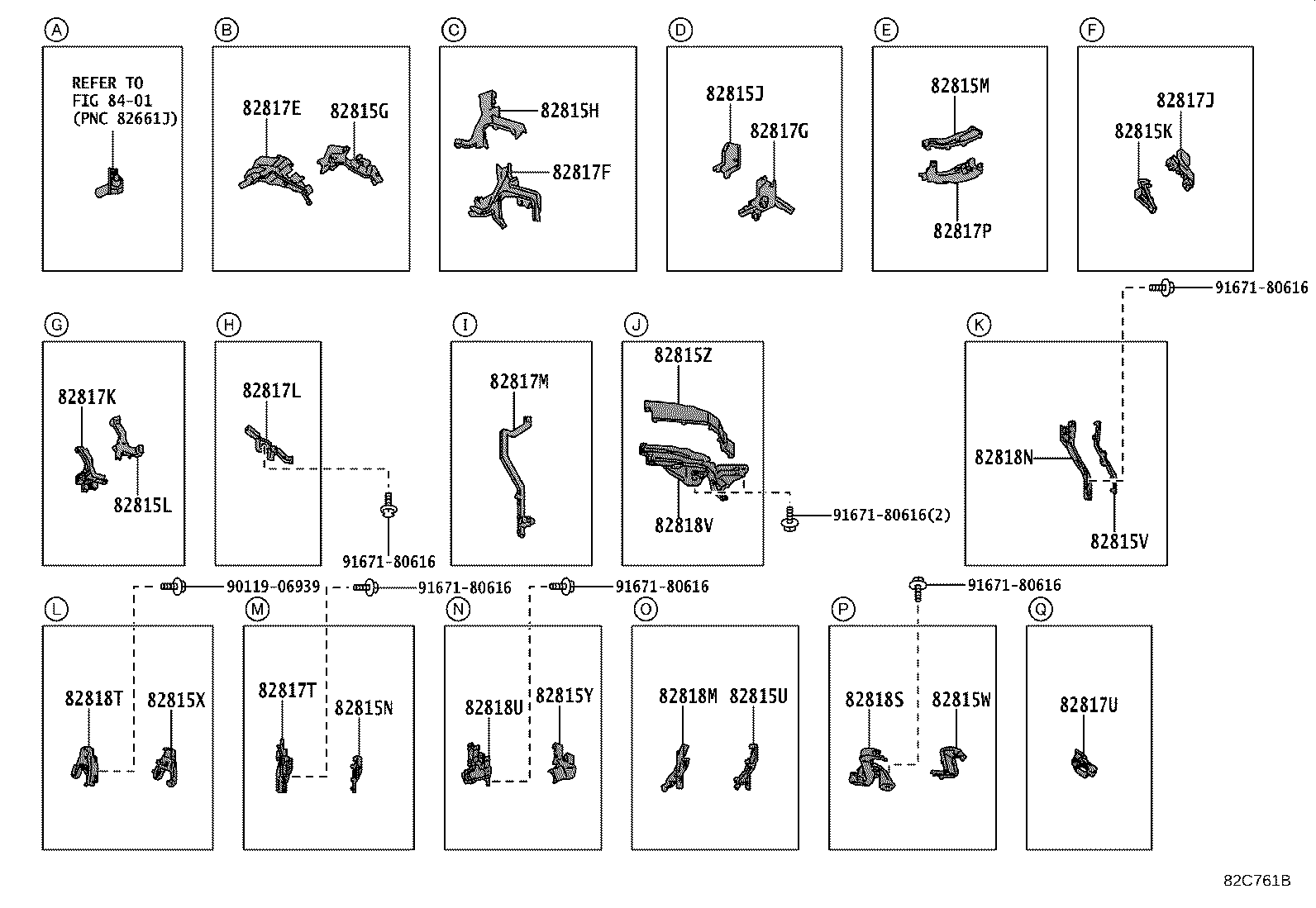

ILLUST NO.12 OF38(1902- )GRH30#,32#..RHD..6FC
ENGINE 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-26E10 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-26E20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-26E30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-26J70 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-26J80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-26E40 |
GRH30#,320,322..RHD..GEN |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-26E80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-26F00 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26E60 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-26K10 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-26E70 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-26E90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-26E50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26S90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26T40 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-26W50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-26T30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-26W60 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-26T00 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26T20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-26W70 |
GRH30#,320,322..RHD..GEN |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-26T90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-26W80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-26W90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-26T60 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818S - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-26T70 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818T - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-26T80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818U - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-26U20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818V - PROTECTOR, WIRING HARNESS, NO.18 | ||||
| 82817-26T50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06939 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

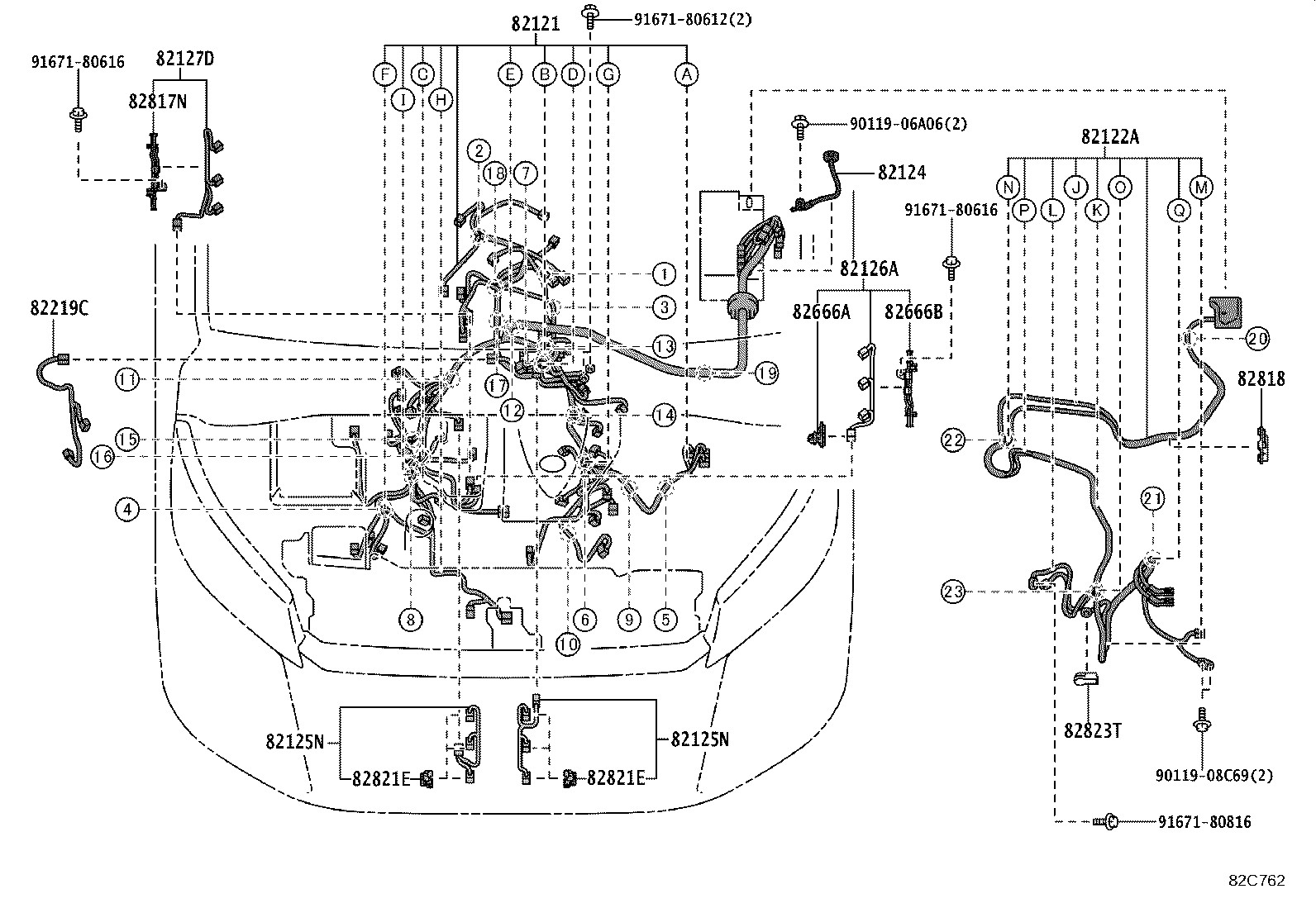

ILLUST NO.14 OF38(1902- )GRH300,301,320,322..RHD..6F
ENGINE 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26W40 |
GRH300,301,320,322..RHD..6FC..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 82121-26J50 |
GRH300,301,320,322..RHD..6FC..D..GEN |
1 | ||
| 82122A - WIRE, ENGINE, NO.2 | ||||
| 82122-26B50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26210 |
GRH300..GCC;GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-60680 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
2 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-60680 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
2 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-60020 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-60120 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-60110 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-48130 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82817-30R30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-30R30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26M40 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-48240 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
6 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-48240 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
6 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-08C69 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
ILLUST NO.15 OF38(1902- )GRH300,301,320,322..RHD..6F
ENGINE 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-26E10 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-26E20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-26E30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-26J70 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-26J80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-26E40 |
GRH30#,320,322..RHD..GEN |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-26E80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-26F00 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26E60 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-26K10 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-26E70 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-26E90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-26E50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26S90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26T40 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-26W50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-26T30 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-26W60 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-26T00 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26T20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-26W70 |
GRH30#,320,322..RHD..GEN |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-26T90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-26W80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-26W90 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-26T60 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818S - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-26T70 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818T - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-26T80 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818U - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-26U20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 82818V - PROTECTOR, WIRING HARNESS, NO.18 | ||||
| 82817-26T50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06939 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

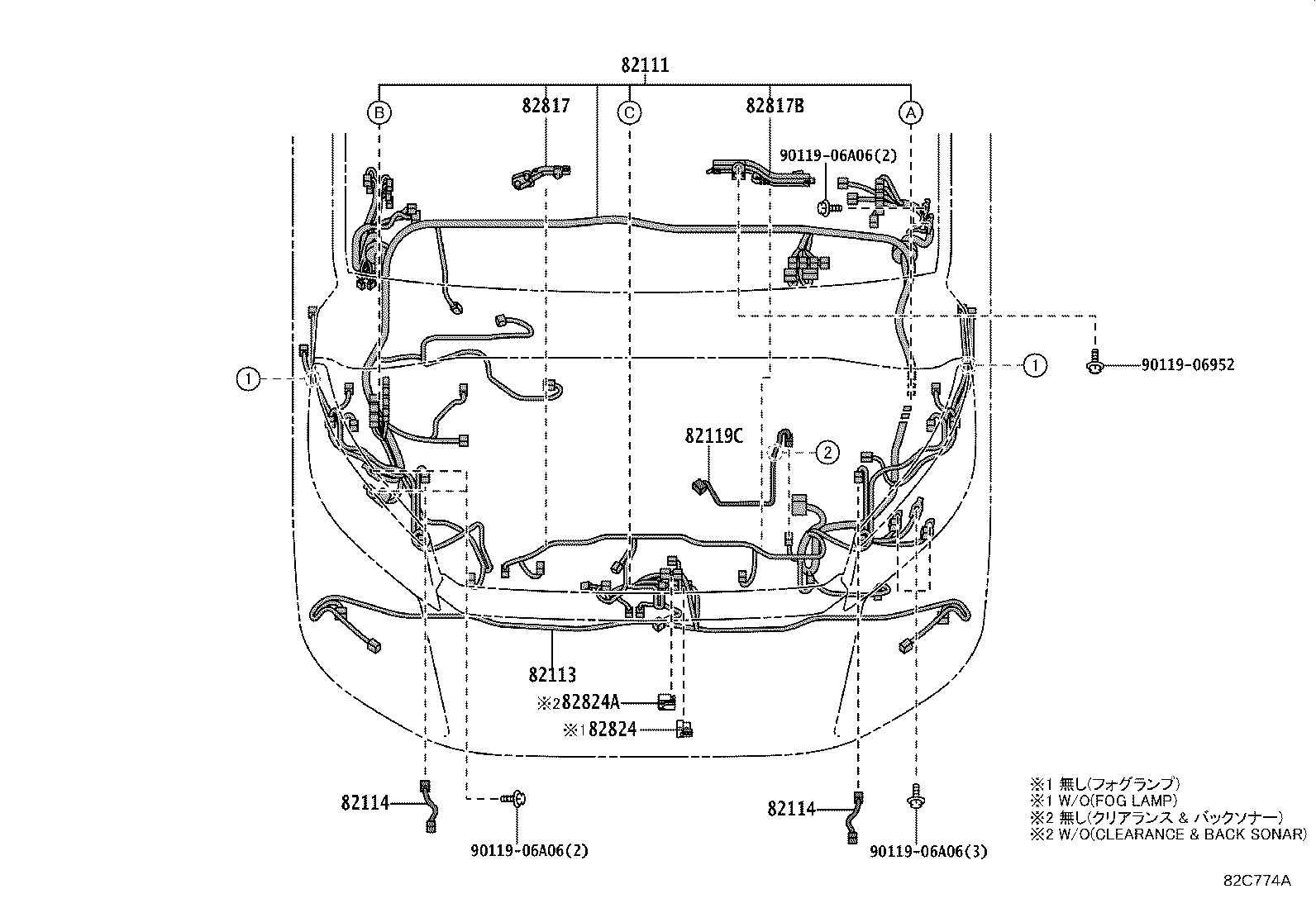

ILLUST NO. 3 OF38(1902- )RHD
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2NF70 |
GRH300,301,320,322..RHD..D..GEN VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVERSEAT SIDE ONLY) |
1 | ||
| 82111-2NF40 |
GRH300,301,320,322..RHD..D..GEN VEHICLE STABILITY CONTROL-WITH&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-2NF70 |
GRH300,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER& PASSENGER & KNEE) |
1 | ||
| 82111-V3420 |
GRH300,301,320,322..RHD..D..GEN SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-V3420 |
GRH300,301,320,322..RHD..D..GEN SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-V3450 |
GRH300,301,320,322..RHD..D..GEN VEHICLE STABILITY CONTROL-WITH&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-V3460 |
GRH300,301,320,322..RHD..D..GEN VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVERSEAT SIDE ONLY) |
1 | ||
| 82111-V3440 |
GRH300,301,320,322..RHD..D..GEN FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-V3440 |
GRH300,301,320,322..RHD..D..GEN FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-V3450 |
GRH300,301,320,322..RHD..D..GEN VEHICLE STABILITY CONTROL-WITH&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-V3460 |
GRH300,301,320,322..RHD..D..GEN VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER& PASSENGER) |
1 | ||
| 82111-V3460 |
GRH300,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER& PASSENGER & KNEE) |
1 | ||
| 82111-V3450 |
GRH300,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82111-V3410 |
GRH300,301,320,322..RHD..D..GEN |
1 | ||
| 82111-V3430 |
GRH300,301,320,322..RHD..D..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 82111-2NE90 |
GRH300,301,320,322..RHD..D..GEN |
1 | ||
| 82111-2NF10 |
GRH300,301,320,322..RHD..D..GEN SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-2NF10 |
GRH300,301,320,322..RHD..D..GEN SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-2NF30 |
GRH300,301,320,322..RHD..D..GEN FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-2NF40 |
GRH300,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82111-2NF40 |
GRH300,301,320,322..RHD..D..GEN VEHICLE STABILITY CONTROL-WITH&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-2NF30 |
GRH300,301,320,322..RHD..D..GEN FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82111-2NF20 |
GRH300,301,320,322..RHD..D..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 82111-2NF70 |
GRH300,301,320,322..RHD..D..GEN VEHICLE STABILITY CONTROL-WITH&FRONT HEATER-WITH(PTC HEATER)&SRS AIR BAG-W(DRIVER& PASSENGER) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-26120 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) GL PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82113-26100 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82113-26110 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) GL PACKAGE |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-26180 |
GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
2 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-26180 |
GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-26Y40 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-2F750 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-26270 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82824-26270 |
GDH322..6FC..P..GEN;GDH322,GRH300..(D,P)..GCC;GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-26280 |
GRH300..GCC;GRH303..RHD..GEN;GDH322..(D,N)..GEN;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,304,320,328,GRH301,304,32#..GCC,GEN,PH,TH |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90119-06A06 | ||||

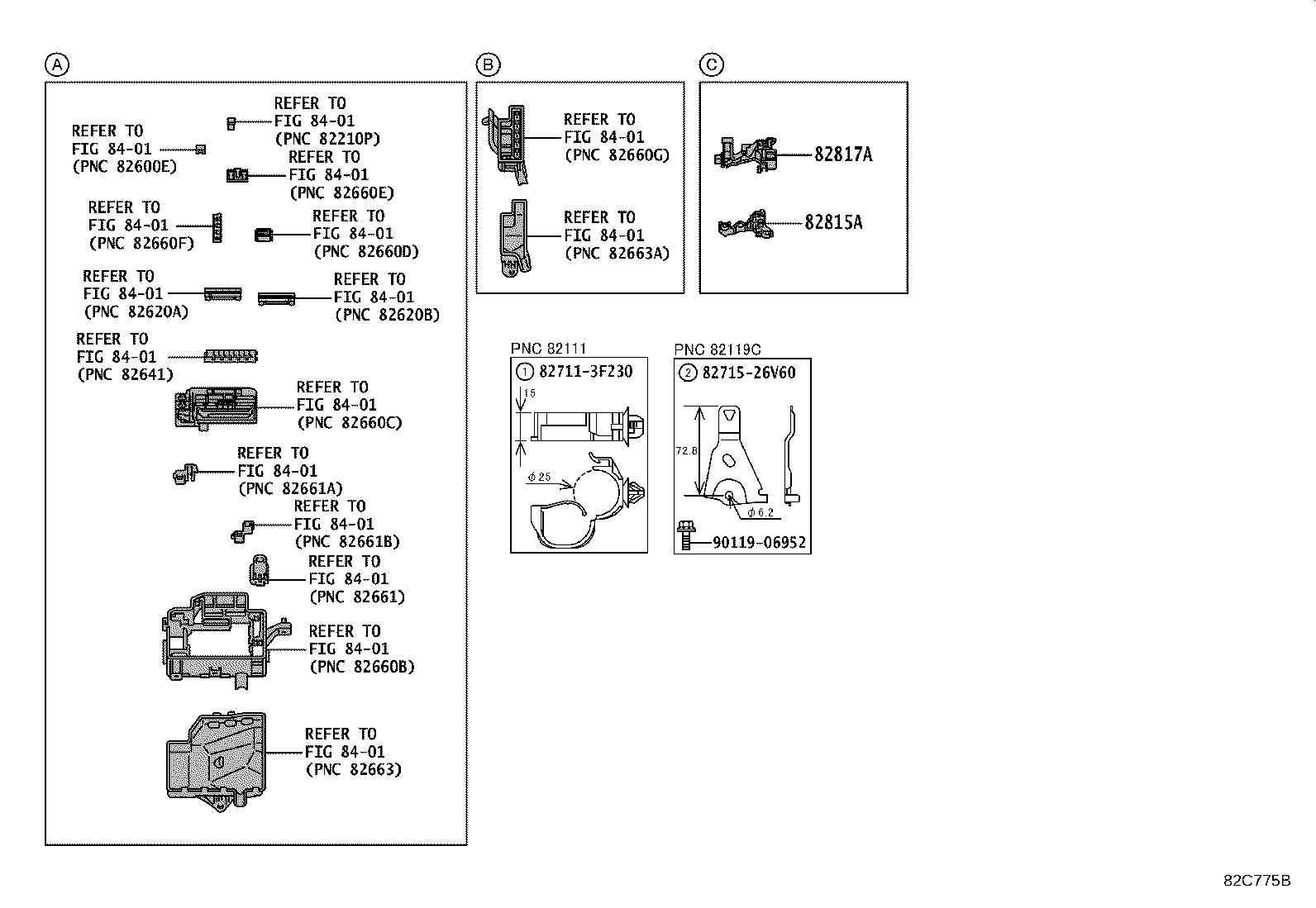

ILLUST NO. 4 OF38(1902- )RHD
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-26G00 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26Y50 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| Common parts | ||||
| 82711-3F230 | ||||
| 82715-26V60 | ||||
| 90119-06952 | ||||
| Linked diagrams | ||||
| 8401 | ||||

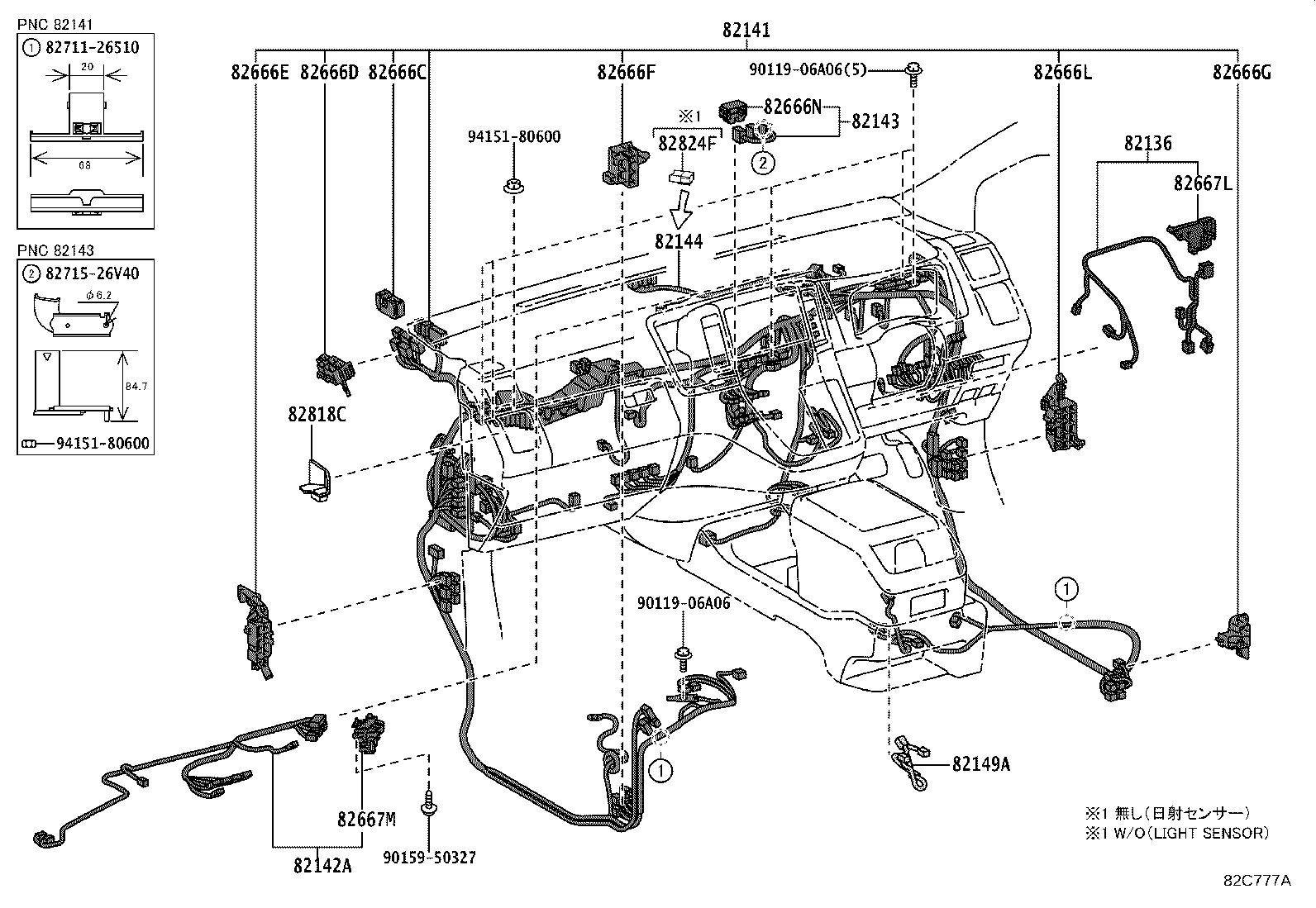

ILLUST NO.26 OF38(1902- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82136 - WIRE, DASH | ||||
| 82136-26010 |
GDH300,301,320,322,GRH300,301,320,322..RHD..6FC..D..GEN |
1 | ||
| 82136-26030 |
GDH300,301,320,322,GRH300,301,320,322..RHD..6FC..D..GEN ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 82136-26110 |
GRH300..6F..GCC;GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..6F..(D,P)..(GCC,GEN) |
1 | ||
| 82136-26170 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..6F..(D,P)..GEN ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-26K00 |
GRH300,320..RHD..GEN SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82141-26J60 |
GRH300,301,320,322..RHD..D..GEN SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26J70 |
GRH300,301,320,322..RHD..D..GEN SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82141-26J50 |
GRH300,301,320,322..RHD..D..GEN |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-26530 |
GDH300,301,320,322,GRH300,301,320,322..RHD..(D,N)..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 82142-26530 |
GDH301..RHD..6F..GEN;GDH301..RHD..6FC..D..GEN;GDH300,320,322,GRH300,301,320,322..RHD..(D,N)..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 82142-26590 |
GDH300,301,320,322,GRH300,301,320,322..RHD..D..GEN SRS AIR BAG-W(DRIVER & PASSENGER)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82142-26590 |
GDH300,301,320,322,GRH300,301,320,322..RHD..D..GEN SRS AIR BAG-W(DRIVER & PASSENGER)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82142-26590 |
GDH300,320,GRH300,320..RHD..(SG,SP)..GEN SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82142-26670 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN SRS AIR BAG-W(DRIVER & PASSENGER)&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82142-26D30 |
GDH300,301,320,322,GRH300,301,320,322..RHD..(D,N)..GEN |
1 | ||
| 82142-26D40 |
GDH300,301,320,322,GRH300,301,320,322..RHD..D..GEN SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82142-26D60 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82142-26D40 |
GDH300,320,GRH300,320..RHD..(SG,SP)..GEN SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-26030 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM) |
1 | ||
| 82144-26020 |
GRH300..4D..GEN;GDH300,301,320,321,322,GRH301,320,322..D..(GEN,IDN) LIGHT CONTROL SYSTEM-WITH(LIGHT SENSOR ONLY) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-26620 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-26610 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-26650 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26660 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-26700 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-26690 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82667L - HOLDER, CONNECTOR, NO.26 | ||||
| 82666-26A20 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD..(GCC,GEN,PH) |
1 | ||
| 82666-26A30 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,GRH301,304,322..RHD;GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 82667M - HOLDER, CONNECTOR, NO.27 | ||||
| 82666-26A40 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-26M60 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 90980-12411 |
GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,328,GRH301,320,322..D..(GEN,IDN,VN) |
1 | ||
| Common parts | ||||
| 82711-26510 | ||||
| 82715-26V40 | ||||
| 90119-06A06 | ||||
| 90159-50327 | ||||
| 94151-80600 | ||||

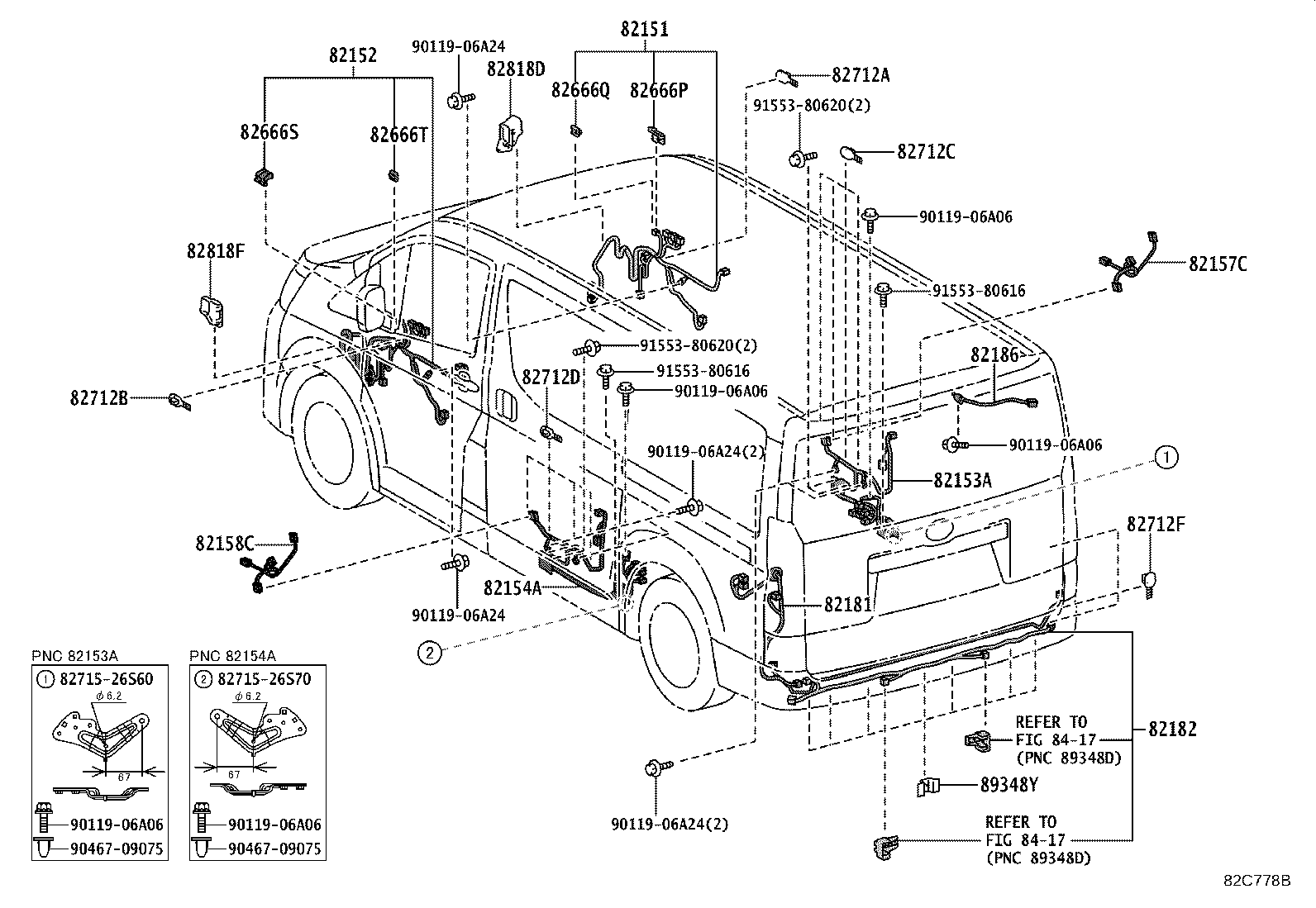

ILLUST NO.27 OF38(1902- )GDH300,301,GRH300,301
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-26610 |
GDH300,301,GRH300,301..RHD..D..(GEN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED |
1 | ||
| 82151-26590 |
GDH322..RHD..D..GEN;GDH300,301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,TH) |
1 | ||
| 82151-26610 |
GDH322..RHD..D..GEN;GDH300,301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-26540 |
GDH322..RHD..D..GEN;GDH300,301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,TH) |
1 | ||
| 82152-26560 |
GDH322..RHD..D..GEN;GDH300,301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 82152-26560 |
GDH300,301,GRH300,301..RHD..D..(GEN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-26160 |
GDH322..(D,N)..GEN;GDH322..LHD..(P,Q);GDH301,GRH300..GCC,TH;GDH301,321,GRH301..N..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,320,328,GRH32#..GCC,GEN,PH,TH CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82181-26150 |
GRH300..GCC;GDH321..N..GEN;GDH322..LHD..(P,Q);GDH322..(D,N)..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,320,328,GRH301,32#..GCC,GEN,PH,TH |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-26080 |
GDH322..(D,N)..GEN;GDH322..LHD..(P,Q);GDH301,321,GRH301..N..GEN;GDH301,303,GRH300,303..GCC,TH;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,320,328,GRH32#..GCC,GEN,PH,TH CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-26120 |
GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..D..(GEN,IDN,TH) REAR WINDOW DEFOGGER-WITH |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-26B80 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 82666-26B80 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-26B90 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM |
1 | ||
| 82666-26B90 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..D..(GCC,GEN,TH) OUTSIDE REAR VIEW MIRROR-*57 & COLORED |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-60550 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 82712B - SUPPORT, WIRING HARNESS | ||||
| 82712-60550 |
GDH322,GRH300..4D..D..GEN;GDH322,GRH300..(D,P)..GCC;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) |
1 | ||
| 82712F - SUPPORT, WIRING HARNESS | ||||
| 82712-60550 |
GDH322..D,N;GDH322..LHD..(P,Q);GDH301,GRH300..GCC,TH;GDH301,321,GRH301..N..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,320,328,GRH32#..GCC,GEN,PH,TH,VN CLEARANCE & BACK SONAR-WITH |
3 | ||
| 82712-60550 |
GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH322..LHD..(P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,320,328,GRH301,32#..GCC,GEN,PH,TH,VN |
7 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-26M80 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26U90 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 89348Y - CLIP, ULTRASONIC SENSOR, REAR | ||||
| 89348-50050 |
GDH322..D,N;GDH301,GRH301..N;GRH303..RHD..GEN;GDH301,GRH300..GCC,TH;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,303,304,320,328,GRH304,32#..GCC,GEN,PH,TH,VN CLEARANCE & BACK SONAR-WITH |
7 | ||
| Common parts | ||||
| 82715-26S60 | ||||
| 82715-26S70 | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
| 90467-09075 | ||||
| 91553-80616 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO.30 OF38(1902- )GDH300,301,32#,GRH300,301,32#
FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-26S20 |
GDH300,320,GRH300,320..RHD..(SG,SP)..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82161-26S20 |
GDH300,320,GRH300,320..RHD..(SG,SP)..GEN FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82161-26S20 |
GDH300,320,GRH300,320..RHD..(SG,SP)..GEN NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82161-26S60 |
GDH300,320,GRH300,320..RHD..(SG,SP)..GEN |
1 | ||
| 82161-26800 |
GDH300,320,GRH300,320..RHD..(SG,SP)..GEN FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82161-26800 |
GDH300,320,GRH300,320..RHD..(SG,SP)..GEN NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82161-26800 |
GDH300,320,GRH300,320..RHD..(SG,SP)..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-26250 |
GDH300,301,320,322,GRH300,301,320,322..RHD..4D..D..GEN |
1 | ||
| 82162-26290 |
GDH300,320,GRH300,320..RHD..4D..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82162-26290 |
GDH300,320,GRH300,320..RHD..4D..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82162-26290 |
GDH300,320,GRH300,320..RHD..4D..GEN FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 82162-26260 |
GRH300..4D..6F..GEN;GDH300,320,GRH320..LHD..GEN |
1 | ||
| 82162-26290 |
GDH300,320,GRH300,320..RHD..4D..GEN FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82162-26F90 |
GDH300,320,GRH300,320..RHD..4D..GEN NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-26B10 |
GRH300..6F..GCC;GRH300,301..4D..GEN |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-26A50 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-26A60 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-26A80 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-2FB50 |
GDH300,320..GEN;GDH301,322..LHD..D;GDH301,322,GRH300,301,320,322..RHD..(D,N)..GEN |
1 | ||
| 82818K - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-2FB30 |
GDH301,322..LHD..N;GDH300,320,328,GRH320..GEN,PH;GDH301,322,GRH300,301,322..4D..D..GEN |
1 | ||
| 82818L - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-2FB40 |
GDH301,322..LHD..N;GDH300,320,328,GRH320..GEN,PH;GDH301,322,GRH300,301,322..4D..D..GEN |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90178-T0018 | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||

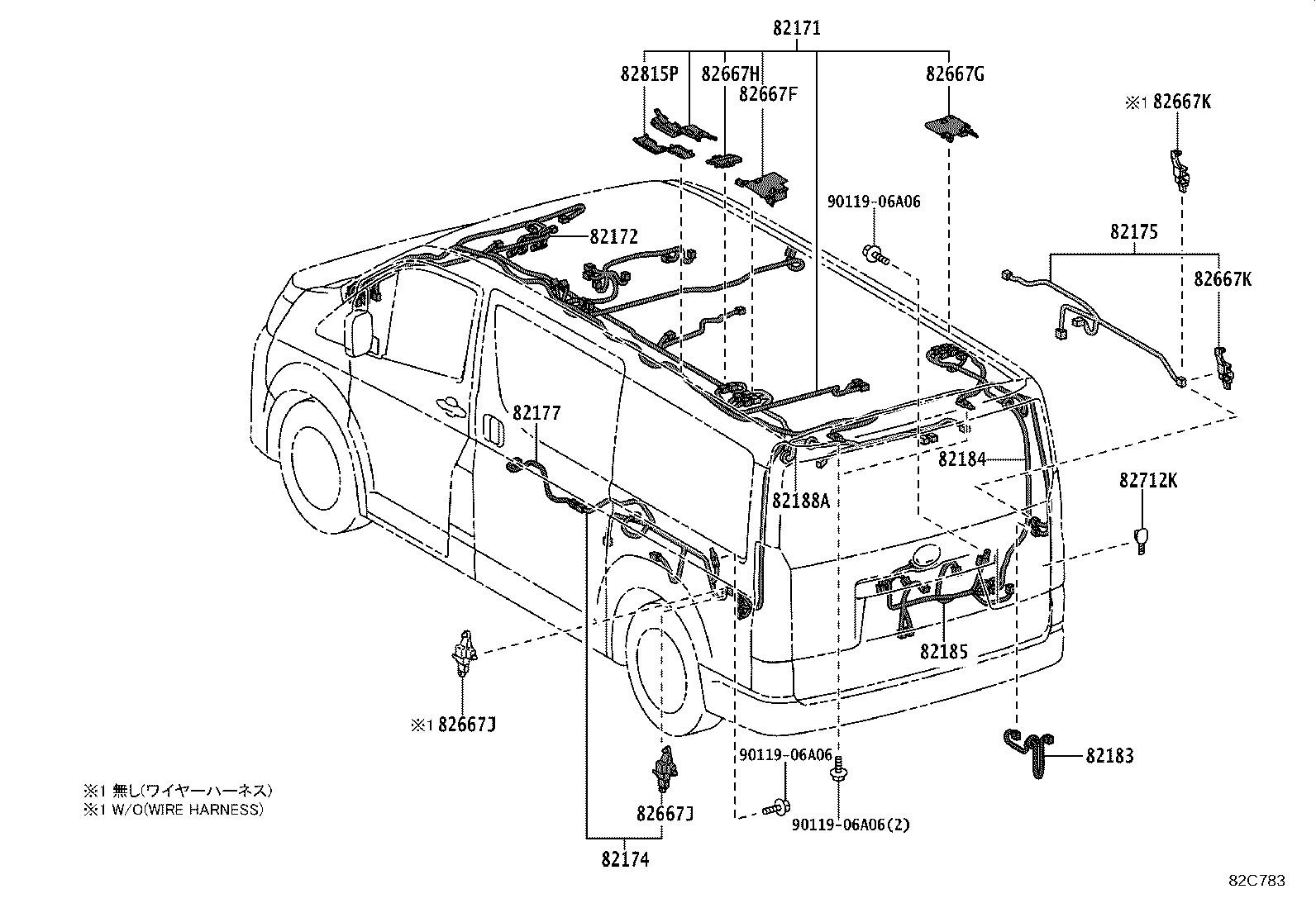

ILLUST NO.32 OF38(1902- )GDH300,301,GRH300,301
ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-26S50 |
GDH301..RHD..D..GEN;GDH300,GRH300,301..RHD..D..(GEN,TH) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-26X30 |
GDH301..RHD..D..GEN;GDH300,GRH300,301..RHD..D..(GEN,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82172-26X70 |
GDH301..RHD..D..GEN;GDH300,GRH300,301..RHD..D..(GEN,TH) INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26X70 |
GDH300,GRH300..RHD..GEN INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26X80 |
GDH301..RHD..D..GEN;GDH300,GRH300,301..RHD..D..(GEN,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26X20 |
GDH301..RHD..D..GEN;GDH300,GRH300,301..RHD..D..(GEN,TH) INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82172-26X80 |
GDH300,GRH300..RHD..GEN INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26W90 |
GDH300,GRH300..6F..GCC;GDH301,GRH300..4D..D..GEN;GDH300,GRH301..D..(GEN,TH) |
1 | ||
| 82172-26X40 |
GDH300..GEN;GRH300..4D..GEN AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26X40 |
GDH300,GRH300..6F..GCC;GDH301,GRH300..4D..D..GEN;GDH300,GRH301..D..(GEN,TH) AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26X10 |
GDH301..RHD..D..GEN;GDH300,GRH300,301..RHD..D..(GEN,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82172-26X00 |
GDH301..RHD..D..GEN;GDH300,GRH300,301..RHD..D..(GEN,TH) INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82172-26X50 |
GDH301..RHD..D..GEN;GDH300,GRH300,301..RHD..D..(GEN,TH) INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26X60 |
GDH300,GRH300..RHD..GEN INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26X60 |
GDH301..RHD..D..GEN;GDH300,GRH300,301..RHD..D..(GEN,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82172-26X50 |
GDH300,GRH300..RHD..GEN INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AM & FM & CD & *BT |
1 | ||
| 82174 - WIRE, ROOF, NO.4 | ||||
| 82174-26500 |
GDH301..NZ,TH;GRH300..5D..GEN;GDH300..SHP..GEN;GDH300,GRH300..RHD..(SG,SP) WIRELESS DOOR LOCK-WITH |
1 | ||
| 82174-26490 |
GRH300..GCC;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300..SHP..(GCC,GEN);GDH300,301,GRH300,301..RHD..4D..D..(GEN,NZ,TH) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-26340 |
GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-26470 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..GCC,GEN,TH INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BACK MONITOR-WITH & WITH(FIXED LINE)(INNER MIRROR) |
1 | ||
| 82184-26460 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH) |
1 | ||
| 82184-26670 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-26830 |
GDH322..LHD..P;GDH322,GRH300..4D..D..GEN;GDH321,GRH300..D..(GCC,IDN);GDH300,301,320,GRH301,320,322..(D,P)..(GCC,GEN,TH) |
1 | ||
| 82185-26850 |
GDH322..6FC..P..GEN;GDH322,GRH300..4D..D..GEN;GDH321,322,GRH300..(D,P)..(GCC,IDN);GDH300,301,320,GRH301,320,322..(D,P)..(GCC,GEN,TH) INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BACK MONITOR-WITH & WITH(FIXED LINE)(INNER MIRROR) |
1 | ||
| 82185-26A40 |
GDH321..D..IDN;GDH322..LHD..P..GEN;GDH322,GRH300..4D..D..GEN;GDH300,301,320,GRH301,320,322..D..(GEN,TH) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 82185-26A60 |
GDH321..D..IDN;GDH322..6FC..P..GEN;GDH322,GRH300..4D..D..GEN;GDH300,301,320,GRH301,320,322..D..(GEN,TH) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BACK MONITOR-WITH & WITH(FIXED LINE)(INNER MIRROR) |
1 | ||
| 82185-26C60 |
GDH321..D..IDN;GDH322..6FC..P..GEN;GDH322,GRH300..4D..D..GEN;GDH300,301,320,GRH301,320,322..D..(GEN,TH) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82185-26C40 |
GDH322..6FC..P..GEN;GDH322,GRH300..4D..D..GEN;GDH321,322,GRH300..(D,P)..(GCC,IDN);GDH300,301,320,GRH301,320,322..(D,P)..(GCC,GEN,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-26420 |
GRH300..4D..GEN;GDH300,301,GRH301..D..(GEN,TH) REAR WINDOW DEFOGGER-WITH |
1 | ||
| 82188-26410 |
GRH300..4D..GEN;GDH300,301,GRH301..D..(GEN,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82188-26430 |
GRH300..4D..GEN;GDH300,301,GRH301..D..(GEN,TH) REAR WINDOW DEFOGGER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82188-26450 |
GRH300..4D..GEN;GDH300,301,GRH301..D..(GEN,TH) REAR WINDOW DEFOGGER-WITH&REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82188-26400 |
GRH300..4D..GEN;GDH300,301,GRH301..D..(GEN,TH) |
1 | ||
| 82188-26440 |
GRH300..4D..GEN;GDH300,301,GRH301..D..(GEN,TH) REAR WINDOW DEFOGGER-WITH&REAR WINDOW WIPER-WITH |
1 | ||
| 82667F - HOLDER, CONNECTOR, NO.21 | ||||
| 82666-26B10 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 82667G - HOLDER, CONNECTOR, NO.22 | ||||
| 82666-26B20 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 82667H - HOLDER, CONNECTOR, NO.23 | ||||
| 82666-26C20 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH) |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-26B40 |
GRH322..N,Q;GRH322..RHD..D;GRH320..LHD..SP;GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH322..6FC..Q..GCC;GDH322..LHD..6FC..N;GDH300..4D..6FC..ARL;GDH320..SP..(GCC,GEN);GDH322..LHD..6F..(N,Q);GDH322..LHD..6F..P..GEN;GDH301,321,GRH301..LHD..N;GDH322,GRH320..RHD..(D,N)..GEN;GDH321,GRH300..D..(GCC,IDN,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH300,328,GRH321..(SG,SHP)..(GCC,GEN,PH);GDH300,301,320,GRH300,301..RHD..4D..(GEN,NZ,TH) |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-26B40 |
GRH322..N,Q;GRH322..RHD..D;GRH320..LHD..SP;GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH322..6FC..Q..GCC;GDH322..LHD..6FC..N;GDH300..4D..6FC..ARL;GDH320..SP..(GCC,GEN);GDH322..LHD..6F..(N,Q);GDH322..LHD..6F..P..GEN;GDH301,321,GRH301..LHD..N;GDH322,GRH320..RHD..(D,N)..GEN;GDH321,GRH300..D..(GCC,IDN,NZ);GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH300,328,GRH321..(SG,SHP)..(GCC,GEN,PH);GDH300,301,320,GRH300,301..RHD..4D..(GEN,NZ,TH) |
1 | ||
| 82667K - HOLDER, CONNECTOR, NO.25 | ||||
| 82666-26C40 |
GDH306..LHD;GRH303..LHD..J;GRH320..RHD..SG;GDH300..SHP..ARL;GDH303,304,GRH304;GDH322..RHD..6FC..P;GDH300,320..RHD..4D..6FC;GDH300,320..RHD..4D..6F..(GEN,TH);GDH301,321,322,GRH300,301,303,322..RHD..(D,G,J)..(GEN,IDN,NZ,TH) |
1 | ||
| 82667K - HOLDER, CONNECTOR, NO.25 | ||||
| 82666-26C40 |
GDH306..LHD;GRH303..LHD..J;GRH320..RHD..SG;GDH300..SHP..ARL;GDH303,304,GRH304;GDH322..RHD..6FC..P;GDH300,320..RHD..4D..6FC;GDH300,320..RHD..4D..6F..(GEN,TH);GDH301,321,322,GRH300,301,303,322..RHD..(D,G,J)..(GEN,IDN,NZ,TH) |
1 | ||
| 82712K - SUPPORT, WIRING HARNESS | ||||
| 82712-60550 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-26G90 |
GRH300..GCC;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH300,301,GRH301..(SG,SHP)..D..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||

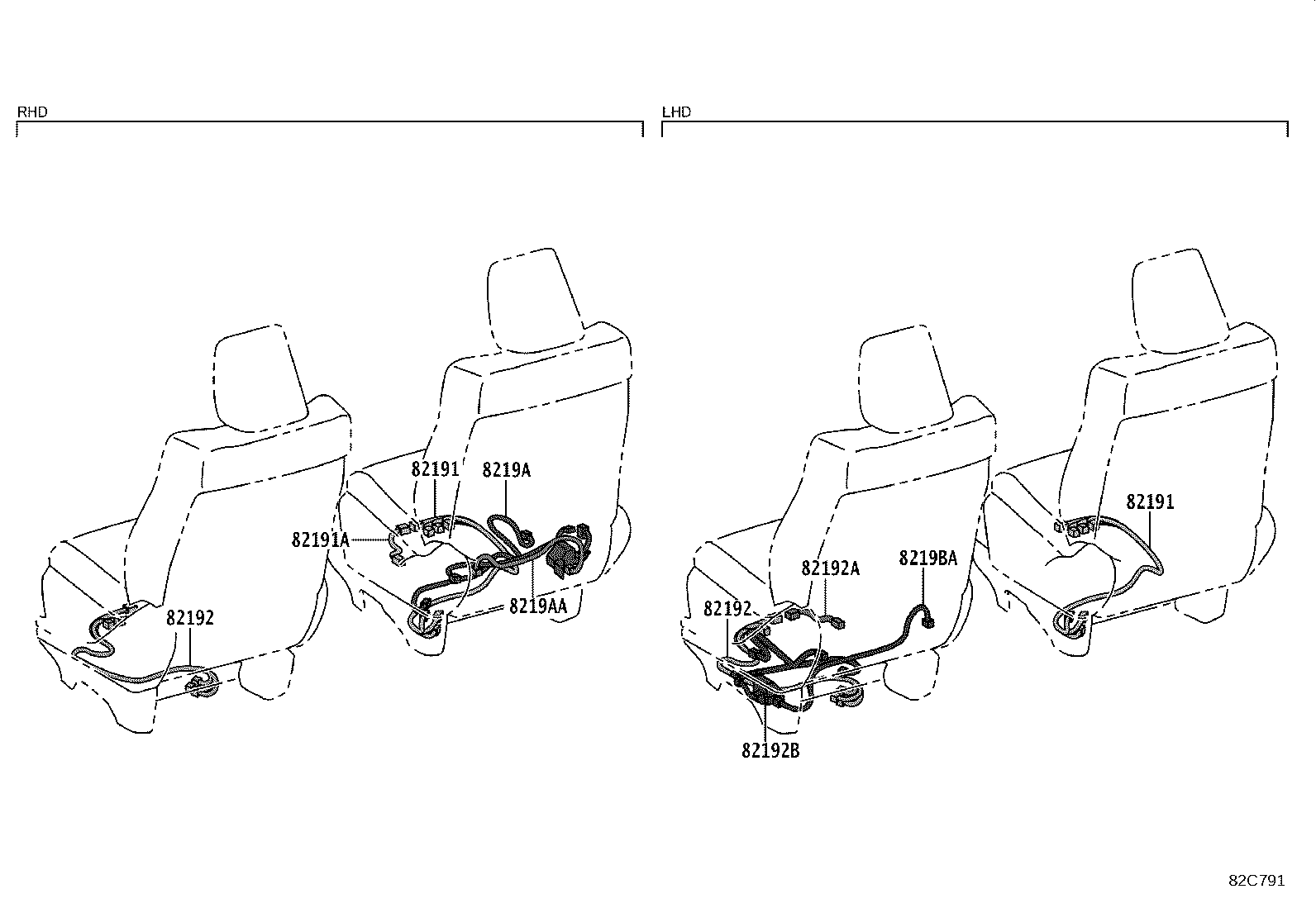

ILLUST NO.35 OF38(1902- )GDH321..N..GEN ; (1902- )GDH30#,320,322,328,GRH30#,32#
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-26150 |
GDH300,320,GRH300,320..RHD..(SG,SP)..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82191-26150 |
GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN TRINIDAD-TOBAGO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRSAIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-26150 |
GDH300,320,GRH300,320..RHD..(SG,SP)..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82191-26150 |
GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN TRINIDAD-TOBAGO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRSAIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-26180 |
GDH300,320,GRH300,320..RHD..(SG,SP)..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82191-26180 |
GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN TRINIDAD-TOBAGO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRSAIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-26080 |
GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-26080 |
GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||
| 82192A - WIRE, REAR SEAT, LH | ||||
| 82191-26180 |
GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE) |
1 | ||

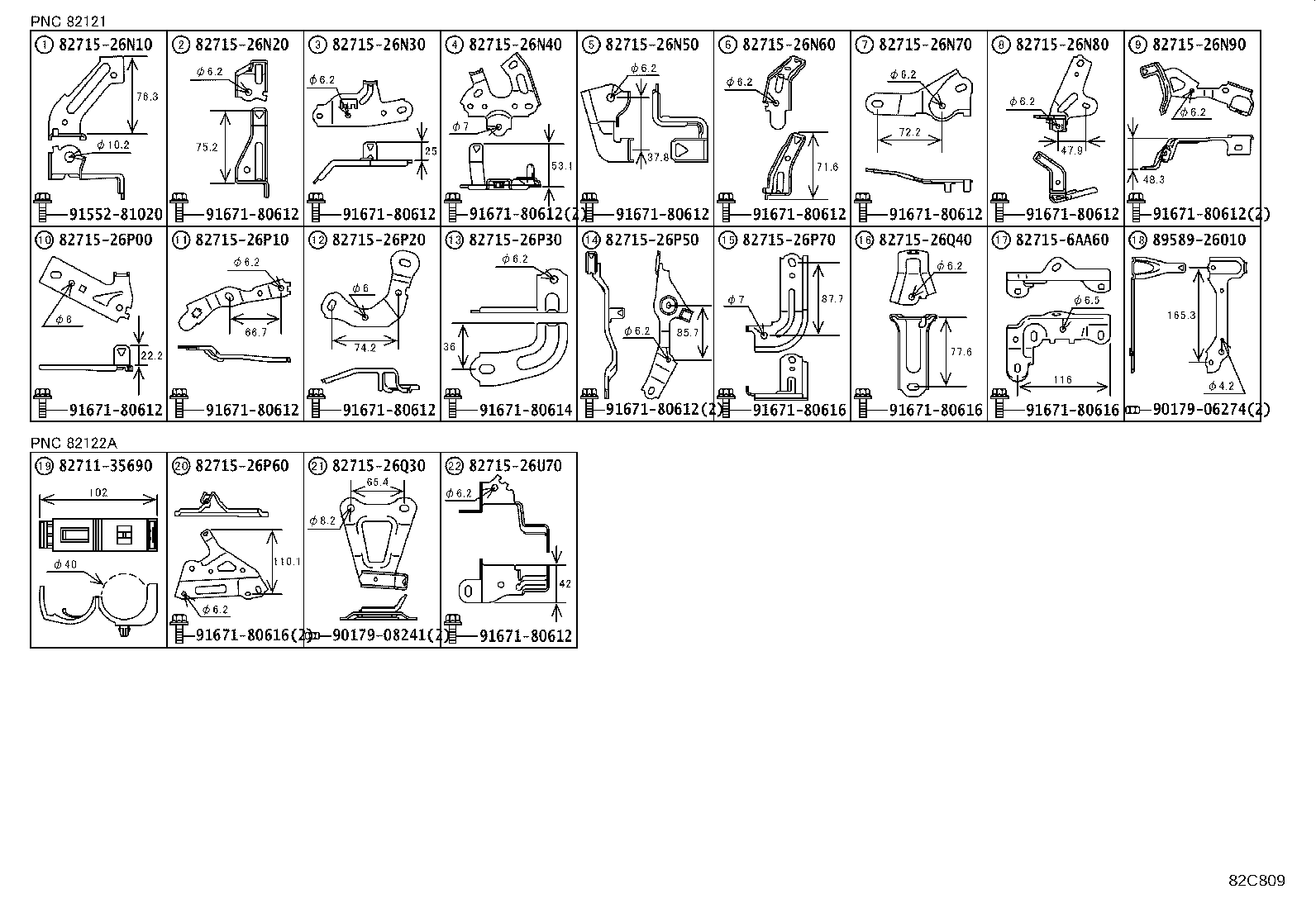

ILLUST NO.13 OF38(1902- )GRH30#,32#..RHD..6FC
ENGINE 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35690 | ||||
| 82715-26N10 | ||||
| 82715-26N20 | ||||
| 82715-26N30 | ||||
| 82715-26N40 | ||||
| 82715-26N50 | ||||
| 82715-26N60 | ||||
| 82715-26N70 | ||||
| 82715-26N80 | ||||
| 82715-26N90 | ||||
| 82715-26P00 | ||||
| 82715-26P10 | ||||
| 82715-26P20 | ||||
| 82715-26P30 | ||||
| 82715-26P50 | ||||
| 82715-26P60 | ||||
| 82715-26P70 | ||||
| 82715-26Q30 | ||||
| 82715-26Q40 | ||||
| 82715-26U70 | ||||
| 82715-6AA60 | ||||
| 89589-26010 | ||||
| 90179-06274 | ||||
| 90179-08241 | ||||
| 91552-81020 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||

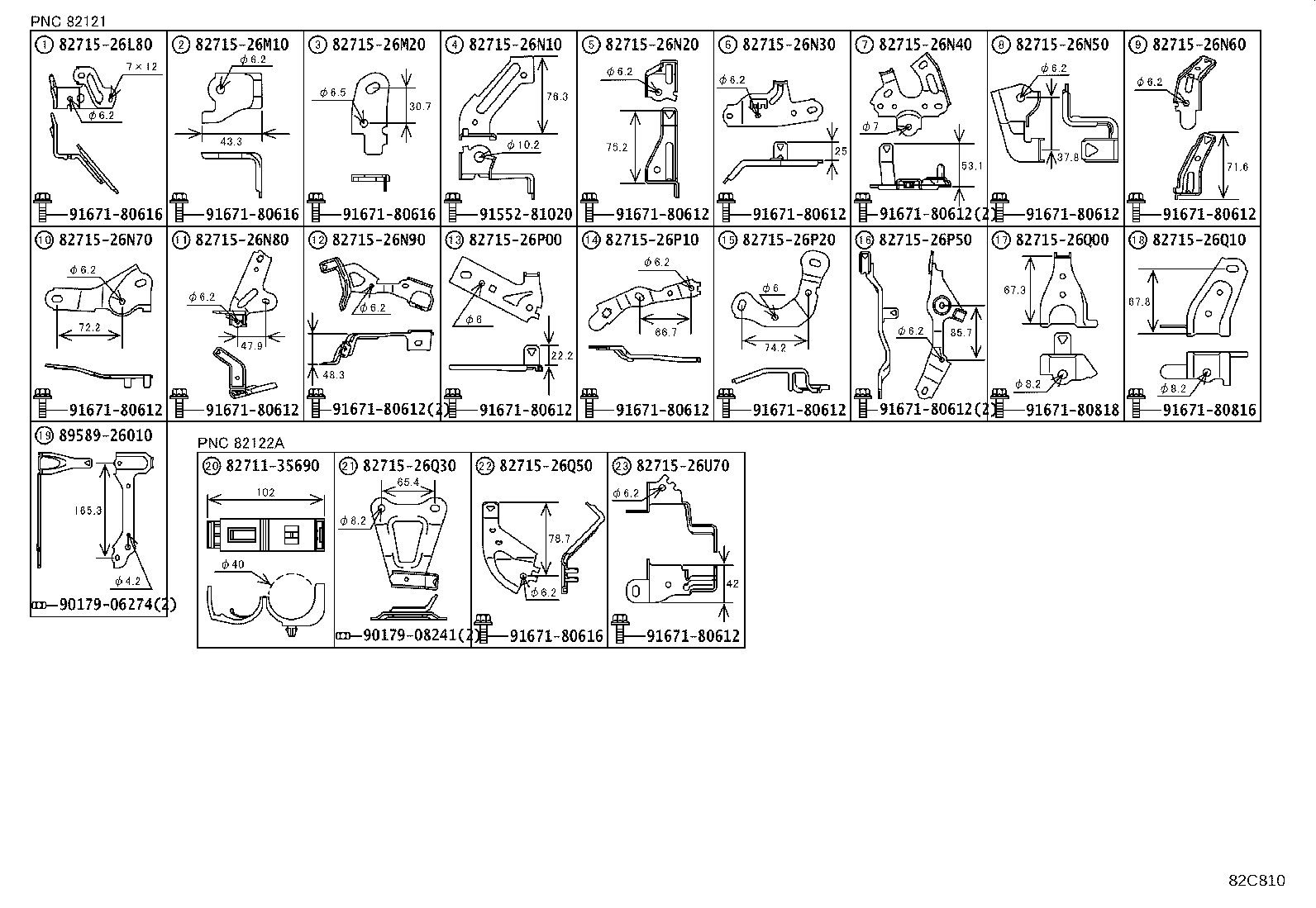

ILLUST NO.16 OF38(1902- )GRH300,301,320,322..RHD..6F
ENGINE 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35690 | ||||
| 82715-26L80 | ||||
| 82715-26M10 | ||||
| 82715-26M20 | ||||
| 82715-26N10 | ||||
| 82715-26N20 | ||||
| 82715-26N30 | ||||
| 82715-26N40 | ||||
| 82715-26N50 | ||||
| 82715-26N60 | ||||
| 82715-26N70 | ||||
| 82715-26N80 | ||||
| 82715-26N90 | ||||
| 82715-26P00 | ||||
| 82715-26P10 | ||||
| 82715-26P20 | ||||
| 82715-26P50 | ||||
| 82715-26Q00 | ||||
| 82715-26Q10 | ||||
| 82715-26Q30 | ||||
| 82715-26Q50 | ||||
| 82715-26U70 | ||||
| 89589-26010 | ||||
| 90179-06274 | ||||
| 90179-08241 | ||||
| 91552-81020 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80818 | ||||
ILLUST NO.37 OF38(1902- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10860 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11292 | ||||
| 90980-11314 | ||||
| 90980-11918 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12698 | ||||
| 90980-12699 | ||||
| 90980-12A92 | ||||
ILLUST NO.38 OF38(1902- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11246 | ||||
| 90980-12520 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12C39 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
| 90980-WA063 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
