GRH300R-GBTDH (2019)
Toyota Hiace
ILLUST NO. 1 OF 5(1902- )GRH30#,32#
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-26010 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-26750 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47040 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-26340 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-26190 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-26150 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-26070 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-26090 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-26060 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77272C - SUPPORT, BREATHER TUBE, NO.3 | ||||
| 77272-26060 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-26100 |
GDH322..D,N;GDH322..LHD..Q;GRH303..RHD..GEN;GDH303,GRH300..GCC;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH321,GRH303..LHD..(J,N);GDH321,GRH300..4D..D..(GEN,IDN,NZ);GDH300,301,320,328,GRH301,304,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 77281R - CLAMP, FUEL FILLER PIPE, NO.2 | ||||
| 77281-47060 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77287A - HOSE, FUEL | ||||
| 95325-09042 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 77633B - STAY, FUEL TANK | ||||
| 77635-26010 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26070 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26070 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-42010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-26010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77697A - INSULATOR, FUEL TANK HEAT, NO.2 | ||||
| 77698-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77697B - INSULATOR, FUEL TANK HEAT, NO.3 | ||||
| 77698-26010 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-26090 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90105-06325 | ||||
| 90119-08C76 | ||||
| 90119-08D17 | ||||
| 90178-06025 | ||||
| 90179-06169 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90466-23006 | ||||
| 90467-12056 | ||||
| 91626-B0614 | ||||
| 96132-51300 | ||||
| 96133-41301 | ||||
ILLUST NO. 2 OF 5(1902- )GRH30#,32#
FUEL PUMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-31030 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN MARK 23070-31030 |
1 | ||
| 23070-36010 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN MARK 23070-36010 |
1 | ||
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-31030 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN MARK 23070-31030 |
1 | ||
| 23070-36010 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN MARK 23070-36010 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31080 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
1 | ||
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-31330 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31010 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
2 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
2 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN |
2 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-26080 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-26040 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-26040 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-33150 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90301-08019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 5(1902- )GRH30#,32#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-26A50 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77252F - TUBE, FUEL MAIN, REAR | ||||
| 77252-26180 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-26140 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-26090 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77266-26100 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-26120 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-26020 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..GEN;GRH303..RHD..GEN;GRH301,304,32#..GCC,GEN |
4 | ||
| Linked diagrams | ||||
| 2211 | ||||

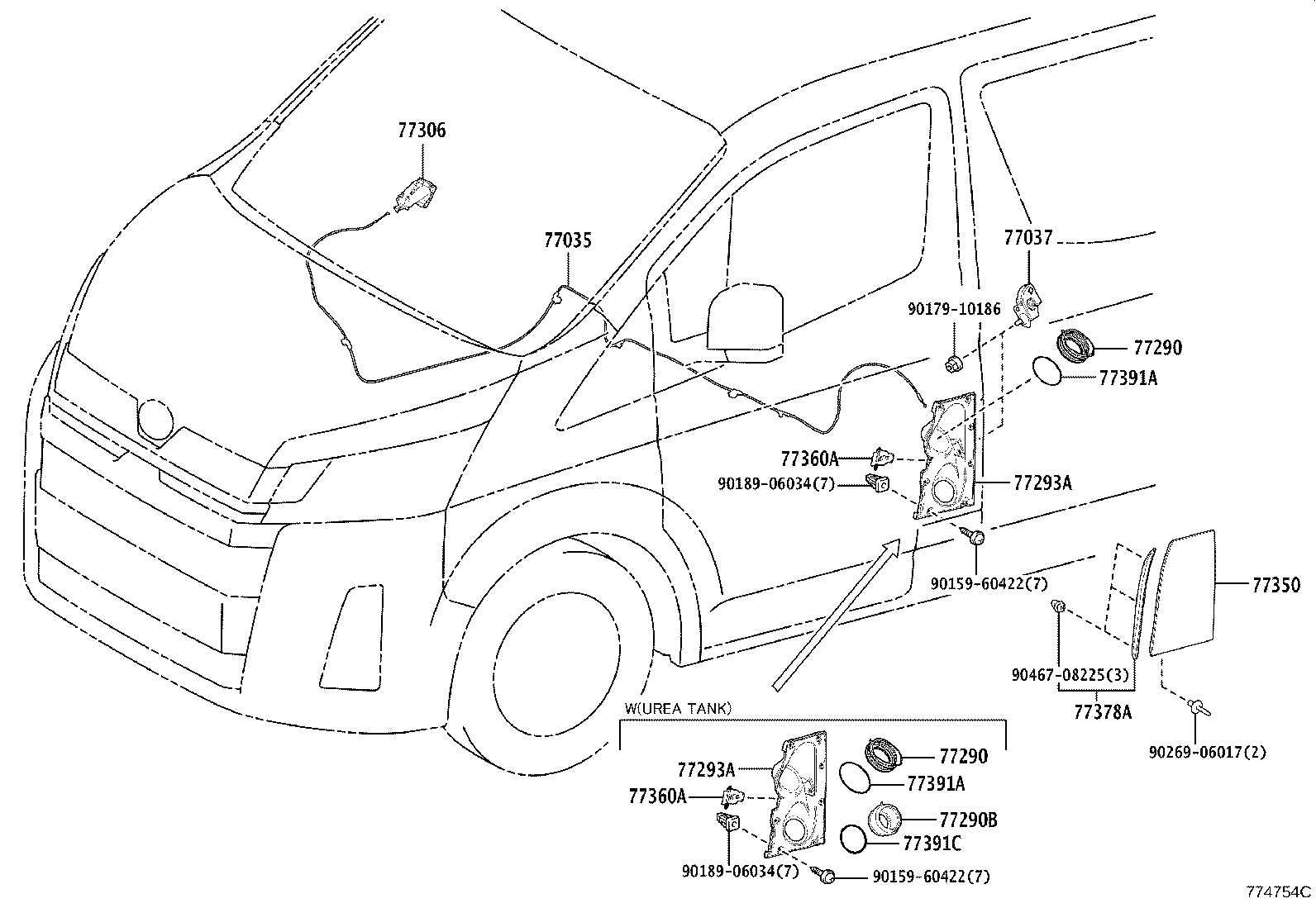

ILLUST NO. 5 OF 5(1902- )RHD
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-26160 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,GRH301,304,322..RHD;GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 77035-26170 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD..(GCC,GEN,PH) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-26040 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-26040 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-58020C1 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-26060 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77399-26010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| Common parts | ||||
| 90159-60422 | ||||
| 90179-10186 | ||||
| 90189-06034 | ||||
| 90269-06017 | ||||
| 90467-08225 | ||||
ILLUST NO. 3 OF 5(1902- )
FUEL TANK BAND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26110 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26110 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26110 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300,GRH321..LHD..6F;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ) |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-26040 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH) |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-26040 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH) |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-26040 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH) |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
4 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77616-68010 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH) |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77616-68010 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH) |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77616-68010 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..(GEN,NZ,TH) |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-71010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-71010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-71010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
