GRH300R-GBTDH (2019)
Toyota Hiace

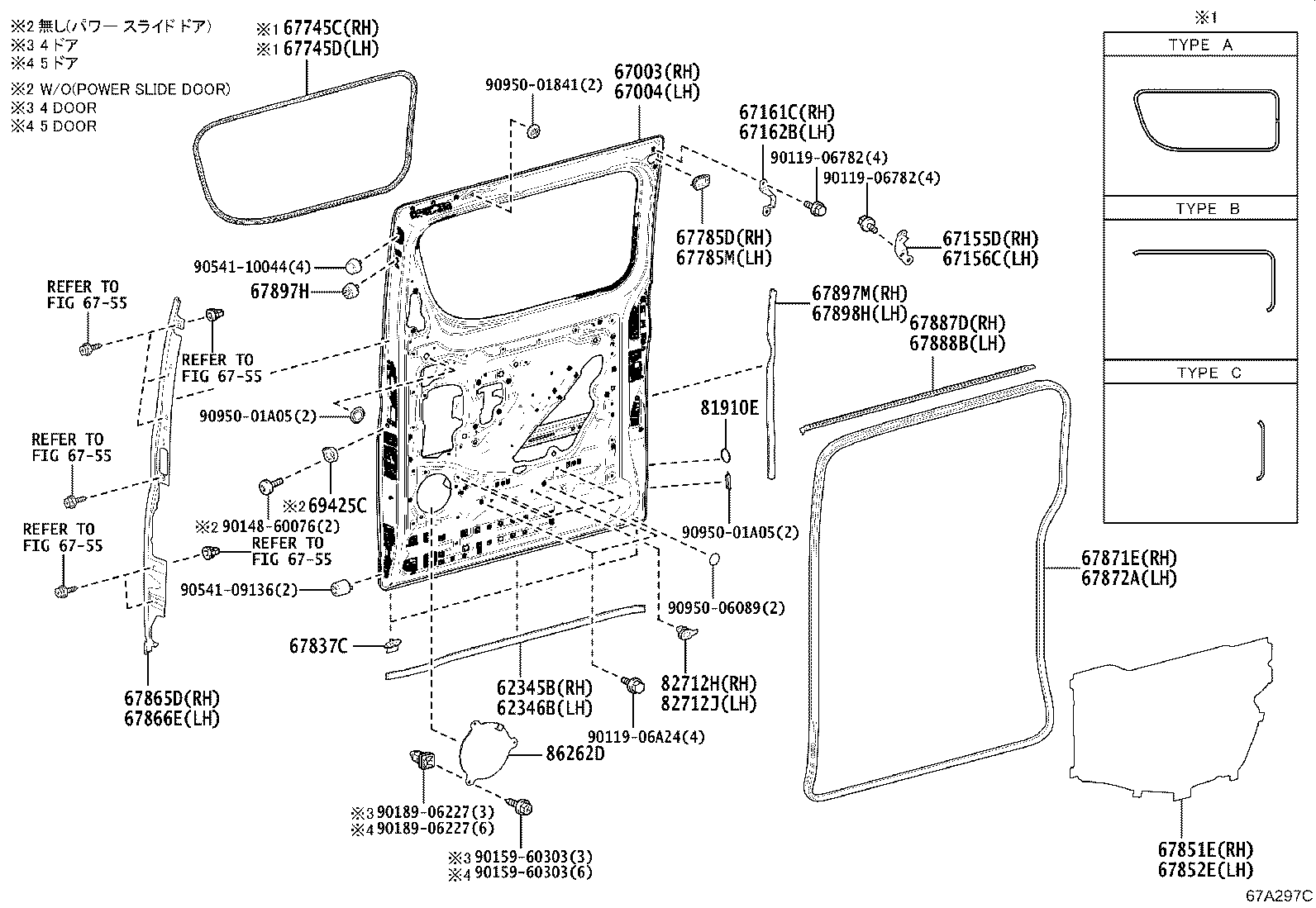

ILLUST NO. 1 OF 2(1902- )GDH30#,GRH30#
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-26790 |
GDH300,GRH300..RHD..SP REAR SIDE GLASS(LH)-FIXED(UV CUT, GREEN) |
1 | ||
| 67004-26870 |
GRH300..5D..GEN;GDH300,GRH300..RHD..SP |
1 | ||
| 67004-26791 |
GRH300..6FC..GEN;GDH300..RHD..5D..SP;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH) REAR SIDE GLASS(LH)-FIXED(UV CUT, GREEN) |
1 | ||
| 67004-26871 |
GRH300..6FC..GEN;GDH300..RHD..5D..SP;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 67745C - MOULDING, REAR DOOR TRIM, RH | ||||
| 67745-26040 |
GDH300..LHD..SP;GRH300..SP..GCC;GRH300..4D..6F..GEN REAR SIDE GLASS(RH)-FIXED(UV CUT, GREEN),TYPE A |
1 | ||
| 67745D - MOULDING, REAR DOOR TRIM, LH | ||||
| 67745-26040 |
GDH300..RHD..5D..SP;GDH300..4D..6FC..ARL;GDH300,GRH300..RHD..4D..(GEN,TH) REAR SIDE GLASS(LH)-FIXED(UV CUT, GREEN),TYPE A |
1 | ||
| 67785M - COVER, REAR DOOR TRIM, UPPER LH | ||||
| 67785-26010 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-48050 |
GDH321..D;GDH321..N..GEN;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH300,320..4D..6FC;GDH322..LHD..(P,Q)..GEN;GDH300,320..4D..6F..(GEN,TH);GDH301,328,GRH300,301,32#..4D..(GCC,GEN,NZ,PH,TH) |
2 | ||
| 67852E - COVER, SLIDE DOOR SERVICE HOLE, LH | ||||
| 67852-26020 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..RHD..4D..D..(GEN,NZ,TH) |
1 | ||
| 67871E - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 67871-26060 |
GRH303..LHD..J;GDH300..LHD..6F;GRH300..6F..GCC;GDH300..RHD..5D;GRH303..RHD..GEN;GDH303,304,GRH304;GRH300..4D..6F..GEN;GDH300..LHD..6FC..GEN;GDH301,306,GRH301..LHD |
1 | ||
| 67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 67872-26060 |
GDH303,304;GDH306..LHD;GRH303..LHD..J;GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..GEN;GDH300,GRH300..6F..(GCC,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 67887D - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-26040 |
GRH303..LHD..J;GDH300..LHD..6F;GRH300..6F..GCC;GDH300..RHD..5D;GRH303..RHD..GEN;GDH303,304,GRH304;GRH300..4D..6F..GEN;GDH300..LHD..6FC..GEN;GDH301,306,GRH301..LHD |
1 | ||
| 67888B - WEATHERSTRIP, SLIDE DOOR, NO.2 LH | ||||
| 67888-26040 |
GDH303,304;GDH306..LHD;GRH303..LHD..J;GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..GEN;GDH300,GRH300..6F..(GCC,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 67897H - CUSHION, REAR DOOR | ||||
| 90541-09134 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 69425C - CUSHION, SLIDE DOOR STOP | ||||
| 69425-26011 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 81910E - REFLECTOR ASSY, REFLEX | ||||
| 81910-21030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82712H - SUPPORT, WIRING HARNESS | ||||
| 82712-60550 |
GDH300..LHD..SP;GRH300..SP..GCC;GRH300..4D..6F..GEN REAR SIDE GLASS(RH)-FIXED(UV CUT, GREEN) |
4 | ||
| 82712J - SUPPORT, WIRING HARNESS | ||||
| 82712-60550 |
GRH300..6FC..GEN;GDH300..RHD..5D..SP;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH) REAR SIDE GLASS(LH)-FIXED(UV CUT, GREEN) |
4 | ||
| 86262D - COVER, REAR DOOR SPEAKER | ||||
| 86262-47010 |
GDH300..4D..6FC;GDH300..4D..6F..(GEN,TH);GDH301,GRH300,301..4D..(GEN,NZ,TH) |
1 | ||
| Common parts | ||||
| 90119-06782 | ||||
| 90119-06A24 | ||||
| 90148-60076 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90541-09136 | ||||
| 90541-10044 | ||||
| 90950-01841 | ||||
| 90950-01A05 | ||||
| 90950-06089 | ||||
| Linked diagrams | ||||
| 6755 | ||||

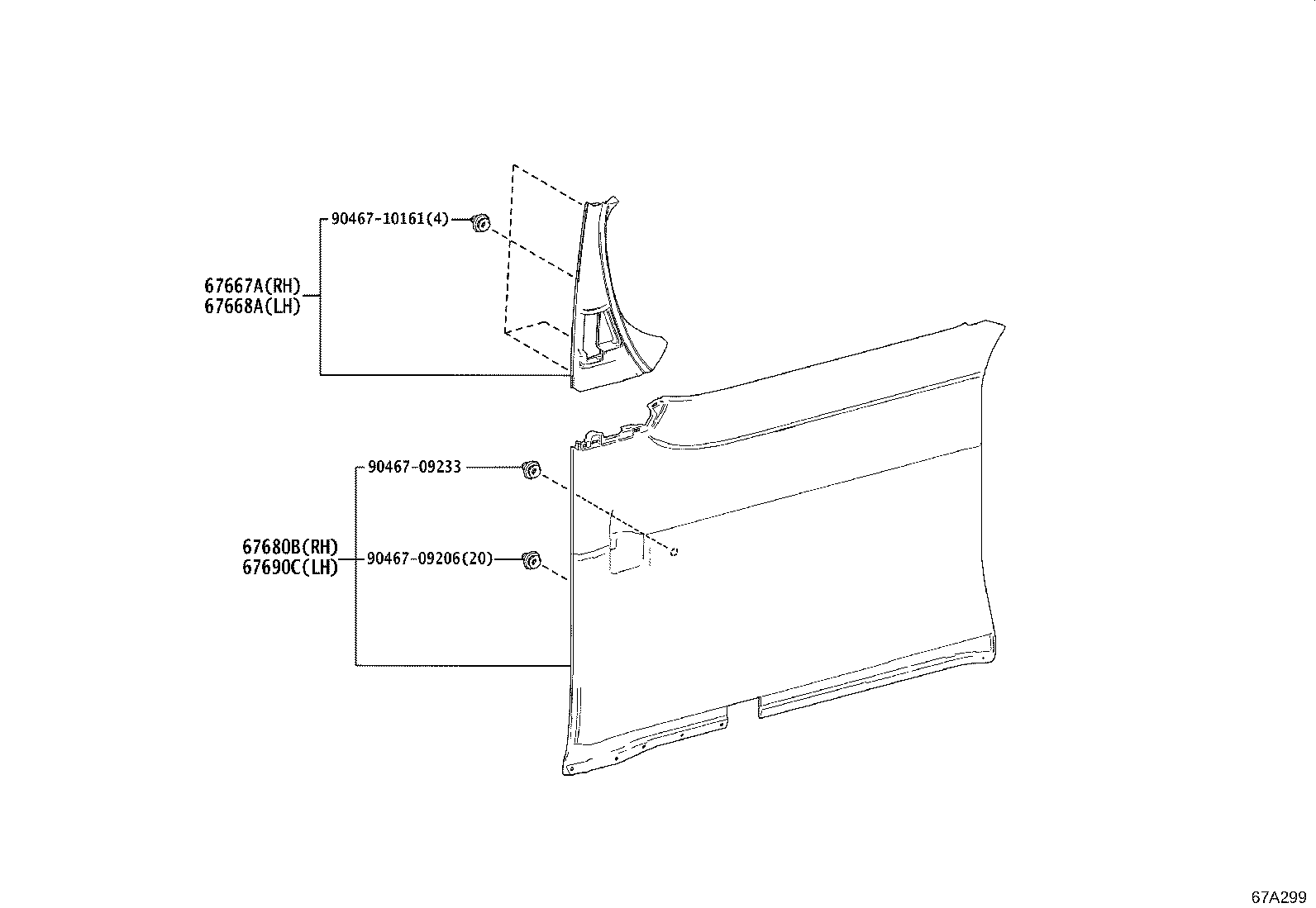

ILLUST NO. 2 OF 2(1902- )GDH300,301,GRH300,301
DOOR TRIM(MOLDED DOOR TRIM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-09206 | ||||
| 90467-09233 | ||||
| 90467-10161 | ||||
ILLUST NO. 2 OF 2(1902- )
DOOR TRIM(BOARD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67614-26180 |
GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GRH300..(SG,SP)..GCC;GDH300,GRH300..RHD..4D..(GEN,TH) |
1 | ||
| 67604B - CLIP(FOR SLIDE DOOR TRIM BOARD) | ||||
| 67771-26261E1 |
GDH300..4D..6FC;GRH300..4D..GEN;GDH300..4D..6F..(GEN,TH) OCHER,TRIM1# |
20 | ||
| 67772F - CAP, REAR DOOR TRIM RETAINER | ||||
| 67772-26041 |
GDH300..4D..6FC;GDH300..4D..6F..(GEN,TH);GDH301,GRH300,301..4D..D..(GEN,NZ,TH) |
20 | ||
